項目名稱：

西安市長安區皂河濱水廊道規劃
項目地點：

陜西省西安市長安區
項目規模：

12.7ha
設計公司：

中國電建集團西北勘測設計研究院有限公司
委托方：

西安市長安城鄉建設開發有限公司
建成時間：

2020
圖片來源：

中國電建集團西北勘測設計研究院有限公司

源起：黑臭河的污名

Background: the stigma of the black-odorous river

皂河，在西漢《上林賦》中為“八水繞長安”中的“八水”之一。后因潏河改道使其成為“無源之河”，在“八水”中的地位也由潏河取代，皂河便承擔起了西安南郊、西郊、北郊的排污及排洪職責。長期的工業廢水和生活污水排放，使得皂河水質逐漸惡化，河流生態系統也受到了極大破壞。同時隨著城市的開發建設，城區內的皂河逐漸被綠化帶、城市道路、建構筑物等所覆蓋，成為一條地下暗河。河道淤積嚴重，黑臭現象突出。

Zao River is one of the “Eight Rivers of Chang’an” described in Chinese historical literature. After Jue River diverted, Zao River became a river without a source and the status in the “Eight Rivers” was replaced by Jue River. In that case, Zao River assumed the responsibility of sewage and flood discharge in the southern, western and northern suburbs of Xi’an. The long-term discharge of industrial wastewater and domestic sewage has gradually deteriorated the water quality of Zao River, and the river ecosystem has also been greatly damaged. At the same time, with the development and construction of the city, the urban area of Zao River is gradually covered by urban roads, road green belts, buildings, etc., becoming an underground river. The river is heavily silted, and the pollution is prominent.

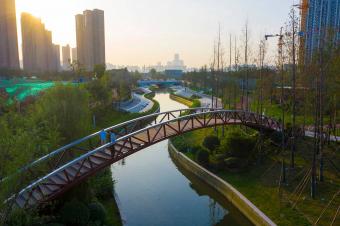

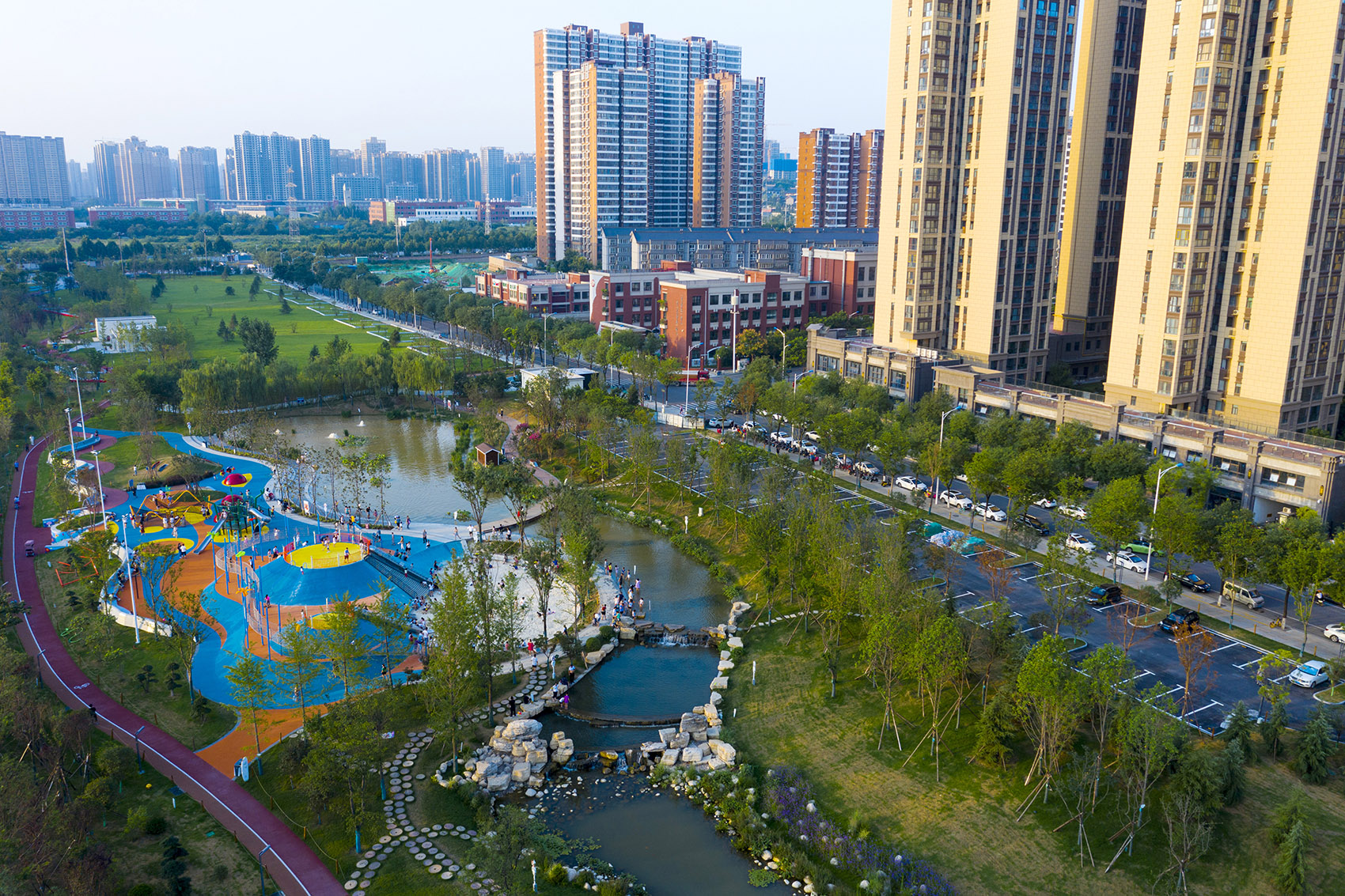

^{▲局部鳥瞰效果，Partial bird’s eye view renderings ?中國電建集團西北勘測設計研究院有限公司}

2018年11月，中央生態環境保護督察組指出“西安皂河黑臭水體整治一蓋了之，長安段截污管道建設敷衍應對”等問題。2019年3月，《皂河三年專項整治計劃實施方案（2018-2020年）》正式印發，對皂河進行系統性全流域綜合整治。

^{In November 2018, the Central Ecological and Environmental Protection Supervision Group pointed out that the black-odorous water of Zao River has been covered up and the construction of the sewage removal pipeline in Chang’an section has been perfunctory response. In March 2019, the Implementation Plan of Zao River Three-Year Special Regulation Plan (2018-2020) was officially issued, which aims to carry out systematic and comprehensive improvement of Zao River.}

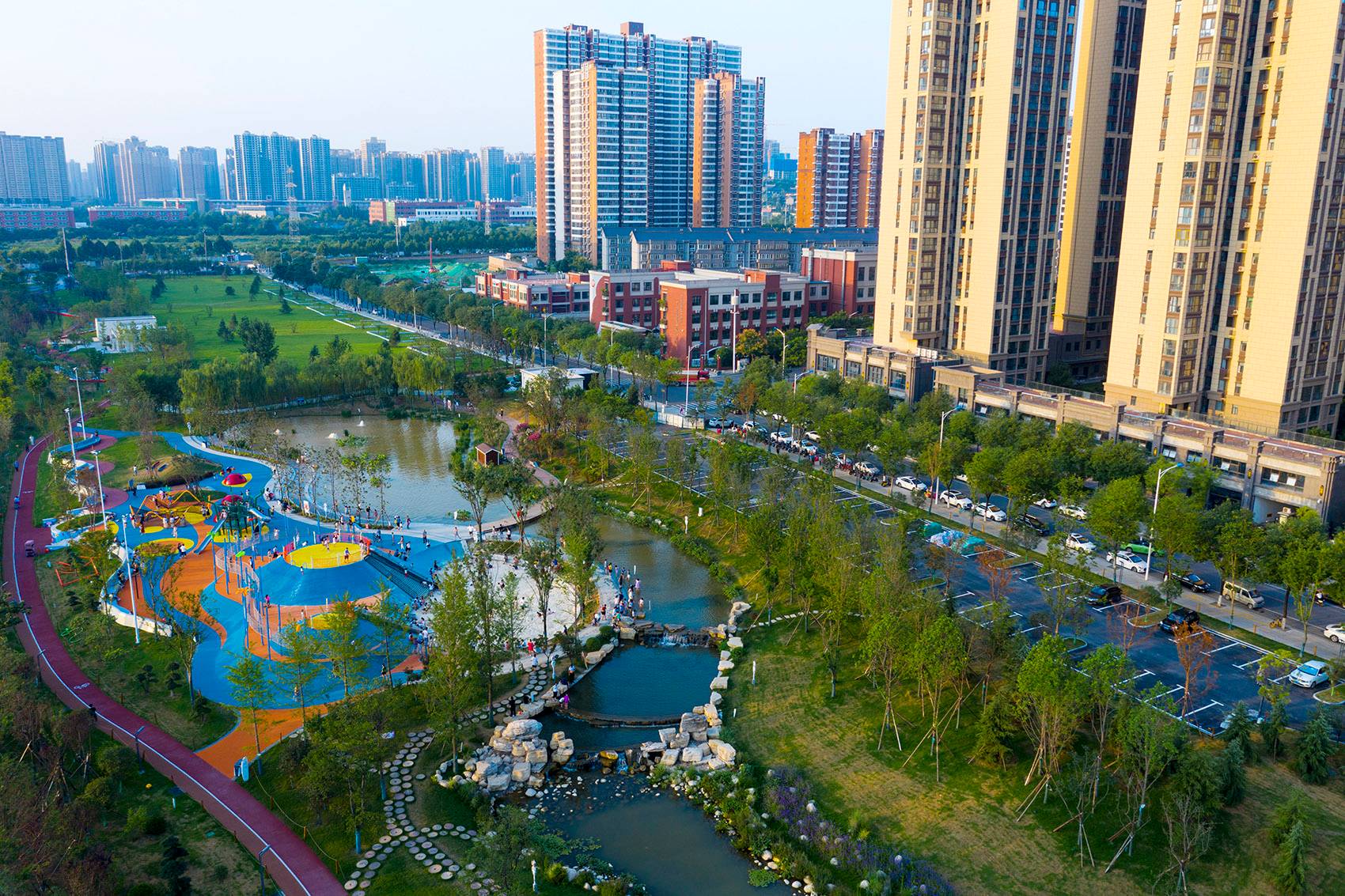

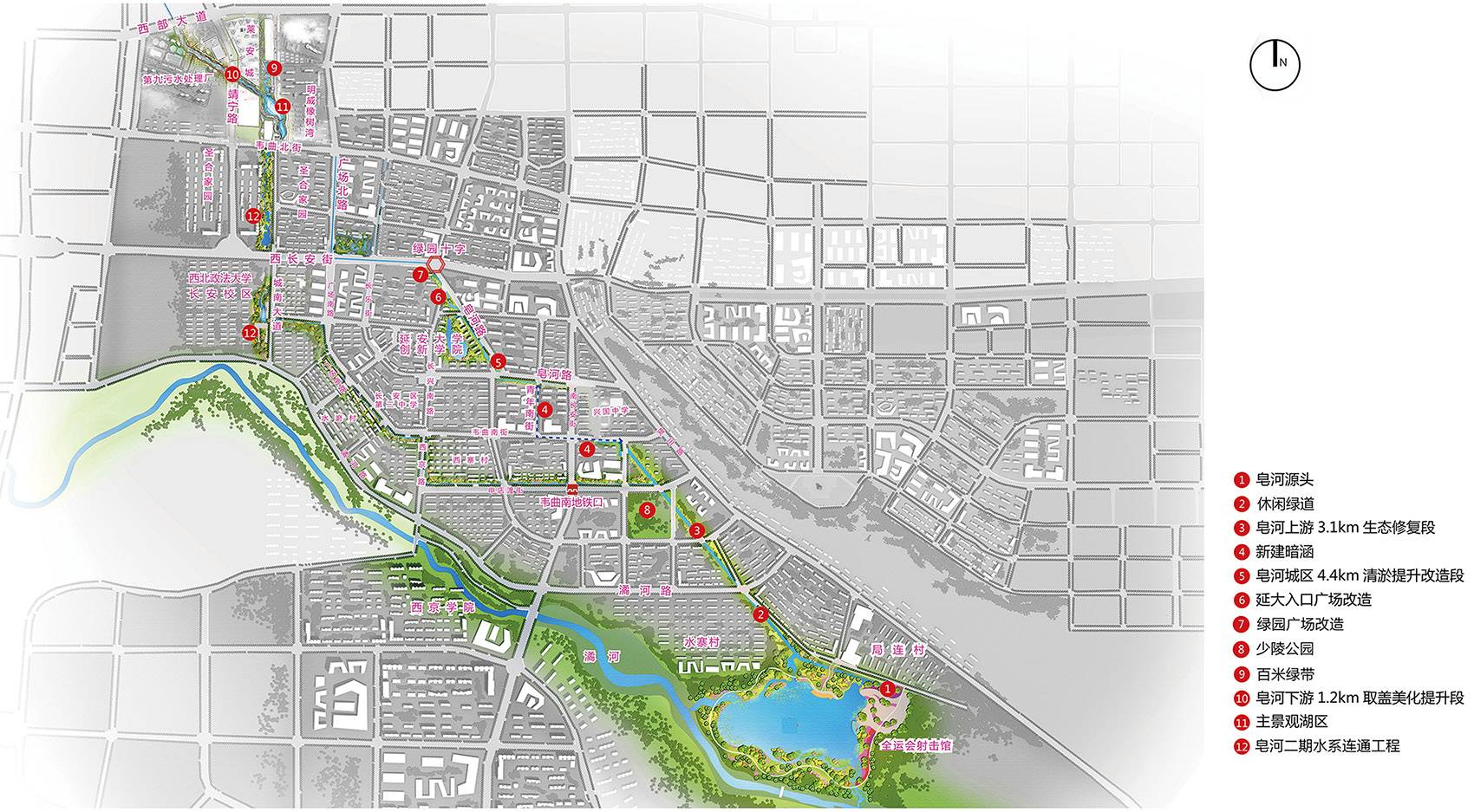

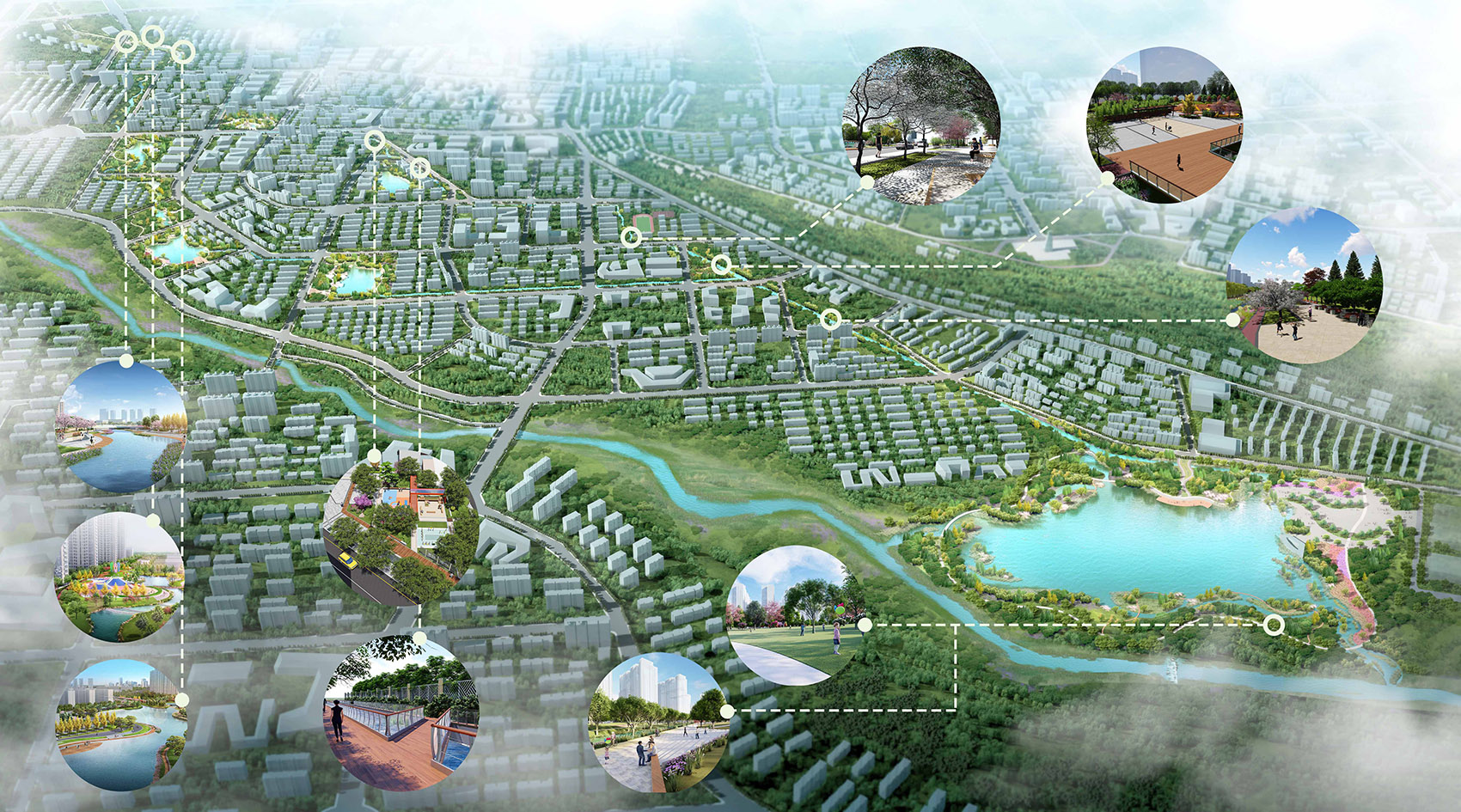

^{▲項目總體概覽，Project overview ?中國電建集團西北勘測設計研究院有限公司}

現狀與挑戰：城市與河流如何相融相生

Site and Challenges: How do cities and rivers blend together

根據存在問題及現狀特征將皂河長安段分為三部分：東南部的上游段靠近源頭，周邊多為村鎮，河道現狀為干涸的硬質排澇渠，兩岸植被生長凌亂，景觀單一；城區段位于老城區，河道多被城市建設侵占，且道路狹窄，公共活動空間缺失；西北部的下游段由于排污導致水體黑臭現象嚴重，已經影響到了周邊居民的正常生活，“一蓋了之”的消極處理手段無法從根本上解決污染問題，也已經無法隱藏問題的嚴重性。這條見證了西安古都朝代更替的古老河流，該怎樣適應現代化城市的發展，又將如何重新融入人們的生活？

^{According to the existing problems and site characteristics, the Chang’an section of Zao River is divided into three parts. The upstream section is close to the source, and the surrounding areas are mostly villages and towns. The current situation of the river is a dry hard drainage canal, with disorderly growth of vegetation on both sides and a single landscape. The urban section is in the old urban district where the river has been encroached upon by urban construction, the road is narrow and there is no space for public activities. In the downstream section, the pollution of the water is severe due to sewage discharge, which has affected the surrounding residents. The negative treatment method can no longer hide the seriousness of the problem. How should this ancient river that has witnessed the dynasty change of Xi’an adapt to the development of a modern city and reintegrate into people’s lives?}

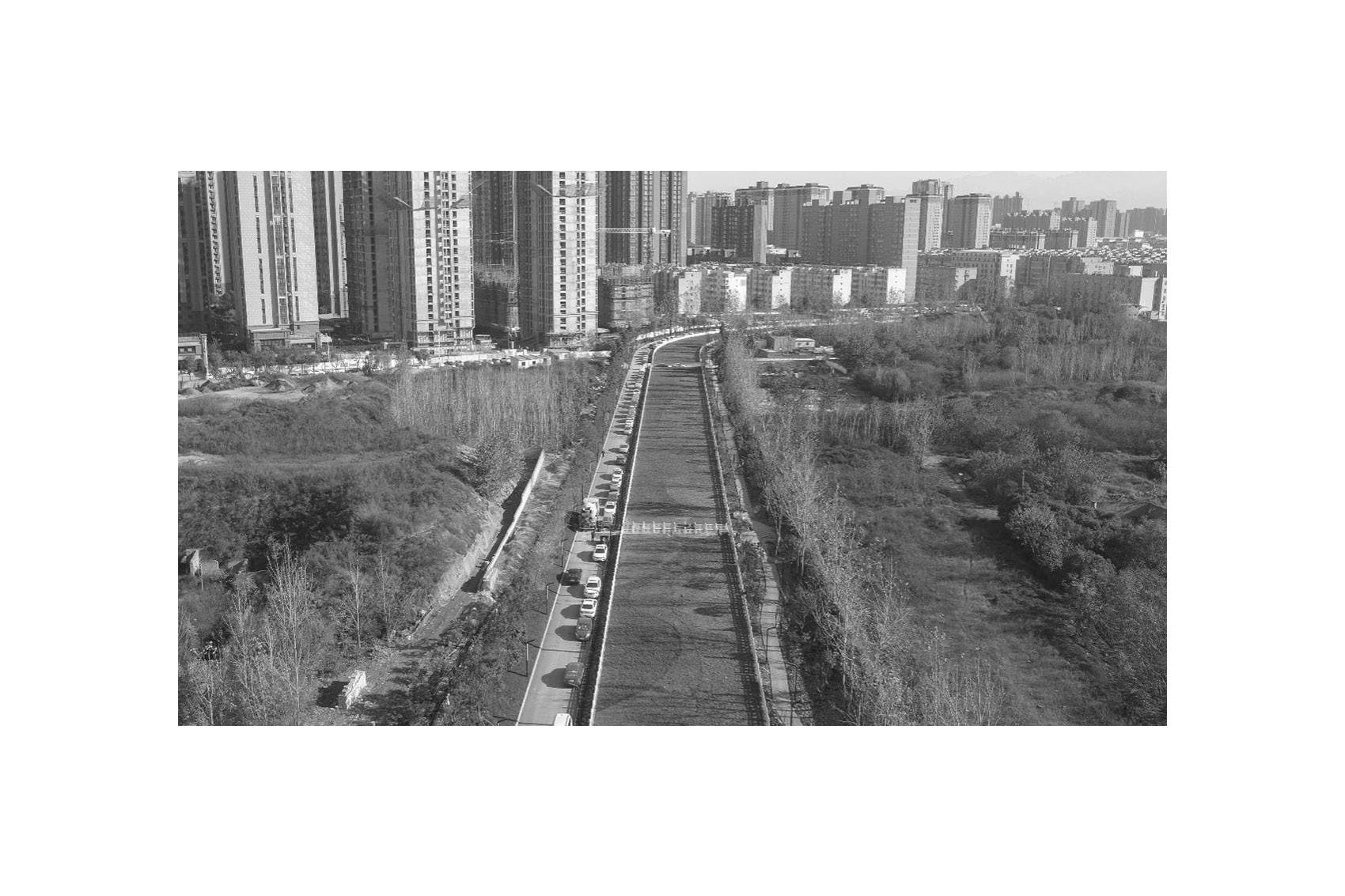

^{▲改造前后環境對比，contrast of the environment before and after renovation ?中國電建集團西北勘測設計研究院有限公司}

設計目標與策略：從城市排污河到生態景觀河，構建城市綜合性的藍綠基礎設施

Objectives and Design Strategies: From urban sewage river to ecological landscape river, building a comprehensive urban blue-green infrastructure

本方案將統籌規劃河流廊道系統、綠道系統、植物生境系統，均衡布局公園綠地，通過生態護岸改造、拓展綠色空間，建設城市生態廊道、生態體驗區，形成城市綠色生態網絡。塑造一處集生態涵養、文化傳承、親近自然、漫步休閑為一體的CEAD（中央生態活力區），創造一個長安區城市未來發展的新地標、新名牌。

^{This plan will make overall plans for the river corridor system, greenway system and plant habitat system, balance the layout of parks and green spaces. Expand green space and build urban ecological corridors and ecological experience areas through revetment renovation, urban greening and other measures, forming the urban green ecological network. Create a CEAD (Central Ecological Active District) that integrates ecological conservation, cultural heritage, closeness to nature, strolling and leisure, and create a new landmark for the future development of Chang’an District.}

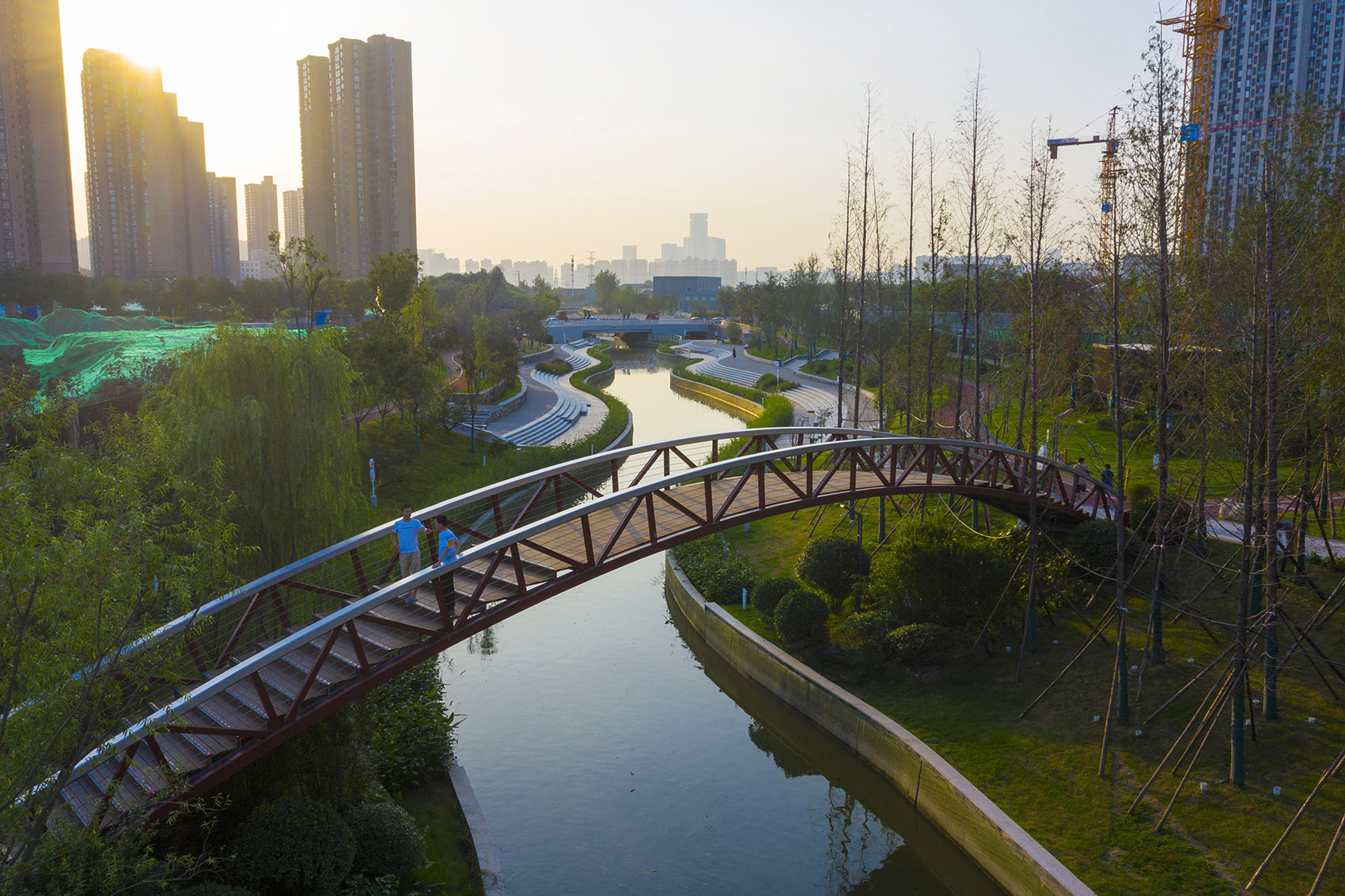

^{▲改造后的空間概覽，不僅是一條河流廊道，更是連接城市中人與人的紐帶，讓人們?cè)诖诵蓓徽劇⑿蓍e健身、家庭交流，在這里重建社區溫度 Overall view of the space after renovation. It is not only a river corridor, but also a link between people in the city. Allowing people to have a rest and talk, enjoy leisure and fitness, communicate with family, and rebuild the community temperature here. ?中國電建集團西北勘測設計研究院有限公司}

下游段周邊用地多為住宅小區、學校。該段通過揭除蓋板、拆除原有漿砌石硬質護岸，將河道整體拓寬，打造多種生態復式駁岸，同時結合多層臺階、戲水廣場、水中劇場的設計，打造可參與互動的水生態活力區。

^{The surrounding land of the downstream section is mostly residential communities and schools. The main renovation measures for this section are to remove the cover plate, dismantle the original revetment of masonry, widen the river channel and transform it into a variety of ecological duplex sections. Combined with the design of multi-layer steps, water playing squares and stages, make it being a dynamic area where citizens can participate and interact.}

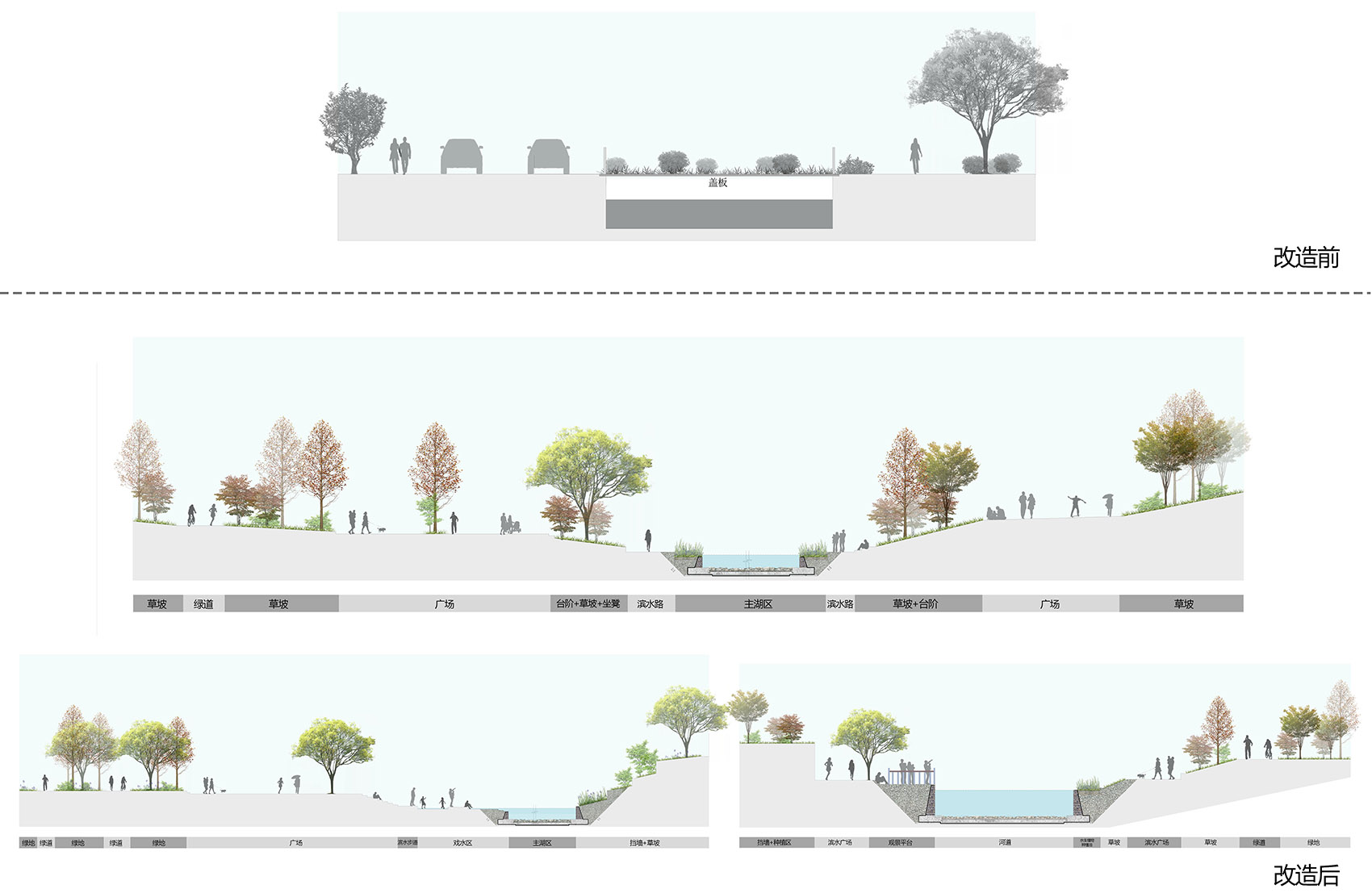

^{▲下游段改造前后示意圖，Diagram before and after renovation ?中國電建集團西北勘測設計研究院有限公司}

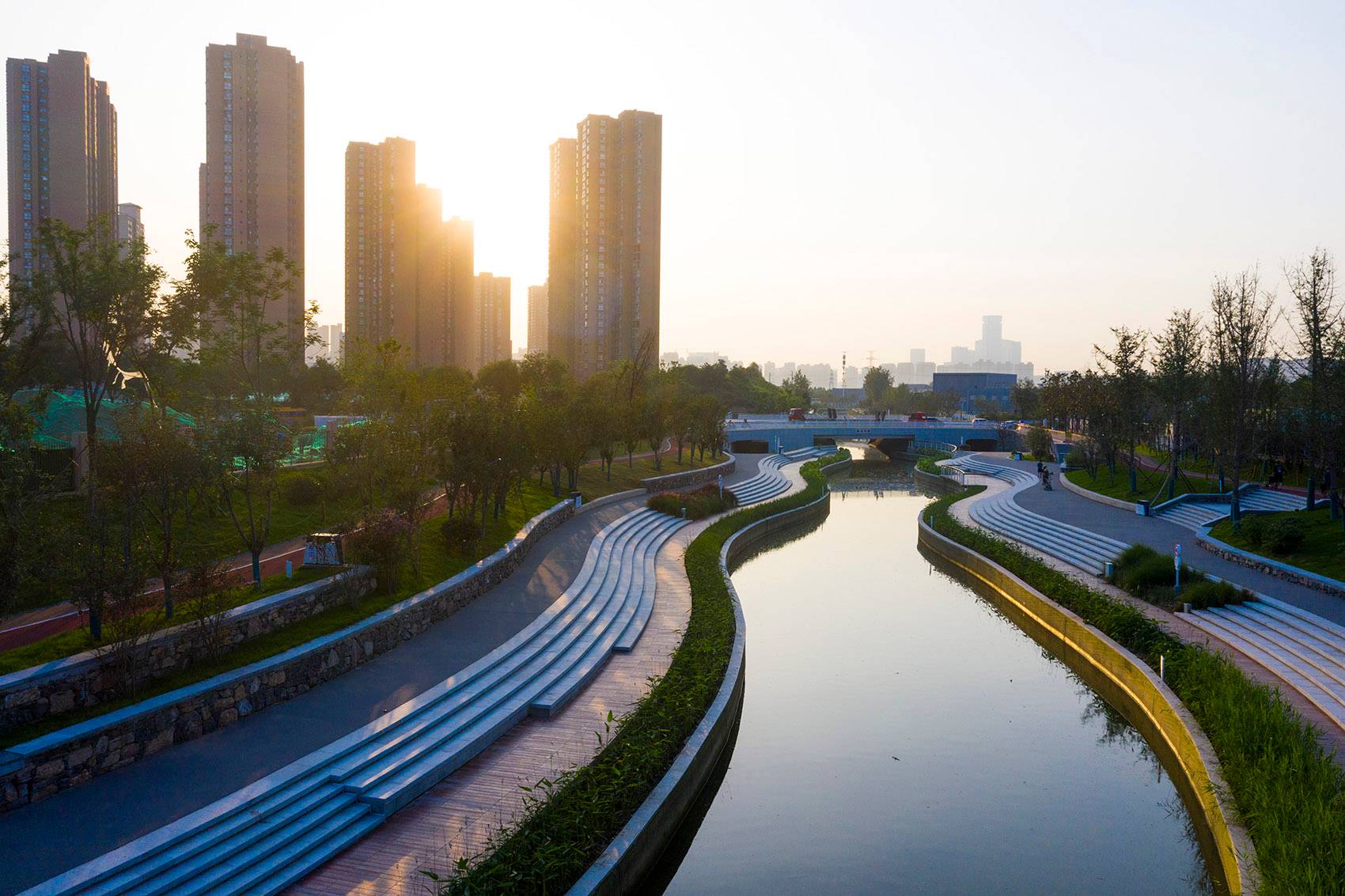

^{▲護岸采用流暢的曲線臺階消化高差，讓原本僵硬筆直的岸線變得富有韻律感，Revetment with smooth curves ?中國電建集團西北勘測設計研究院有限公司}

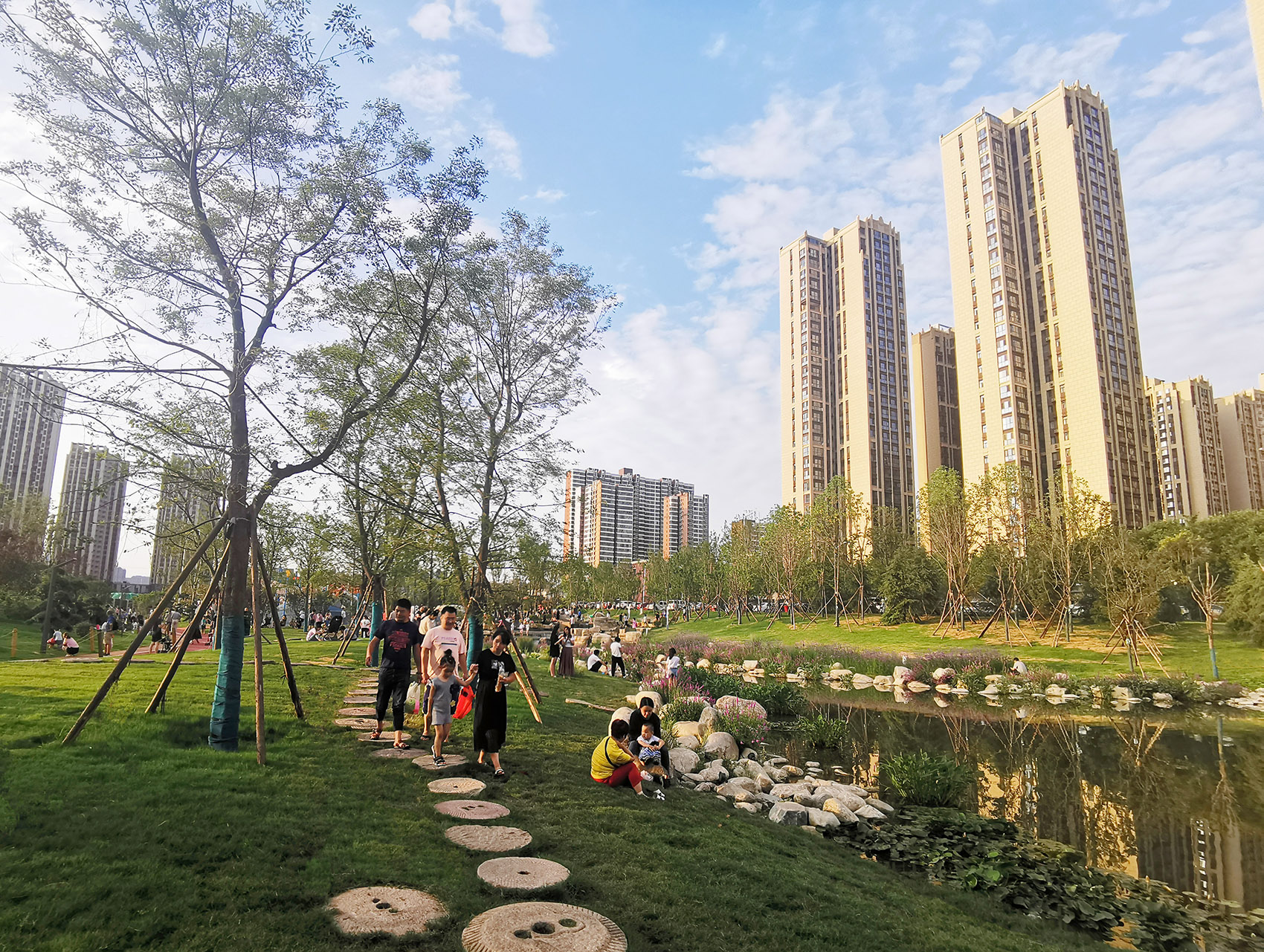

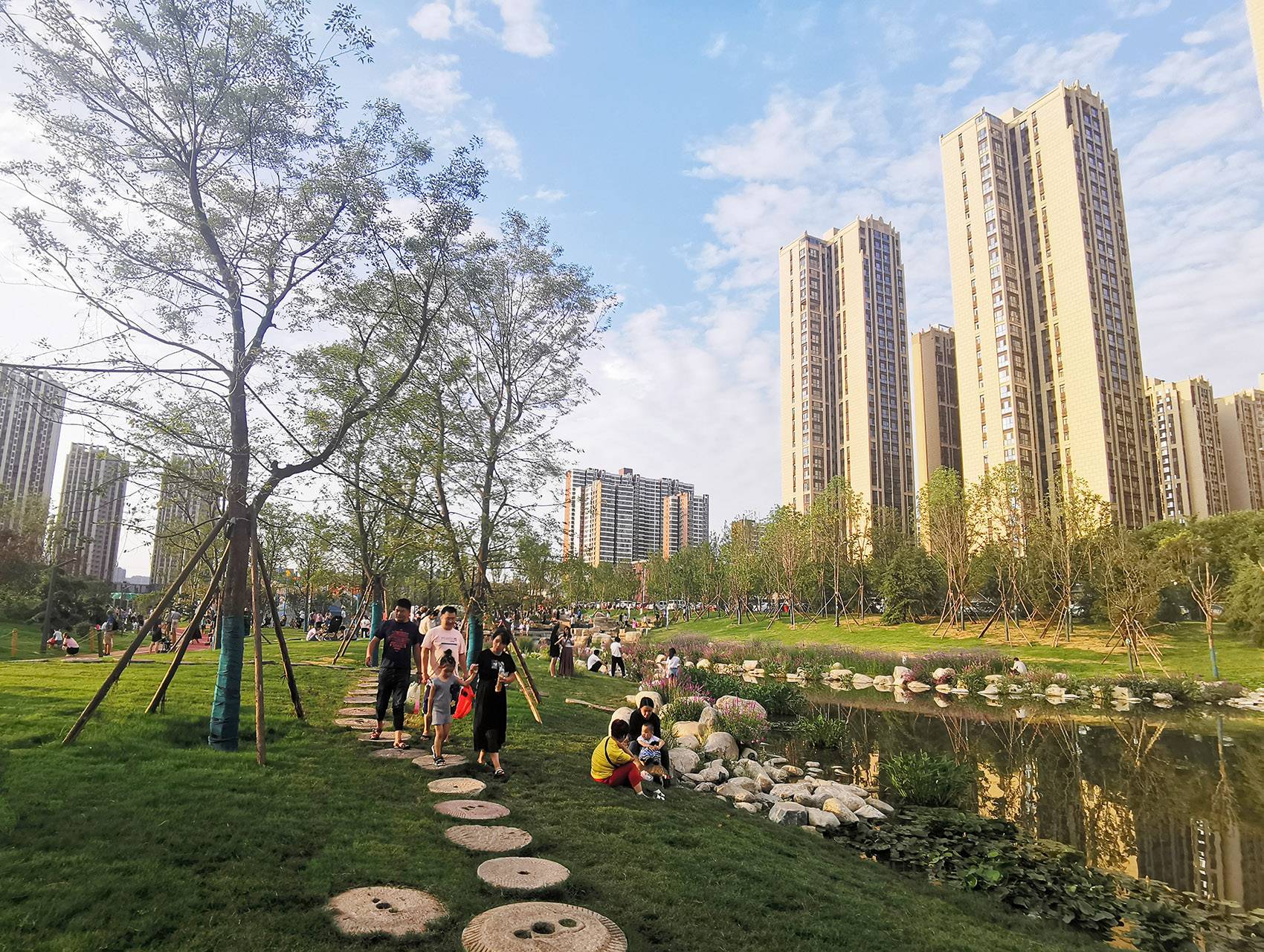

^{▲自然草坡親水空間，natural grass slope space near the river ?中國電建集團西北勘測設計研究院有限公司}

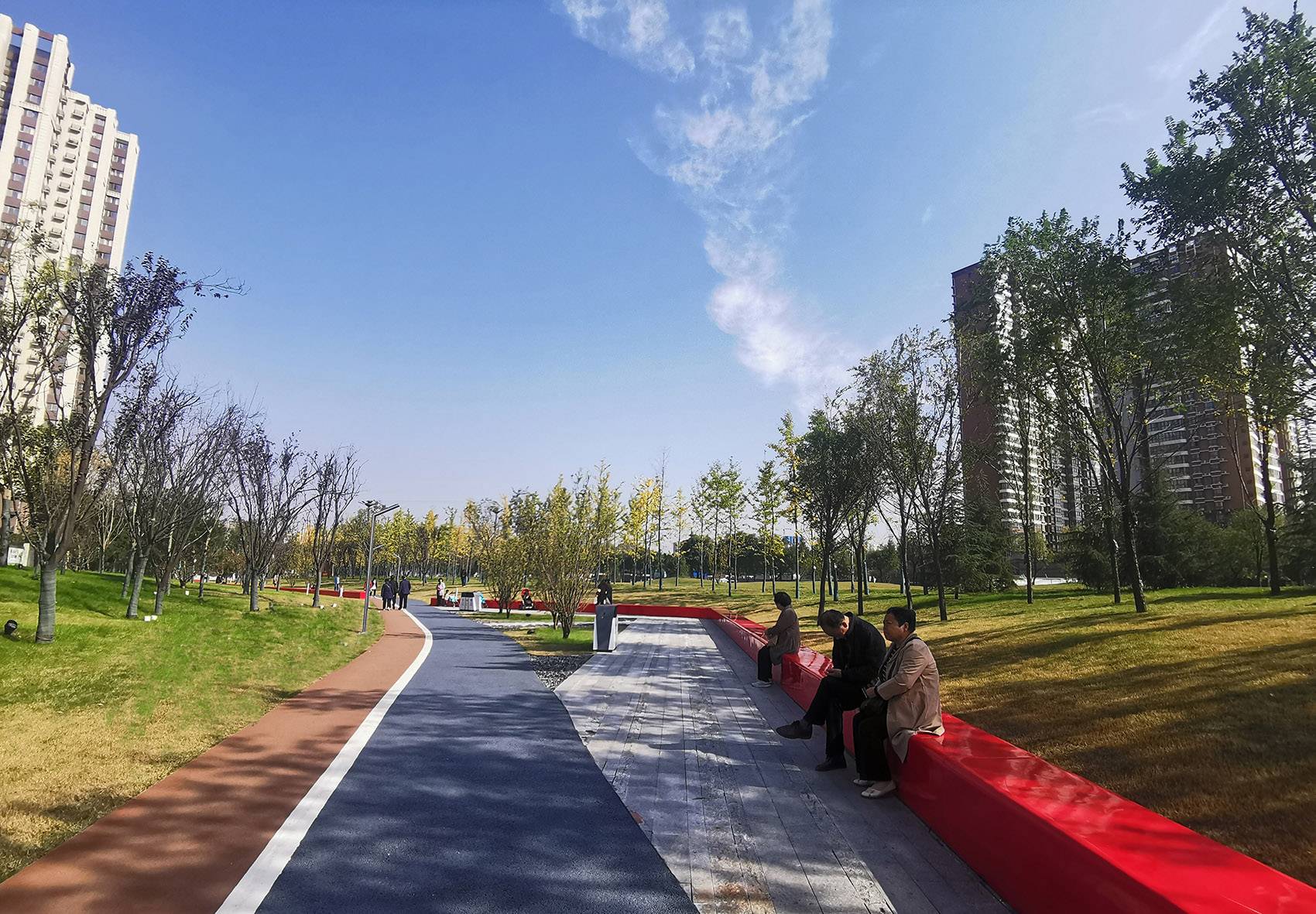

^{▲休閑健身道，the road for exercising ?中國電建集團西北勘測設計研究院有限公司}

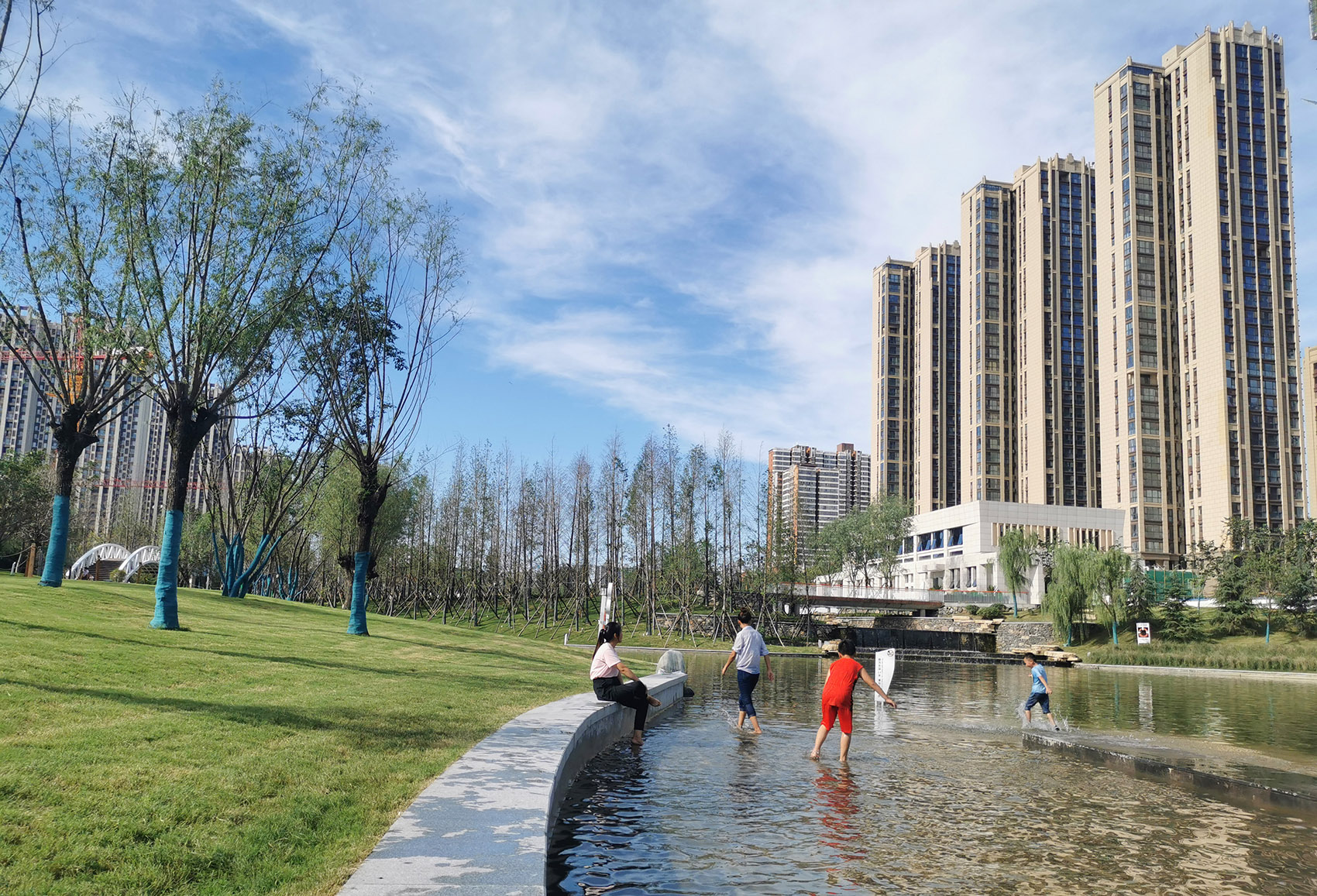

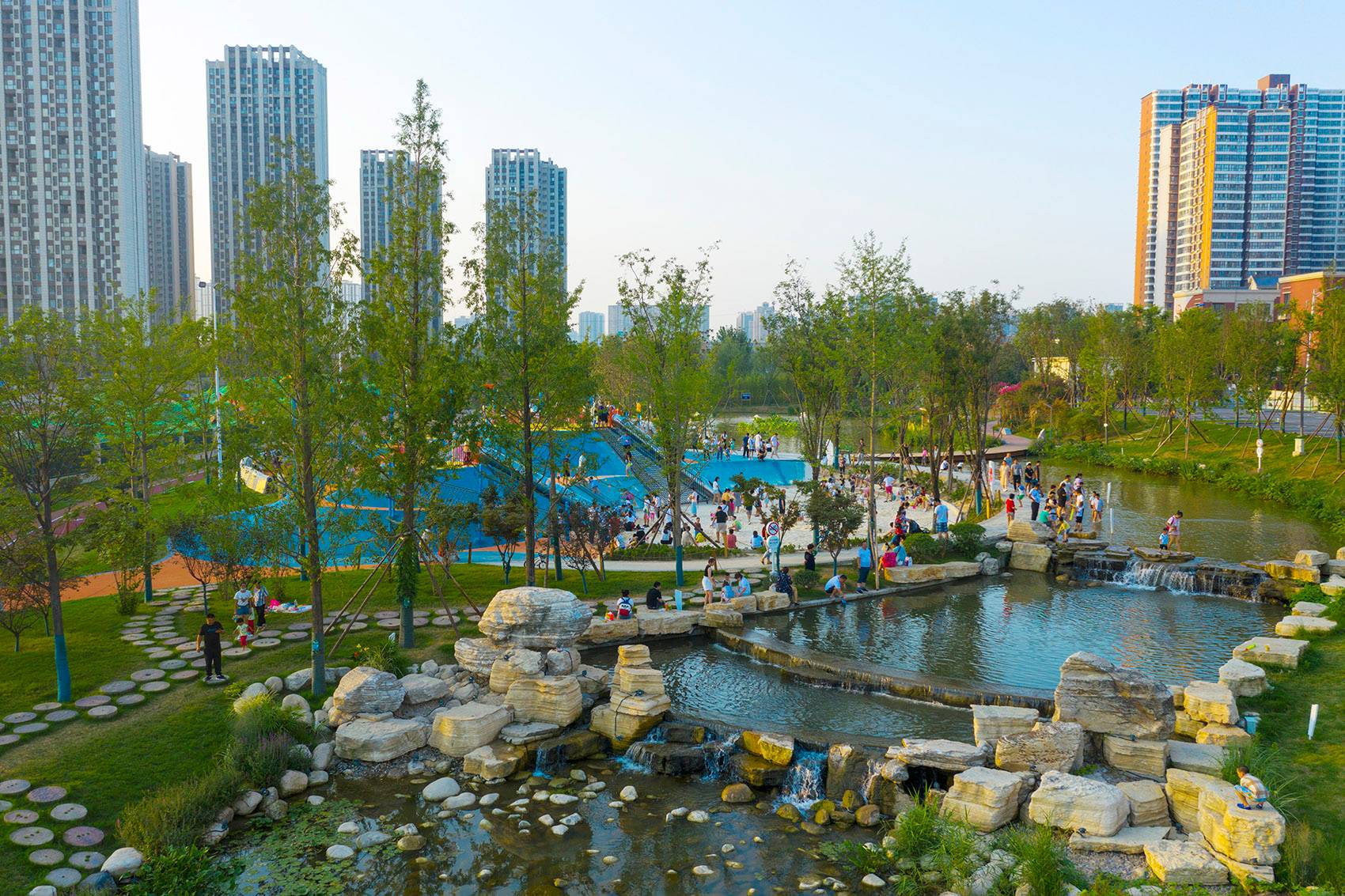

^{▲戲水廣場，waterside recreation area ?中國電建集團西北勘測設計研究院有限公司}

為滿足家庭親子活動的需求，通過百米綠帶、親水活動區、兒童主題活動區的規劃設計為周邊社區提供戶外家庭休閑、互動交流的空間，讓高樓林立的城市中多一處視野開闊、景觀優美、設施完備的城市公共空間。

^{In order to meet the needs of parent-child activities, the planning and design of the 100-meter green belt, water area, and children playground provide the surrounding communities with outdoor family leisure and interactive communication spaces, which also provide an urban public space with broad vision, beautiful landscape and complete facilities.}

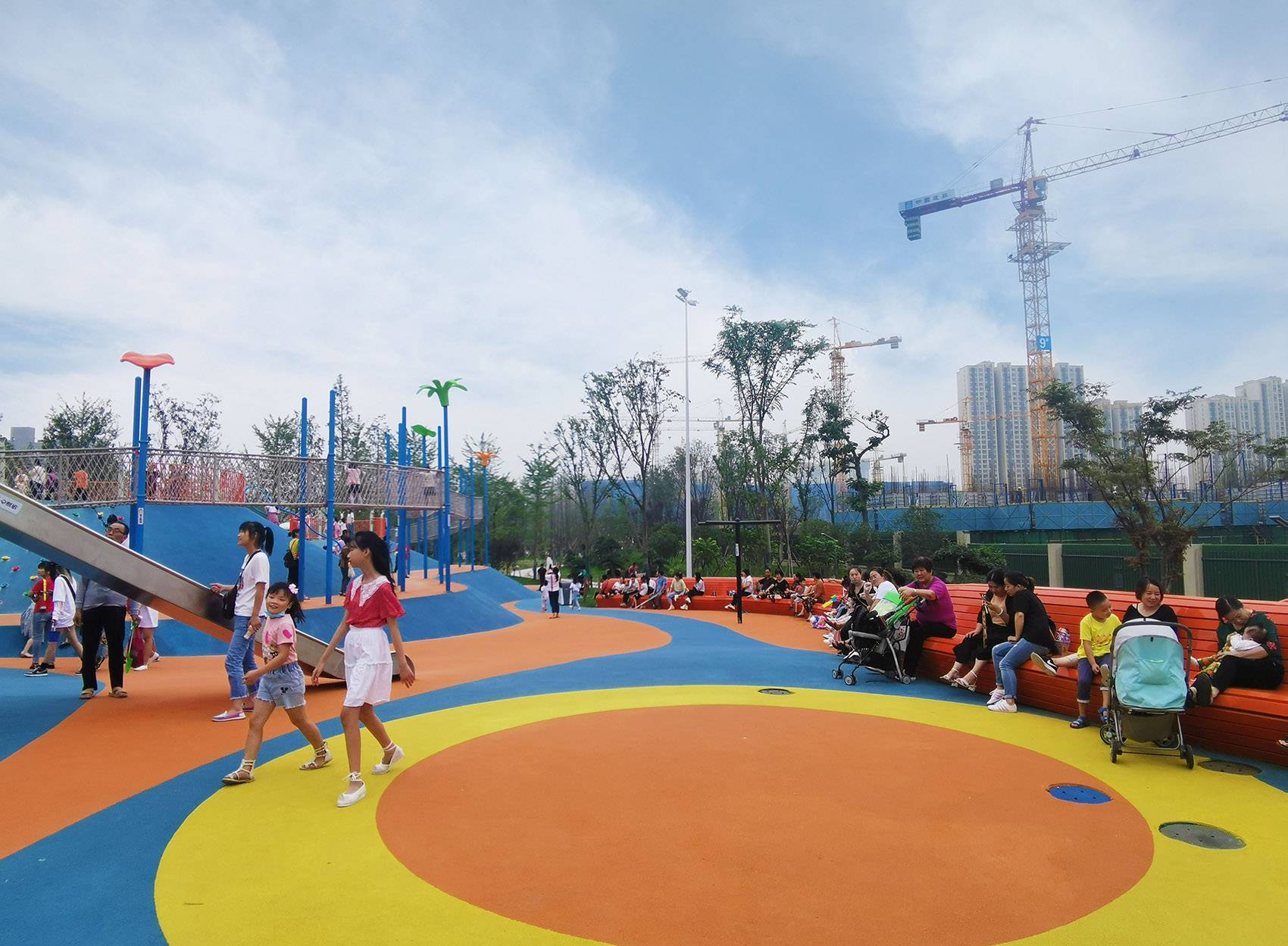

^{▲戶外家庭休閑娛樂的公共空間，outdoor public space for family leisure ?中國電建集團西北勘測設計研究院有限公司}

結語

Conclusion

皂河長安段河道綜合治理是經多專業協同合作最終提出的系統解決方案，通過重建河流廊道生態系統構建多層次服務城市市民的藍綠基礎設施。本案通過景觀設計統籌規劃，將雨洪資源再利用、生態防洪技術、水生態修復技術等相融合，將皂河長安段建設成為集生態治理、科普教育、休閑觀光于一體的水生態活力^{示范區，改善區域人居環境，助力長安區的發展。}

^{The comprehensive river regulation of Zao River Chang’an section is a systematic solution that put forward by multi-professional collaboration and cooperation. It is to build a multi-level blue-green infrastructure serving urban citizens through the reconstruction of the river corridor ecosystem. Through the overall planning of landscape design, this project integrates the reuse of rain and flood resources, ecological flood control technology, water ecological restoration technology, etc., and builds the Zao River Chang’an section into a demonstration area integrating ecological management, science education, leisure and tourism, which will improve the regional human settlements and help the development of Chang’an District.}

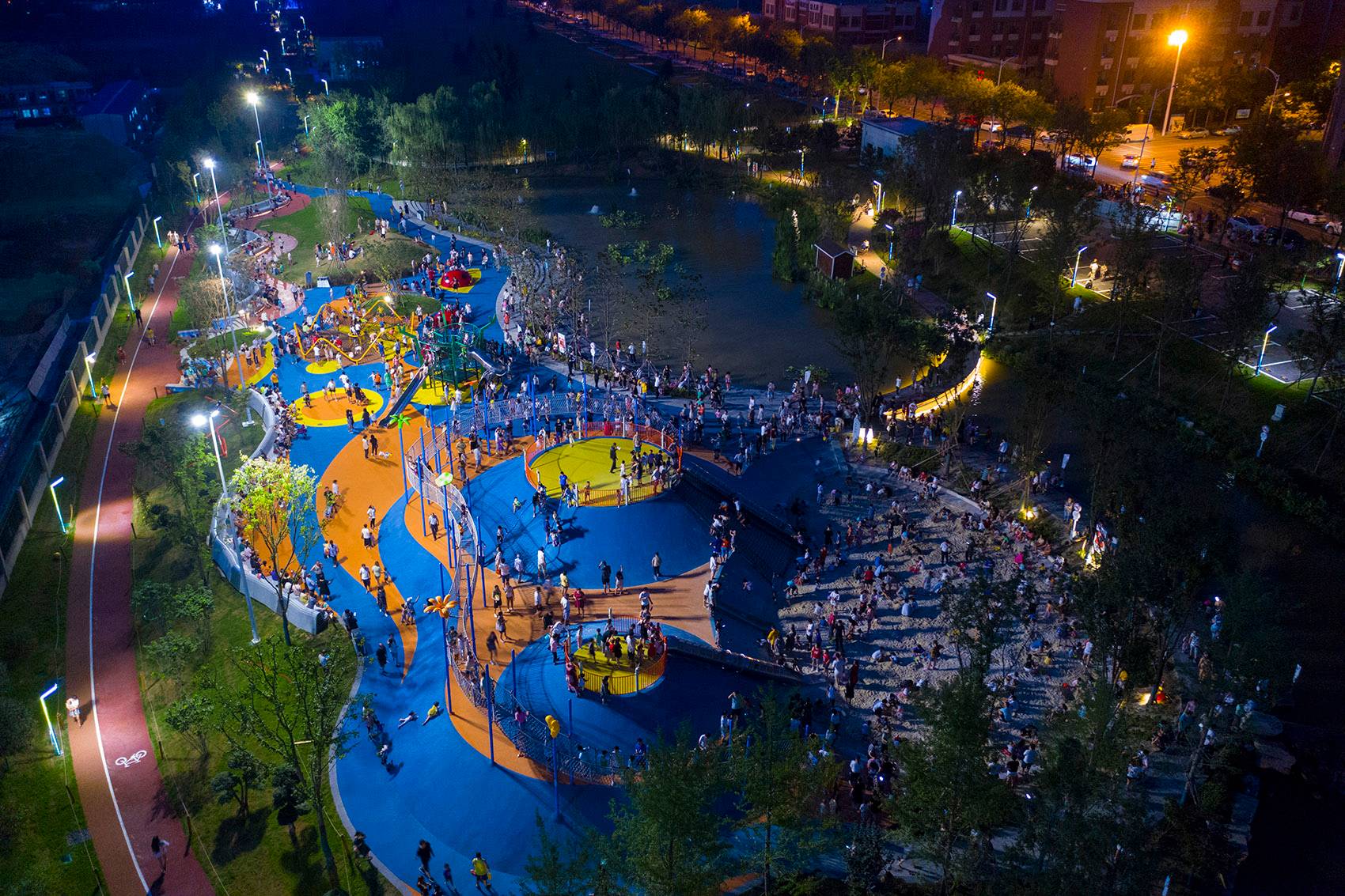

^{▲夜幕降臨也絲毫沒有降低兒童活動區的人氣，The nightfall did not reduce The popularity of the children’s playground ?中國電建集團西北勘測設計研究院有限公司}

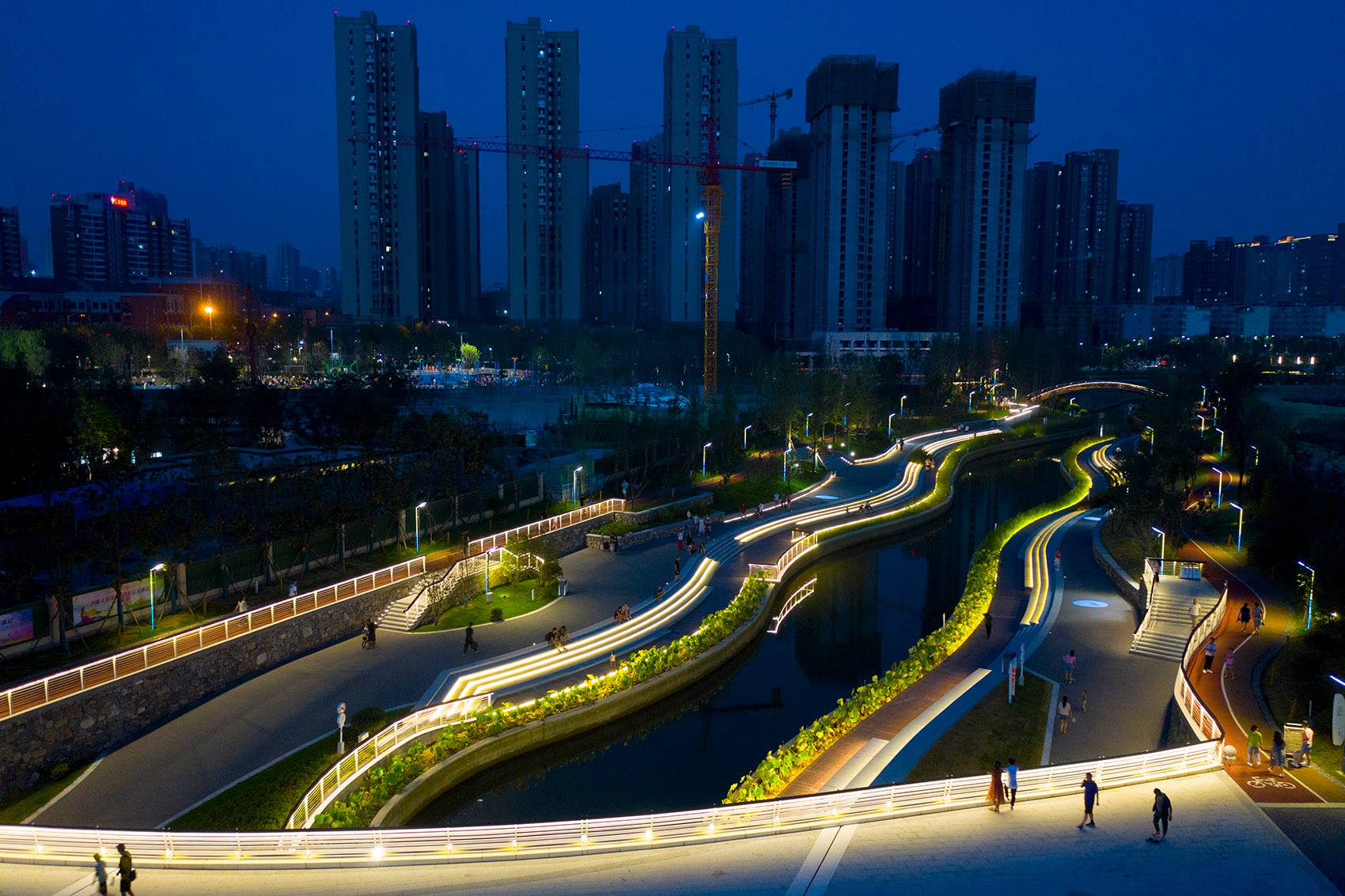

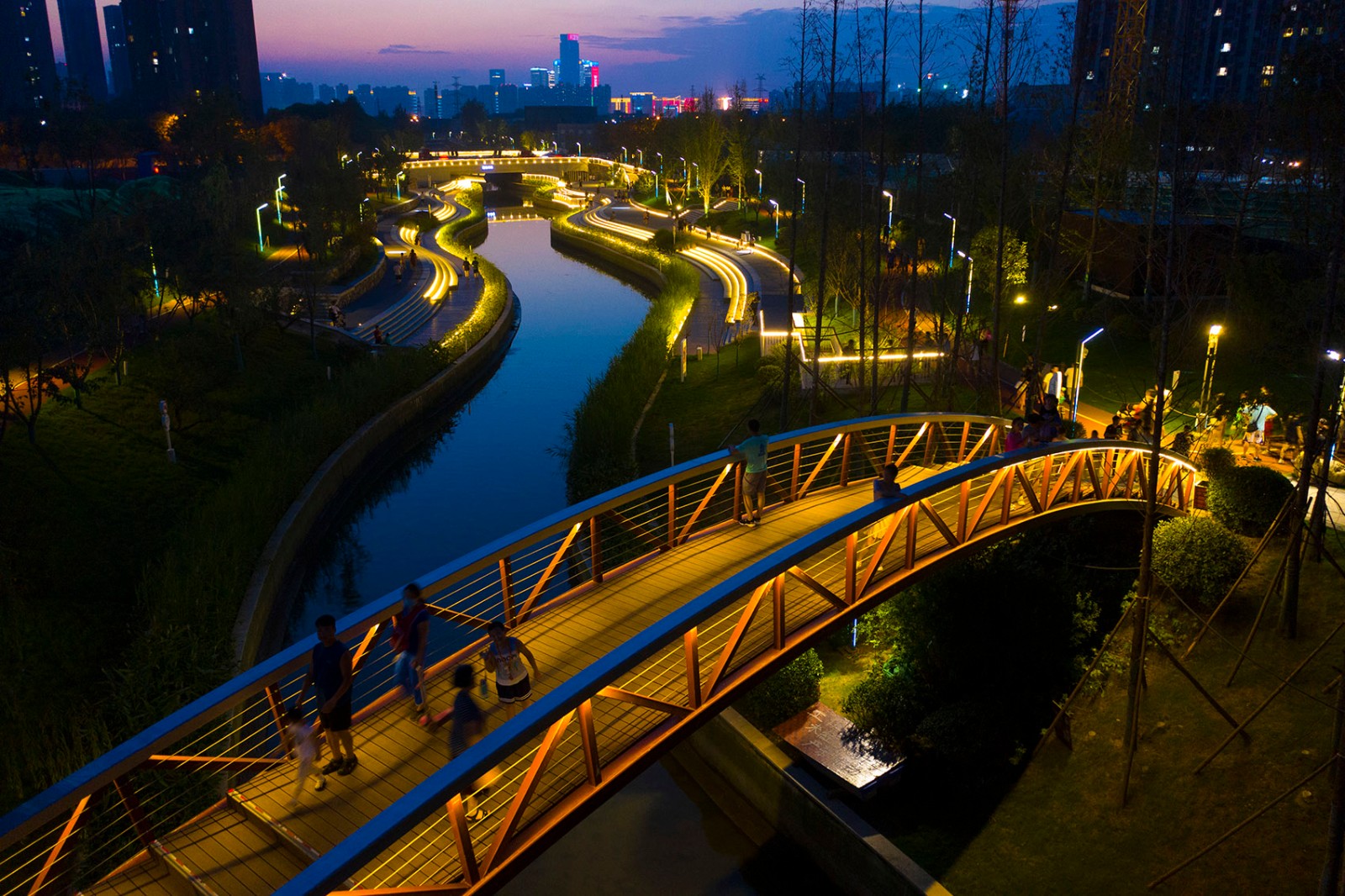

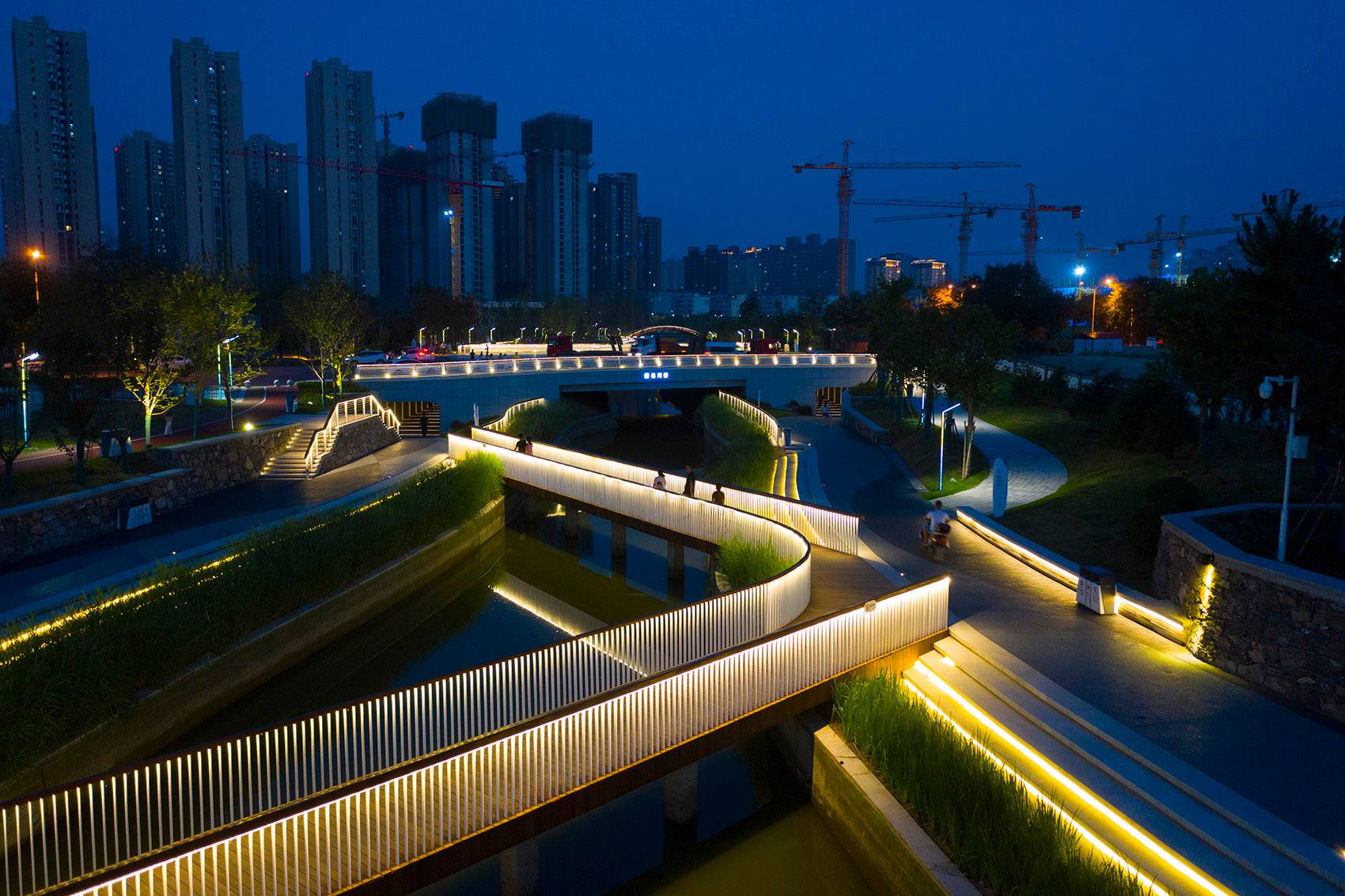

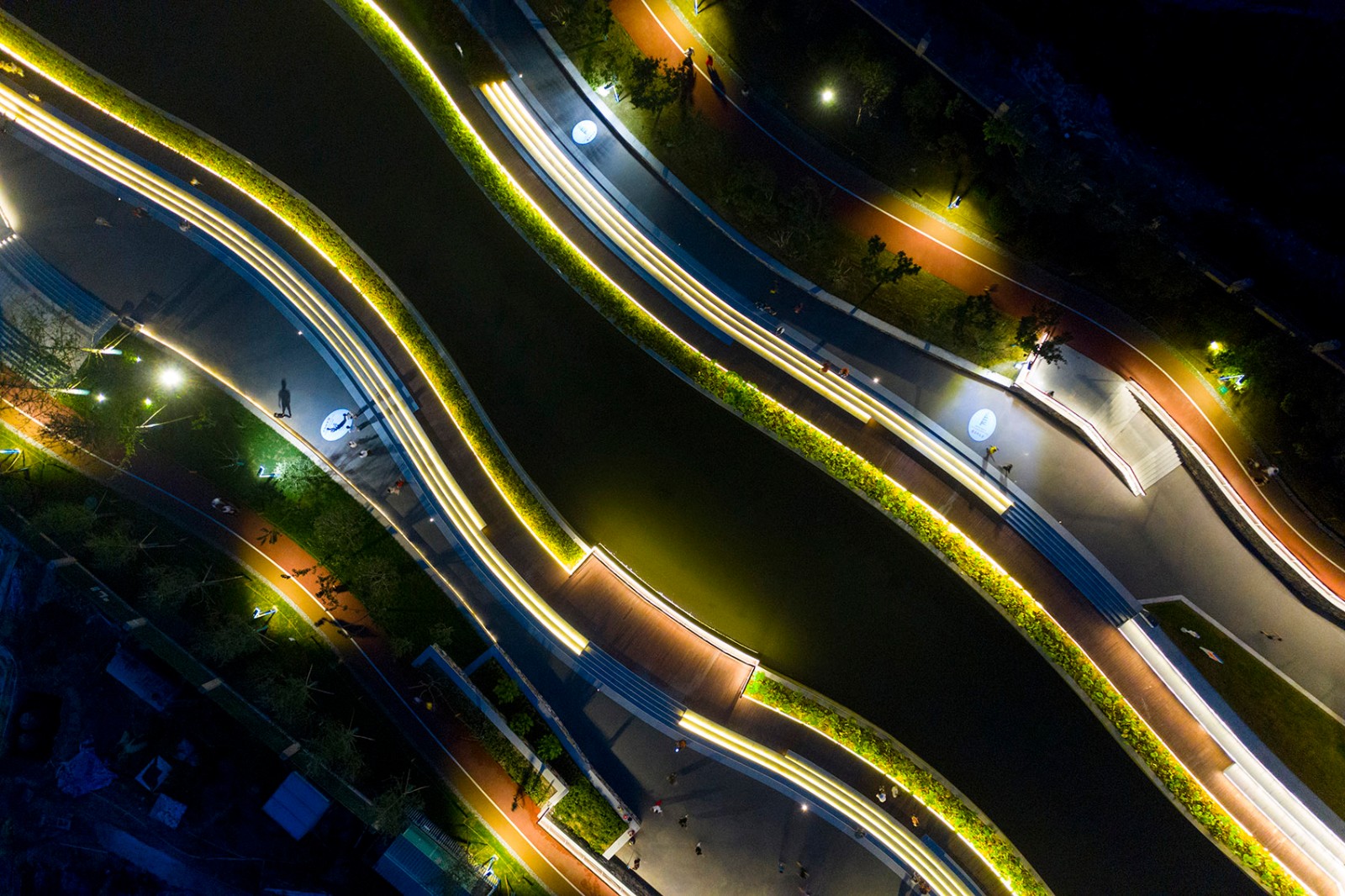

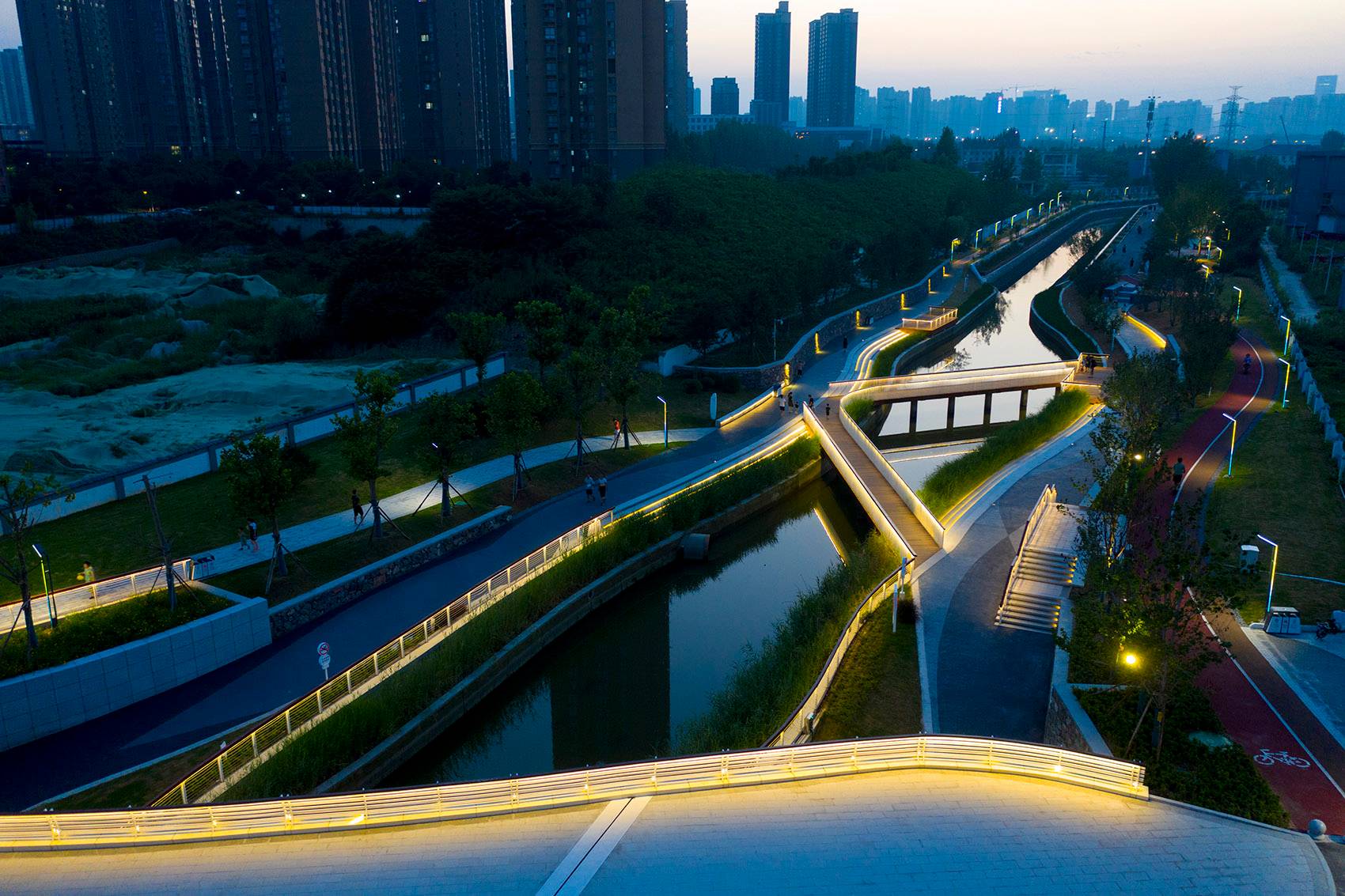

^{▲通過豐富的夜景亮化設計，突出流暢的河岸線，為市民夜間休閑活動提供多樣的公共空間 Through the night scene lighting, the smooth riverbank line is highlighted. It can also provide a variety of public space for citizens’ leisure activities at night. ?中國電建集團西北勘測設計研究院有限公司}
