江蘇南通紫瑯公園景觀設計 | AECOM

“已經成為南通公眾打卡熱點的紫瑯湖，其魅力遠不止于超高顏值，更是為城市一直以來洪澇和熱島問題提供高品質解決方案的典型示范?！?/em>

^{Zilang Park has transformed into one of Nantong’s must-see attractions while effectively mitigating flood and the effects of urban heat island in the city.}

2016年底，為了進一步完善中央創新區的生態基礎設施建設，南通市政府著手推動南通紫瑯公園（以下簡稱“紫瑯公園”）的景觀規劃設計。位于該區域中心的紫瑯公園，占地266公頃，其中生態棲息地面積150公頃，具備防洪調蓄能力的水域面積116公頃。場地中規劃了一條超過14公里的生態慢行綠道和一條長達20公里的生物走廊，不僅將人與自然相連接，也為遷徙鳥類、授粉昆蟲等各種物種提供了賴以生存繁衍的棲息地。

^{As an essential part of the Nantong Municipal Government’s plan to promote the local central innovation zone, the planning and design of Nantong Zilang Central Forest Park (Zilang Park) started at the end of 2016. Located at the center of the zone, the park covers an area of 266 hectares, including 150 hectares of ecological habitat area and 116 hectares of water area with flood control and storage capacity. A 14-kilometer ecological greenway and a 20-kilometer biological corridor are planned on the site, which not only connects people with nature, but also improves biodiversity and stormwater management.}

目前，將于2020年底全面完工的紫瑯公園為中央創新區的生態平衡和社會效益奠定了良好的基礎。高比例的綠化率成為提升公園區域空氣氧離子含量、降低人體體感溫度、減少環境噪音、增加空間舒適度的有效手段。生態設施的完善也為社會發展創造了新的機會。生態設施的完善也為社會發展創造了新的機會。2019年至2020年間，紫瑯湖的落成令中央創新區實現了大幅度的游客總量增長，吸引高新科技企業投資同比增長2.4倍，為南通當?shù)鼐蜆I(yè)率提升高效助力。

^{Moreover, the project brings great social benefits to the local area, including a rise in oxygen levels in the atmosphere, a drop in noise pollution and a reduction in urban heat island effect. The improved ecological infrastructure has also created new opportunities for social development. From 2019 to 2020, the central innovation zone achieved a substantial increase in the total number of tourists. The investment from high-tech companies increased 2.4 times on a year-on-year basis, effectively boosting local employment in Nantong.}

讓這里成為所有人的樂園

作為這片濱水森林公園的景觀設計團隊，AECOM不僅全面保護、保育和提升了150公頃的野生動植物棲息地，恢復當?shù)厣锒鄻有?，更從韌性生態的角度出發，通過修復河道、營造山體和山谷、豐富的疏林草坪來建立穩定的風廊微氣候系統，以緩解城市熱島效應，打造可持續發展的都市綠心。

^{▲構建風廊，改善區域微氣候}

同時設計還為游客提供騎行、慢跑和游園的連續流線，貫通風景秀麗的立體慢行系統，為全年齡段的人群提供全天候的景觀參與空間，全面提升人體舒適度，使紫瑯公園成為當?shù)貜V受喜愛的休閑目的地。

^{Additionally, the area provides a new destination for local people to engage in various activities along the lake such as jogging and sight-seeing.}

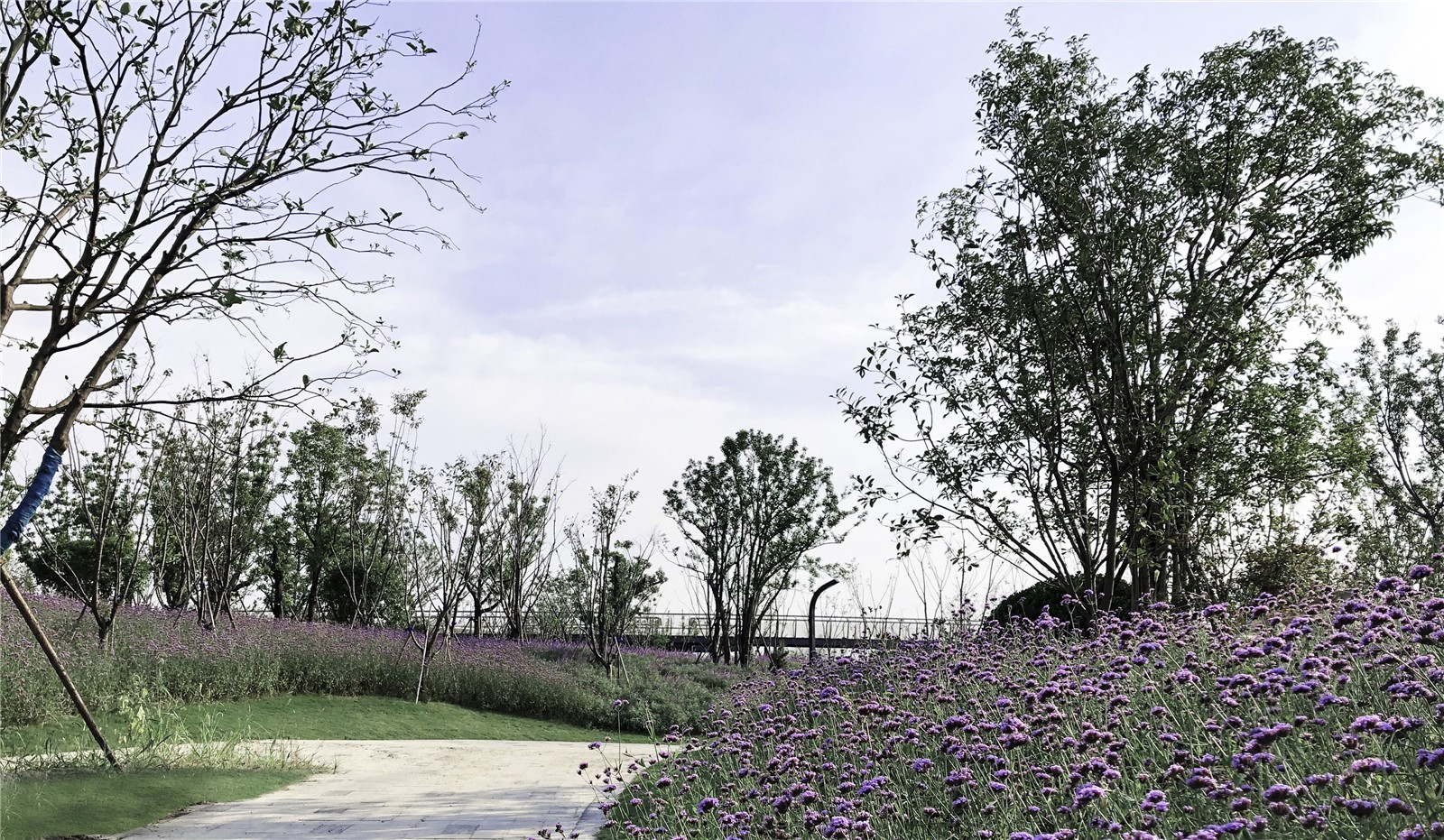

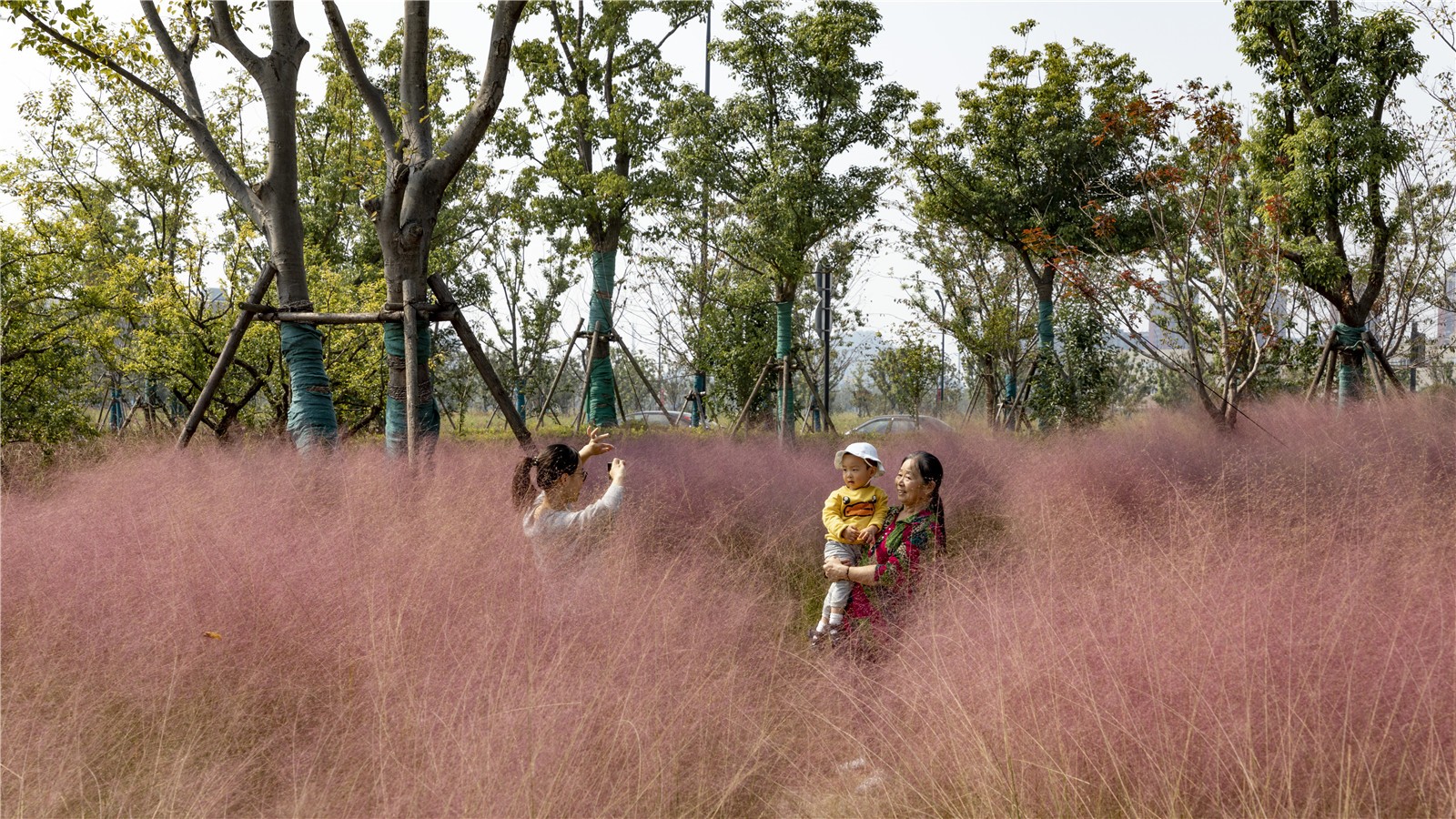

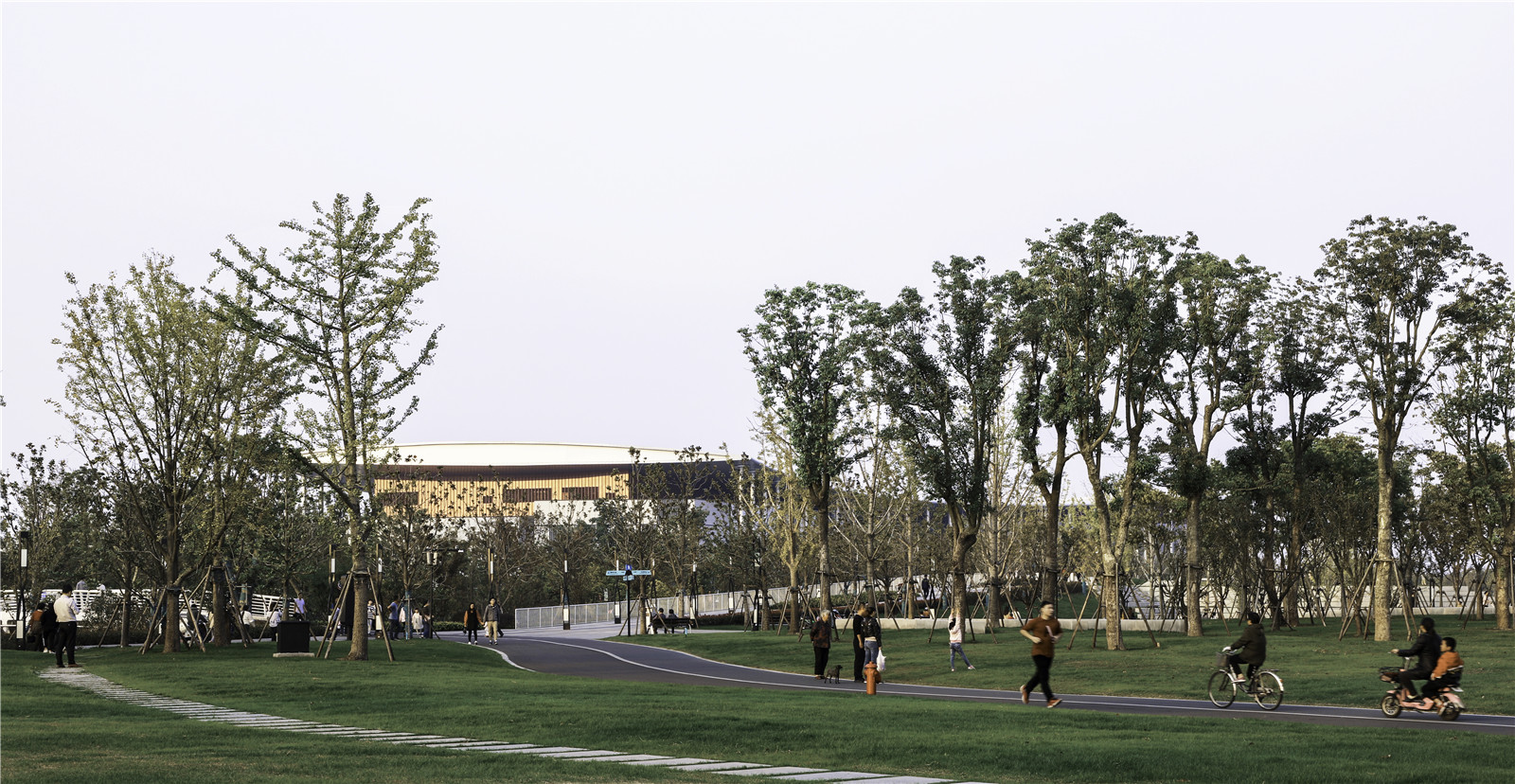

^{▲為全年齡段的人群提供全天候的景觀參與空間}

設計后的公園包括三大部分：山林和河道位于公園的北部，園區中部營造生態濕地，南湖則是公園最重要的濱水開放空間。

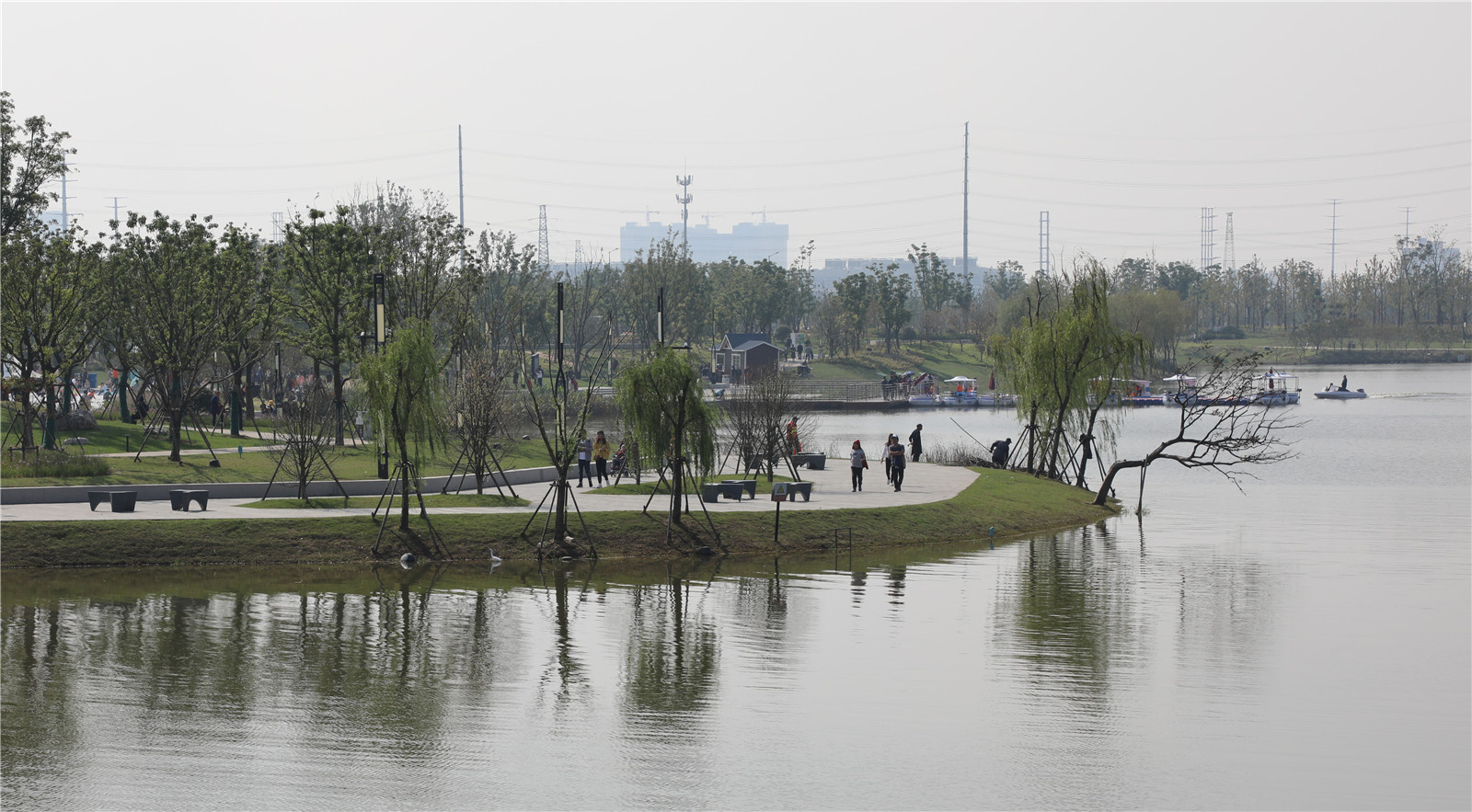

北部地區被設計成一個水系環繞的山地森林公園，起伏的丘陵地貌、開闊的湖泊水域和成片草坪為當?shù)鼐用裉峁┝艘巳说膽?hù)外活動空間。這片林地也因擁有不同地貌和水體而建立起穩定的風廊微氣候系統，區域內環境溫度和二氧化碳含量降低，有效緩解城市熱島效應。

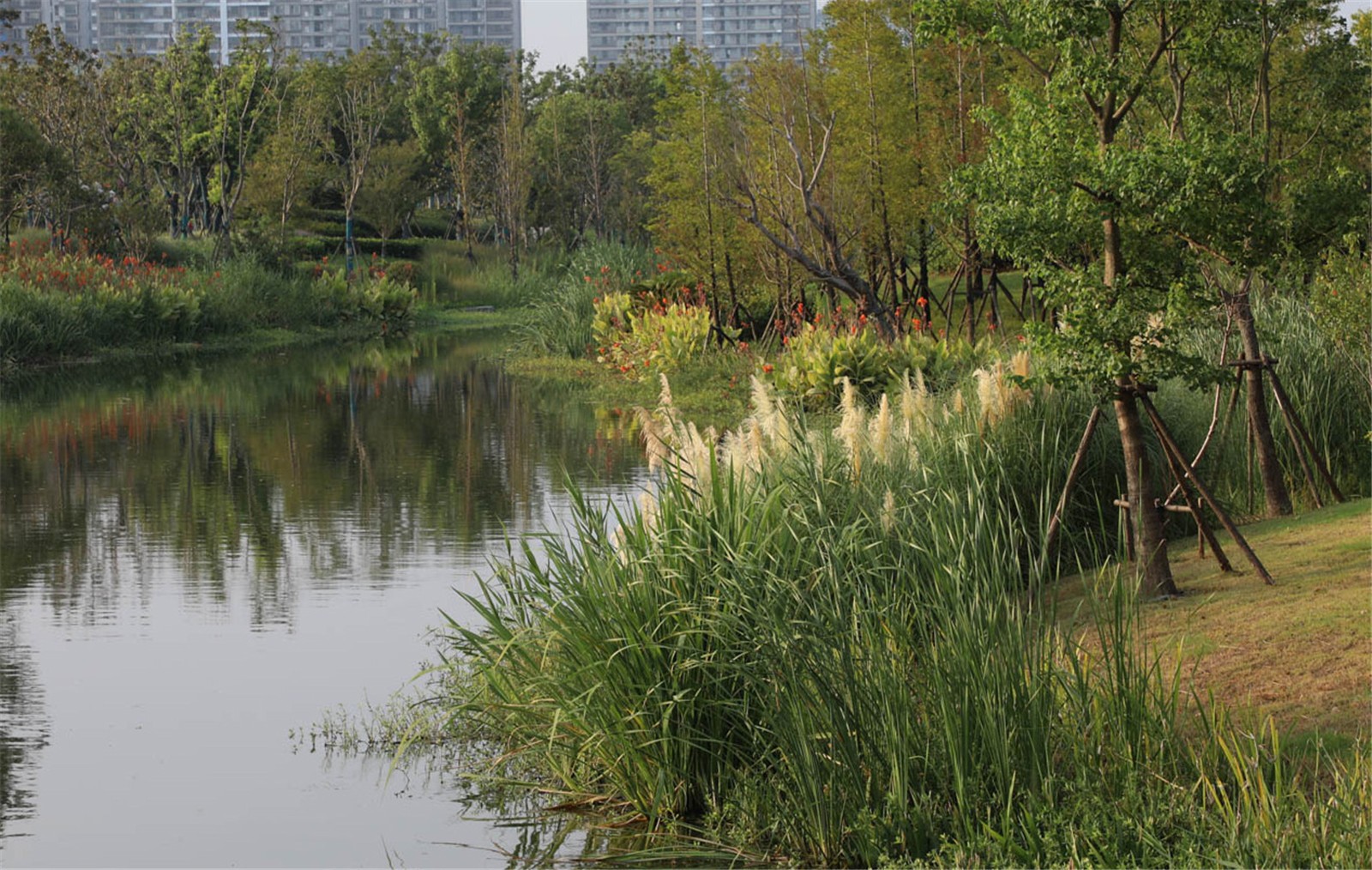

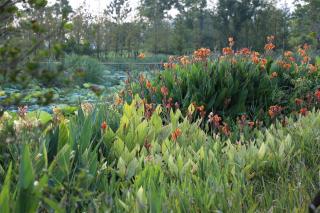

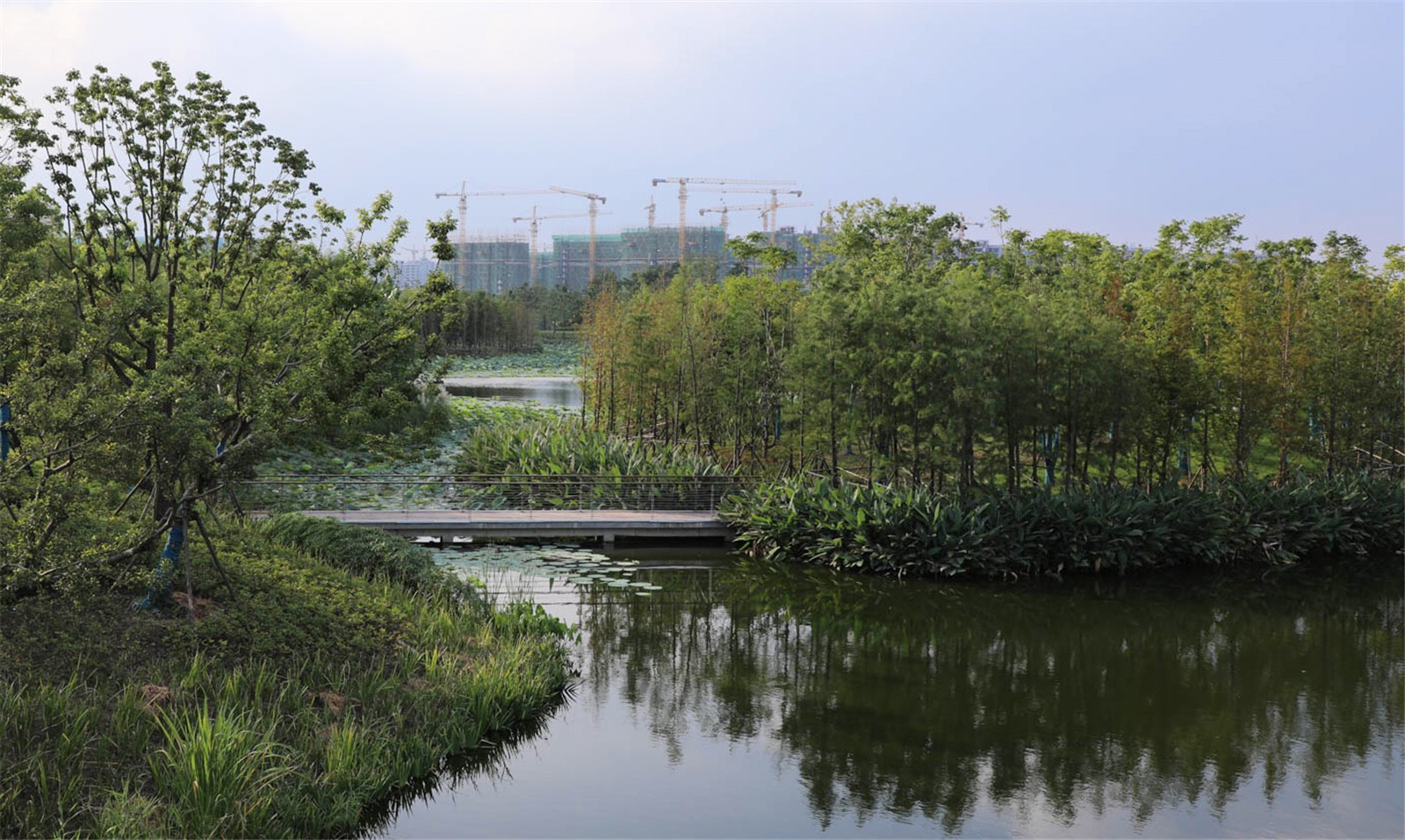

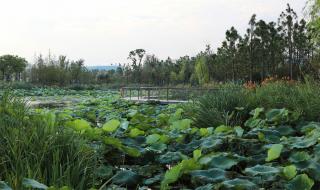

中部的生態濕地成為展示當?shù)厣锒鄻有缘淖匀粭⒌厥痉秴^(qū)。通過不同季相的60多種本地開花植物及40多種鄉土樹種的種植，營造出生態的水上森林，為野生鳥類和昆蟲等物種提供自然棲息地，展示濕地演替的過程。

^{The north zone is designed to be a forest park surrounded by watercourses. The open lake and lawns provide a pleasant outdoor space while the various landforms and waterbody create wind corridors to improve regional micro-climate by decreasing temperature and carbon dioxide.}

^{The middle zone is an artificial wetland, which is also a bio-diverse paradise. More than 60 kinds of native flowering plants and 40 native tree species were cultivated for different seasons. An ecological water forest was created, providing natural habitats for wild birds and insects, and showing visitors the process of wetland succession.}

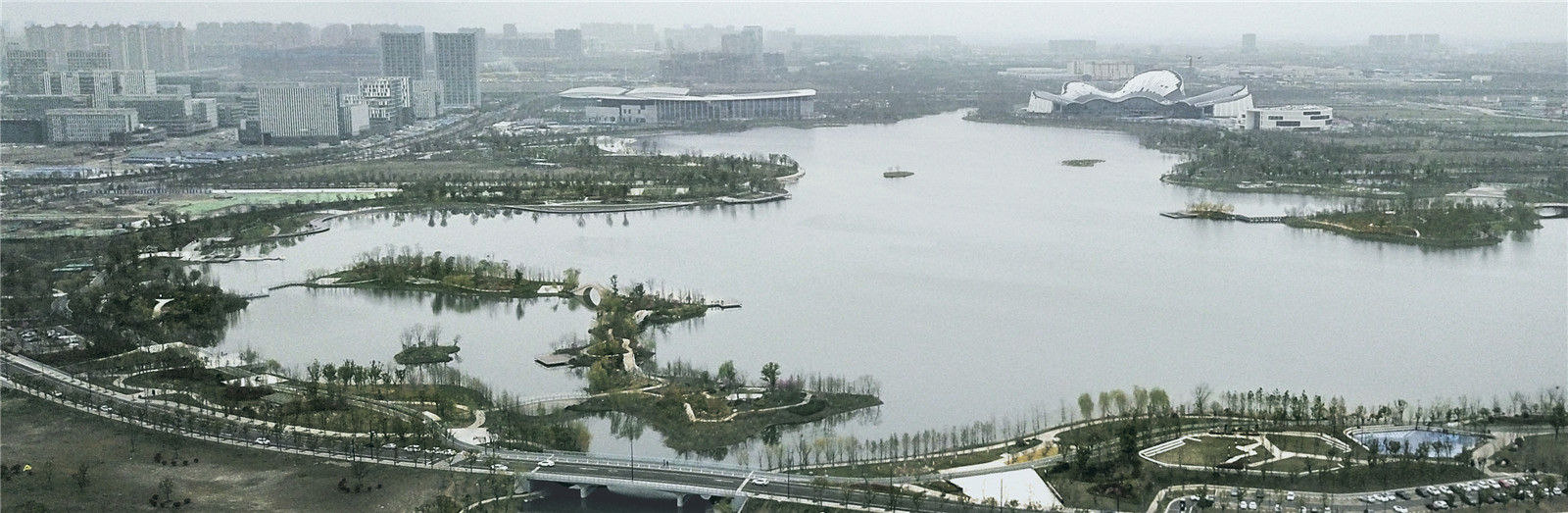

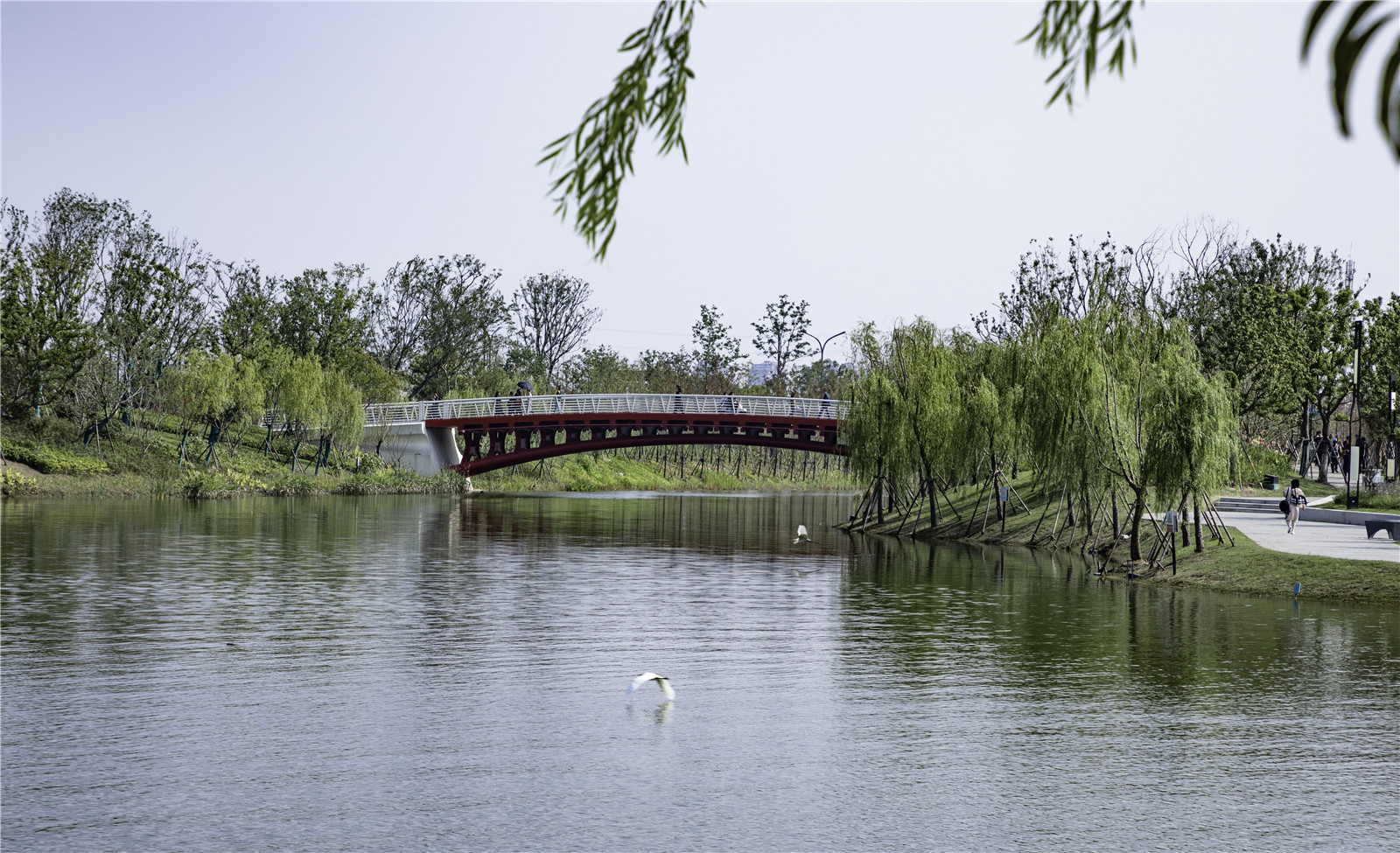

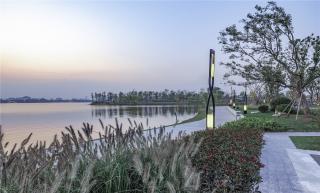

南湖是整個園區的雨水收集器，具有強大的彈性調蓄能力，有效緩解區域內澇問題。同時，湖區也為當?shù)鼐用裉峁┝艘粋€(gè)休閑新去處，湖濱跑道、湖山廣場、濱水游樂場、休閑觀景臺和多功能運動場滿足不同年齡段的人群享受都市生態空間的需求，激發孩子們探索自然棲息地的興趣，發揮生態教育的重要作用。

^{The south lake is regarded as a “bio-tank” which collects water from the whole region with a resilient function. It interconnects with a bio-system that is built on green areas and communities, such as stormwater collection gardens and water shed mitigation facilities.}

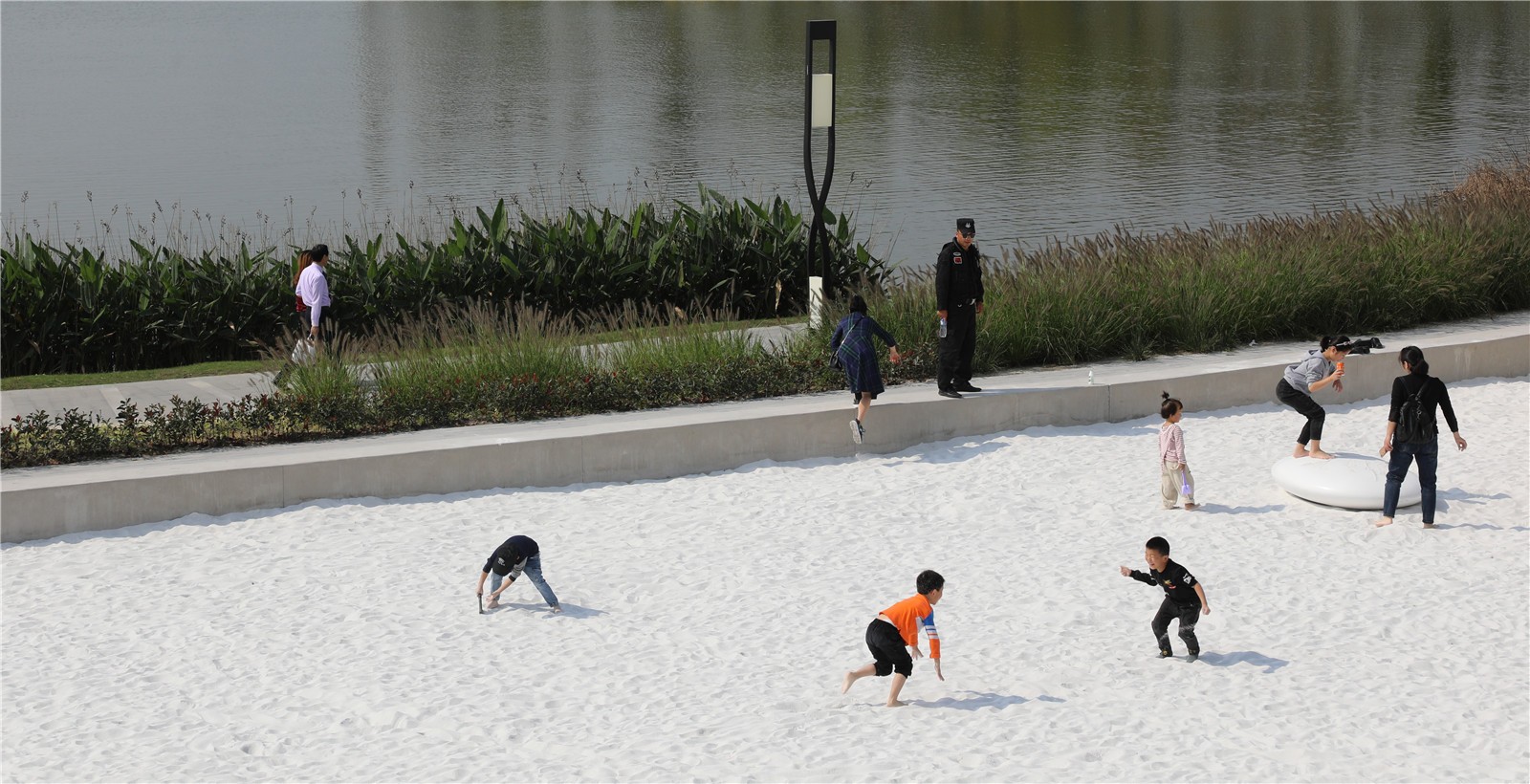

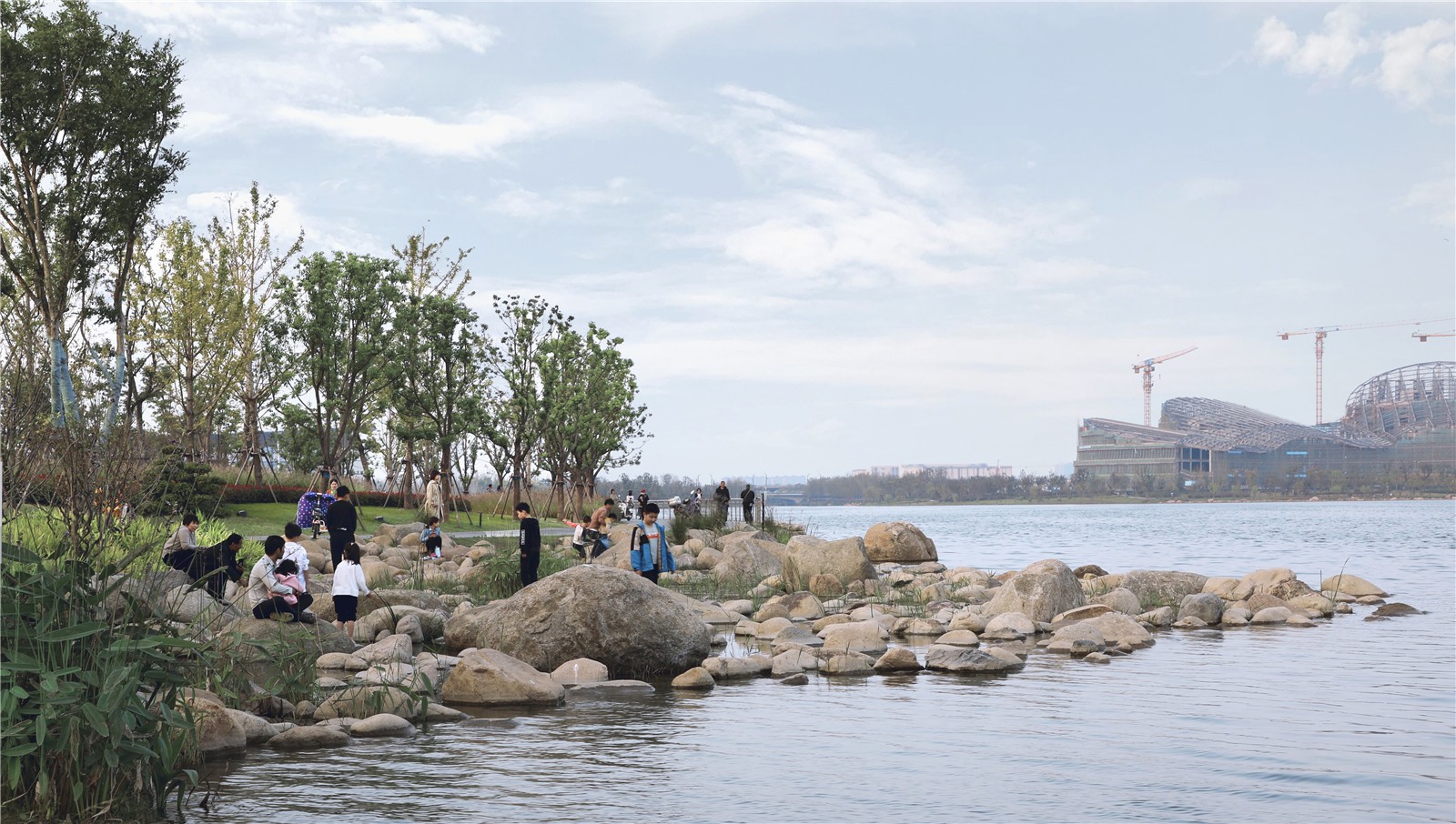

^{▲南湖生態淺水漫灘提供兒童參與科普及親水活動的理想戶外場所}

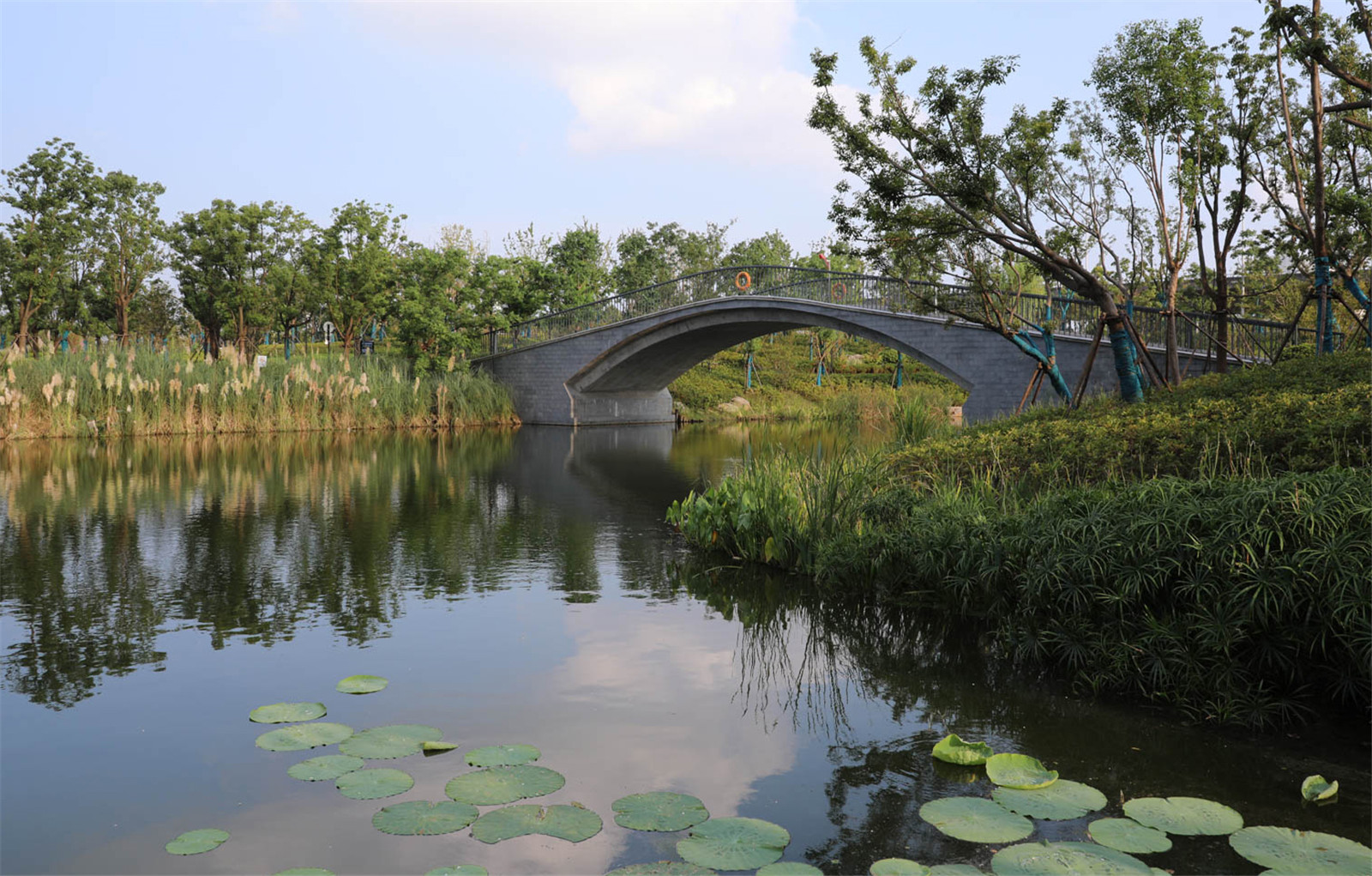

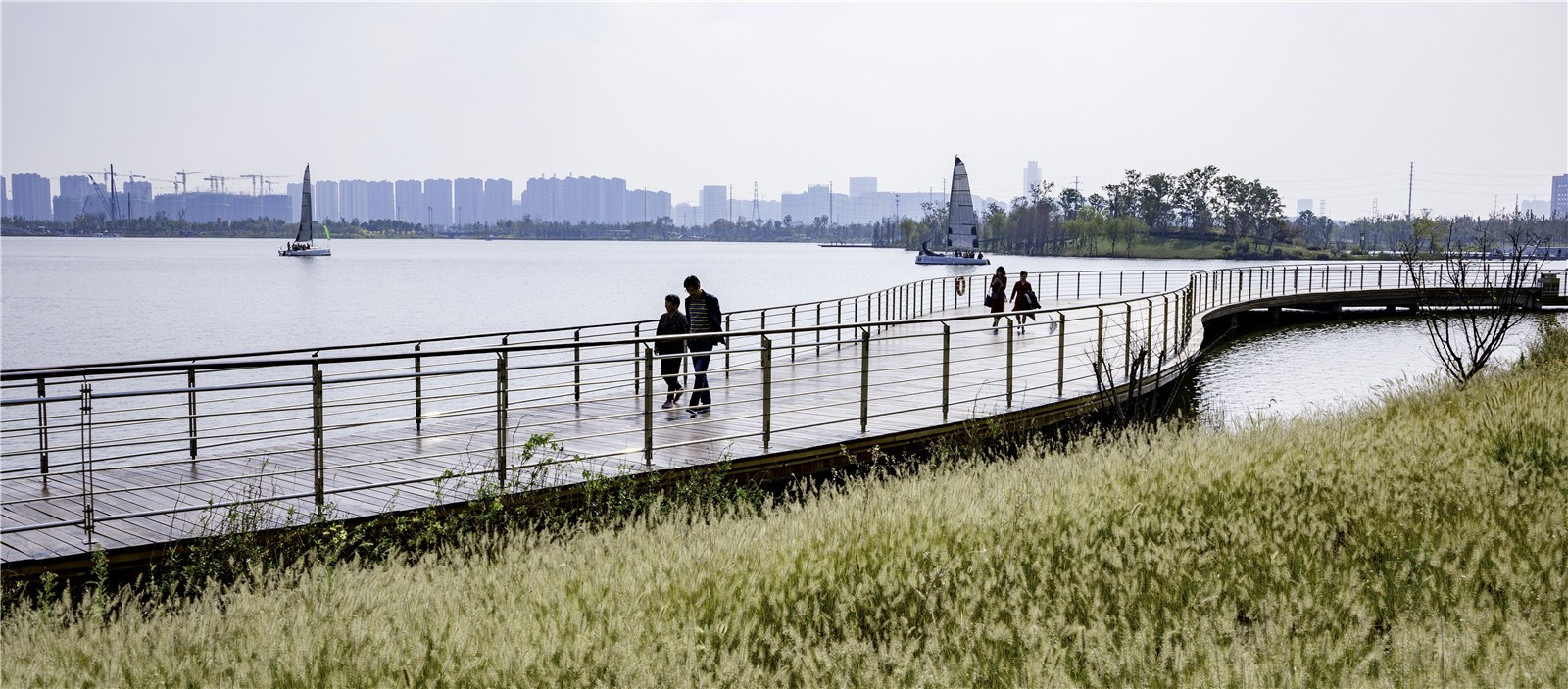

值得一提的是，設計倡導綠色低碳的慢行交通系統，綜合考慮景觀節點的可達性，沿水系設置各種形式的連續步行系統，不同標高的步道、棧橋、平臺、臺階將公共活動廣場和園區的人行動線串聯起來，形成層次豐富的立體漫步系統，為使用者提供安全舒適的步行體驗。

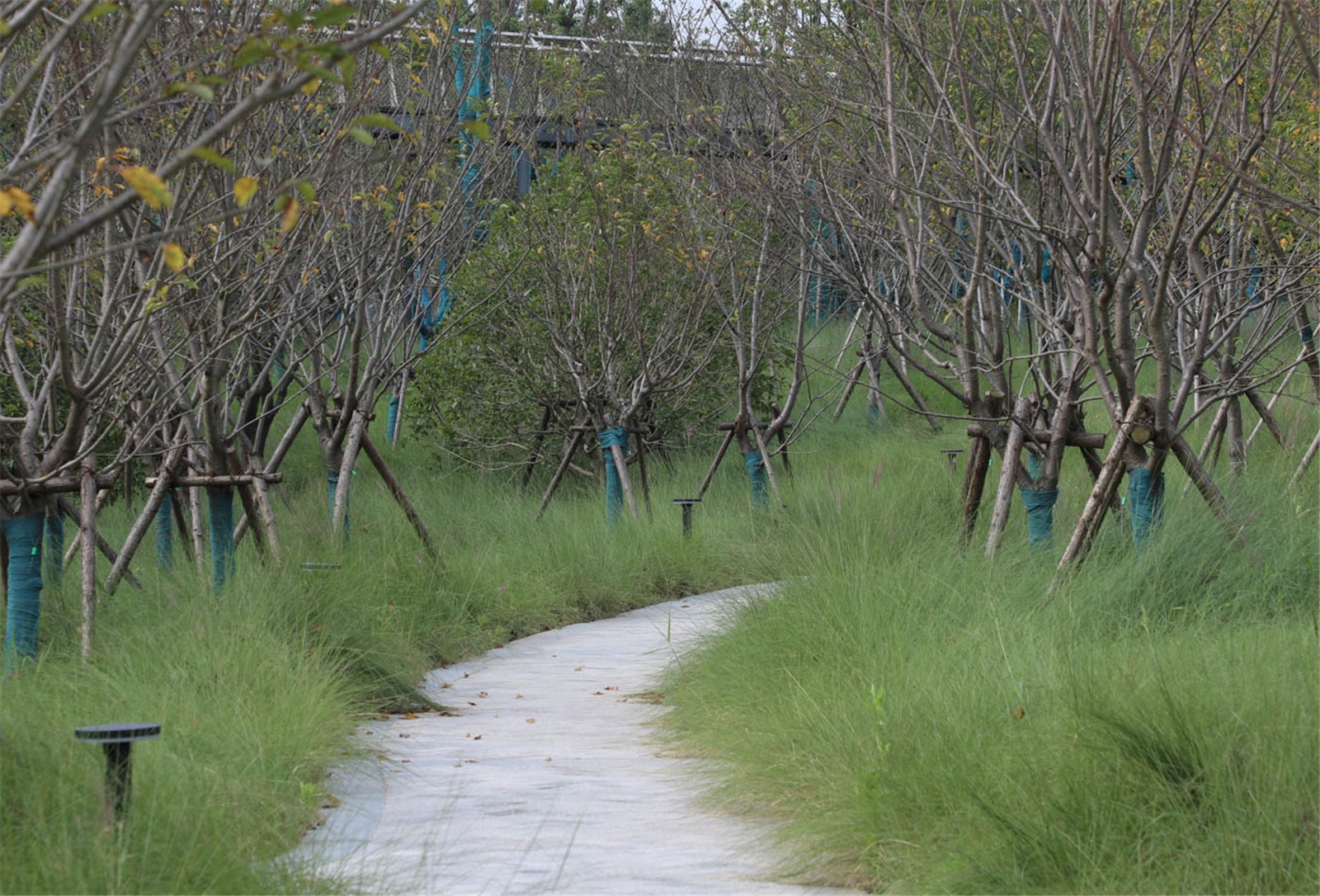

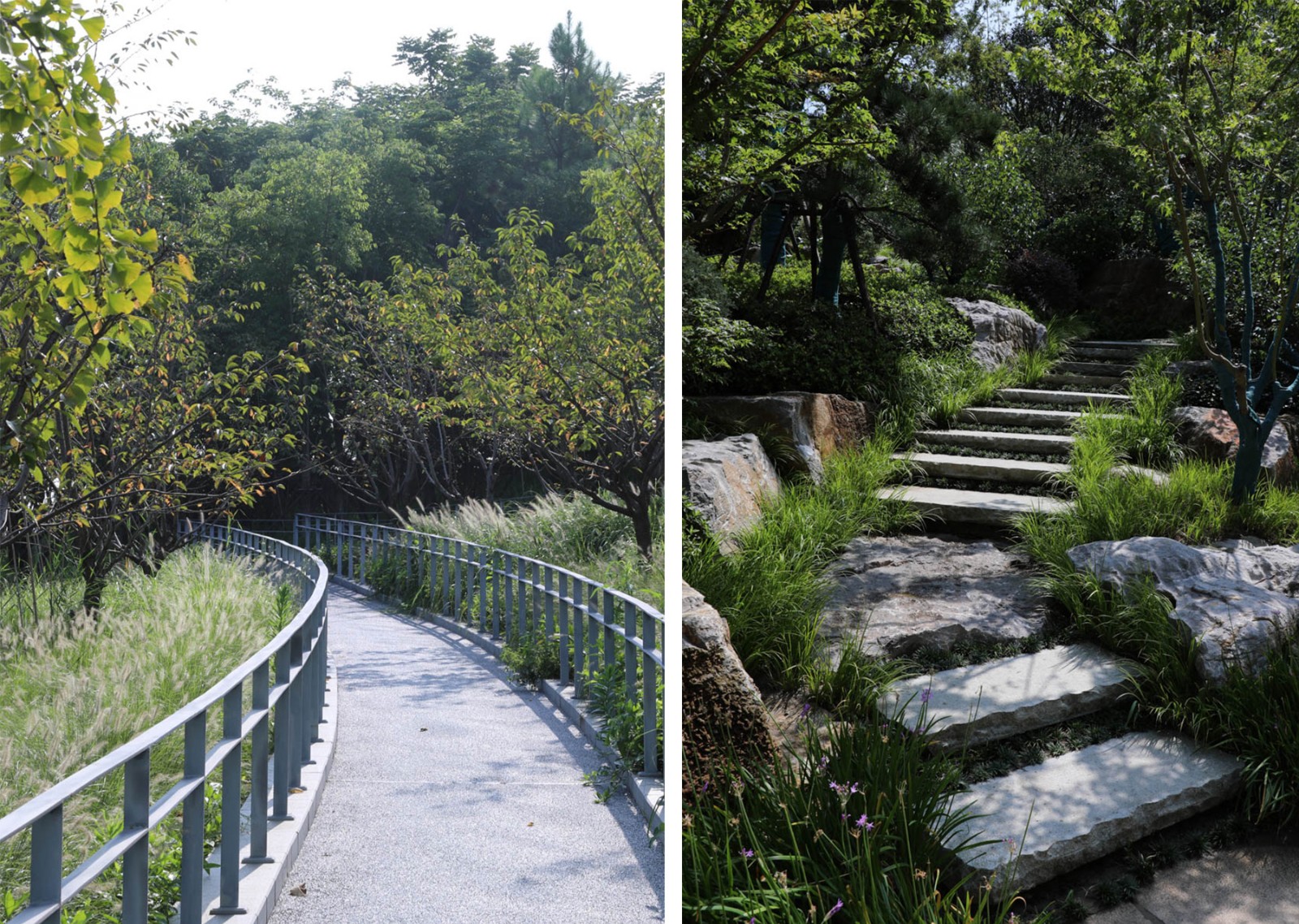

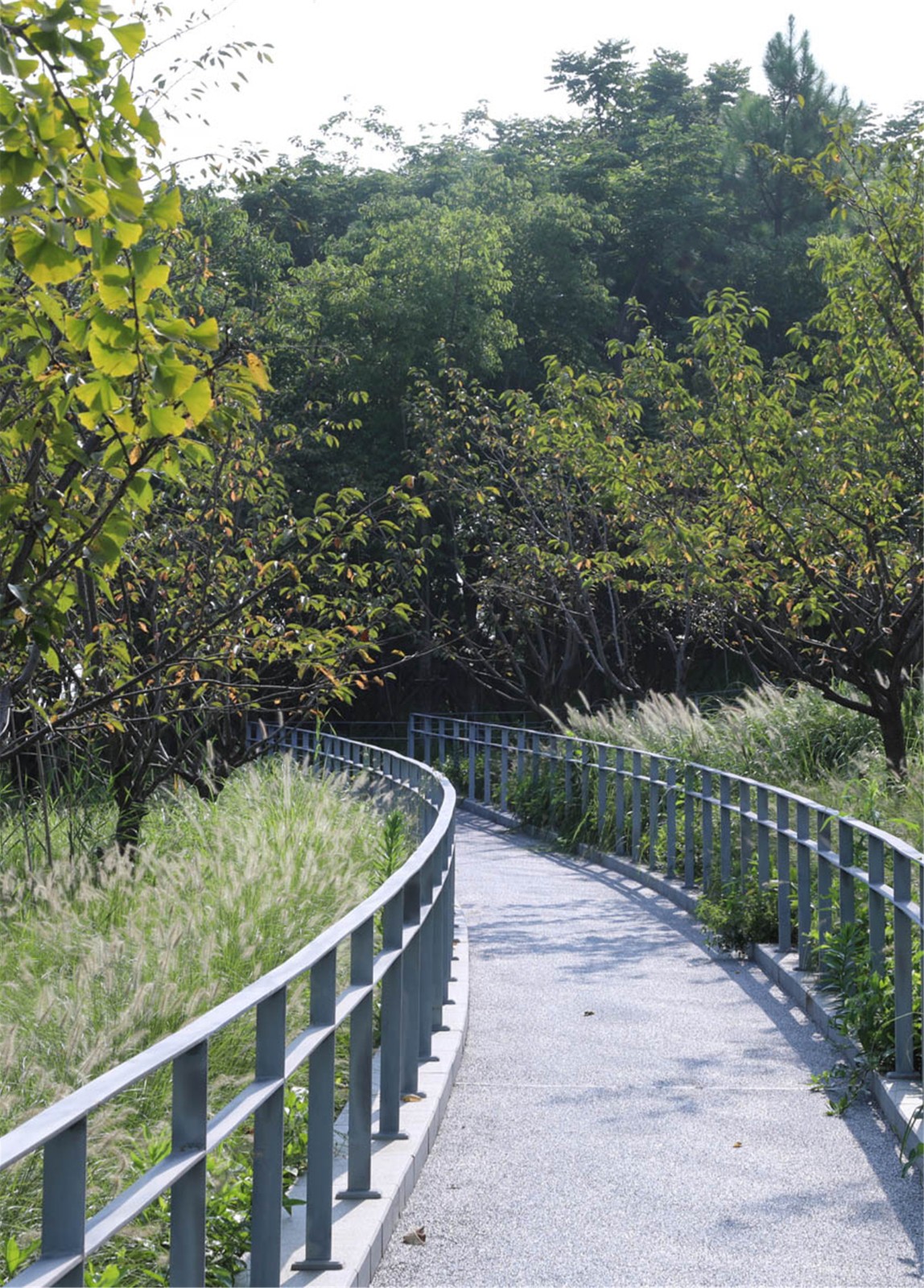

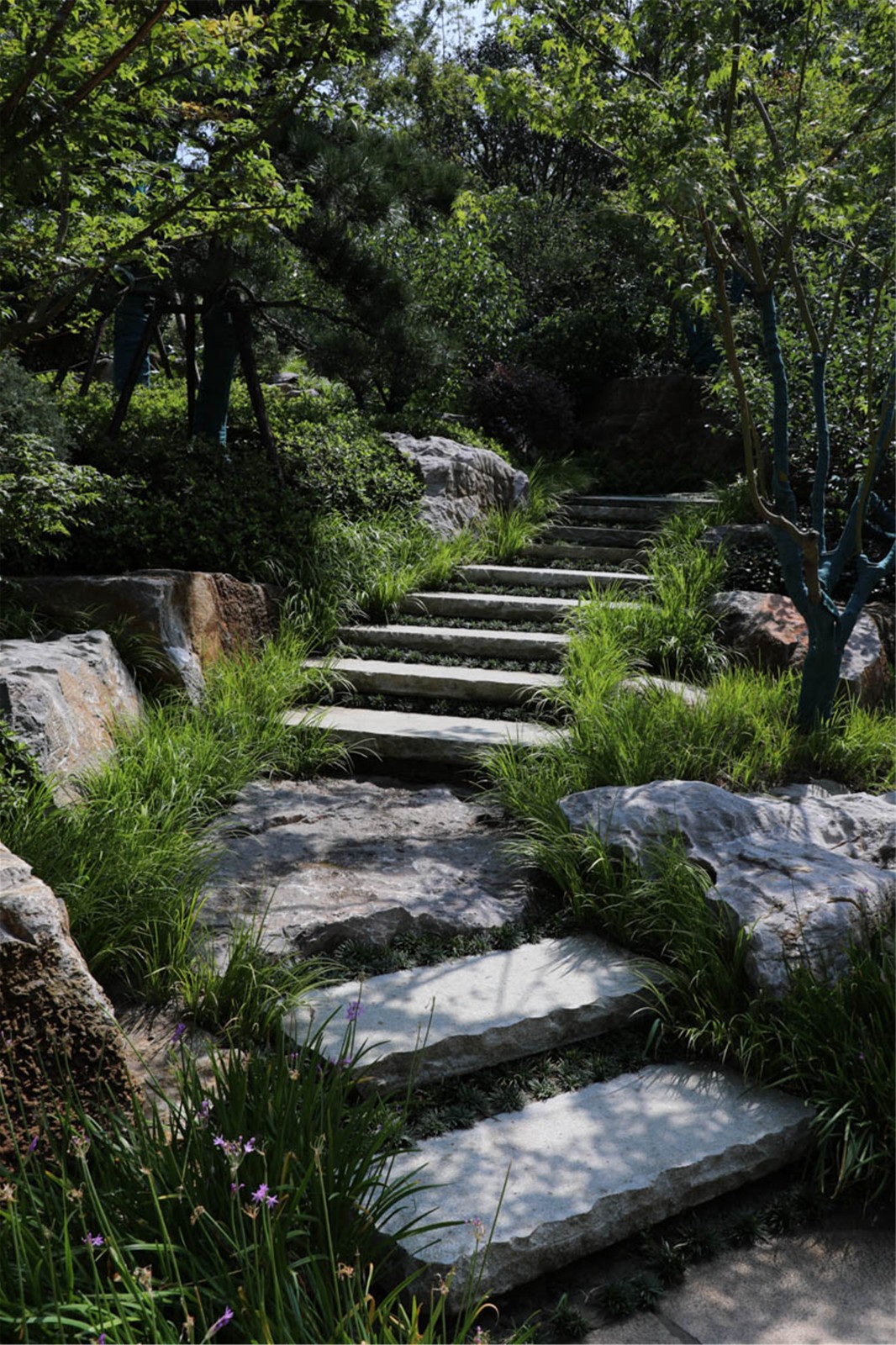

^{▲漫步在低生態影響的步道上，享受探索自然的樂趣}

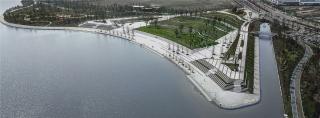

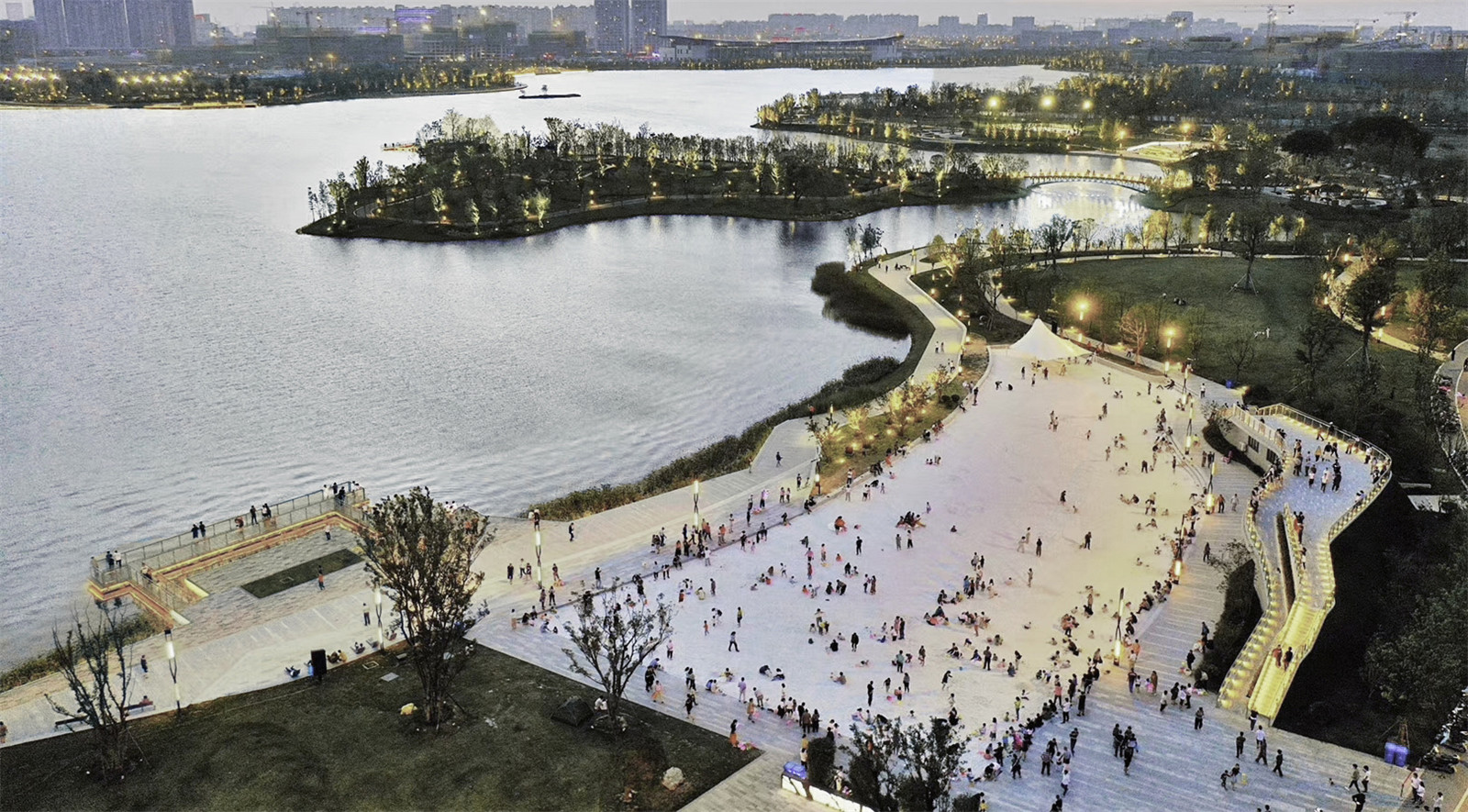

^{▲提供多元城市活動的湖山廣場，串聯狼山與南通大劇院，成為湖山軸線的關鍵景觀節點}

用一劑良方，還一片清流

項目所在地南通地處長江中下游平原，河道資源豐富，但也遭受著經常性的洪澇問題。在汛期和臺風季節城市內澇尤其嚴重，并對城市基礎設施造成較為嚴重的損害。在快速的城市化發展進程中，河道水質因?yàn)檫^(guò)度使用農藥、生活污水排放等城市問題而被污染，場地原有的河道也遭到嚴重破壞，逐漸喪失雨洪調蓄能力。面對頻繁發生的季節性?xún)?nèi)澇災害、日漸老化的城市基礎設施，我們應該如何調節城市整體生態平衡、從根本上防治洪澇問題？

Nantong’s geological location and natural environment initially brought challenges to the park’s design. The city is located in the Yangtze River Plain and suffers regular flooding due to its copious watercourses. It becomes worse at the onset of typhoons. Radical urbanization and contamination from the overuse of pesticide also contributed to the heavy destruction of watercourses.

^{▲現狀水文條件}

針對現狀問題，項目團隊意識到“水敏感城市設計”是應對挑戰的有效方法，將連續的河道和兩個生態濕地連接起來，打造“水敏感型景觀”，極大地改善了城市水環境問題。

^{To mitigate these long-standing problems, AECOM used the “Water-sensitive Design” approach. Since most of the existing watercourses were located south of the site, and the water systems on the two sides were segregated, rainwater could not be stored.}

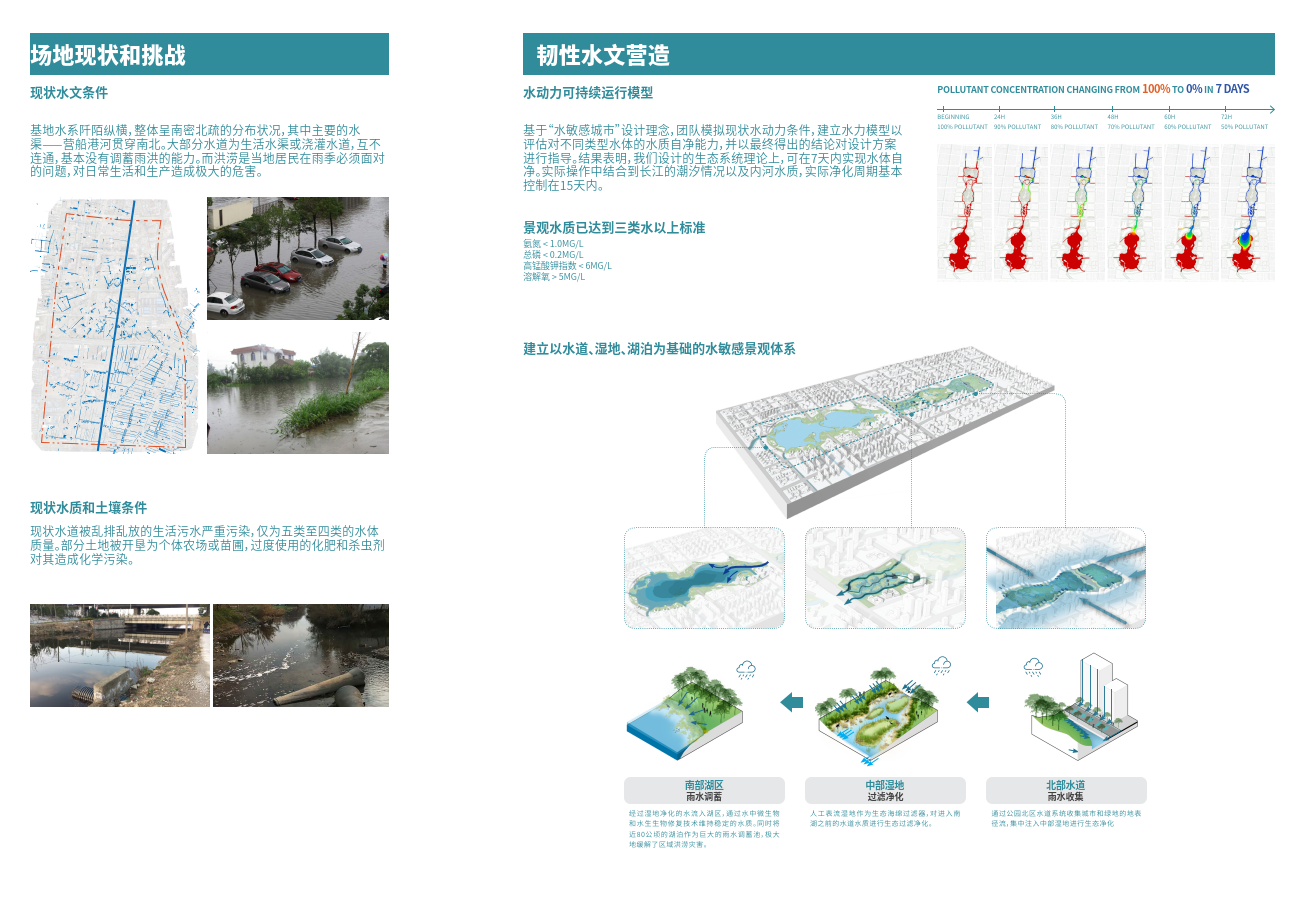

^{▲建立以水道、濕地、湖泊為基礎的水敏感景觀框架，應對城市洪澇問題}

“水敏感城市設計”是一種將“水”置于城市設計的開端并將其貫穿于每一環節，使水資源的使用、儲存和再利用在一個“可持續”的框架中運行的城市設計理念。通過高質量的規劃設計，“水敏感城市設計”將自然界的水循環、建成環境和傳統地下水系統有機聯系起來，創造一個更為綜合高效的水循環系統，從而提高城市對洪澇災害的免疫能力和水質凈化能力。

以紫瑯公園為例，現狀水道主要集中分布在場地南部，但互不連通的水道系統無法解決雨水調蓄問題。設計師提出了一個綜合的韌性水文設計框架，將連續的水渠和兩個人工生態濕地連接起來。人工濕地作為生態海綿過濾器，對進入南湖之前的水道水質進行過濾凈化。過濾后的水體進入南湖，通過大型湖區發揮調蓄作用以減輕洪澇的影響。目前，景觀湖體水質已經提升至III類水。

^{To mitigate these long-standing problems, AECOM used the “Water-sensitive Design” approach.}

^{Since most of the existing watercourses were located south of the site, and the water systems on the two sides were segregated, rainwater could not be stored. Our design team proposed a framework for an integrated and resilient waterbody, which connects consecutive channels and two artificial wetlands. The wetlands serve as eco-sponge filters to purify the water before entering the south lake.}

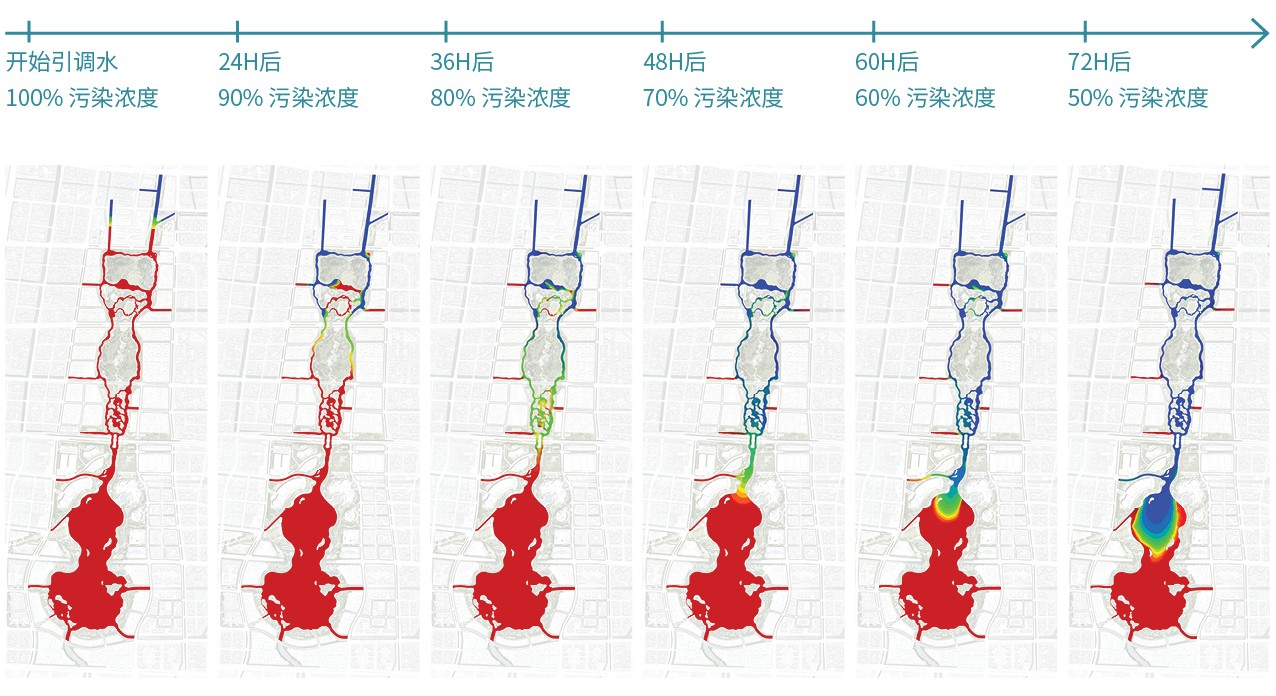

研究表明，我們?cè)O(shè)計的生態系統理論上可在7天內實現水體自?xún)?。?shí)際操作中結合到長江的潮汐情況以及內河水質，實際凈化周期基本控制在15天內。結合實驗結果，搭建以水道、濕地和湖泊為基礎的水敏感景觀體系。人工濕地作為生態海綿過濾器，對進入南湖之前的水道水質進行過濾凈化。過濾后的水體進入南湖，通過大型湖區發揮調蓄作用以減輕洪澇的影響。目前，景觀湖體水質已經提升至III類水。

^{Our design team proposed a framework for an integrated and resilient waterbody, which connects consecutive channels and two artificial wetlands. The wetlands serve as eco-sponge filters to purify the water before entering the south lake. In addition, the team also applied a technology to restore microbe and aquatic creatures in creating a self-cleaning water system in the south lake. This technology activates microbe Plant Growth-Promoting Rhizobacteria (PGPR) reproduction by supplying needed nutrition, and stabilizes the ecological equilibrium, which is significant in the water self-cleaning system.}

此外，微生物和水生生物修復技術成為穩定水質的重要手段，這項生態凈水技術被用于改善南湖水質，使其達到理想水質標準。生態淺灘和雨水花園也是水質提升的關鍵因素，它們作為人工表流濕地的重要環節，能有效提升公園的生物多樣性和雨水管理能力，進而實現韌性水文的目的。

^{In addition, the team also applied a technology to restore microbe and aquatic creatures in creating a self-cleaning water system in the south lake. This technology activates microbe Plant Growth-Promoting Rhizobacteria (PGPR) reproduction by supplying needed nutrition, and stabilizes the ecological equilibrium, which is significant in the water self-cleaning system.}

項目信息

^{設計時間：2017-2018，完成年份：2020年底完全建成}

^{設計團隊：鞠珩、吳琨、黃啟杰、楊振宇、龐舒婷、李文娟、徐芳怡、郭順漢、李毓賢、黃恭倬、梁海珊、張君弛、姜婧、李曉雨、張之彥、戴熙為、羅健萍、唐海玉、陳明、孫俊、雷森、王晶、施曦明、吳珅宴}

^{項目地址：中國江蘇省南通市的中央創新區}

^{用地面積：公園用地面積266公頃}

^{攝影版權：?AECOM（攝影師：江丹、陳亮）}

^{合作方：中國城市規劃設計研究院}

^{上海市政工程設計研究院有限公司}

^{上海市園林設計研究總院有限公司}

^{上海市城市建設設計研究總院有限公司}

^{北京市建筑設計研究院有限公司}

^{上海森語景觀綠化工程公司}

^{上海復旦規劃建筑設計研究院有限公司}

^{南通市市政工程設計院有限責任公司}

^{客戶：南通市中央創新區開發建設管理辦公室}
