西班牙麥哲倫城市濱水公園景觀設計 | Vázquez Consuegra

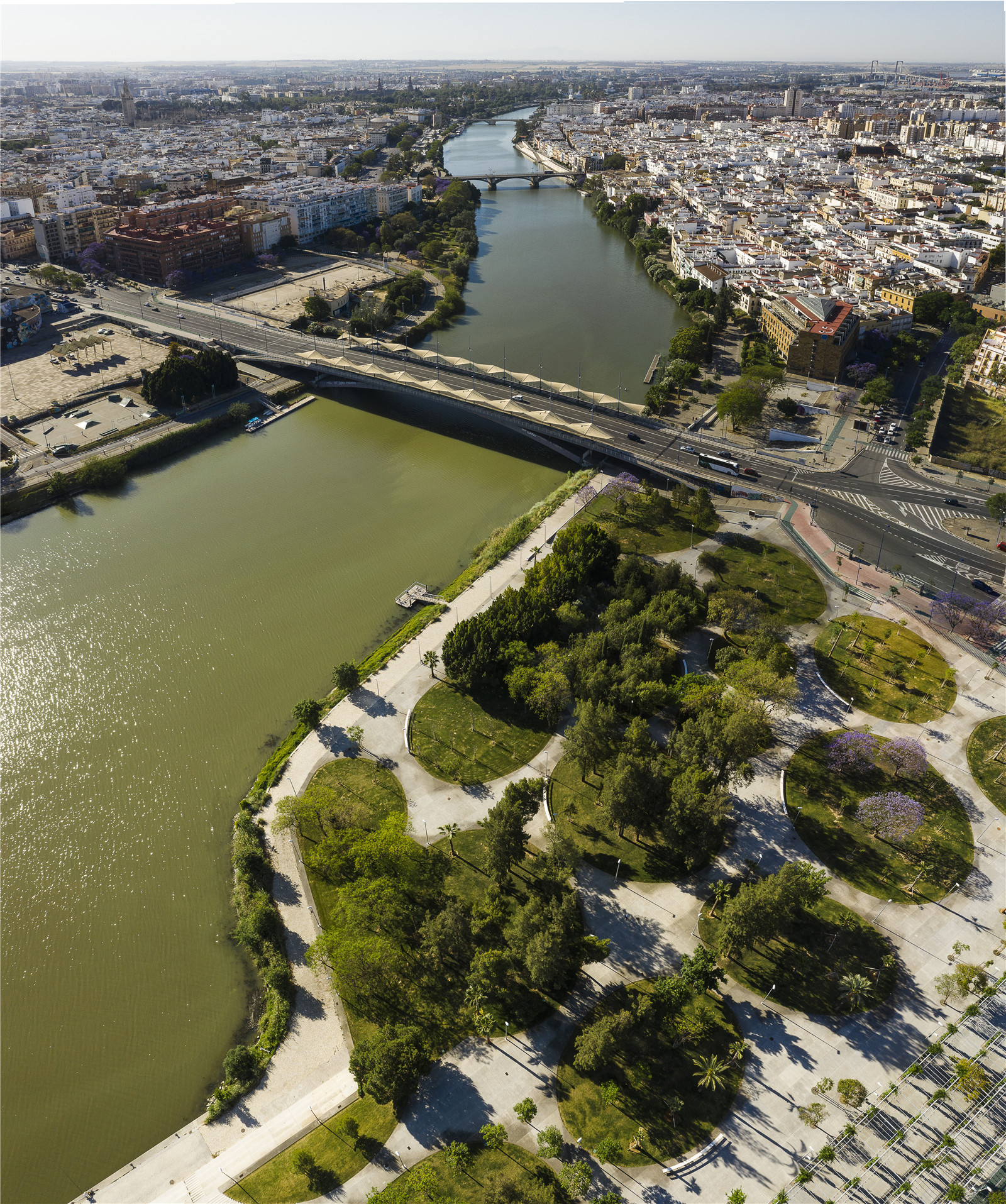

▼公園整體鳥瞰

Aerial view of the park ? Fernando Alda

該項目場地坐落在瓜達爾基維爾河的右岸，南北側分別以導航館與查皮納橋為界限，西側則是探索之路的新路段。河岸線為這座新建的公園劃定了東側的邊緣。

The land of the intervention is located on the right bank of the Guadalquivir River, bounded by the Navigation Pavilion and the Chapina Bridge on its north and south sides and west by the new route of the Path of the Discoveries. The edge of the river will delimit the perimeter to the east of the new gardens.

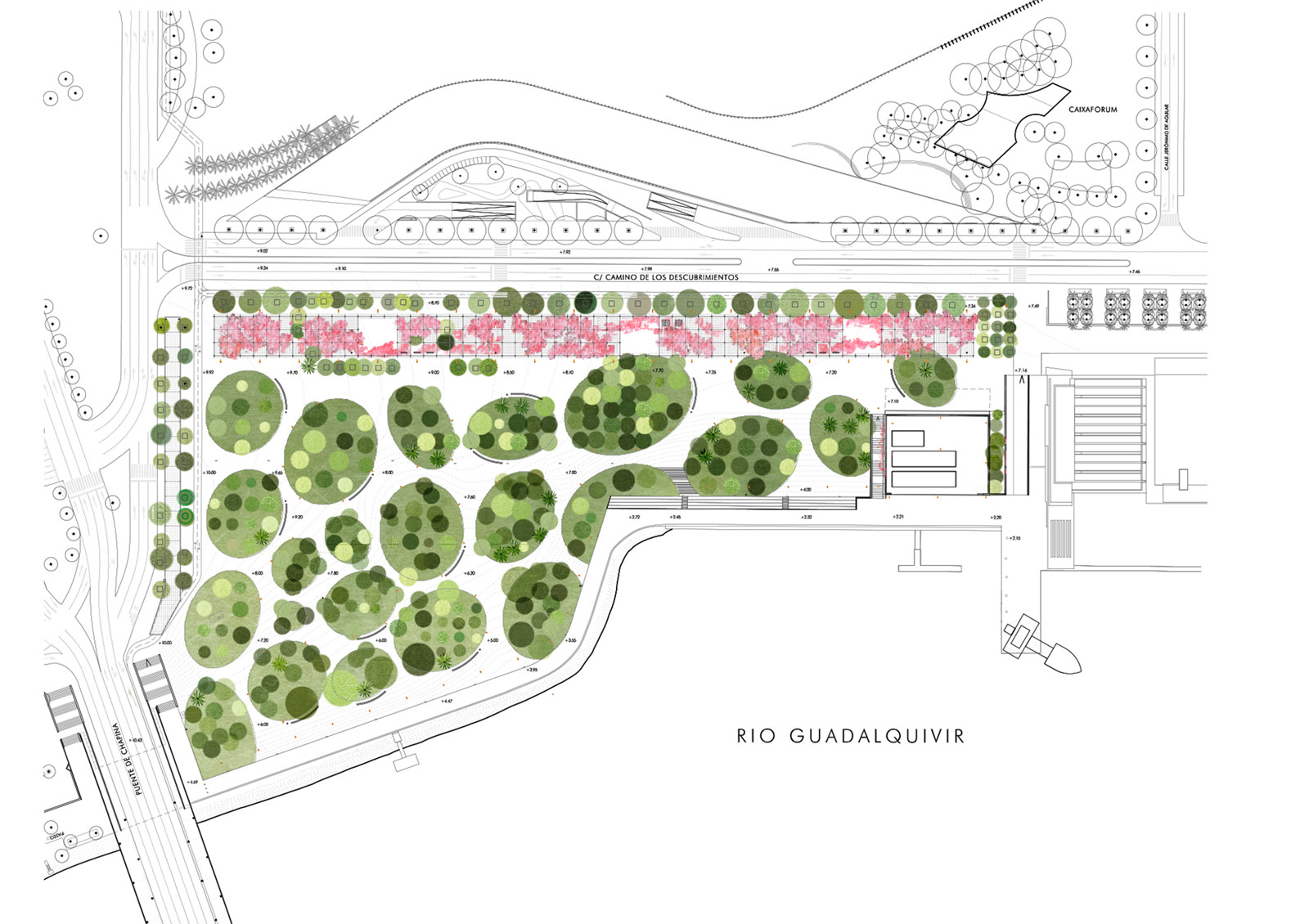

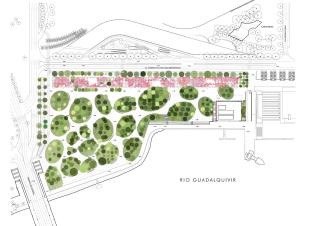

▼公園總平面圖

Masterplan of the park

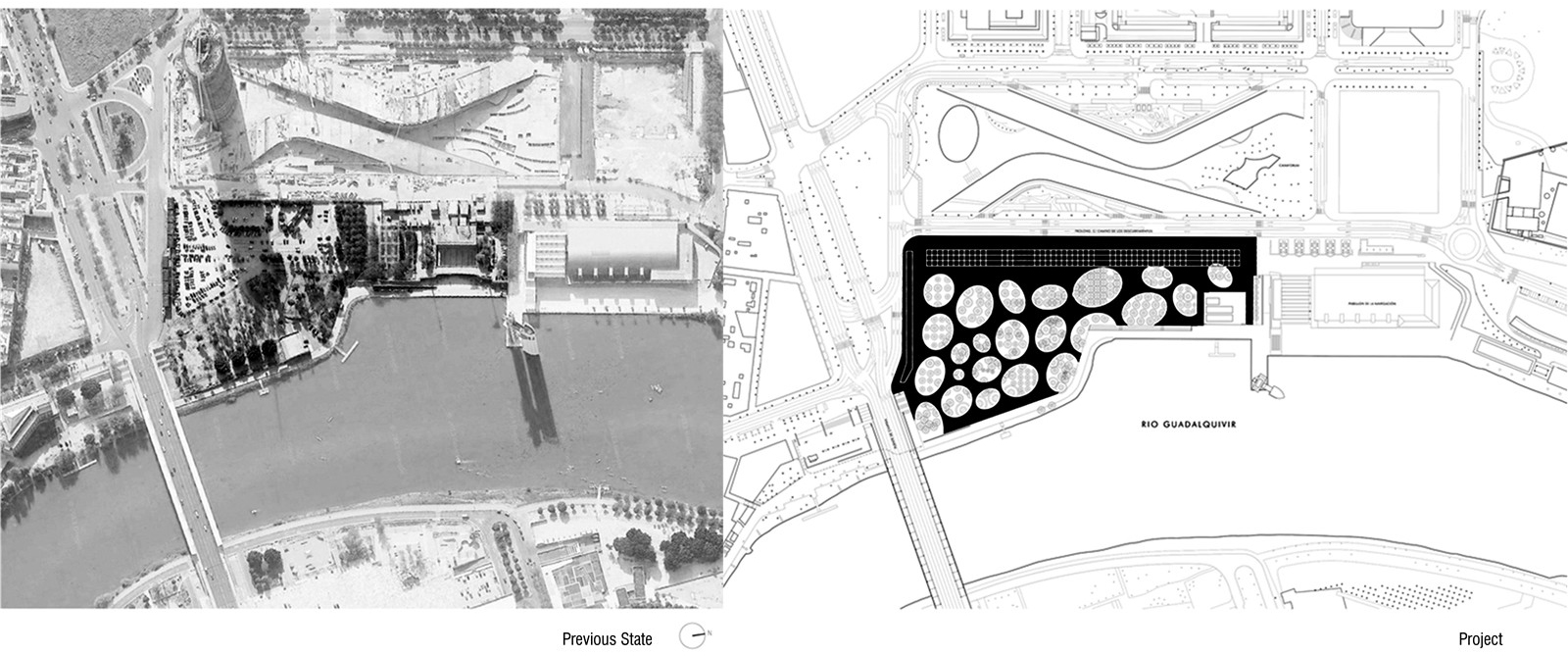

▼公園改造前后的平面對比

Comparison between the previous state and the current plan of the site

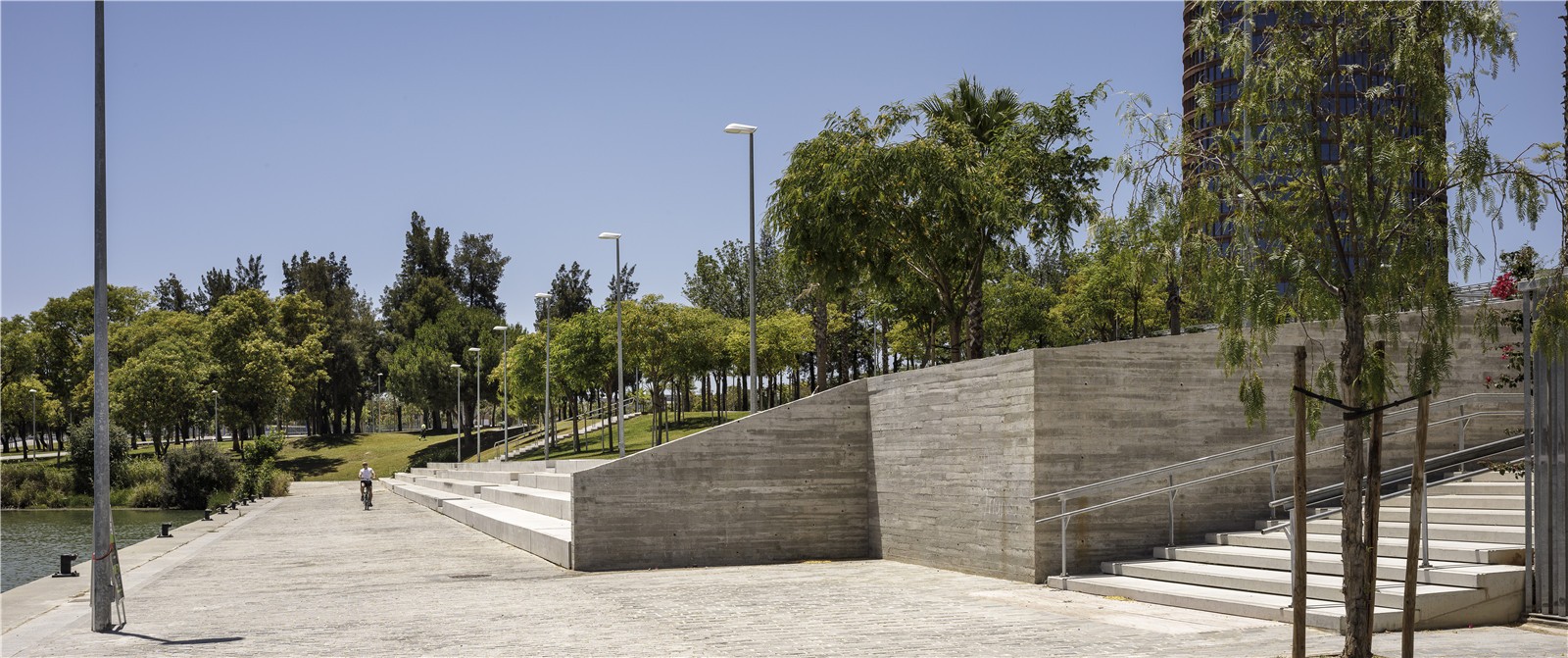

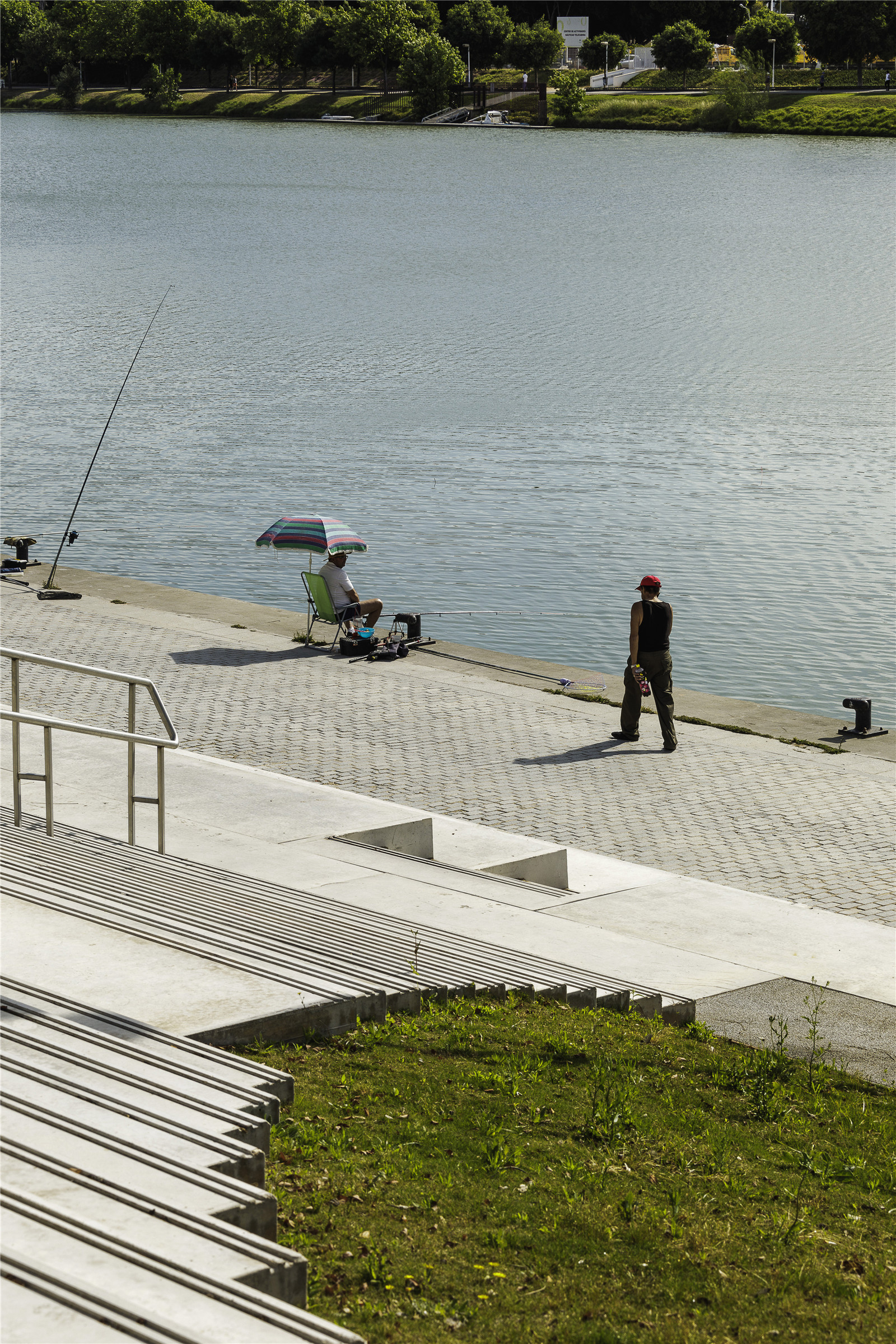

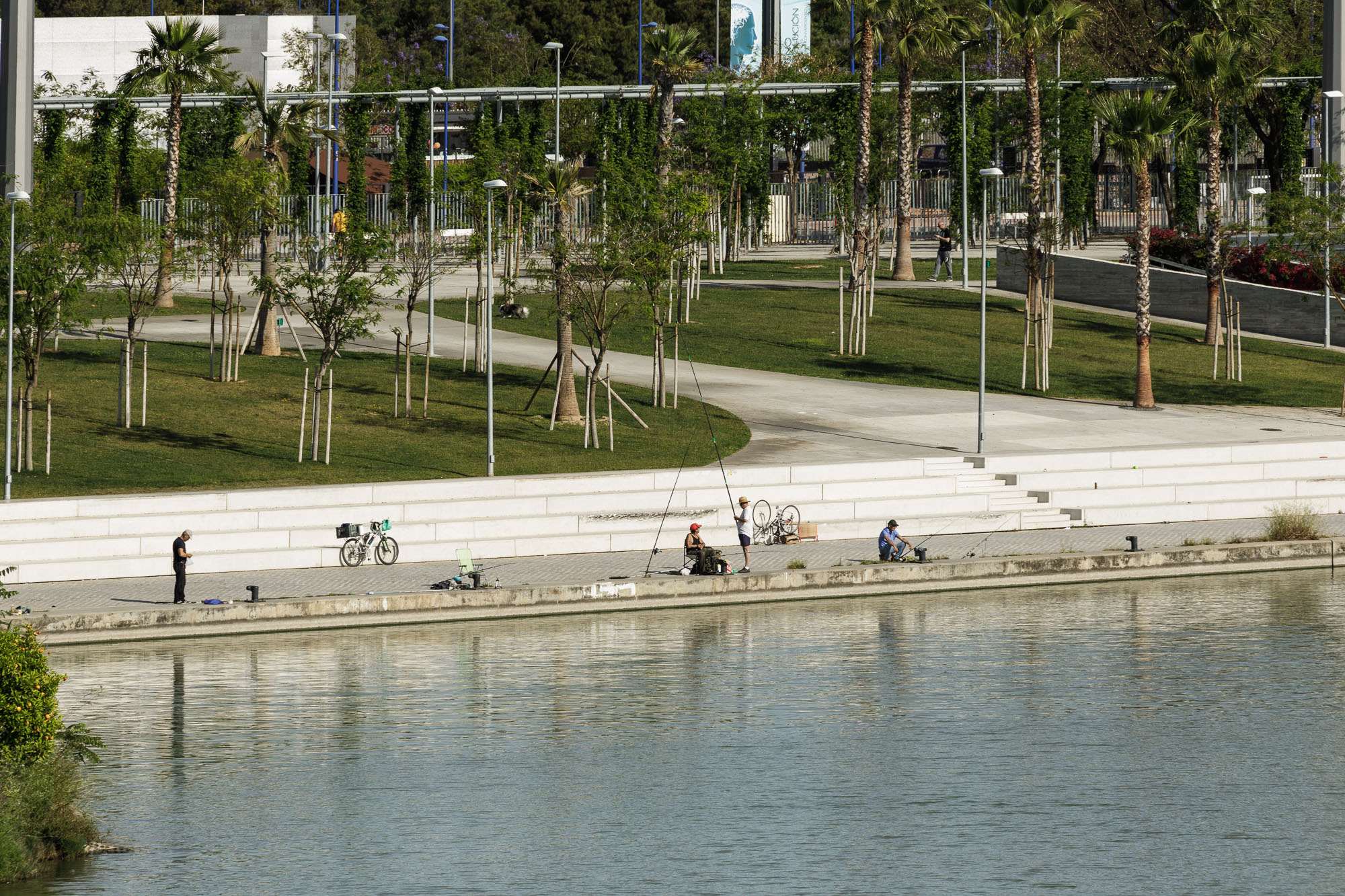

▼ 濱水景觀空間

Waterfront landscape ? Fernando Alda

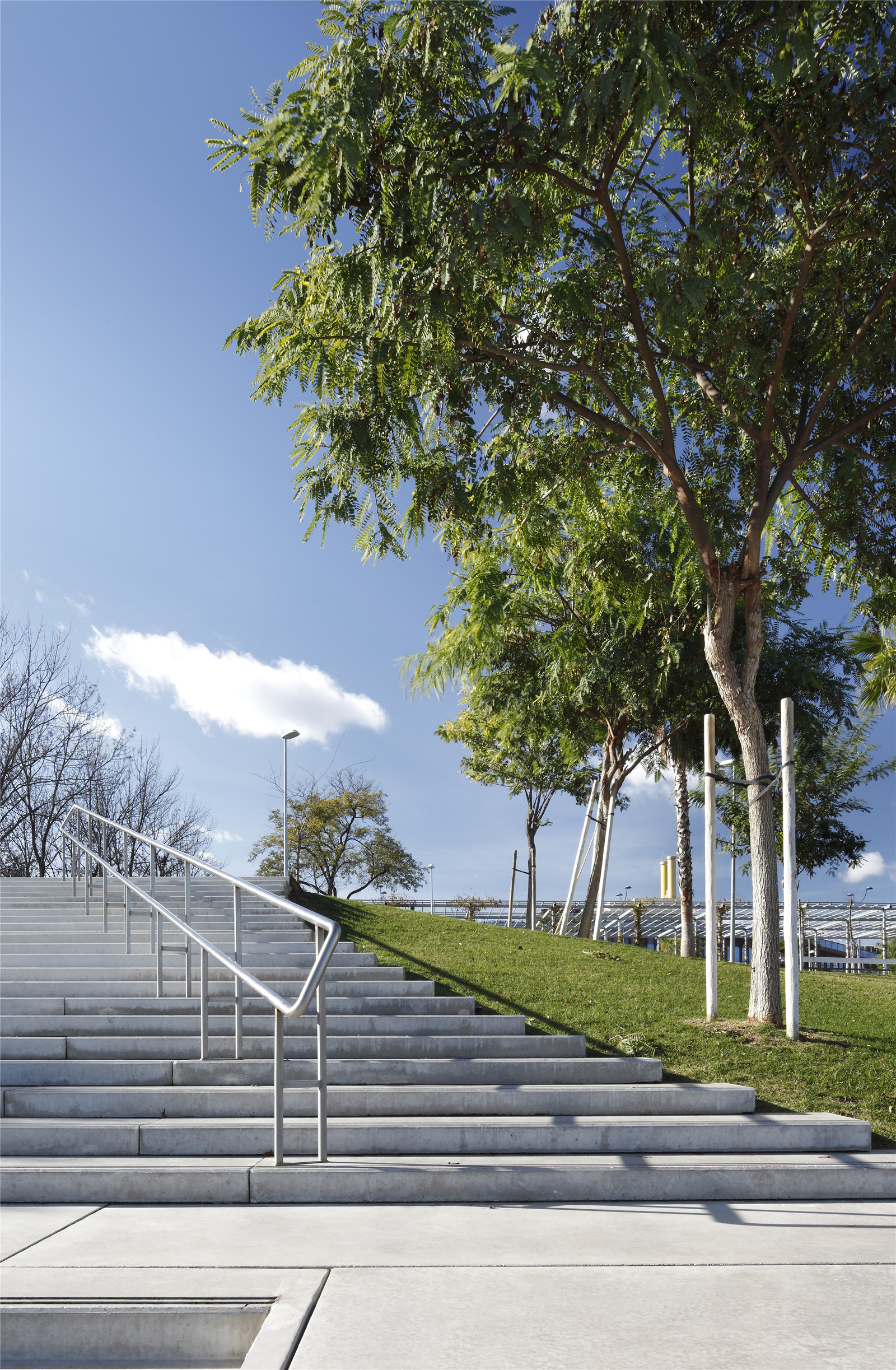

▼長臺階

Stairs? Pablo Diaz Fierros

項目方案旨在打造一座高品質的公共景觀空間：水平向的廣場現被用作一個大型的地面停車場。面向河流的斜坡點綴著一叢叢小樹林，呈現出一種自然而然的狀態。

在常規的景觀設計策略中，沒有改造與建筑價值的陳舊結構將被拆除，從而給植被騰出空間。減少建造，增加綠植。項目方案設置了多個橢圓形種植區，為分散的小樹林提供了新的生存空間，且營造出森林般的景象。在樹林間，基于地形現狀打造了通往各個方向的步道網絡。沿河岸的縱向道路，直接通向新賽艇運動中心，并連接著上游處的特里亞納的拉奧大道與眾多公園，且遠至航海館。

The proposal aims to generate a landscaped public space of quality from the pre-existence of the place: the horizontal esplanade, used today as a large surface car park and the sloping terrain towards the river dotted by the presence of some groups of trees, in an advanced state of degradation and abandonment.

In the general intervention strategy, the idea of demolishing all those pre-existing elements without constructive or architectural value will prevail in order to give preference to the presence of vegetation. Reduce construction in favour of green. The proposal generates a new soil for this dispersed grove from the construction of green ellipses (plant set) that group the trees in forests. Among them, by negative, an isotropic network of routes is established, adapted to the existing topography. A walk, following the river bank, runs the plot lengthwise, facilitating access to the new Rowing Sports Center and allowing the connection between the Paseo de la O in Triana and the gardens that are located upstream, beyond the Pavilion of the Navigation.

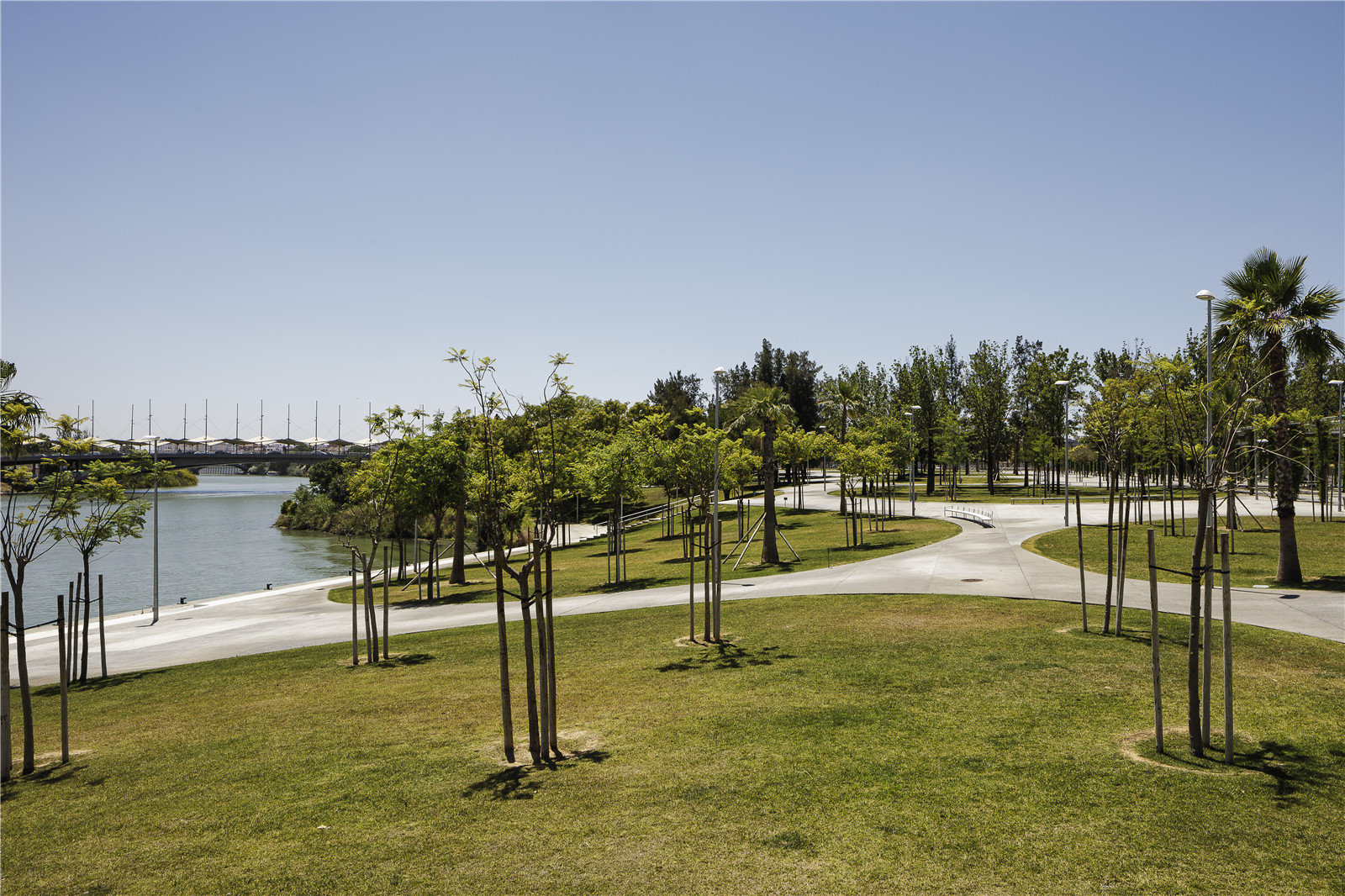

▼ 橢圓形種植區

Green ellipses ? Fernando Alda

排水是該項目中的關鍵問題。排水網絡以橢圓形種植池的外圍為基準來設計，邊界處成為收集雨水徑流的導流系統 (園內所有步道都鋪裝的多孔透水混凝土磚)。排水溝內設置了雙排水系統，來增強雨水在土壤中的滲透。灑水裝置為園內引入新樹木和攀緣類植物提供了便利。

Drainage is a key issue in our project. The drainage network is established based on the perimeters of the ellipses, designed as rainwater surface channelling edges (all the pavement of the gardens is porous concrete), built through ditches that house a system of double drainage cells to enhance the in?ltration of water into the subsoil. A sprinkler network will allow the introduction of new trees and creepers of woodlots.

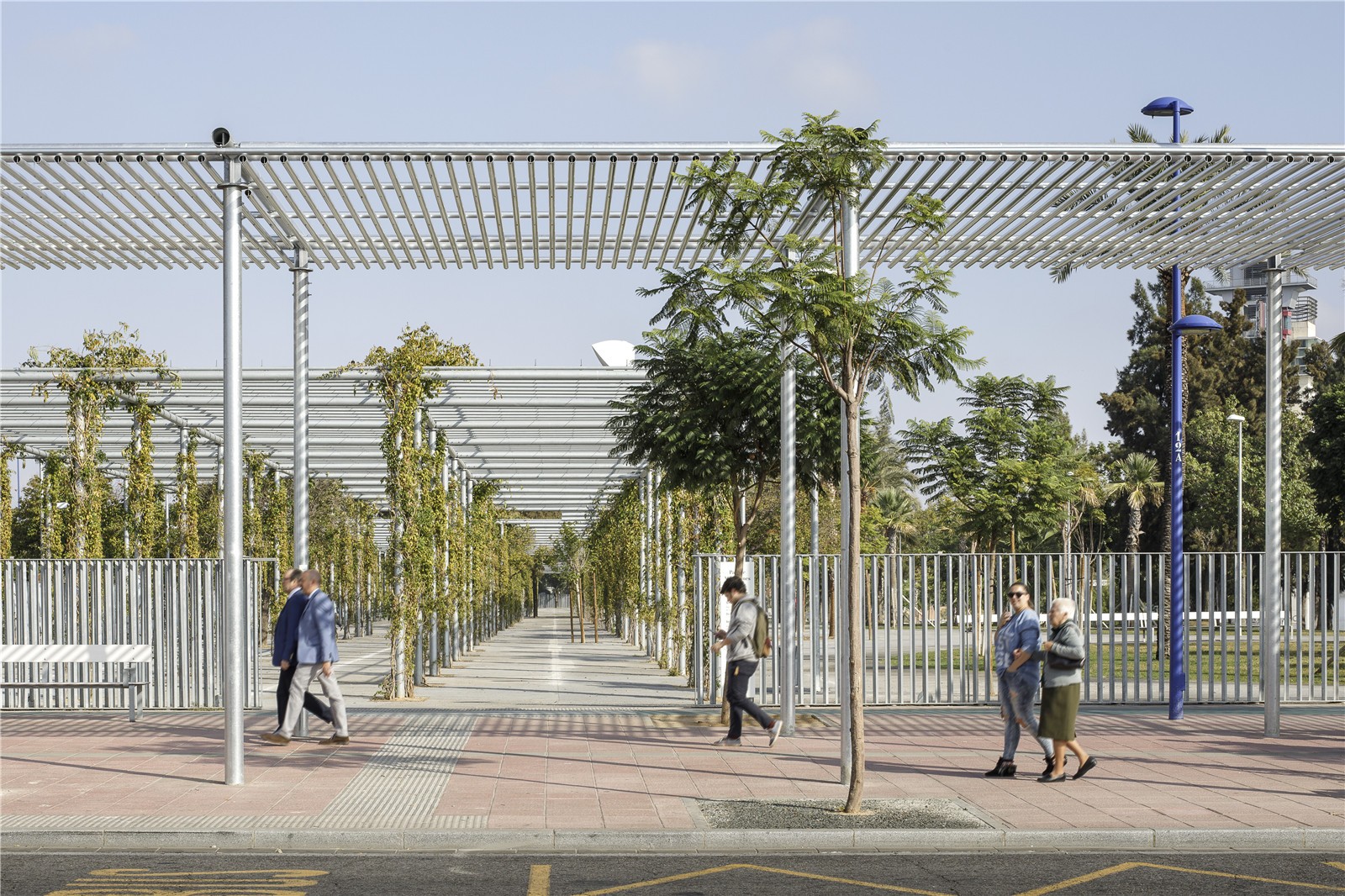

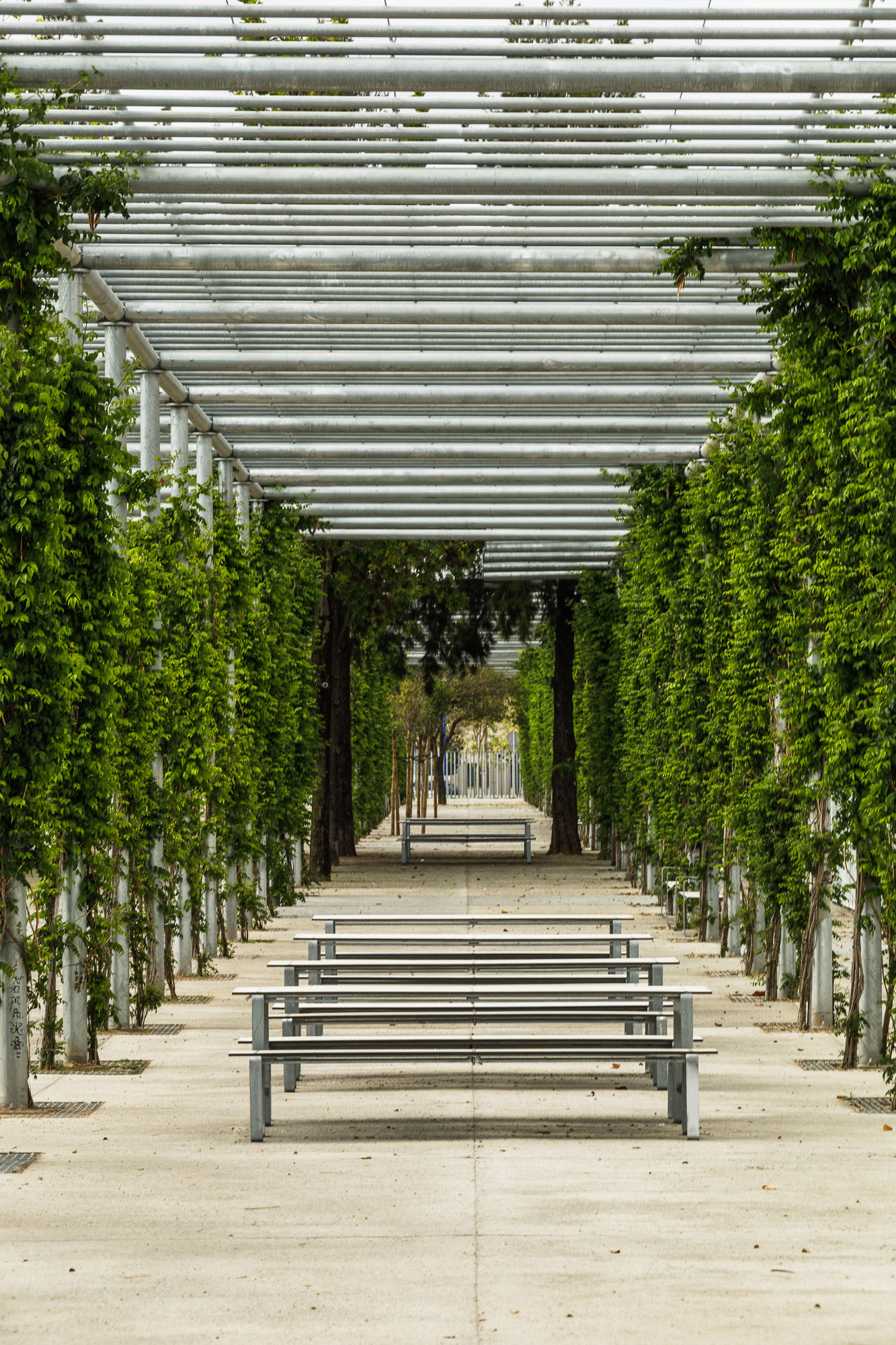

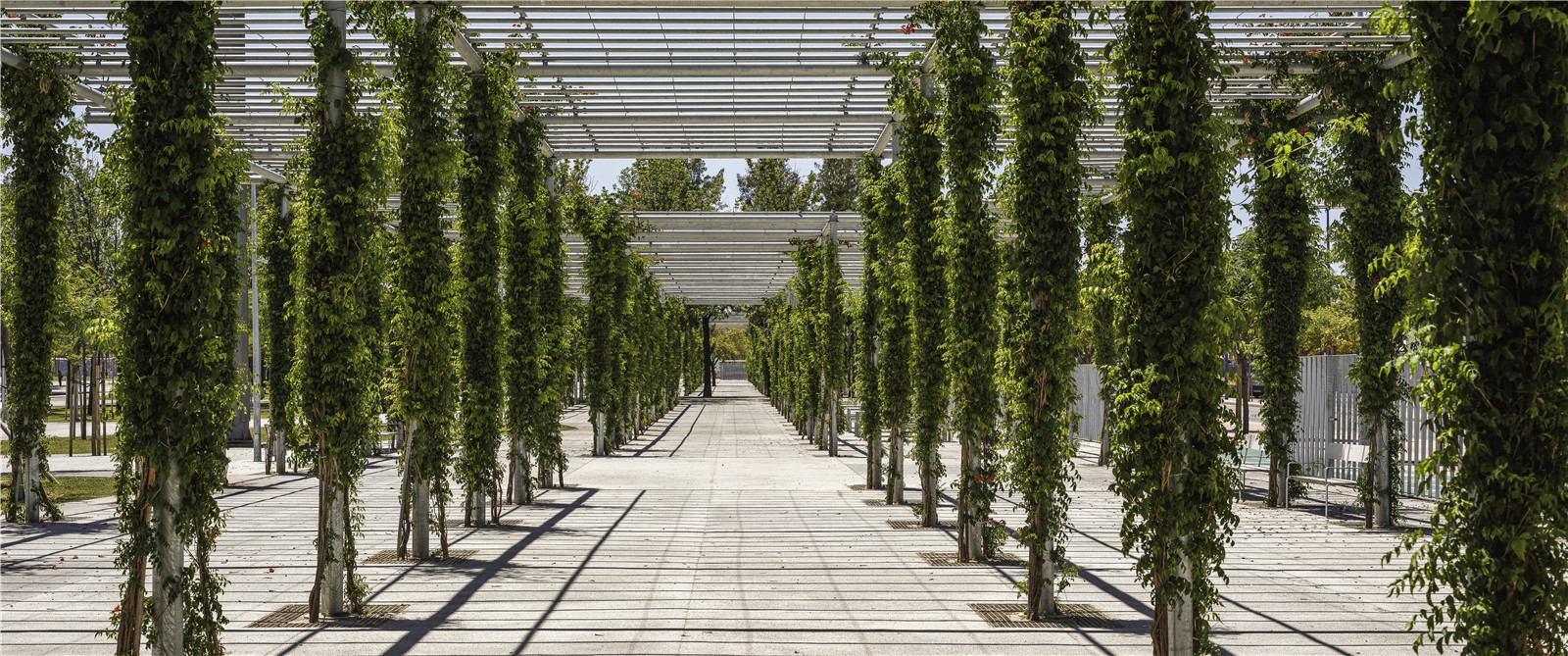

▼攀援植物廊架

Creepers of woodlots ? Fernando Alda

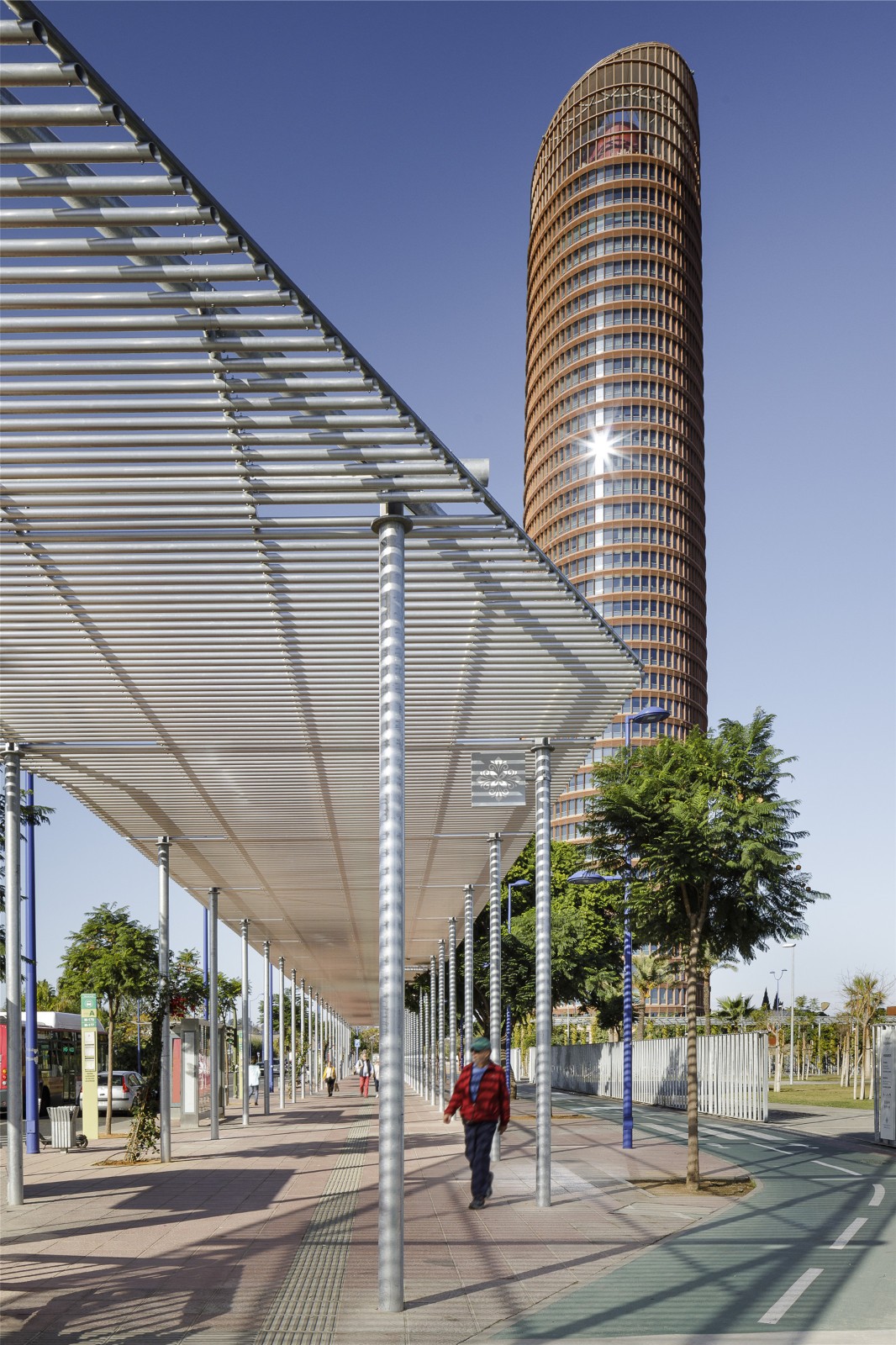

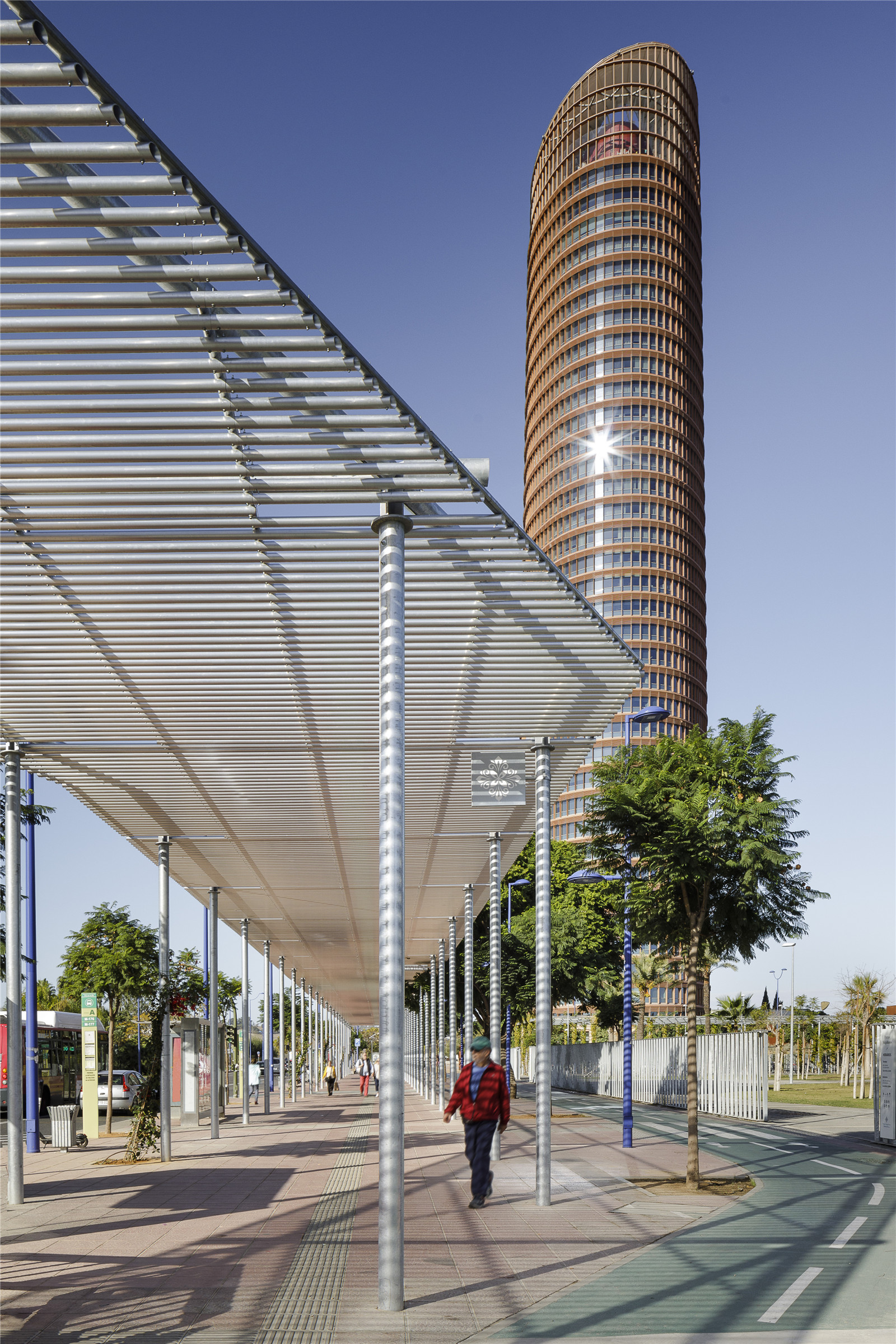

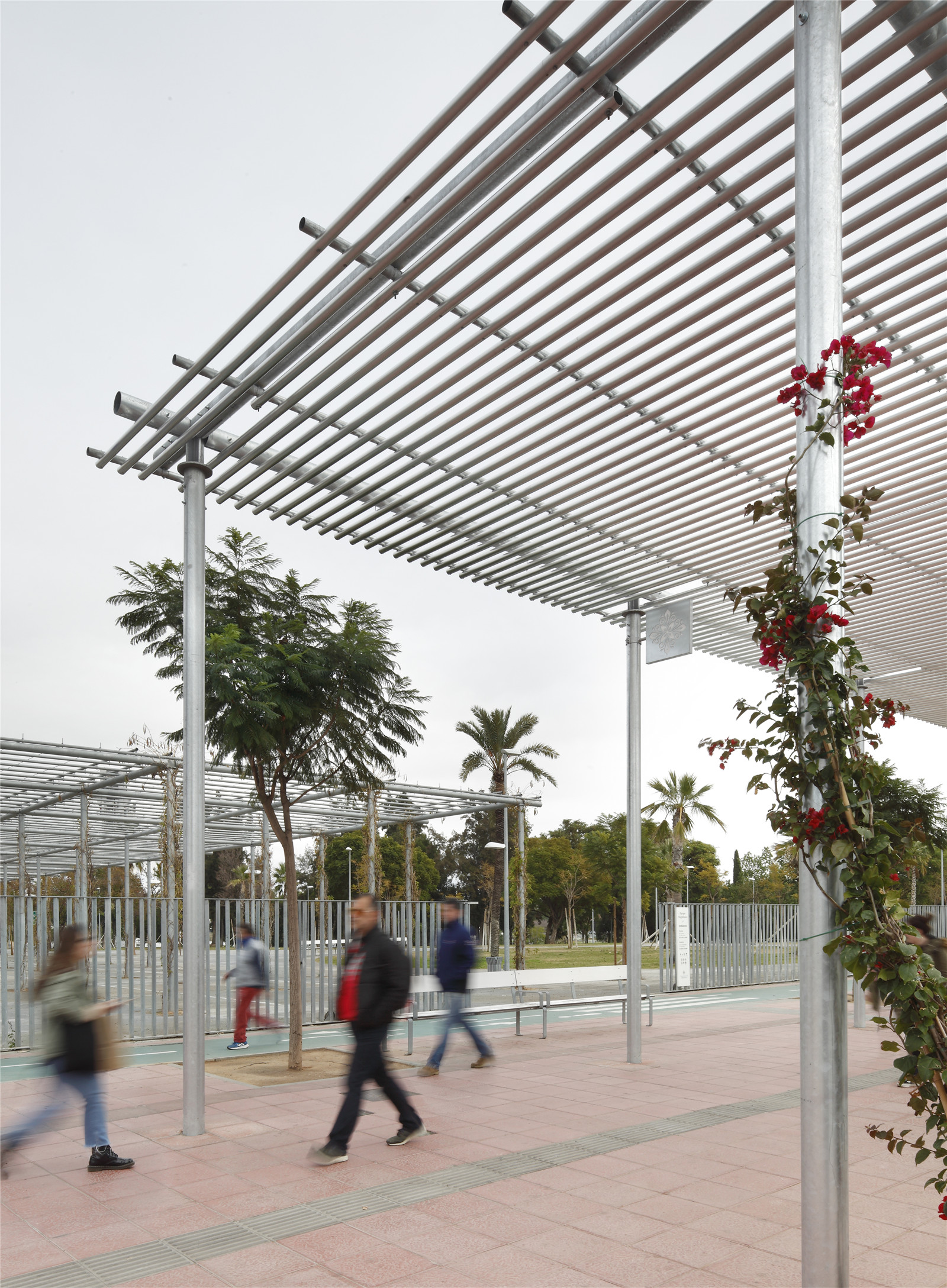

▼ 廊架與步行道

Corridor and footpath? Pablo Diaz Fierros

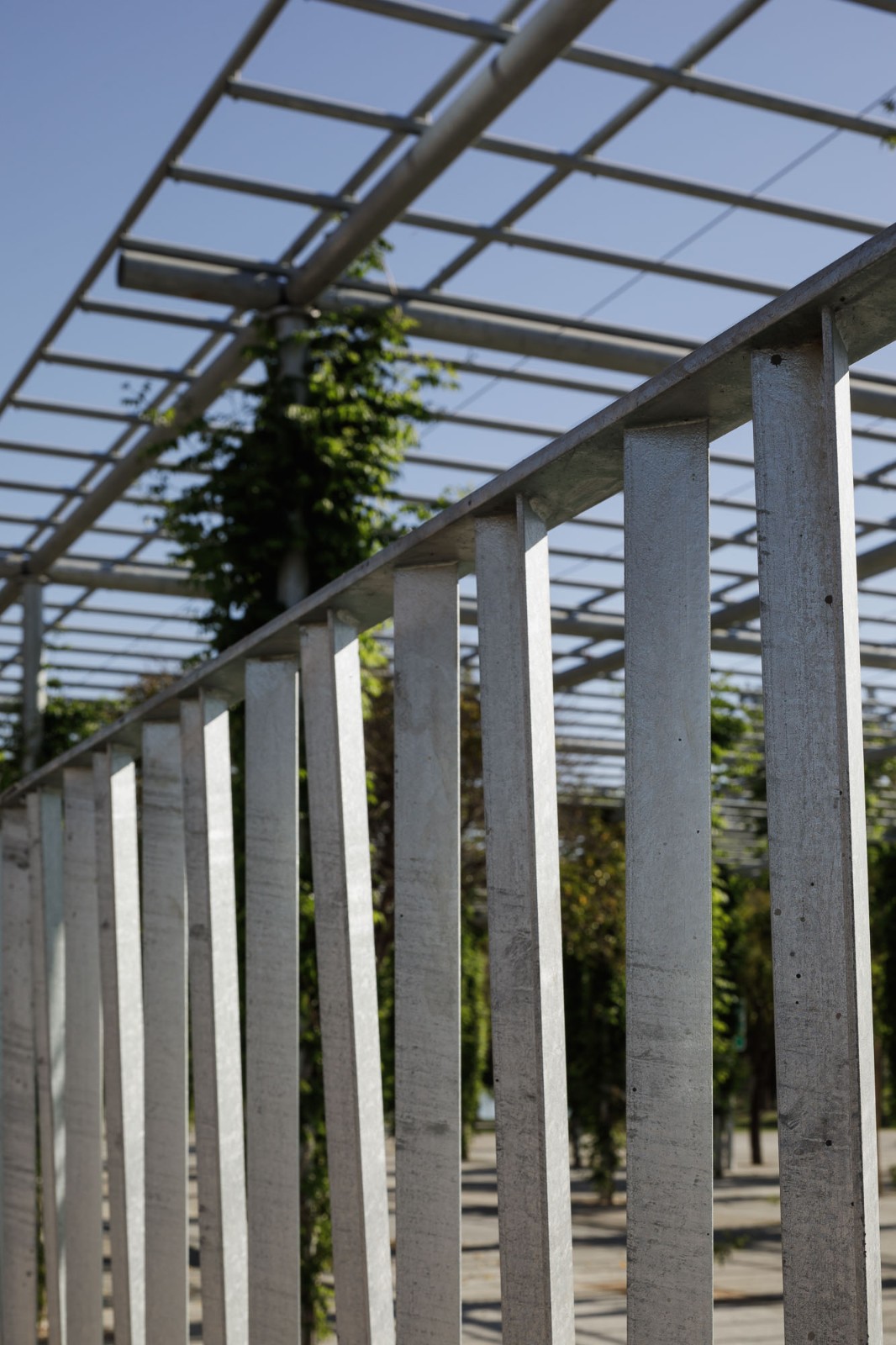

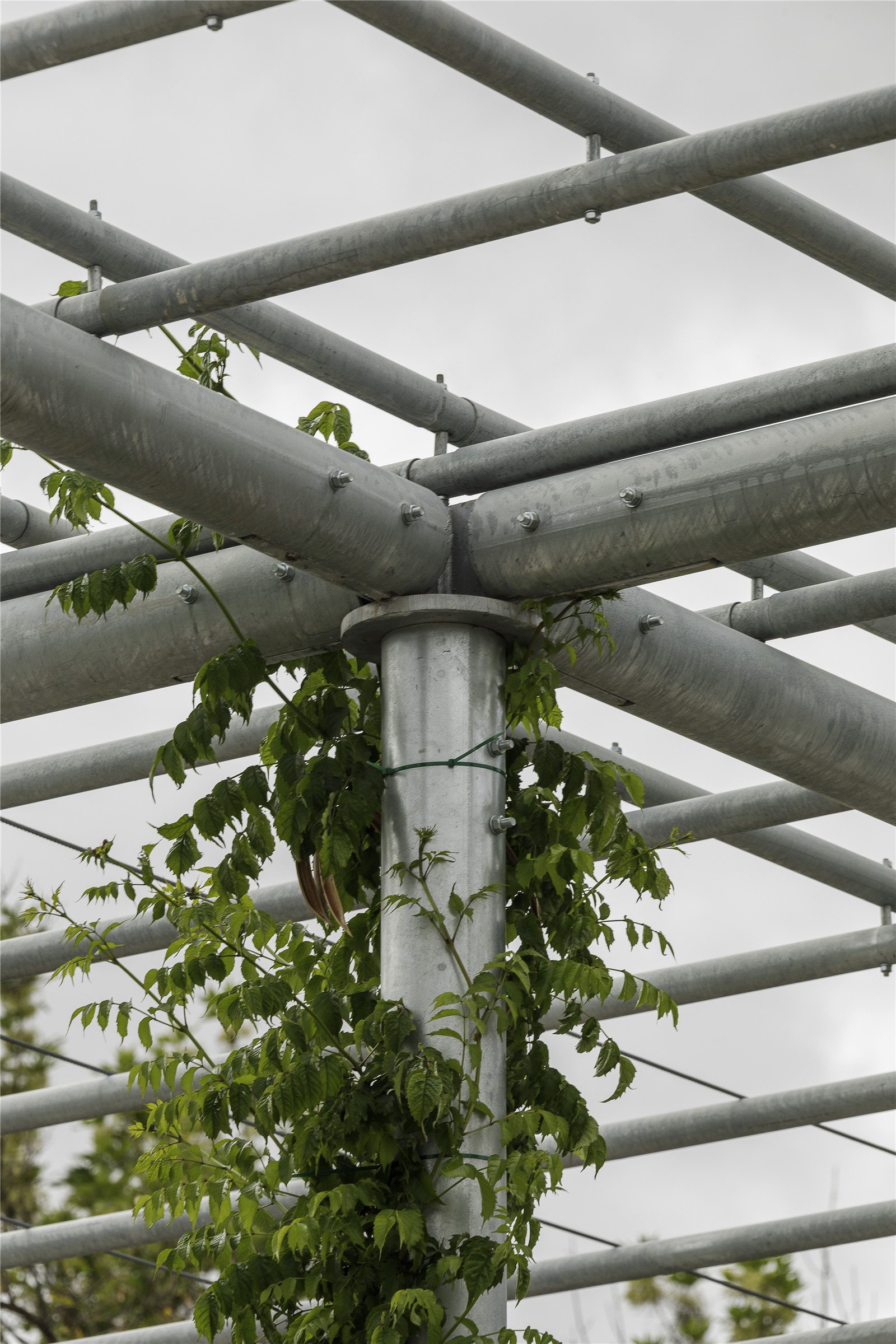

▼ 攀緣植物廊架細節

Details of the framework?  Fernando Alda

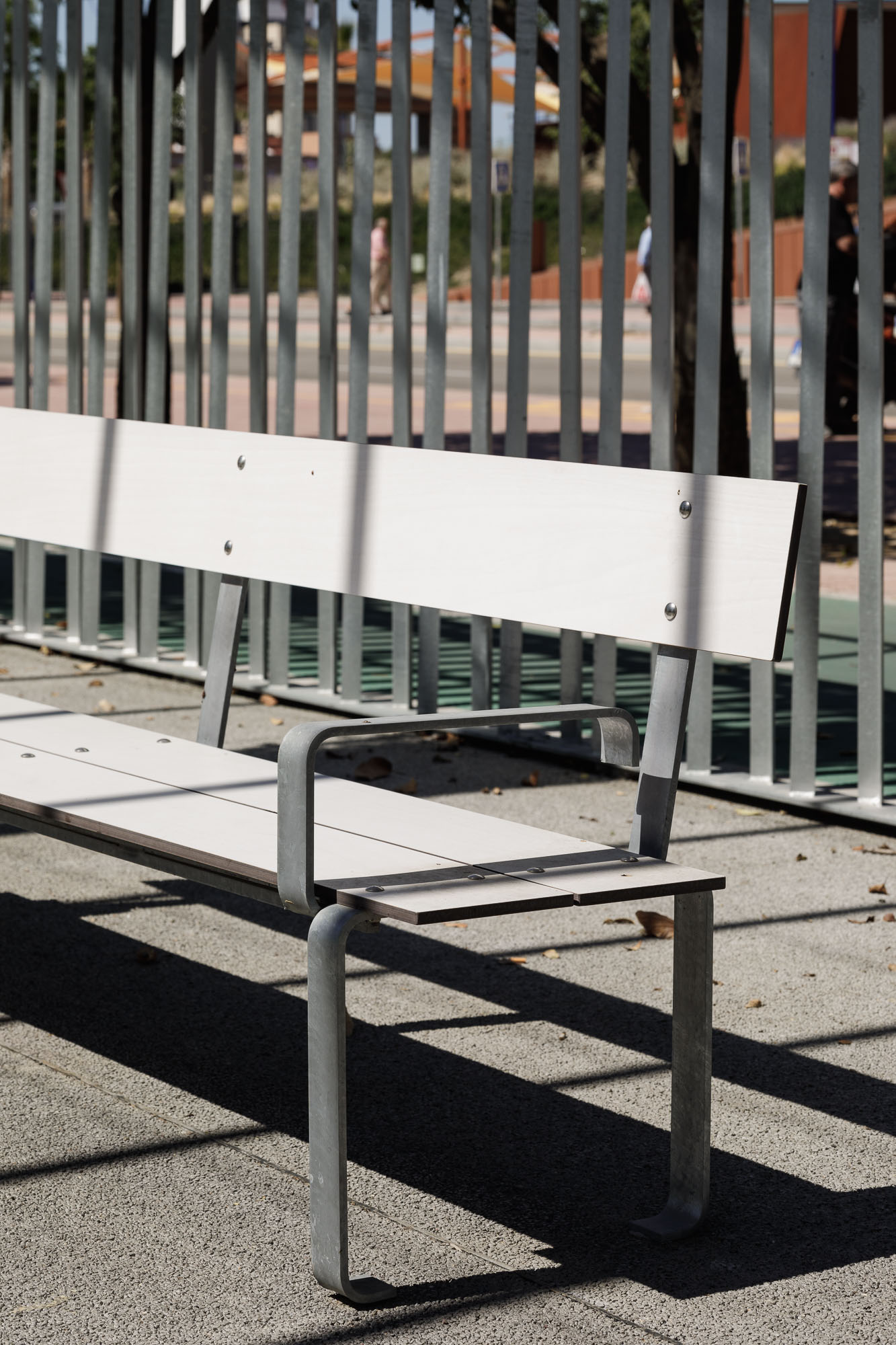

▼ 座椅細節

Details of the bench ?Fernando Alda

_項目信息

_{項目名稱：麥哲倫城市公園}

_{項目地點：西班牙塞維利亞}

_{建成時間：2019年}

_{設計公司：Guillermo Vázquez Consuegra}

_{公司官網：https://www.vazquezconsuegra.com/parque-magallanes-en-sevilla/}

_{首席建筑師：Guillermo Vázquez Consuegra}

_{技術建筑師：Marcos Vázquez Consuegra，Ignacio González}

_{技術團隊：Eduardo Melero, Paolo Bugatti, Alberto Brunello, Christophe Beraldin}

_{景觀設計師：Arquitectura Agronomía}

_{結構工程師：Edartec Consultores, S.L}

_{服務支持：Ingenieros-JG, S.L}

_{承包方：Dragados S.A.}

_{委托方：Puerto Triana S.A.U. (Fundación Caixa D’Estalvis i Pensions de Barcelona “La Caixa”)}

_{圖片來源：Fernando Alda ，Pablo Díaz-Fierros}

_{Project name:：Magallanes Urban Park}

_{Location：Seville (Spain)}

_{Completion Year: 2019}

_{Company name：Guillermo Vázquez Consuegra}

_{Website：https://www.vazquezconsuegra.com/parque-magallanes-en-sevilla/}

_{Architect：Guillermo Vázquez Consuegra  (project and direction of works)}

_{Technical architect：Marcos Vázquez Consuegra (project and direction of works)}

_{with Ignacio González (direction of works)}

_{Collaborators：Eduardo Melero (direction of works), Paolo Bugatti, Alberto Brunello, Christophe Beraldin.}

_{Landscape：Arquitectura Agronomía}

_{Structure；Edartec Consultores, S.L}

_{Services：Ingenieros-JG, S.L}

_{Contractor：Dragados S.A.}

_{Client：Puerto Triana S.A.U. (Fundación Caixa D’Estalvis i Pensions de Barcelona “La Caixa”)}

_{Photo credits：Fernando Alda ，Pablo Díaz-Fierros}
