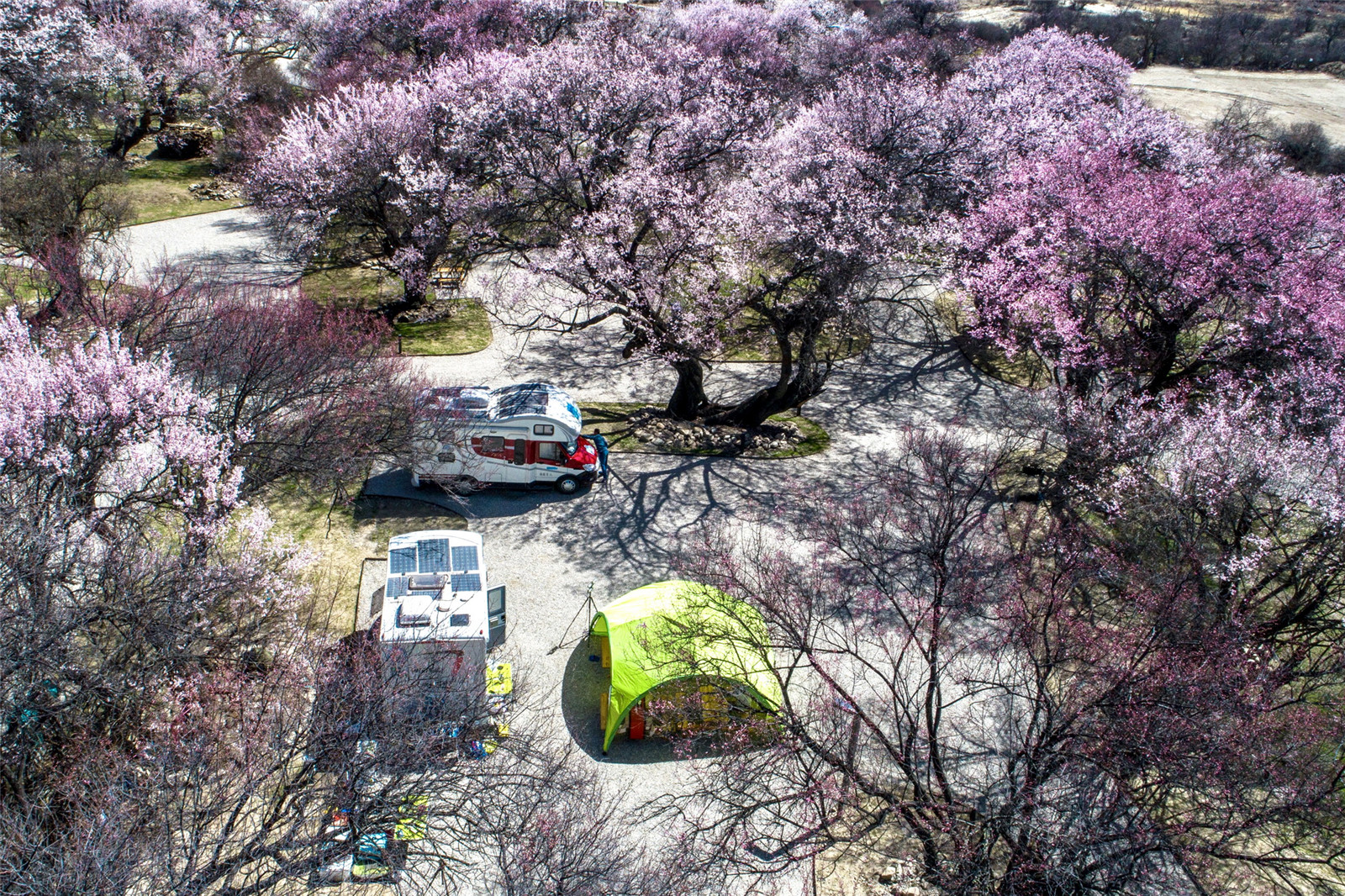

▼美麗的露營場地

A wonderful campsite ? 古岳 / Yue Gu

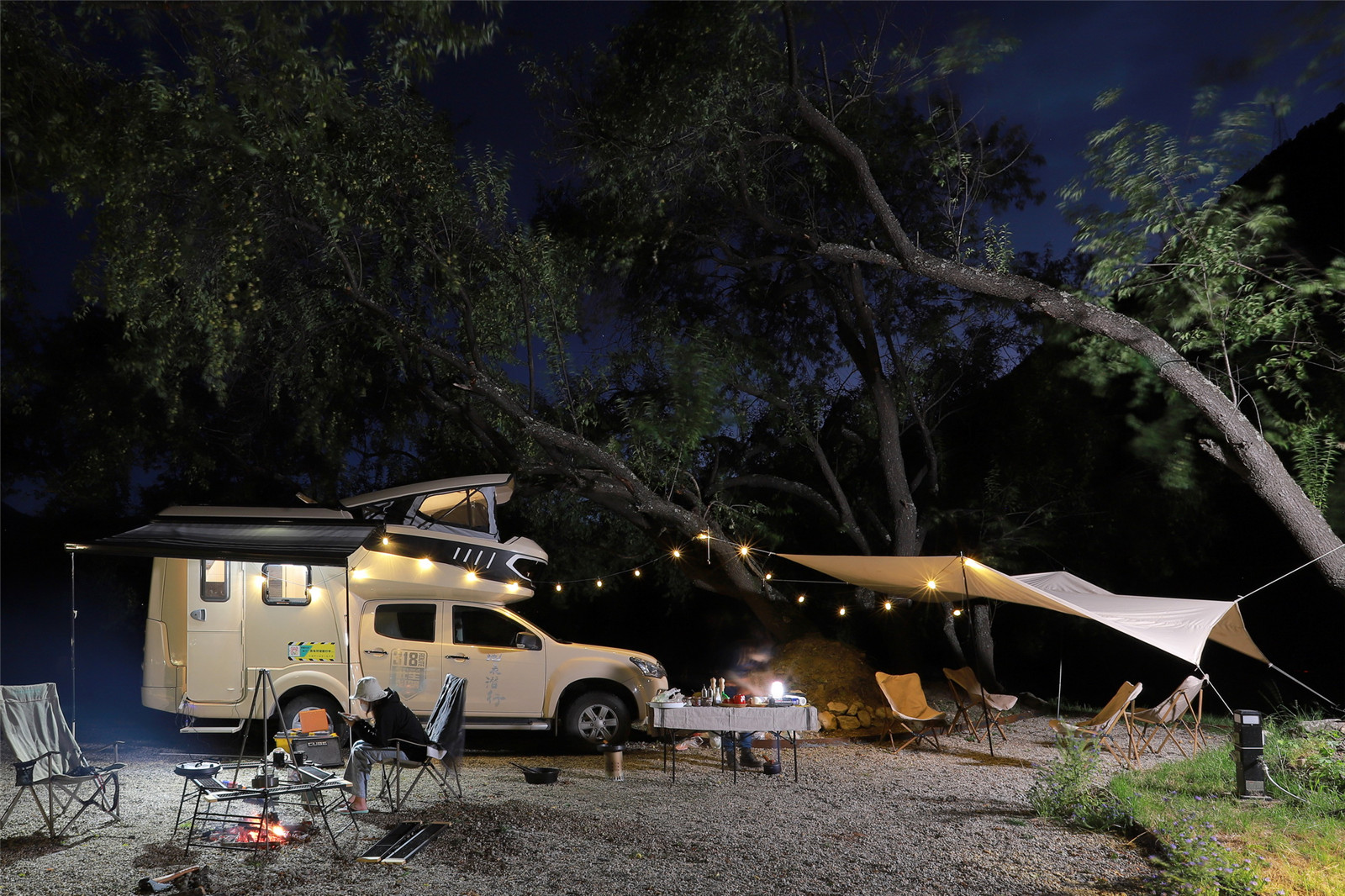

▼夜間露營體驗

Night camping experience ? 地表潛行

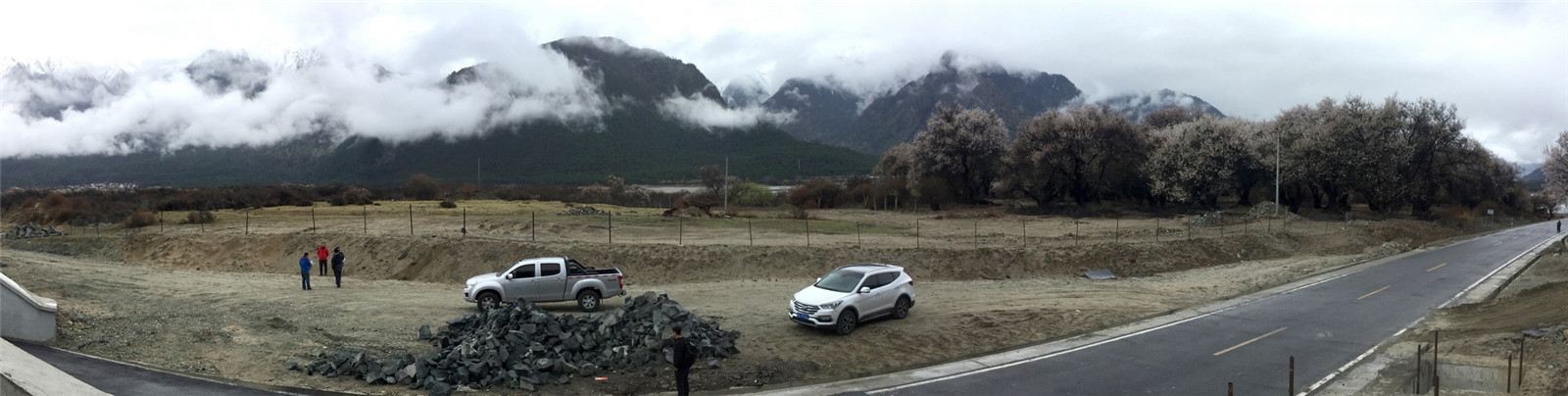

▼原始場地

The original site ? CM Design

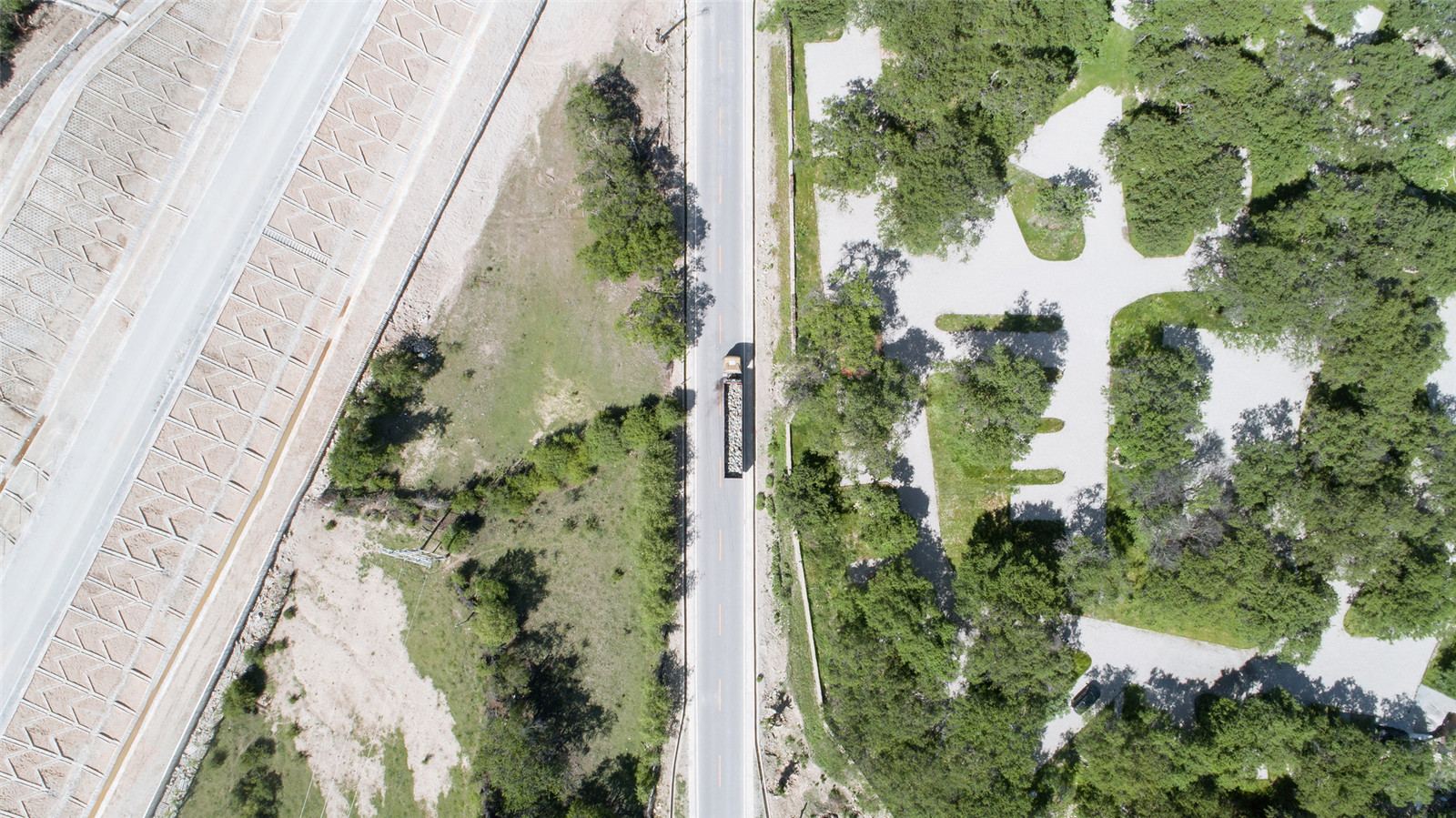

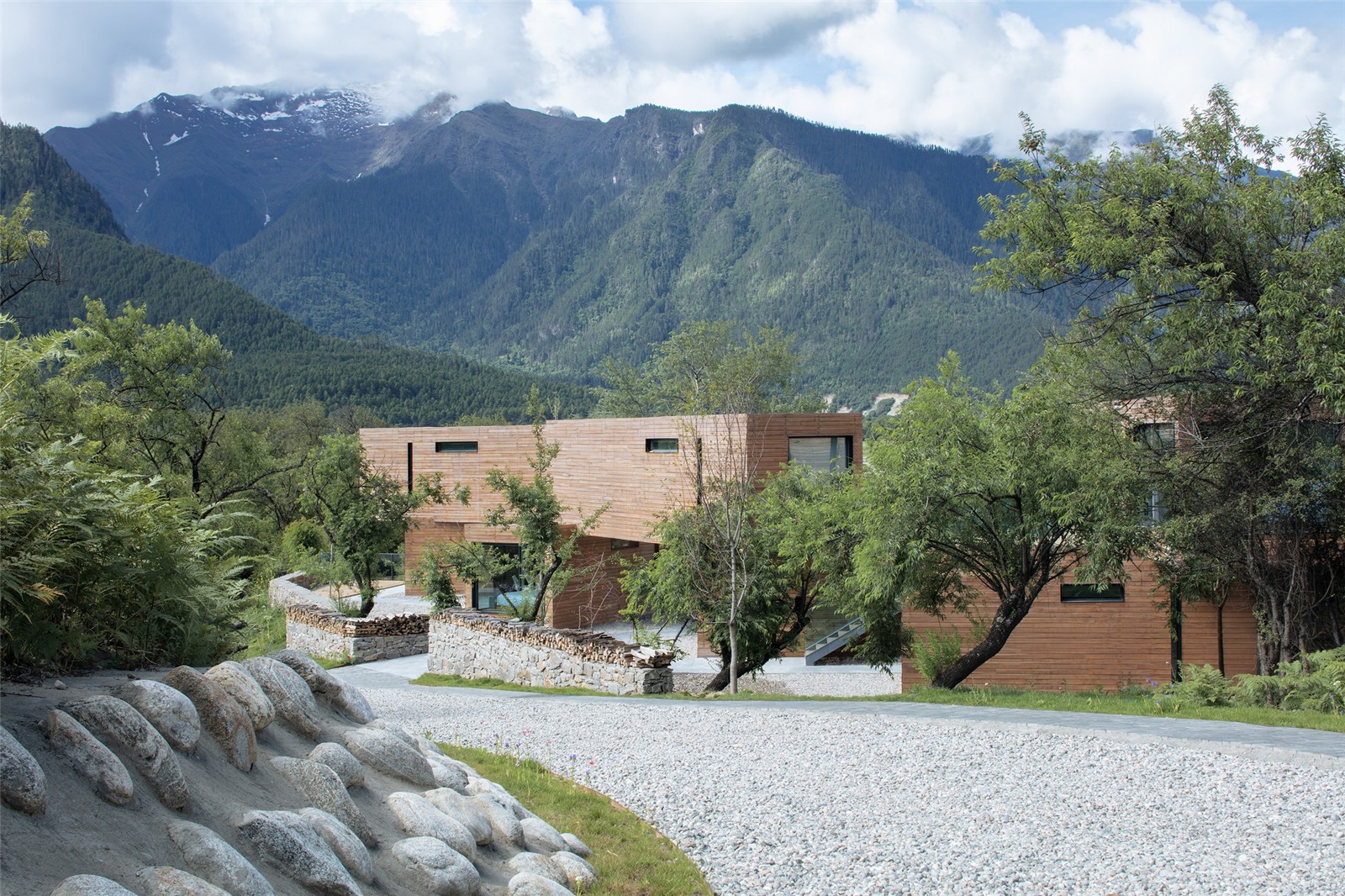

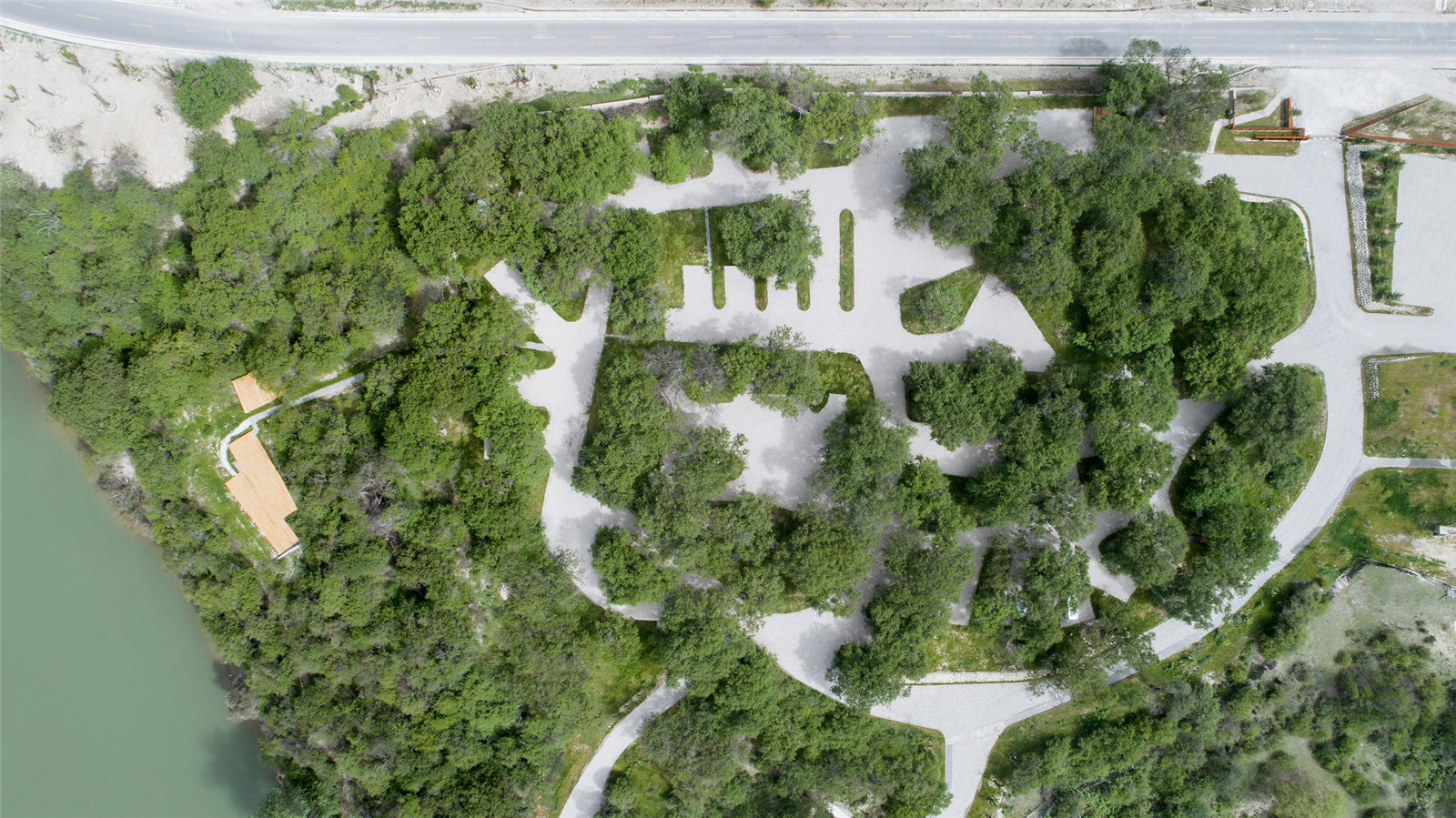

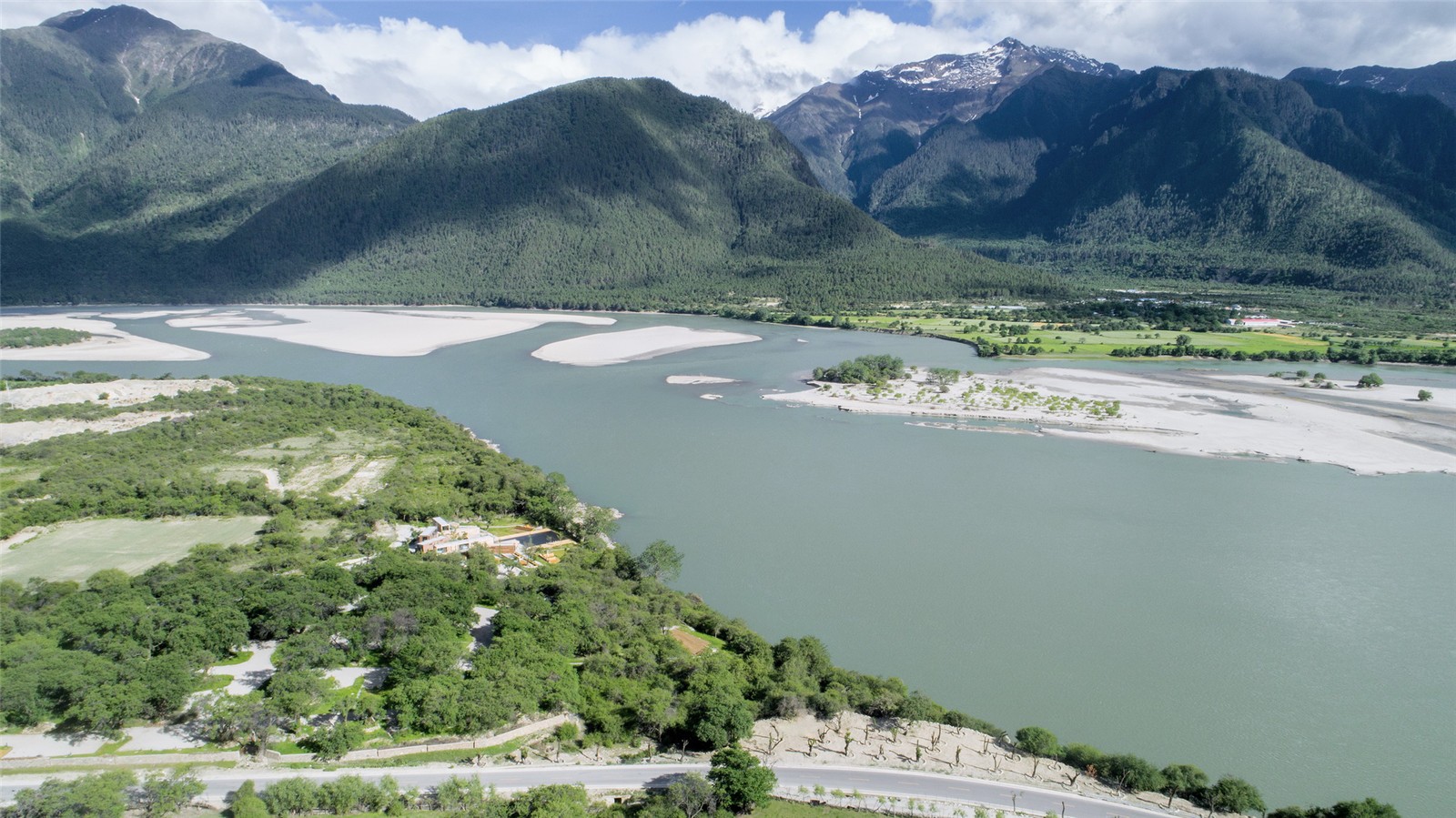

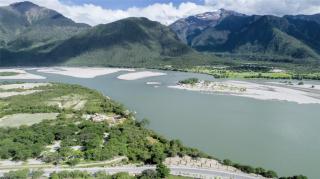

▼場地鳥瞰與俯瞰

Bird's eye view and overlooking of the site ? 夏至 / Zhi Xia

山澤居房車自駕營項目位于西藏林芝米林縣城境內朗嘎附近、連接米林縣城至林芝機場的桃花大道旁，項目基地在雅魯藏布江扭轉形成的一個駁岸上，岸對面的沙洲生長著成片的柳樹林，四周是延綿不斷的雪山群。北邊是未來即將開通的川藏鐵路的拉林段。場地內三五百年的古桃樹成林，散落大小不一的石塊，夾雜著格?；?，須芒草，苔蘚，蕨類等灌木植物。

The project is Sanzee Rv self-driving campsite which is beside Peach Tree Road that connects Milin to Linzhi airport. The site is on an embankment, formed by the twist of the Yarlung Zangbo River. There are patches of willow trees where surrounded by continuous snow mountains. To the north is the Lalin section of the Sichuan-Tibet Railway which will be open up in the future. The ancient peach trees forest which consist of trees 300 to 500 hundred years old. In the site there are stones of different sizes scattered. Gesang flowers are mixed with miscanthus, mosses, ferns and other shrubs.

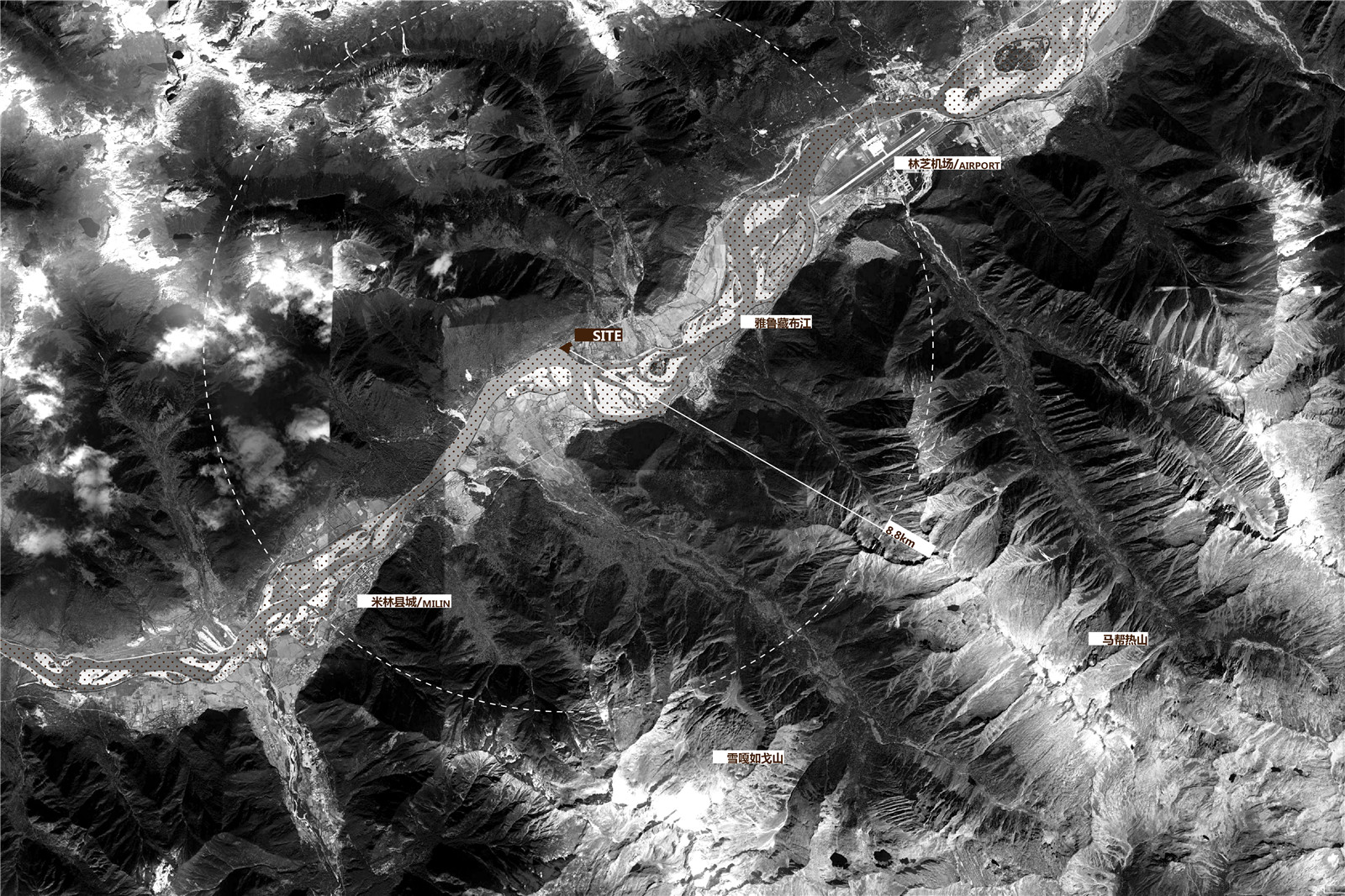

▼項目區位

Site location ? CM Design

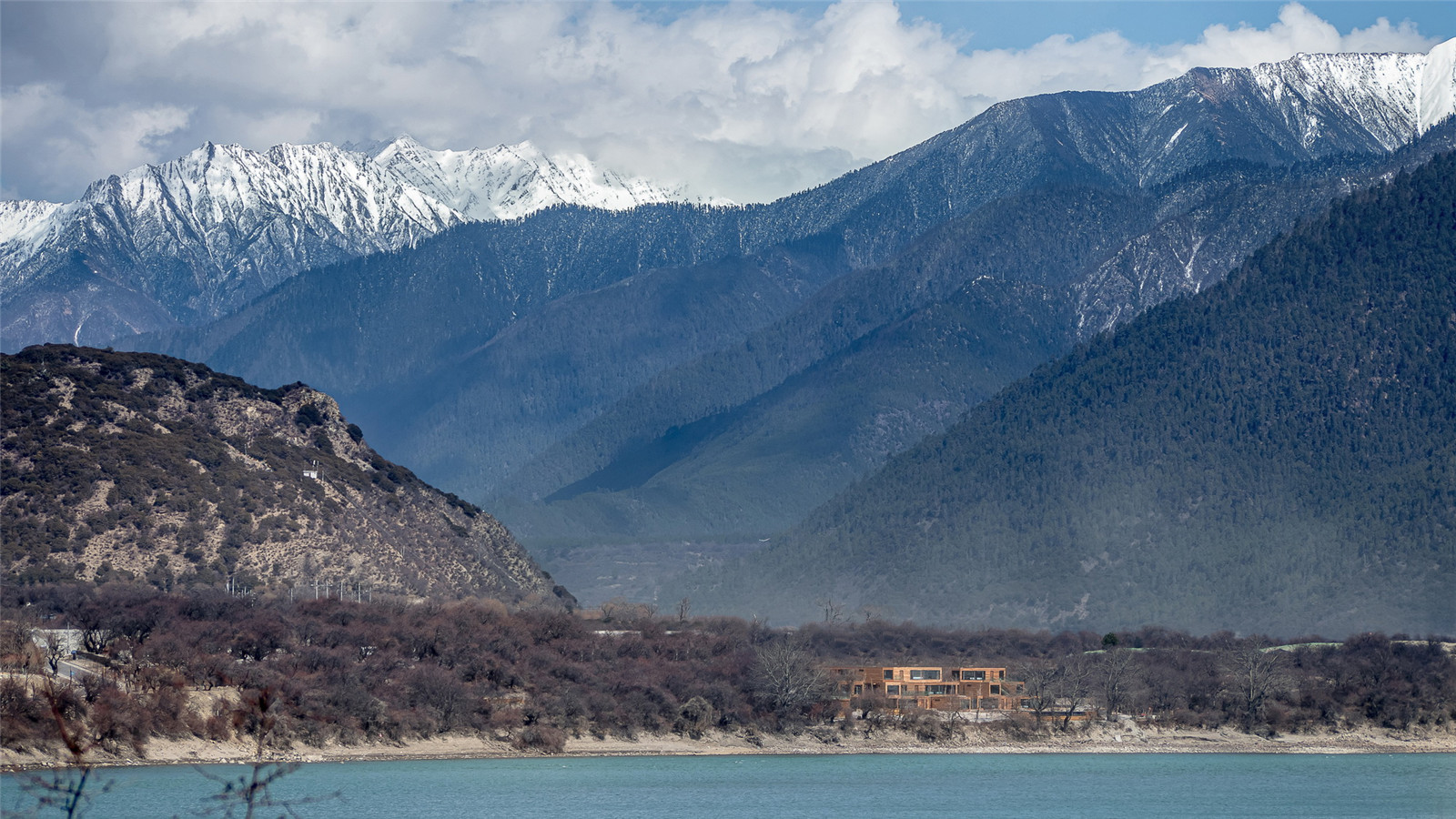

▼綿延的雪山

Continuous snow mountains ? 張超 / Chao Zhang

▼成片的柳樹林

Patches of willow trees ? 夏至 / Zhi Xia

設計概念建立在尊重西藏人文景觀及自然景觀的基礎上，挖掘景觀與建筑的密切關系。古桃樹林作為場地內自然景觀的原始價值體現，我們保留了場地內的古桃樹林，利用及梳理場地內零碎的石塊，與新的房車道路有機結合在一起，耐候鋼板的邊緣界定礫石營位與地被植物，這種自然結合生成的圖案構成新的大地景觀。原始場地的石塊堆疊圍合再生成景觀樹池，既凸顯古桃林群的主體景象，亦體現再利用性及生態性。

The design concept is based on respecting the cultural and natural landscape in Tibet. We explored the close relationship between landscape and architecture. As the original value of the natural landscape in the site, the ancient peach tree forest was preserved. We made use of the scattered stones, that organically bonded with the New Rv road．The edge of the weather-resistant steel defines the area of ground covers and the Rv parking space forms a new earthscape. The stones of the original site are stacked and enclosed to regenerate the landscape tree pool, which not only highlights the main scene of the ancient peach forest group, but also reflects the reuse and ecology.

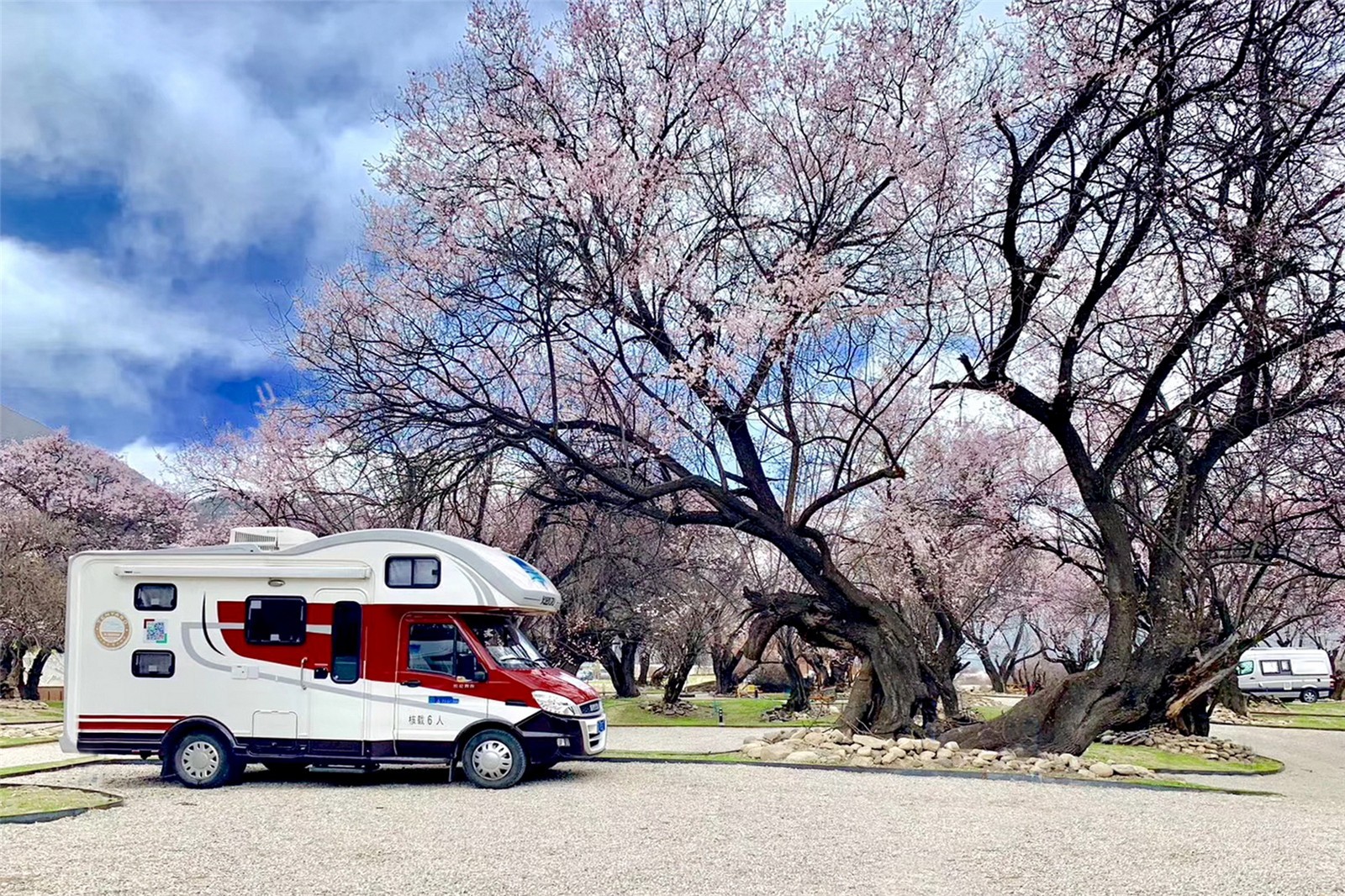

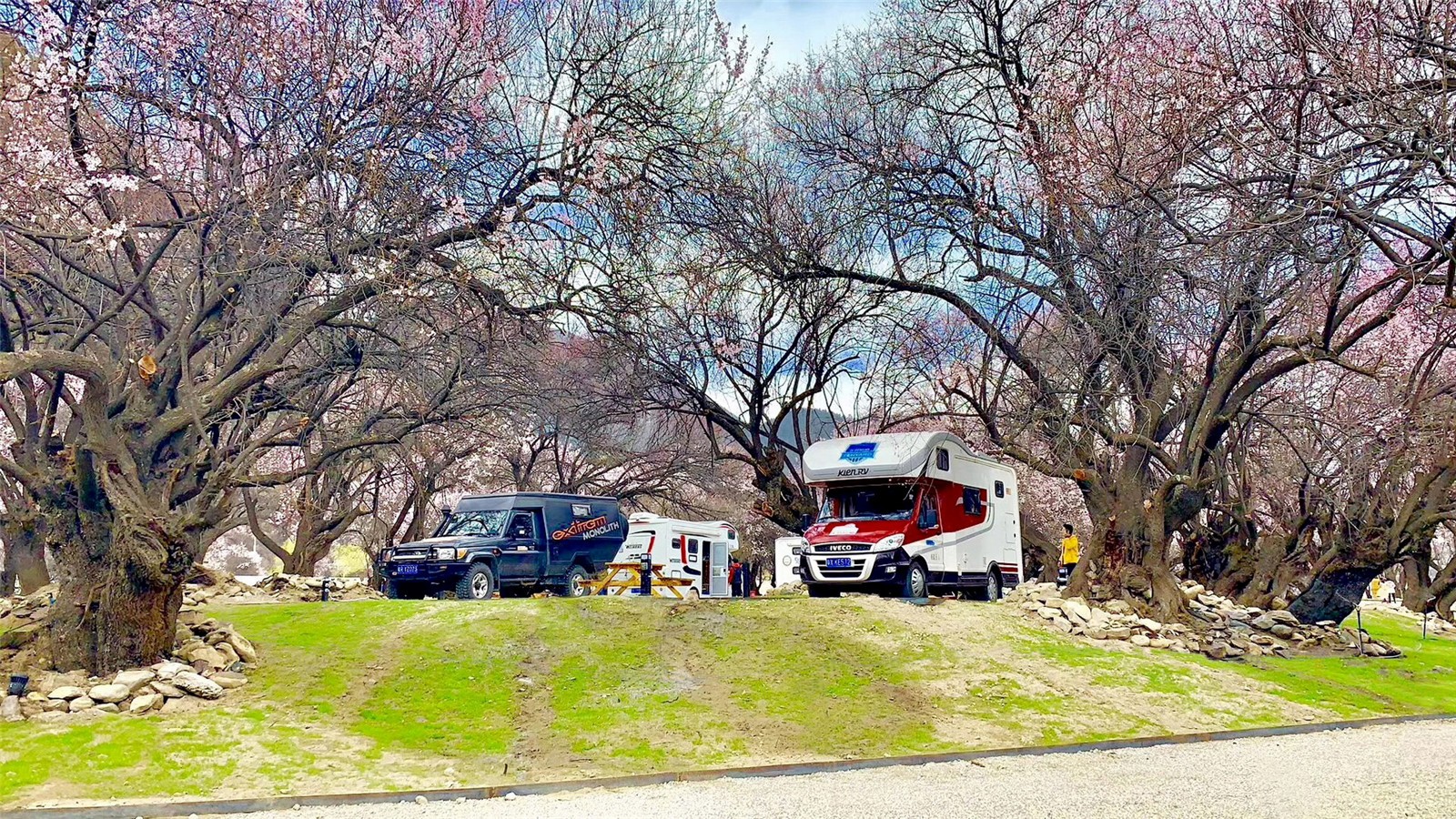

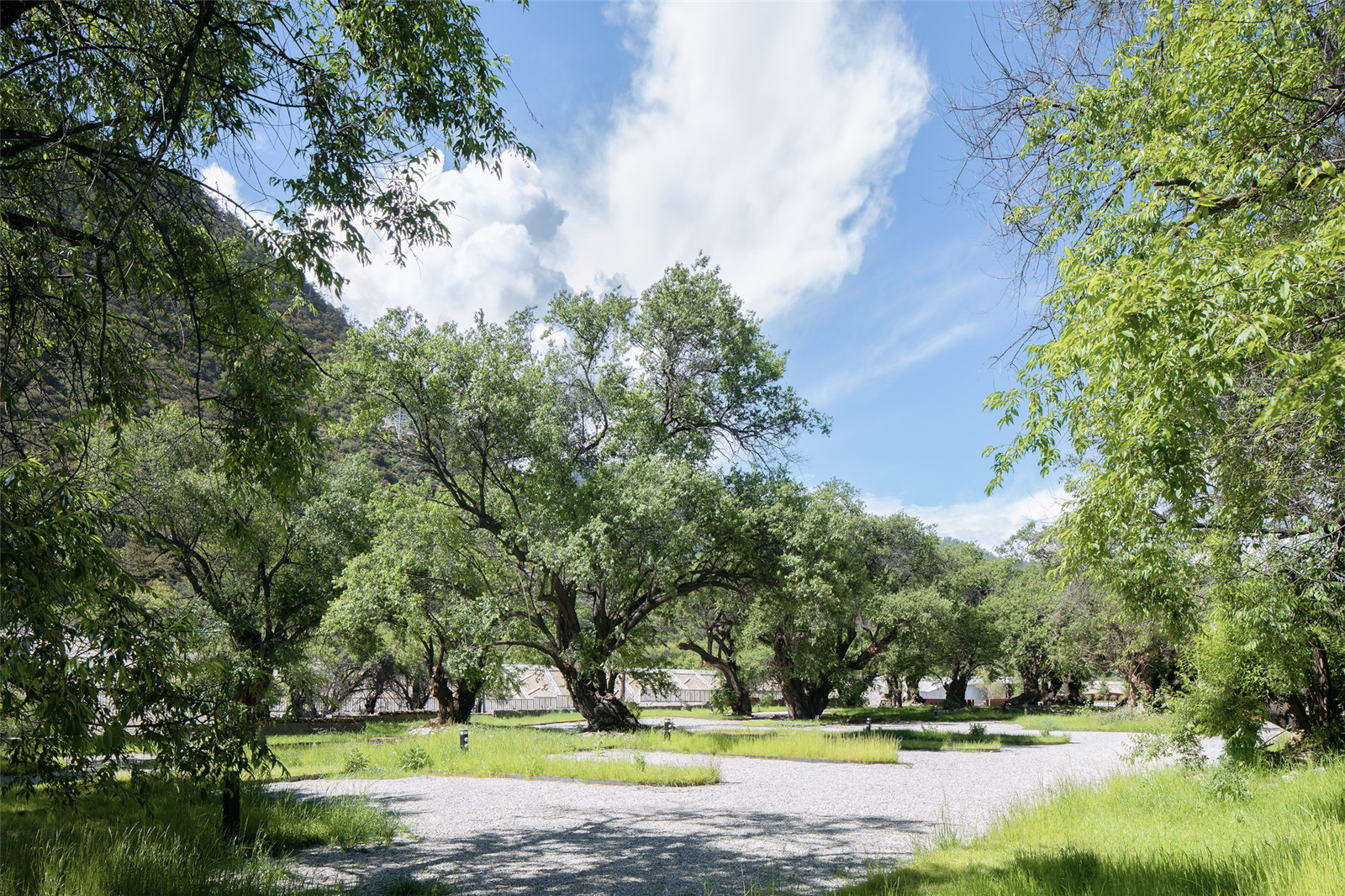

▼古桃樹林得以保留

The ancient peach trees are preserved. ? 古岳 / Yue Gu

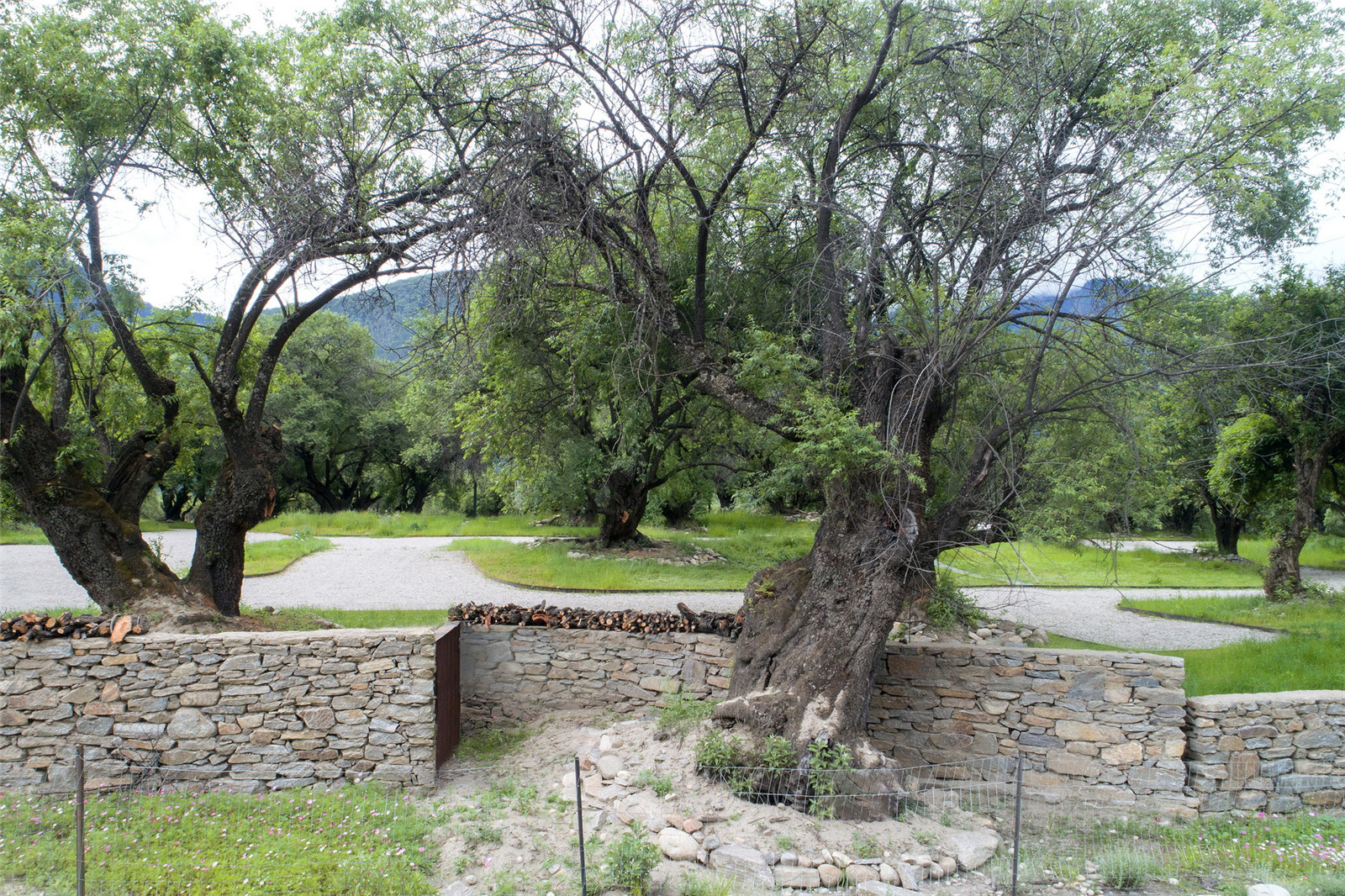

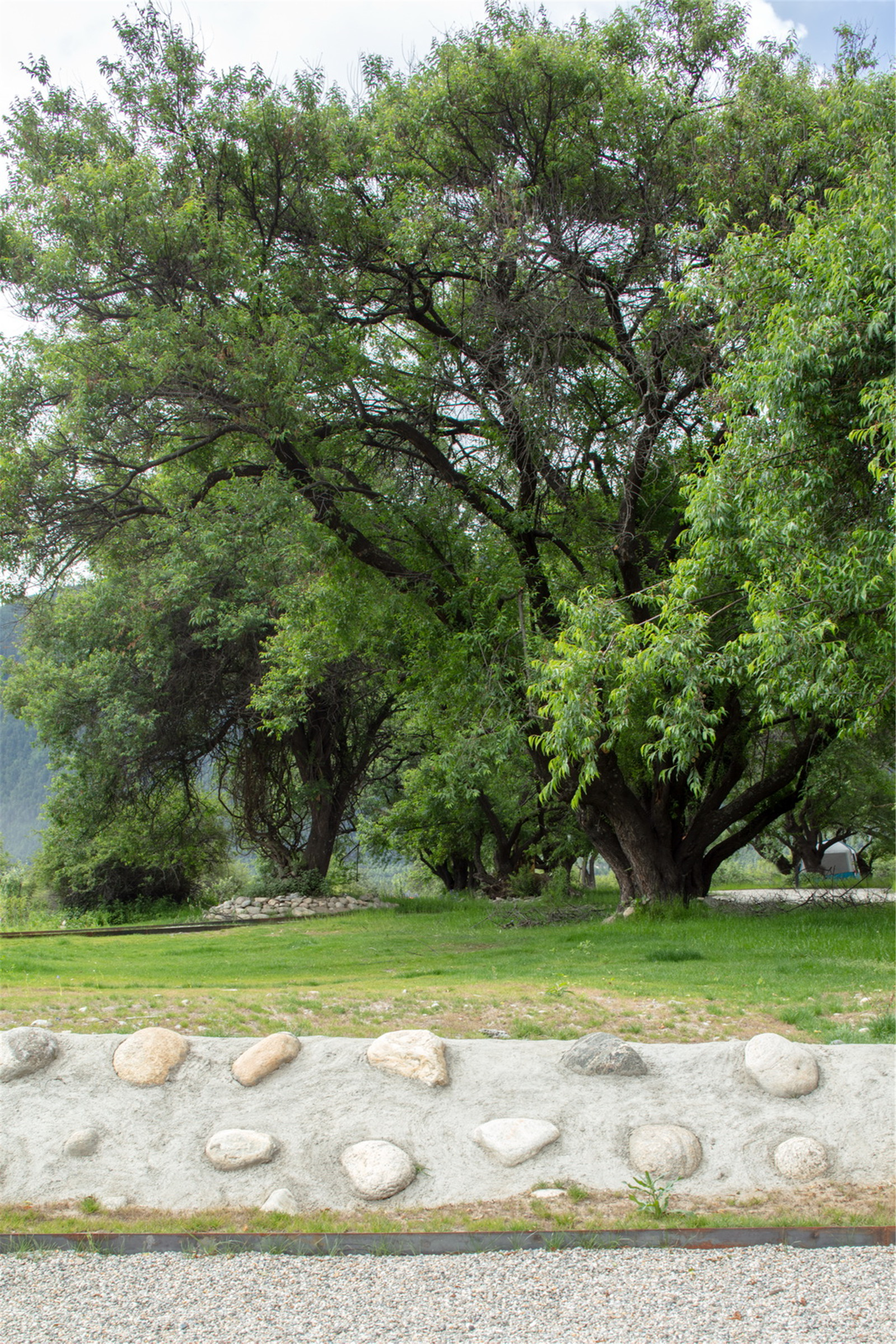

▼原始場地的石塊堆疊圍合成為景觀樹池

The stones of the original site are stacked and enclosed to regenerate the landscape tree pool. ? 夏至 / Zhi Xia

沿桃花大道設置園區主入口區域，使用抗高原地域氣候的耐候鋼板材料圍合、轉折形成入口景觀花池和化解場地邊界的豎向高差，形成標識性的入口景觀。與背景的起伏延綿的馬熱幫雪山群形態交相呼應。采用當?shù)厥址ㄆ鲋氖瘔K擋墻分界園區桃樹林景觀與桃花大道東高西低的現狀。在道路旁構建形成一道地域材料特色的標志性擋墻，局部斷開消解地形高差的同時產生節奏韻律變化，且尊重現場古桃樹的位置關系，局部轉折圍合，又在道路末端的轉角展現出園區內古桃林房車營地景觀。場地東邊種植果樹林與鋼條欄桿自然過渡邊緣景觀。西邊臨雅魯藏布江結合場地現狀喬木植物疏密關系設置一條觀景步道。

The main entrance of the park is set along Peach Tree Road. The weather-resistant steel plate enclosure turns to form the entrance flower pool that forms an iconic entrance and resolves the vertical height difference of the site boundary. The entrance landscape has mutual echo with the background of the undulating Marebang Mountain. The stone retaining wall constructed by local techniques divides the peach tree forest landscape of the park and the present situation of Peach Tree Road with the level high in the east and low in the west. A landmark retaining wall was constructed with regional materials beside the road. Some part of the wall was disconnected which resolves the terrain difference level and produces rhythmic changes. We respected the space connection of the ancient peach trees. Some part of the retaining wall turns to enclosure and shows the ancient peach trees forest Rv camp landscape at the end of the road corner. The fruit trees and steel bar railings are set to the east of the site making the edge have a natural transition. A viewing walk path is set based on the density of the orginal trees and plants to the west that faces the Yarlung Zangbo River.

▼耐候鋼板材料圍合、轉折形成各種景觀構筑物

The weather-resistant steel plate enclosure turns to form the landscape structure. ? 張超 / Chao Zhang

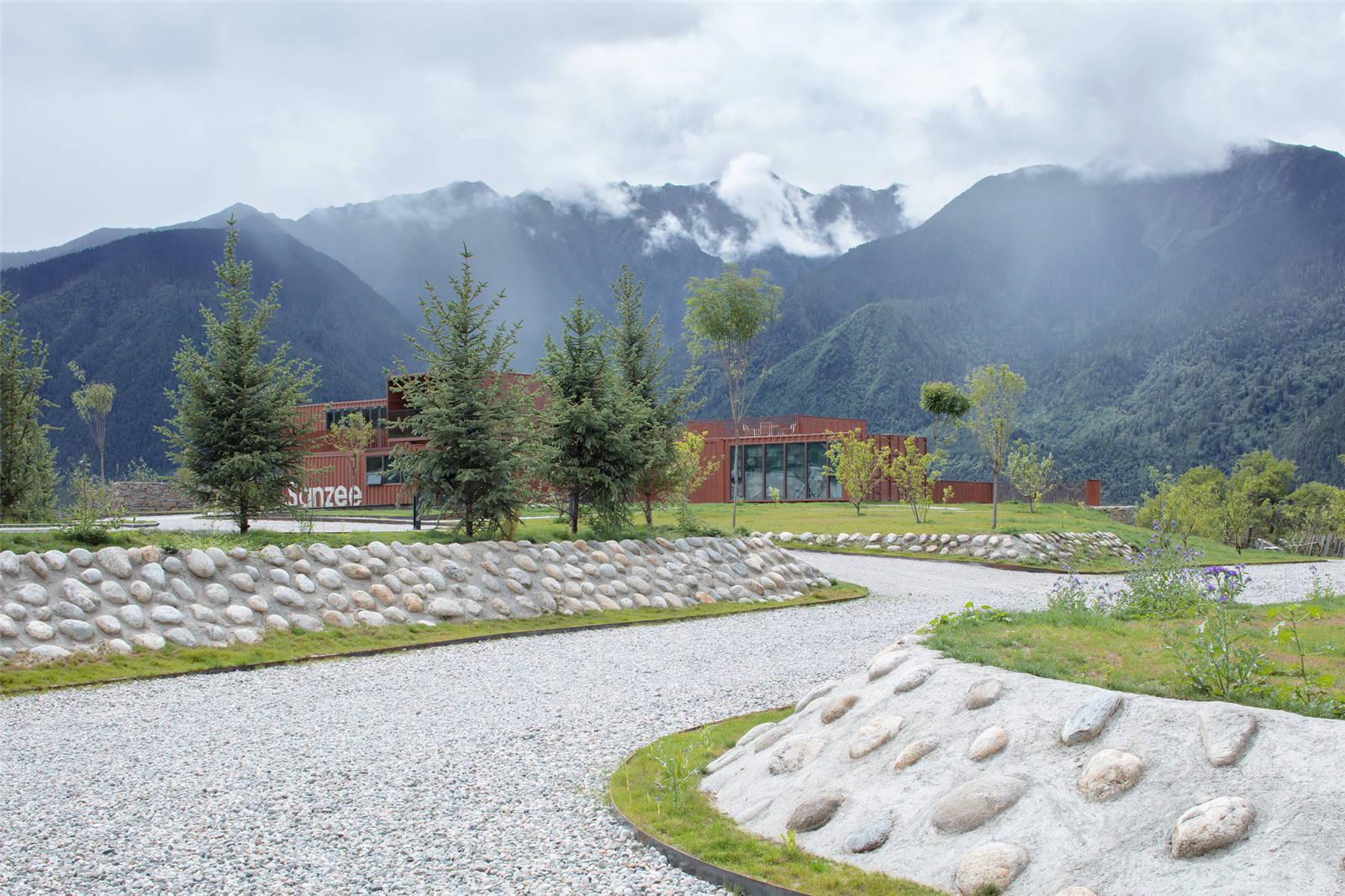

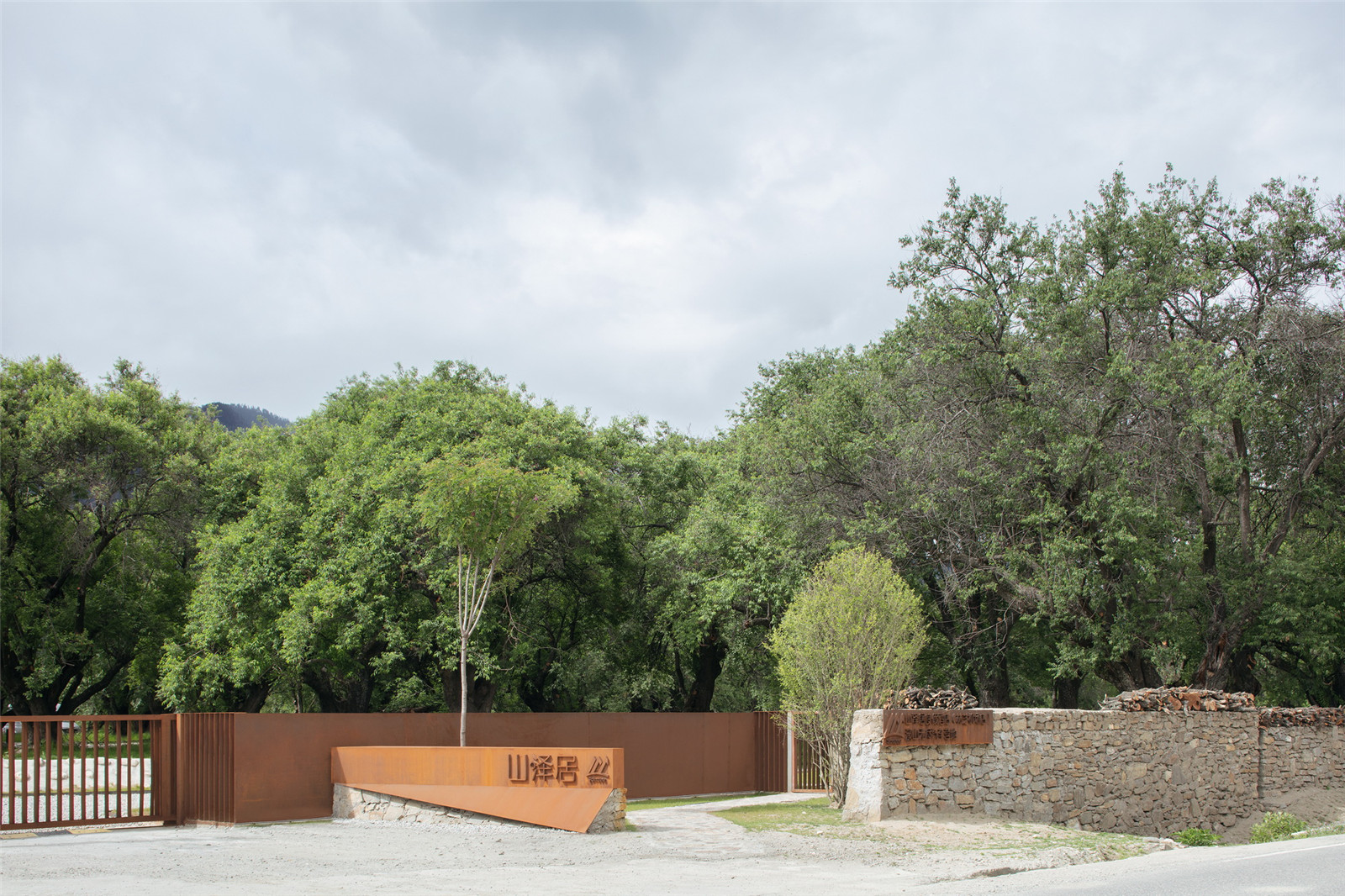

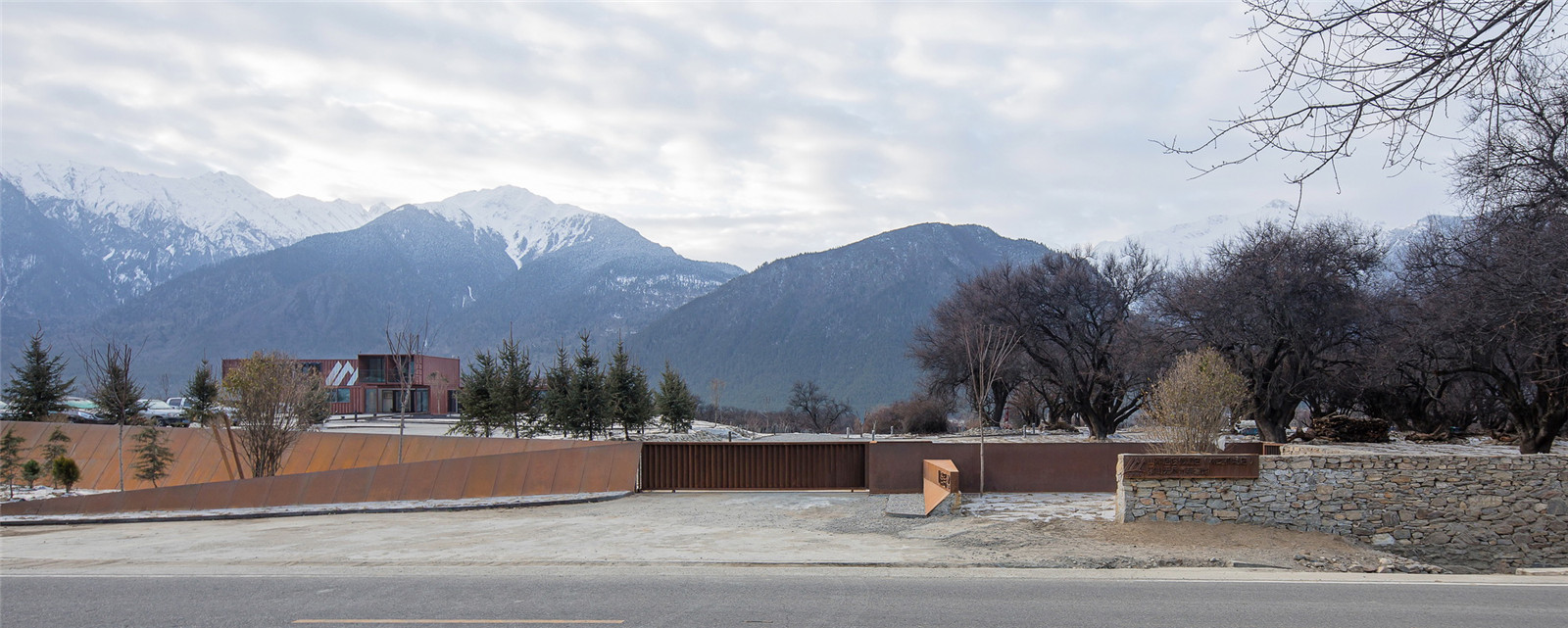

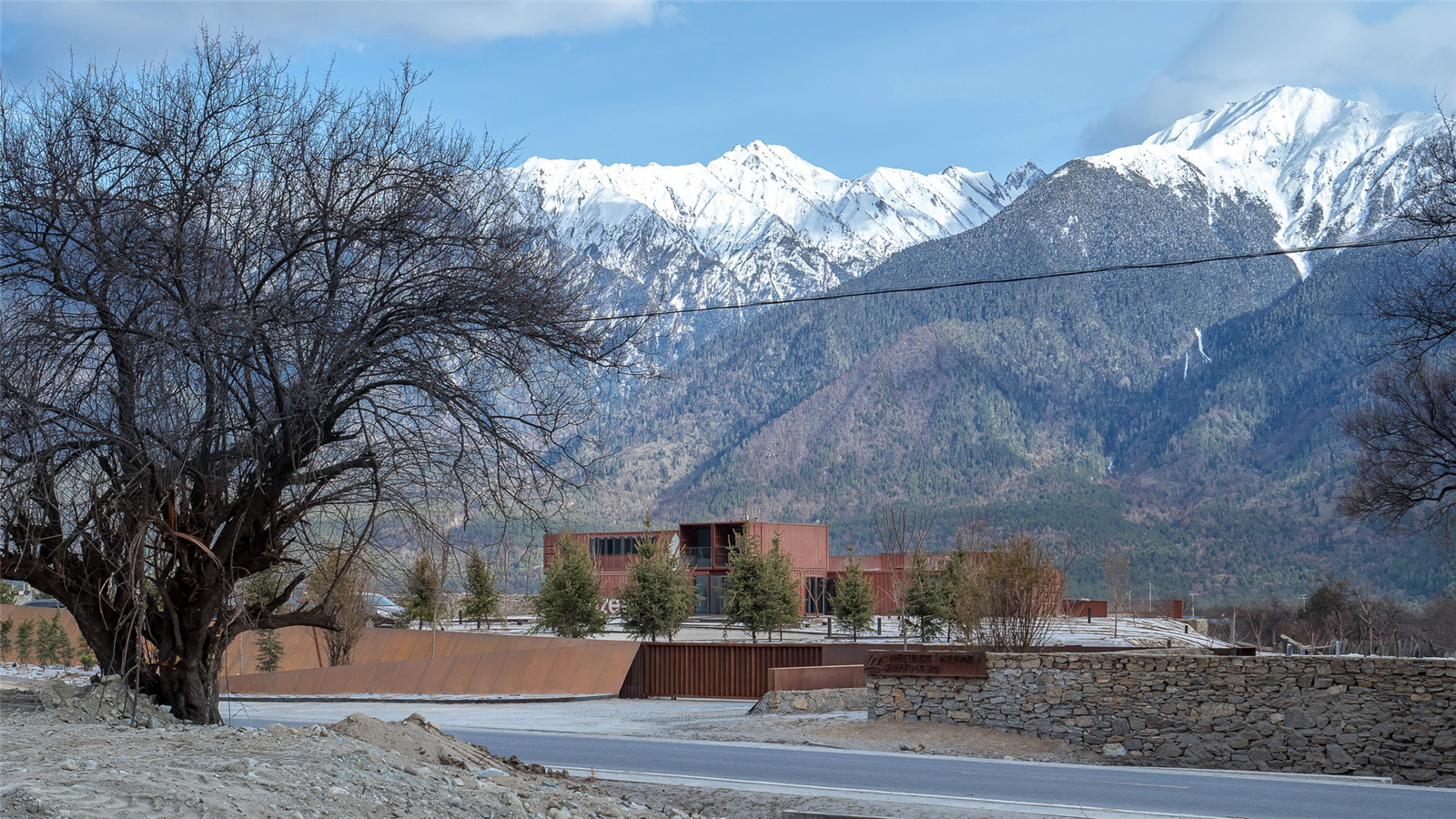

▼耐候鋼板圍合成的入口景觀

The weather-resistant steel plate enclosures the entrance landscape. ? 夏至 / Zhi Xia

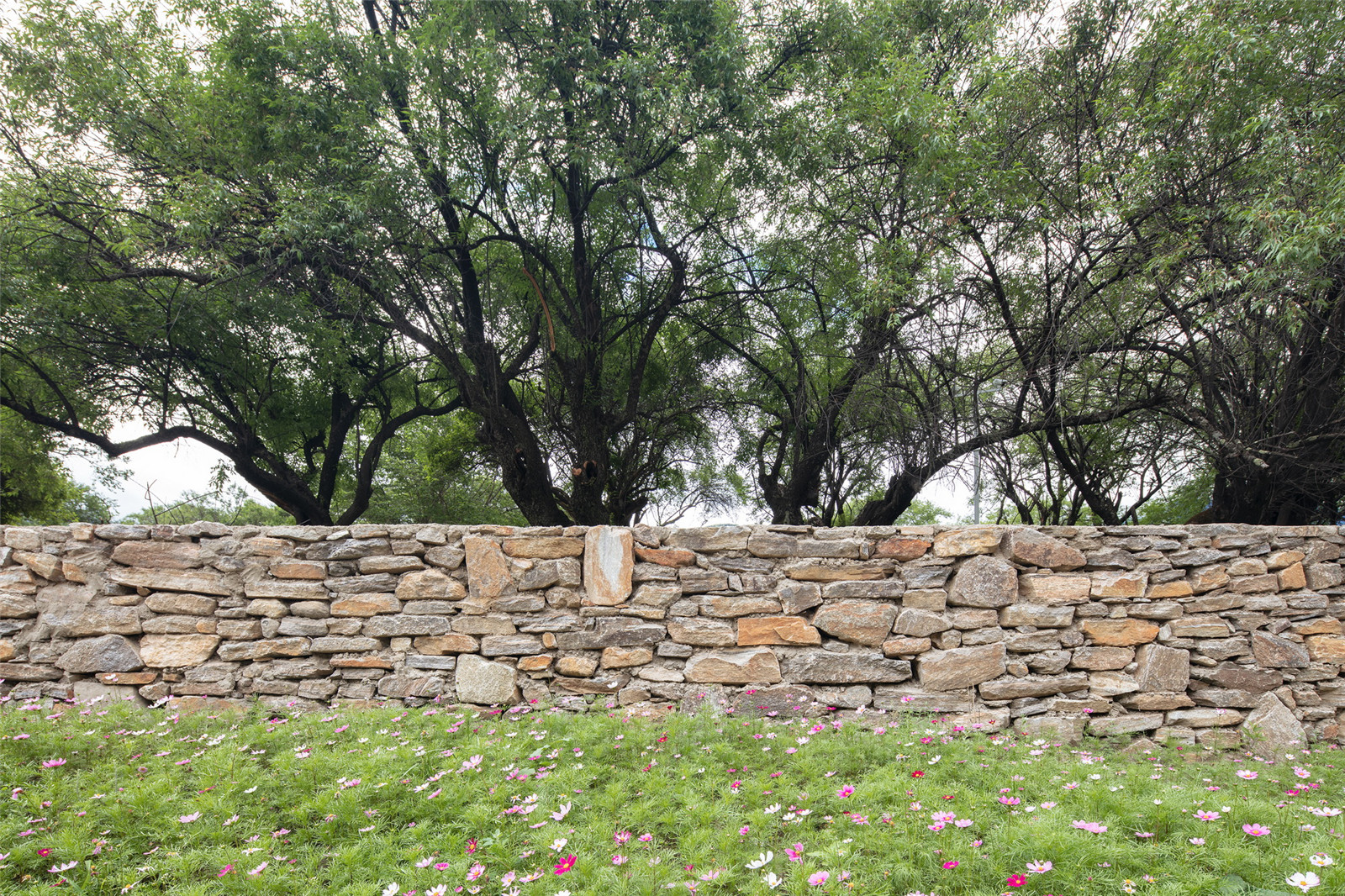

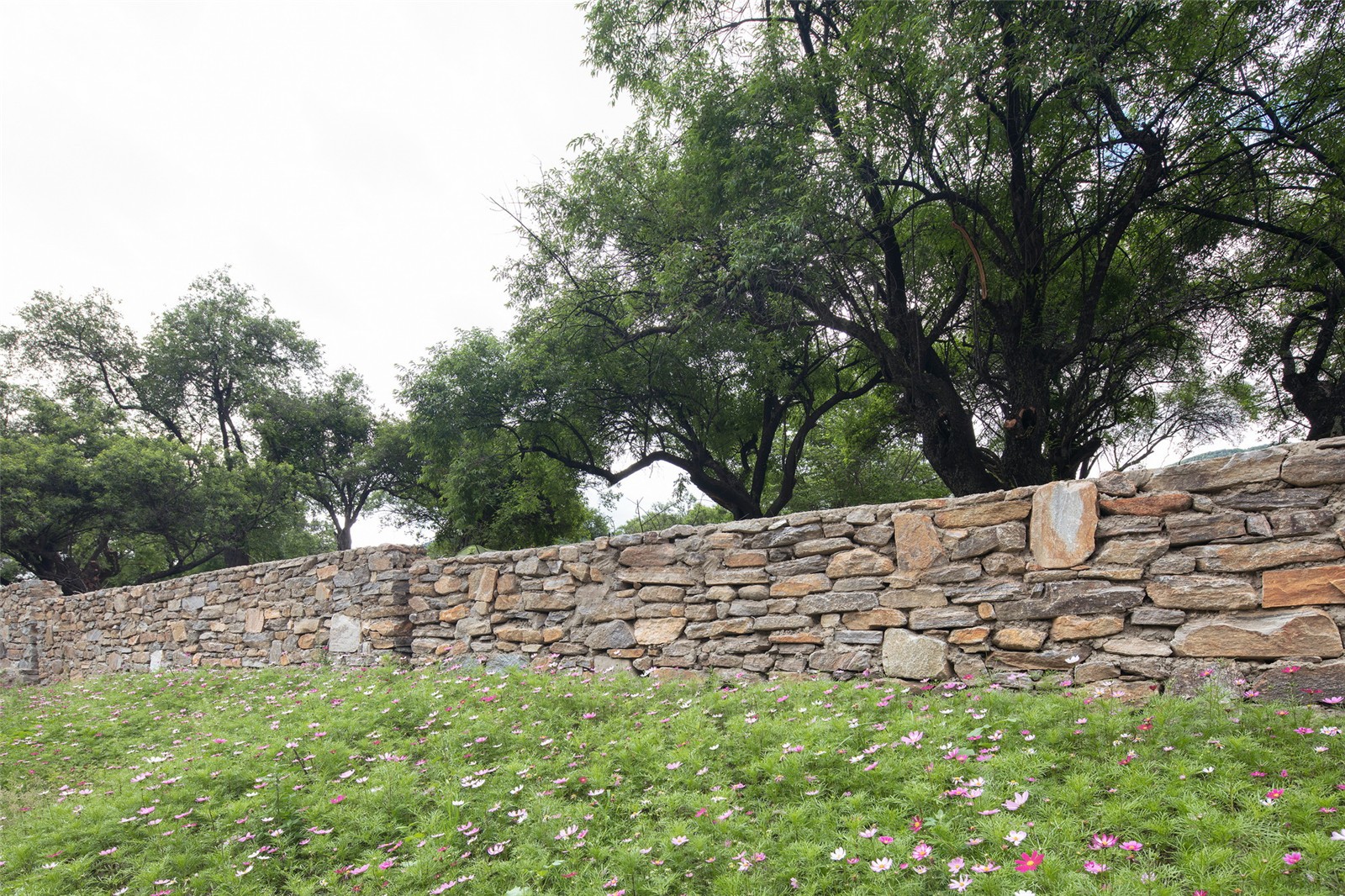

▼具有地域特色的標志性擋墻

The landmark retaining wall ? 夏至 / Zhi Xia

營地南邊臨雅魯藏布江旁的場地，借鑒藏族地區特有的“瑪尼堆”手法，通過模塊化的集裝箱體疊加化解場地豎向高差，形成一個與地域、場地緊密結合的大型地景，這種臨時性輕介入的錯落交疊的箱體圍合形成不同形態尺度的內庭院及平臺景觀，產生臨江觀景豐富多樣性的空間體驗，擁有絕佳的雪山景觀視野。接待中心交疊產生的休息平臺與戶外燒烤場地、木臺階、景觀花池與箱體模數形成整體的地景。

The Marnyi Stone we used for reference to the space in the south of the campsite that faces the Yarlung Zangbo River. The vertical height difference of the site was resolved through the stacking of modular container that formed a large scale earthscape with close integration to the regional environment. This kind of staggering and overlapping containers with temporary light intervention formed the inner courtyard and platform landscape with different morphological scales. It produced various spaces experience to the river view and the super excellent view to the Snow Mountain. The overlapped containers of the reception center produced the resting platform and outdoor barbecue area, wood steps, landscape flower pool and box module that formed a integrated earthscape.

▼戶外燒烤場地

The outdoor barbecue area ? 張超 / Chao Zhang

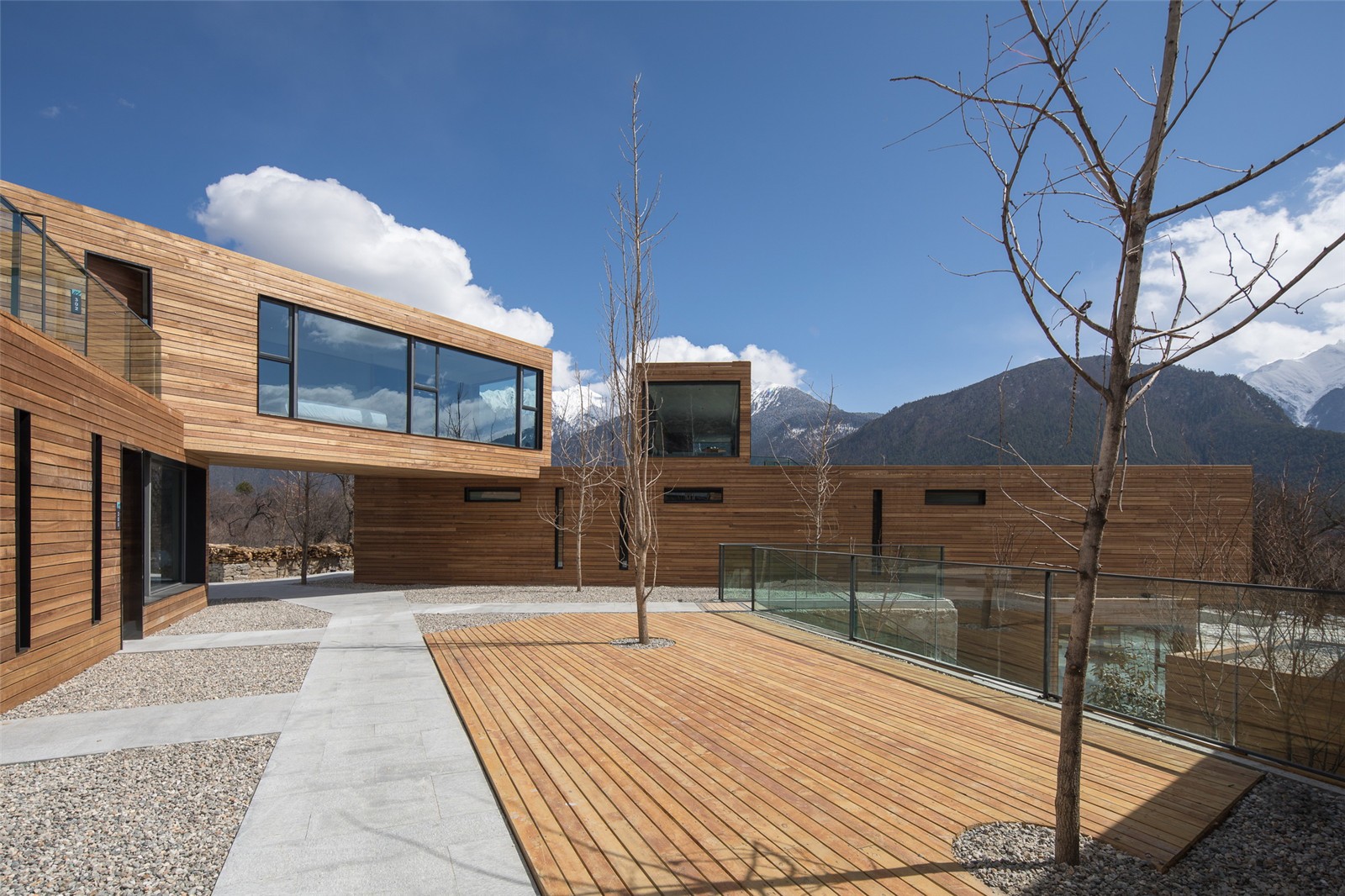

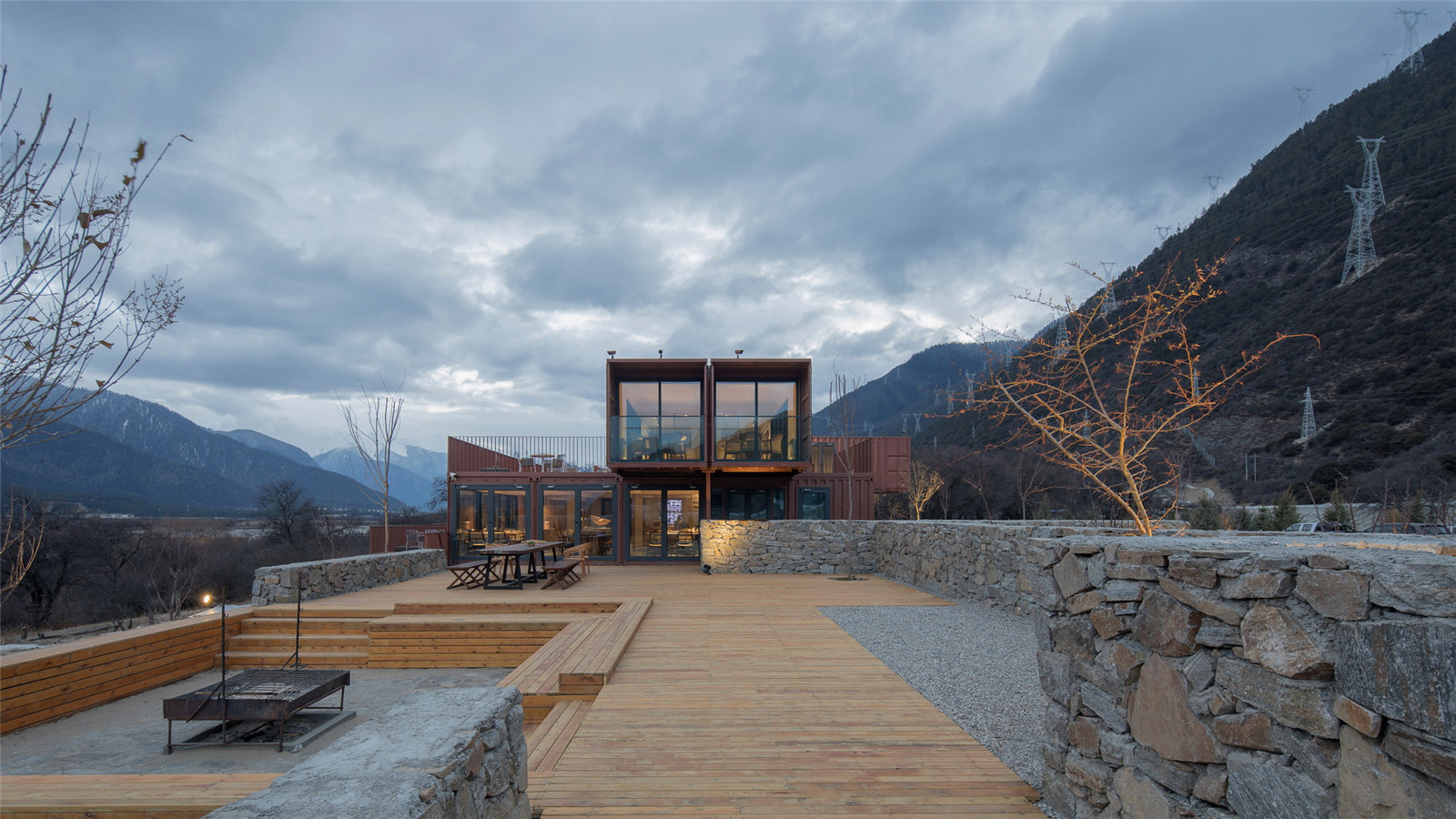

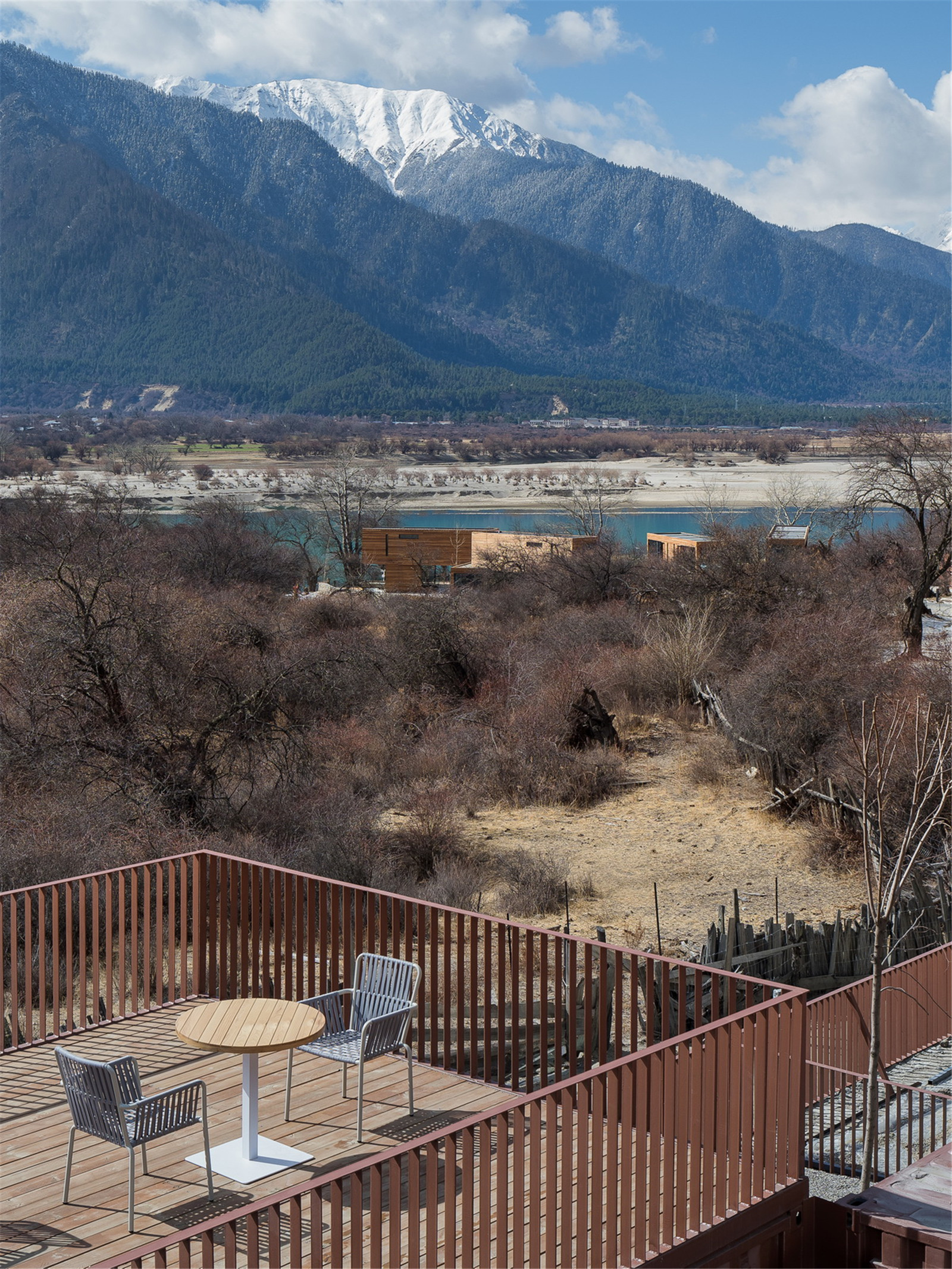

▼交疊產生的休息平臺

The resting platform produced by the overlapped containers. ? 張超 / Chao Zhang

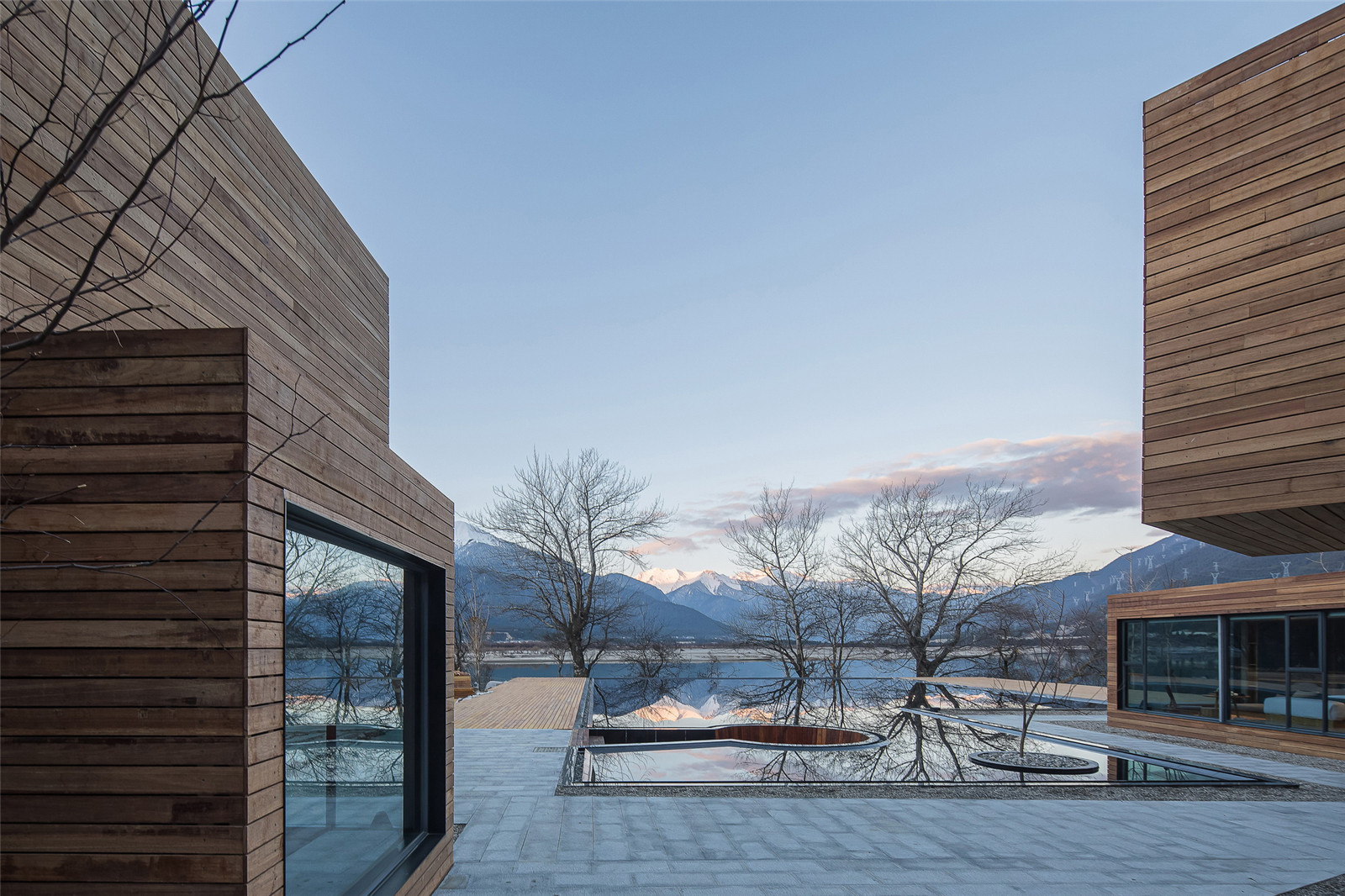

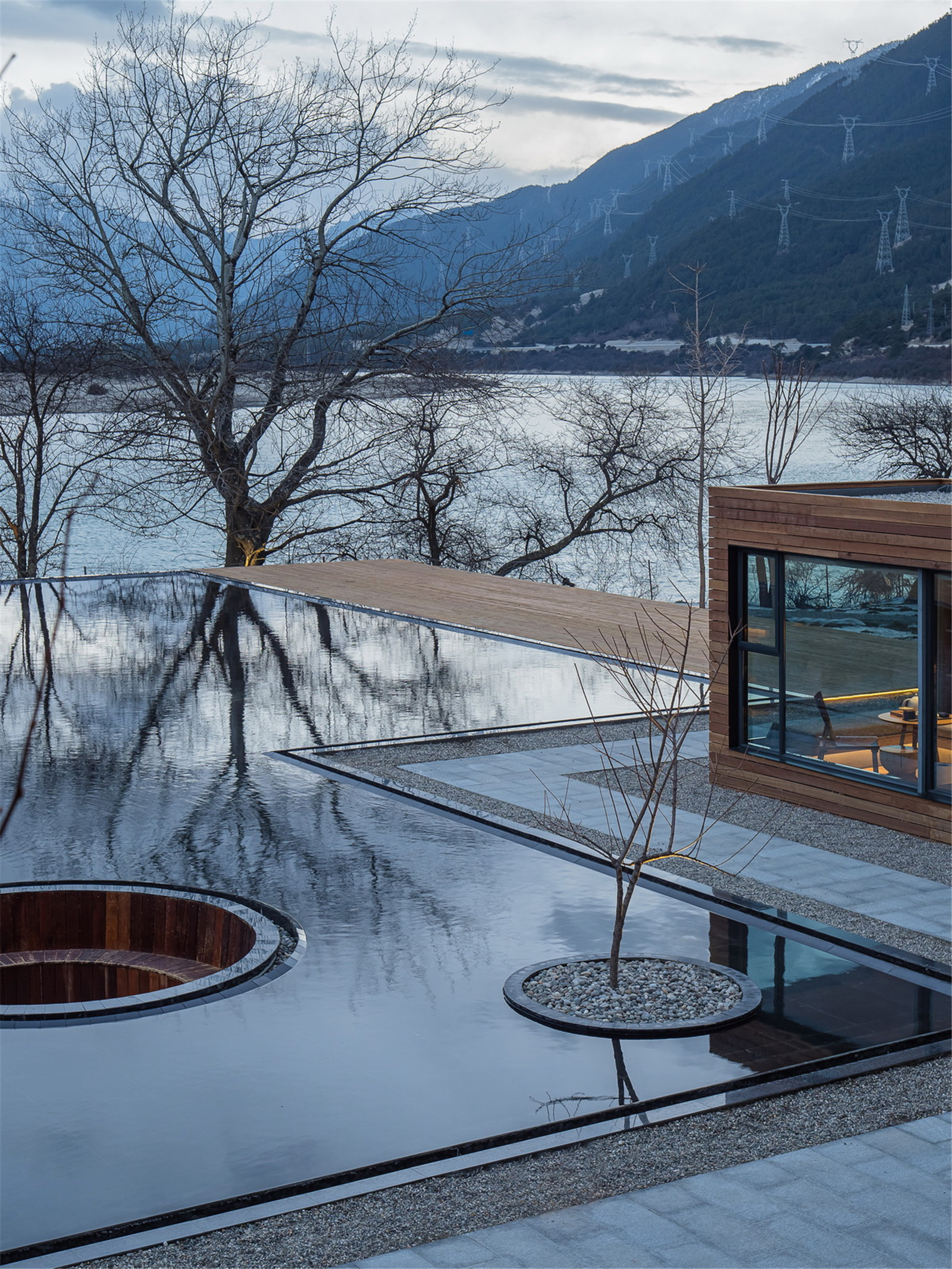

鏈接集裝箱營地與雅魯藏布江景觀的無邊界水池，既在園區場地內形成水景，又完整的倒影集裝箱體建筑與遠端馬熱幫山與雪嘎如戈雪山景觀，水池中的下沉休息空間與邊緣木平臺，木臺階坐凳提供觀景、交流、休憩的景觀功能。

The infinity border pool that connects the containers campsite and the Yarlung Zangbo River landscape form a waterscape in the site and reflected the containers, Marebang mountain, and the landscape of Xue Ga Ru Snow Mountain. The sunken resting place in the pool and the wooden platform on the edge and wooden bench on the steps provided landscape functions of viewing, communication and resting.

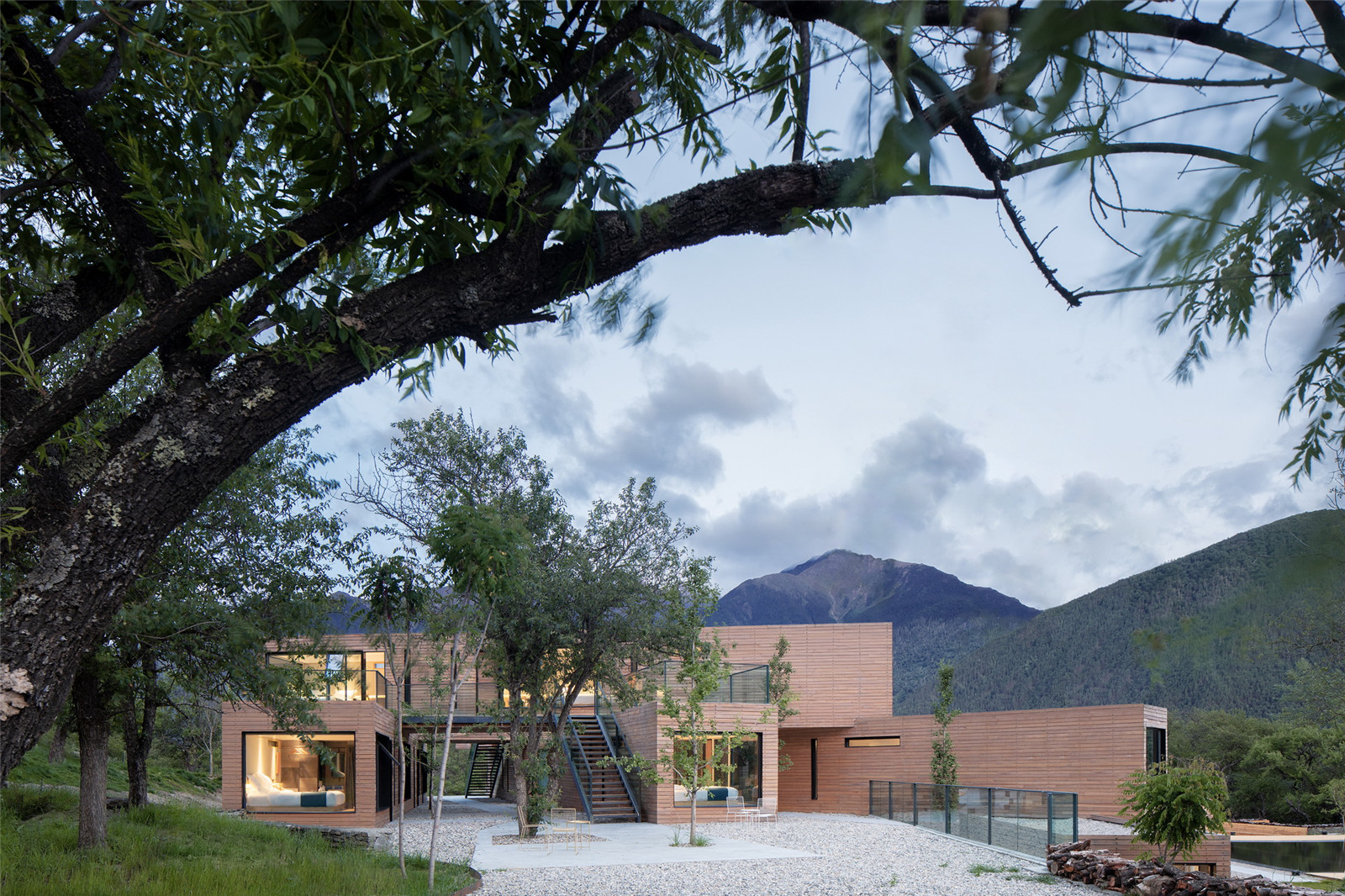

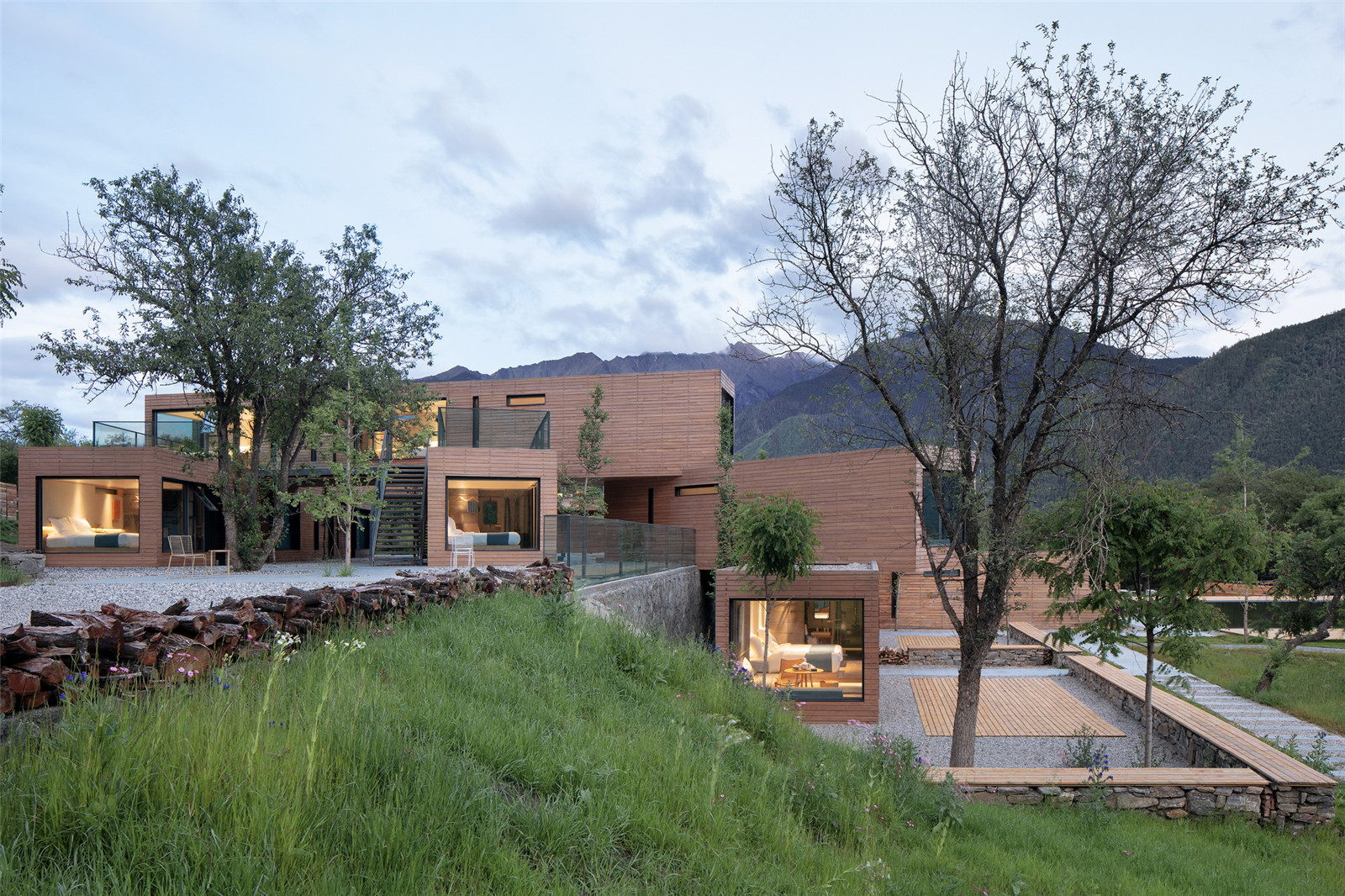

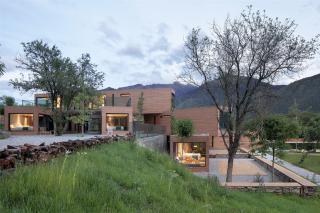

▼集裝箱體建筑——接待中心

The containers architecture——reception center ? 夏至 / Zhi Xia

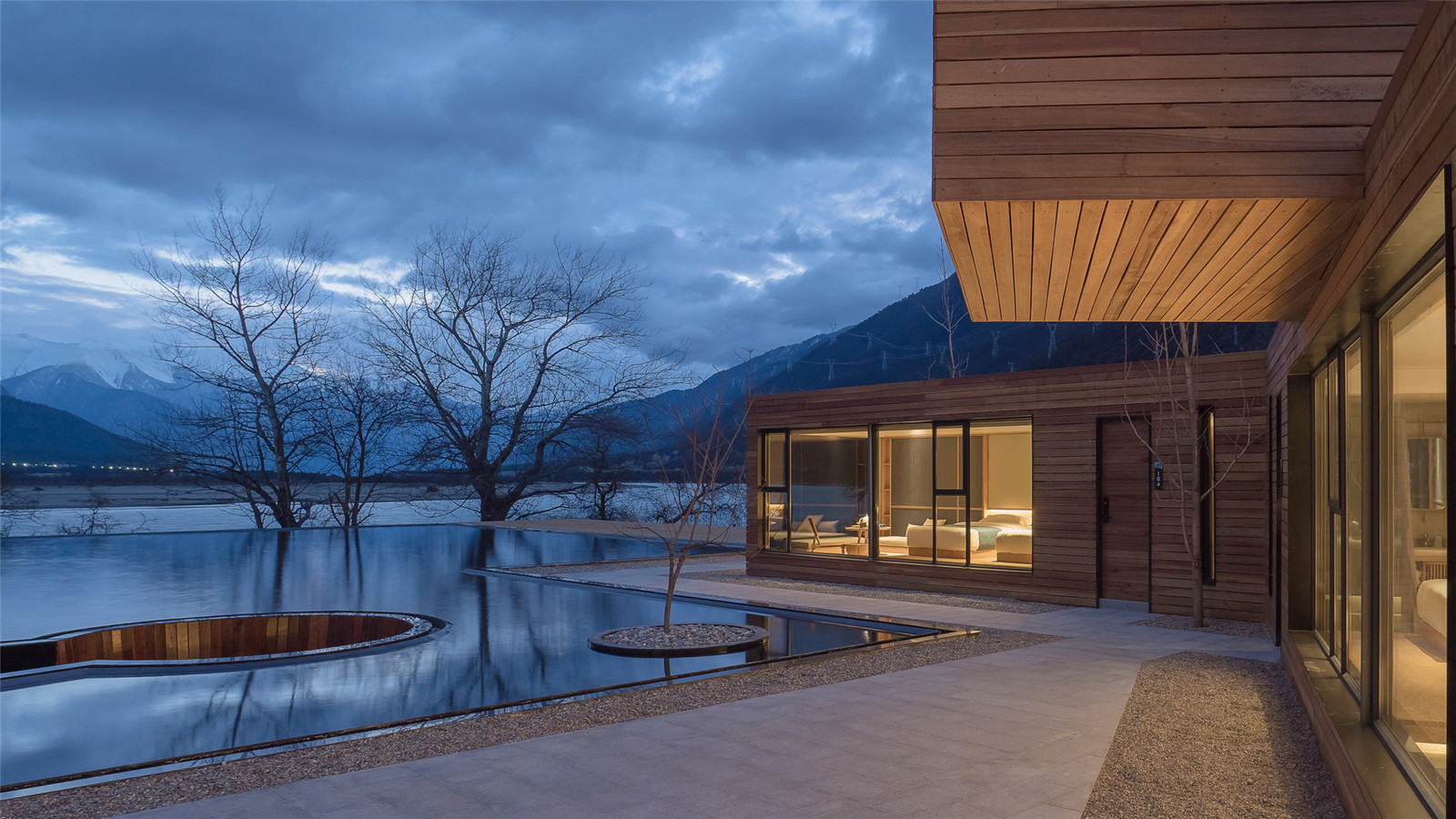

▼水池中的下沉休息空間

The sunken resting place in the pool ? 張超 / Chao Zhang

結合臨江場地樹林空地間的高差，以防腐木平臺構建多層級的帳篷營地，眺望雪嘎如戈山與雅魯藏布江景，仰望高原地區獨特的浩瀚星空。

Combined with the level difference between the woods and the open space adjacent to the river, the multi-level tent camp was built with the anticorrosive wood platform, overlooking the Xue Ga Ru Snow Mountain, landscape of Yarlung Zangbo River. You can still look up at the uniquely vast sky in the plateau area.

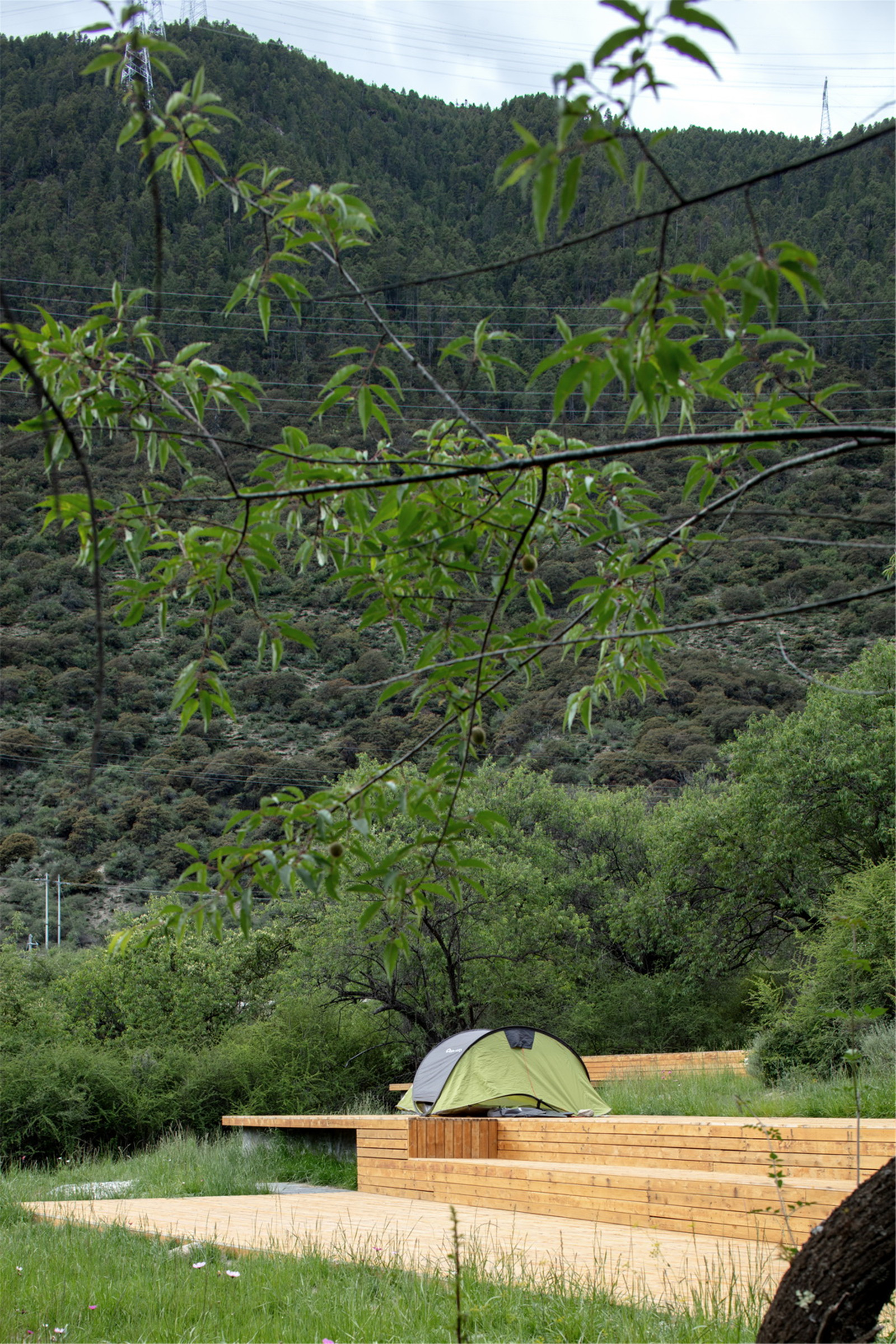

▼以防腐木平臺構建多層的帳篷營地

The multi-level tent camp was built with the anticorrosive wood platform. ? 張超 / Chao Zhang

山澤居房車自駕營項目基于高原地域場所環境特性下，以就地取材、生態恢復、地域再生等設計方式建立起溶于自然的度假情景，旨在探索未來一種新的游居體驗生活方式。

材料：耐候鋼板，石材，礫石，防腐木，玻璃

Based on the local environmental characteristics of the plateau area, Sanzee Rv self-driving campsite project establishes a natural vacation scene by using local materials, ecological restoration, regional regeneration and other design methods that are aimed to explore a newly way of travelling life experience.

Material:  Weathering steel, Rocks, Gravel, Antiseptic wood, Glass

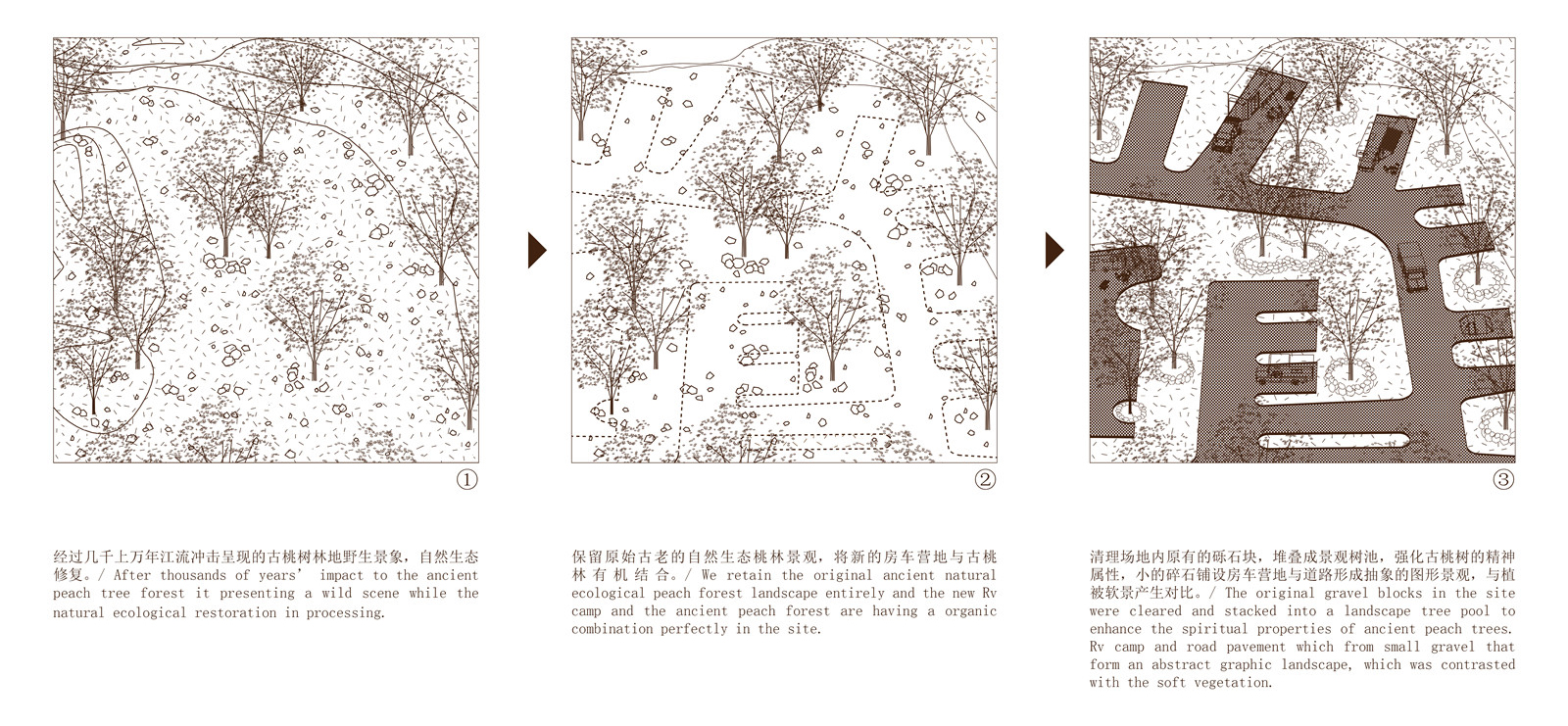

▼營地分析圖

Campsite Analysis Diagram ? CM Design

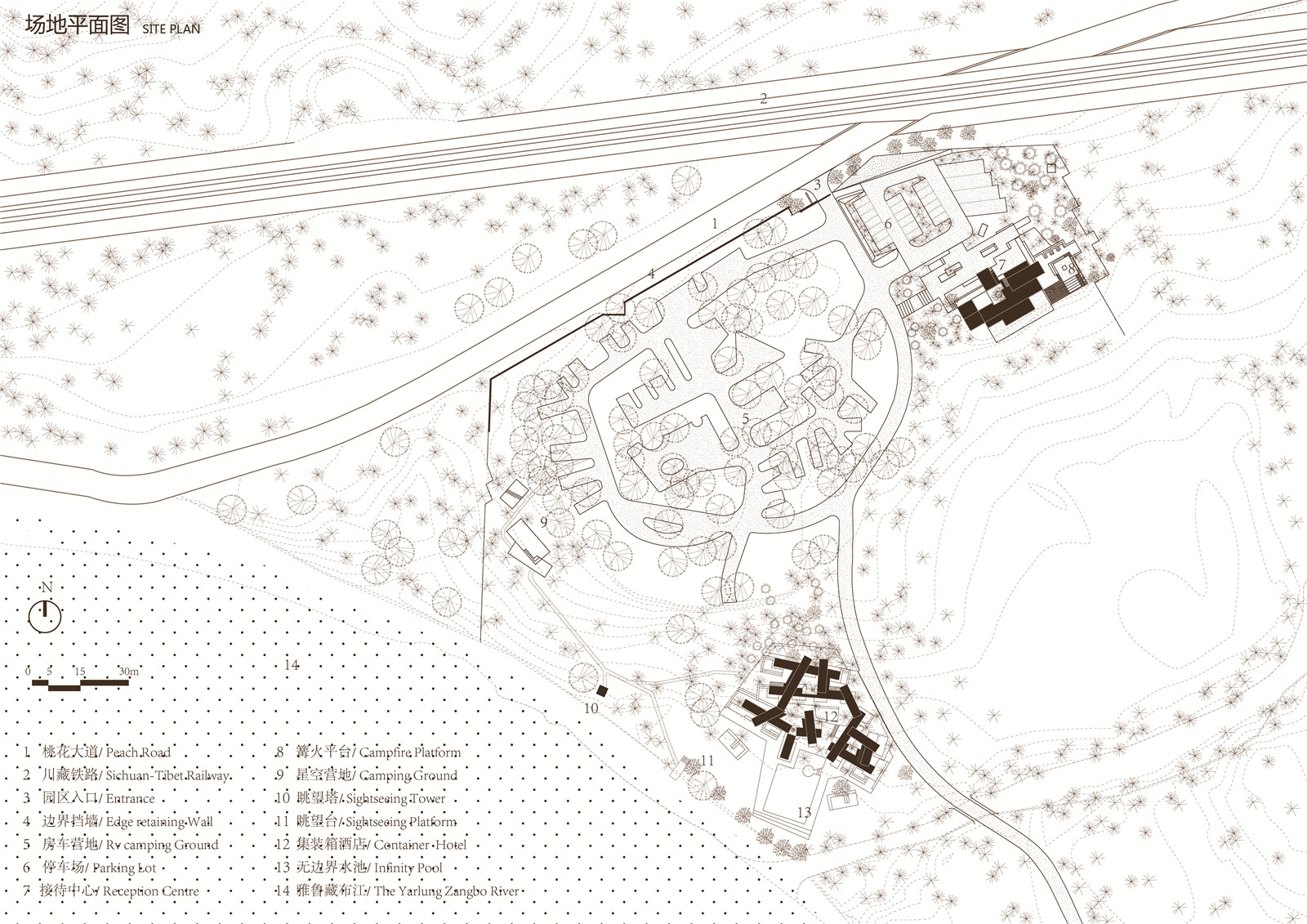

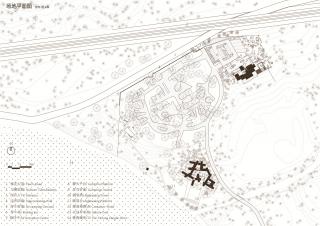

▼總平面圖

The Overall Plan ? CM Design

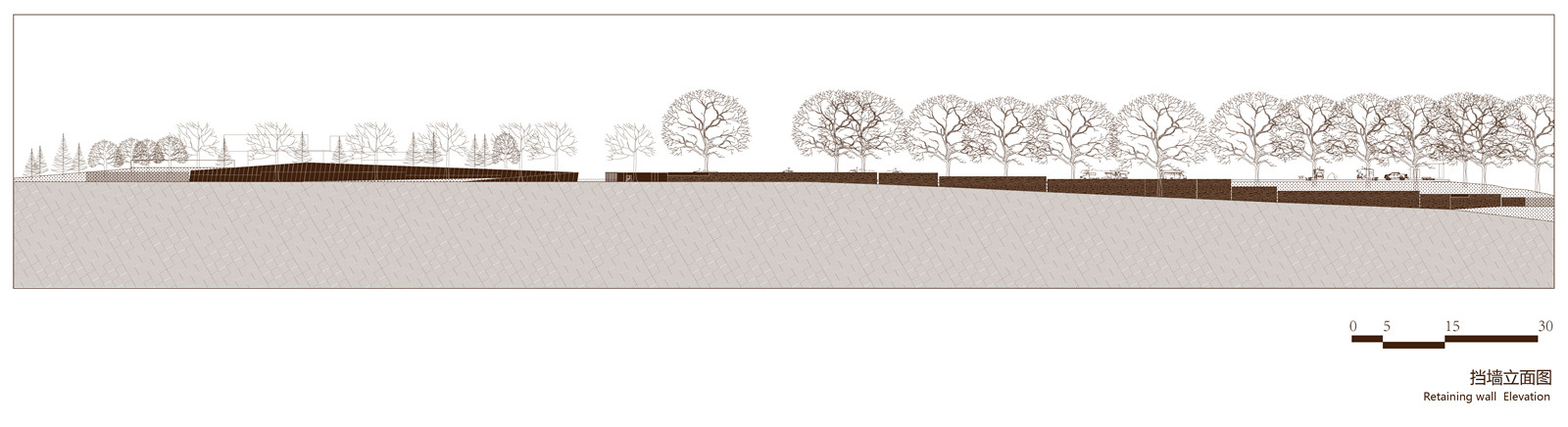

▼擋墻邊界立面圖

The Retaining Wall Boundary Elevation ? CM Design

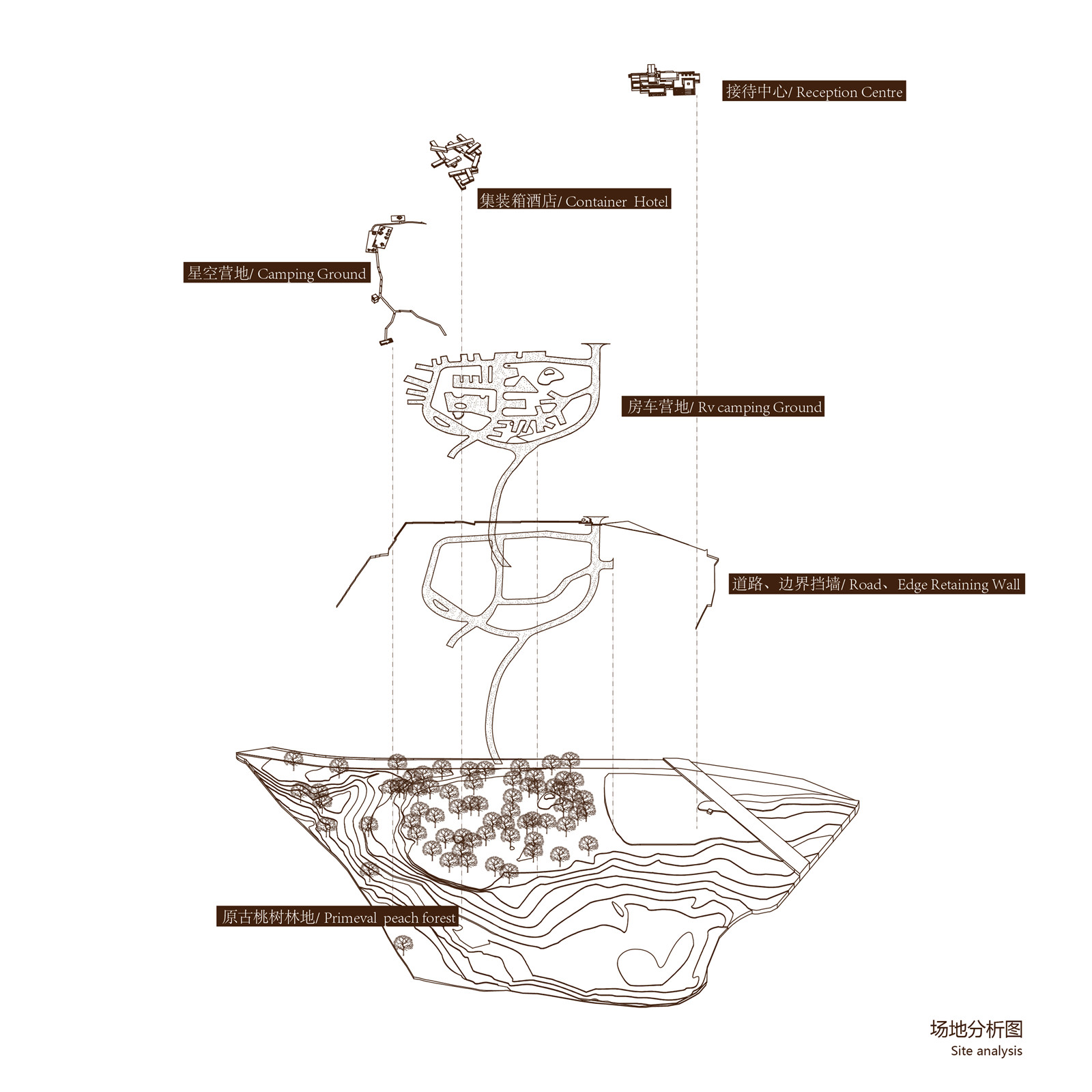

▼場地分析圖

The Site Analysis ? CM Design

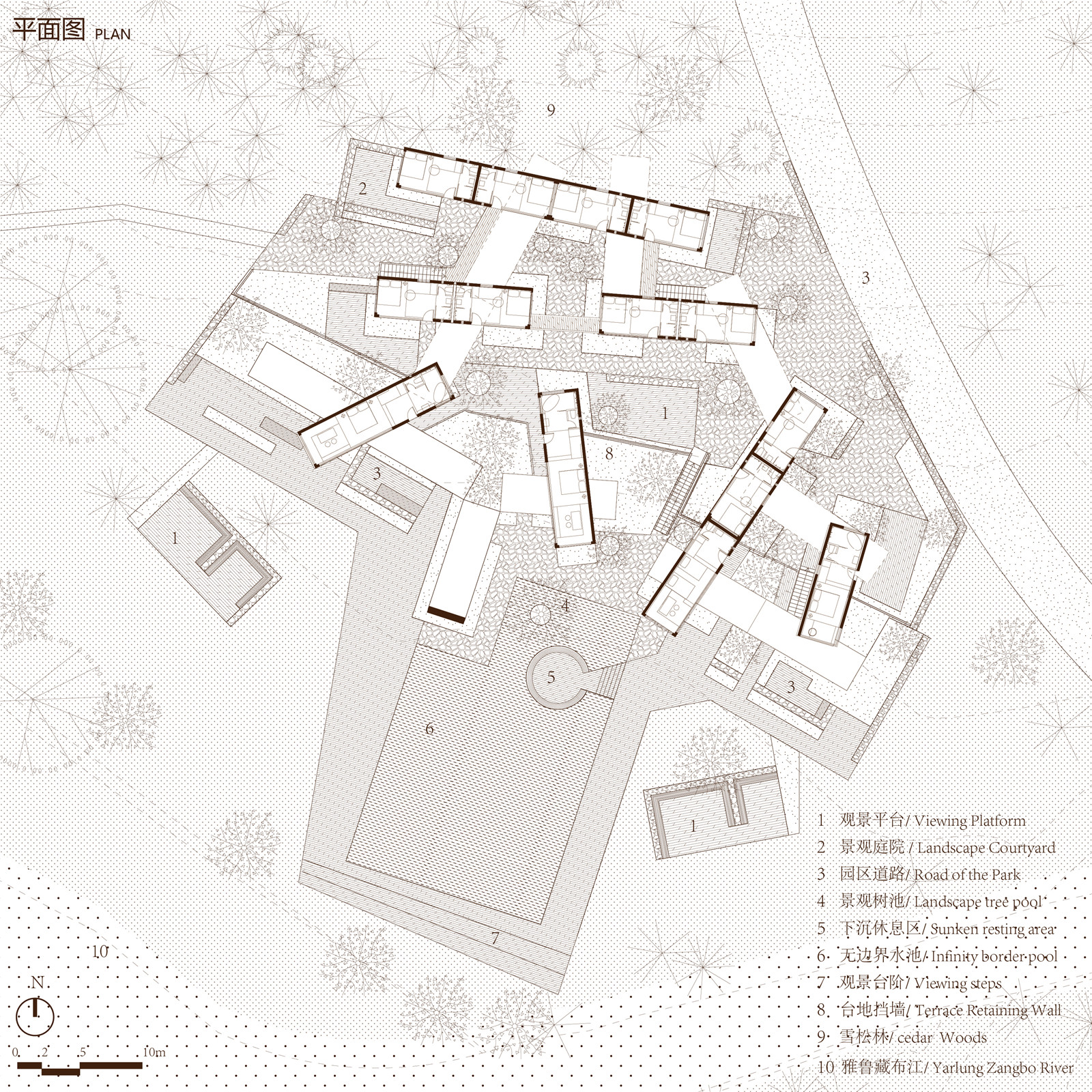

▼節點細節平面圖

The Node Detail Plan ? CM Design

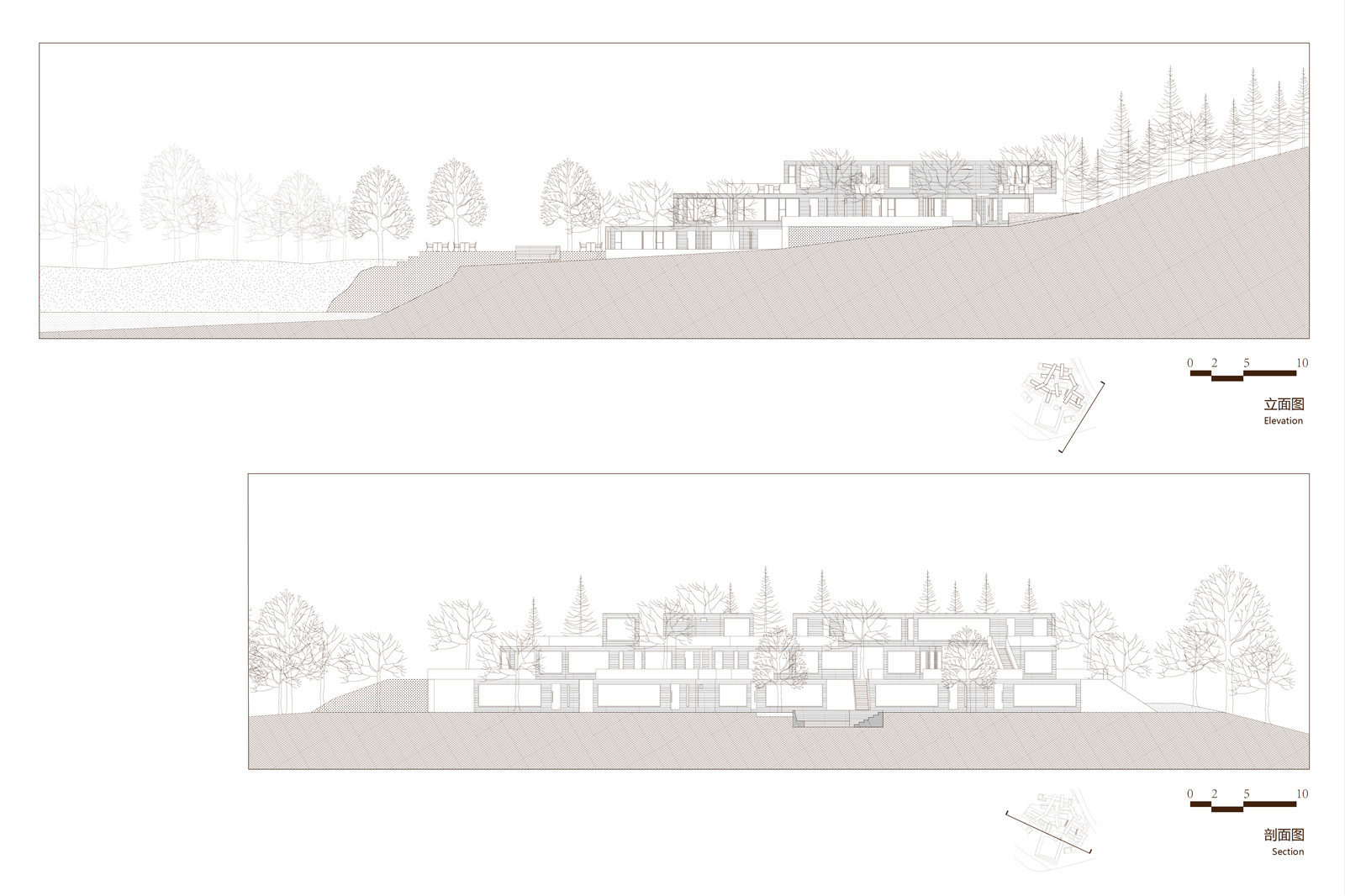

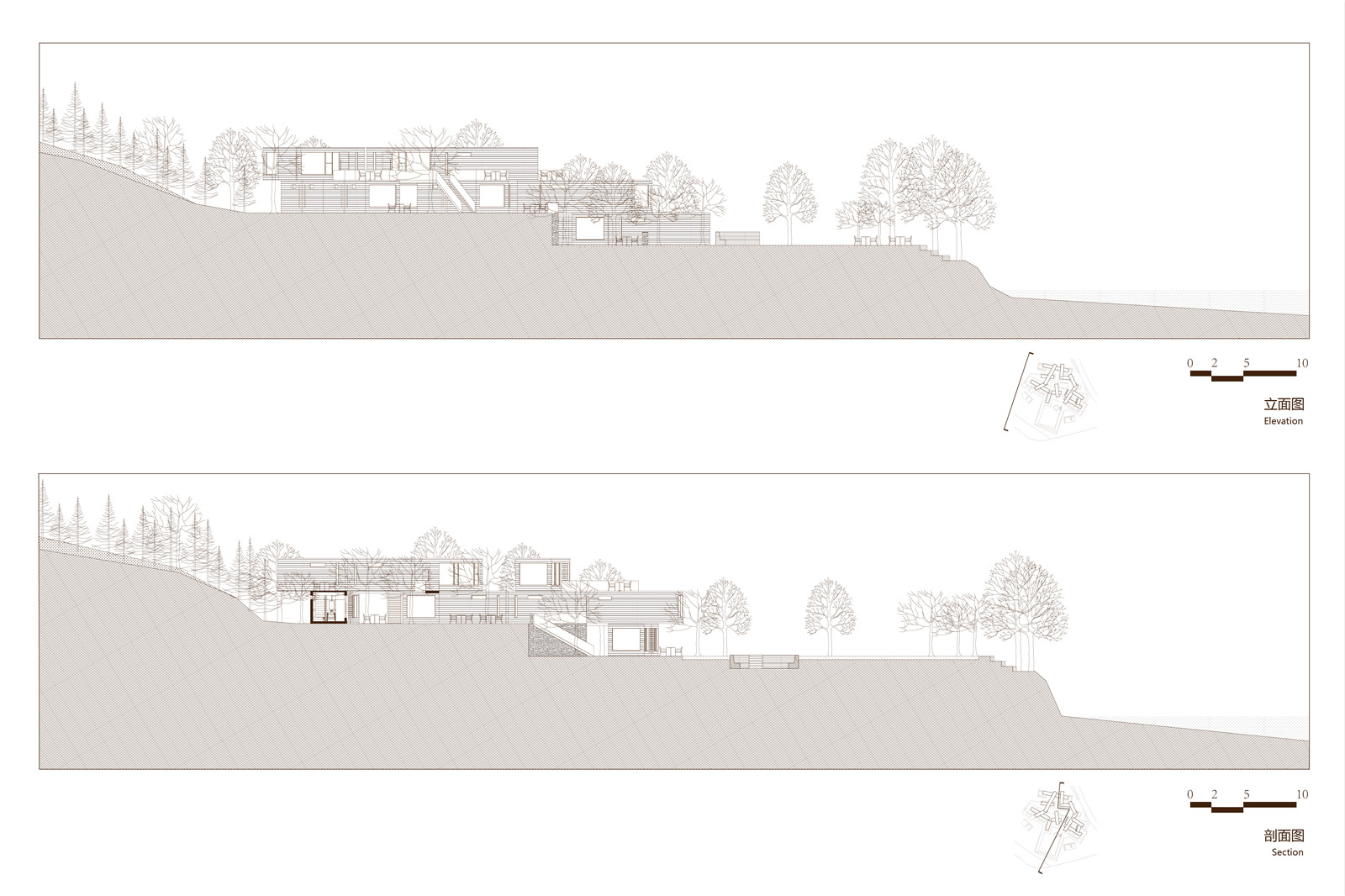

▼立面圖1

The Elevation 1 ? CM Design

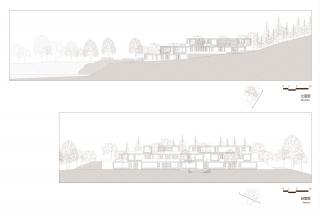

▼立面圖2

The Elevation 2 ? CM Design

_{項目信息}

_{項目名稱：山澤居房車自駕項目}

_{項目地點:  西藏林芝米林縣桃花大道}

_{設計團隊:  厘米制造}

_{聯系郵箱：cmdesign-sz2016@qq.com}

_{設計成員: 陳丹平、廖俊、楊恒、姚明明、沈友利、李木森、鐘應川、周嘉旭（實習）、李璐（實習）}

_{項目面積: 33170. sqm}

_{設計時間: 2018年4-10月}

_{完成時間: 2019年3月}

_{業主: 林芝山澤居文化旅游開發有限公司}

_{項目攝影: 張超、夏至、古岳、地表潛行、CM Design}

_{Project Name：Sanzee Rv Self-driving Campsite Project}

_{Project Location：Milin,Linzhi,Tibet, China}

_{Architects:  CM design}

_{Contact E-mail：cmdesign-sz2016@qq.com}

_{Design Team:}

_{Danping Chen , Jun Liao, Heng Yang, Mingming Yao ,Youli Shen ,Musen Li, Yingchua Zhon, Jiaxu Zhou(intern), Lu Li(intern)}

_{Area:  33170. sqm}

_{Project Design Period:  2018.4-10}

_{Completion Date:  2019.3}

_{Developer: Sanzee}

_{Photographers: Chao Zhang, Zhi Xia，Yue Gu，地表潛行，CM Design}
