珠啤汽機間改造（珠啤創意園二期）景觀設計 | 豎梁社

▼改造后的煤棚空間

Coal store room Revitalization  ?吳嗣銘Siming Wu

一、回顧：從啤酒廠到“琶醍”

review: From beer factory to "Party Pier"

珠江啤酒是廣州的城市記憶之一，見證了城市發展的日新月異，其自身也在尋求轉型和升級之路。十余年來，通過參與實際項目，豎梁社持續參與了廣州熱火朝天的城市更新、工業遺產保護的探索和實踐。

2009年，為迎接廣州亞運會的舉辦，豎梁社首先對原珠江輸煤碼頭進行改造，以詩意的地景建筑手段，將商業酒吧街與文化休閑帶結合成為新型濱水空間“琶醍”，自此成為廣州夜生活的一張名片，在晨光暮靄中迎來送往各色時尚人群。后續開通的水上輕軌直接將站點設在琶醍內部，進一步提升了人氣熱度。

ZHUJIANG BEER is one of a local famous and influential bran in Guangzhou, China, and part of the citizens' memory, which witness the city's development， and the enterprise is finding a way to transform and upgrade itself. Through the practical projects like these, CNS has been continuously working to protect and revitalize the industrial heritages in Guangzhou for more than ten years.

Before the Guangzhou Asian Games in 2010, CNS designed and renovated the factory's Coal Transportation plants to "Party Pier", a waterfront bar street along with many cultural-leisure programs, which later became a highlight in Guangzhou's nightlife and attracted fashioned and creative youths. The waterfront Railway brought even more people after the "Party Pier" station was set.

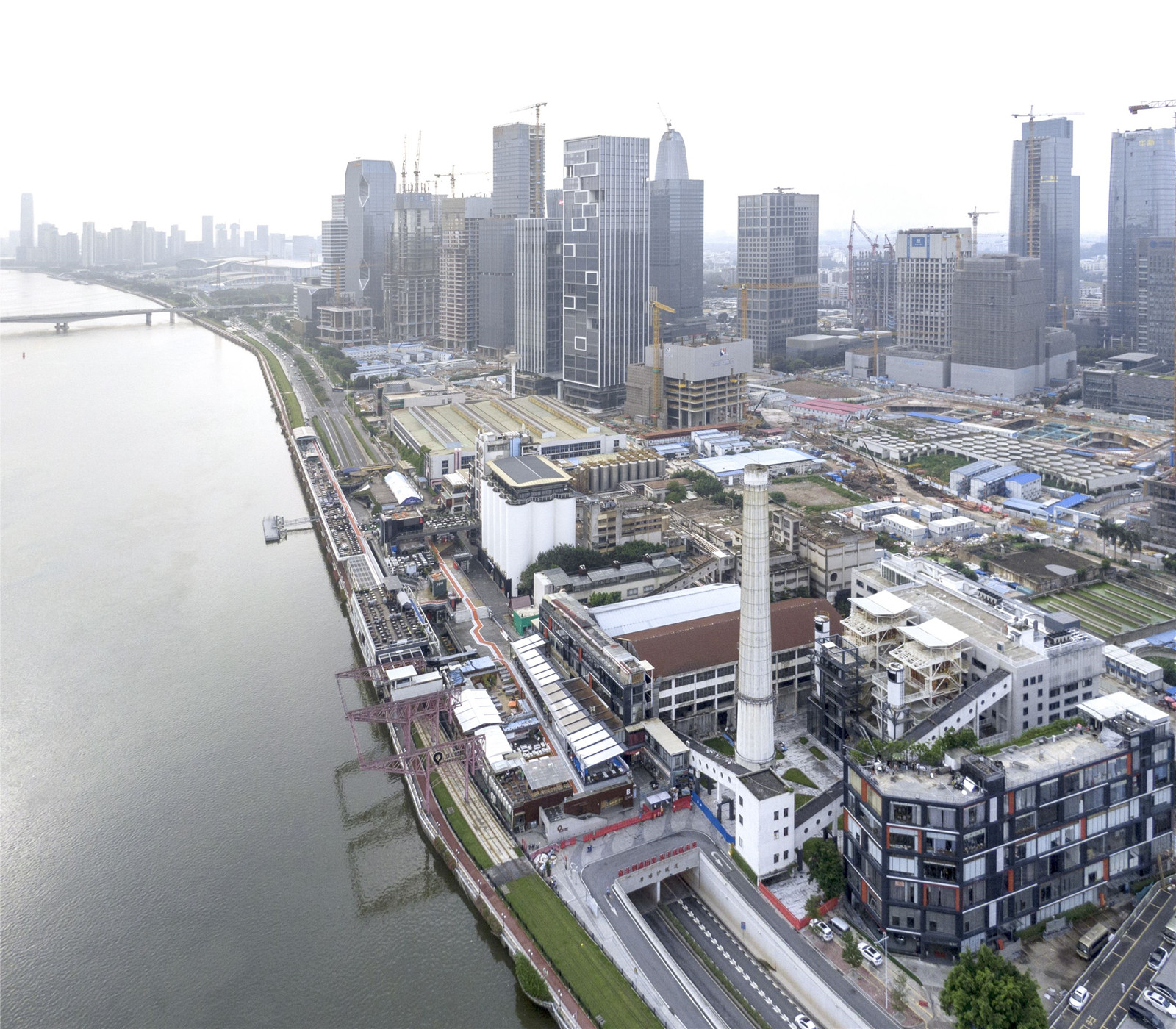

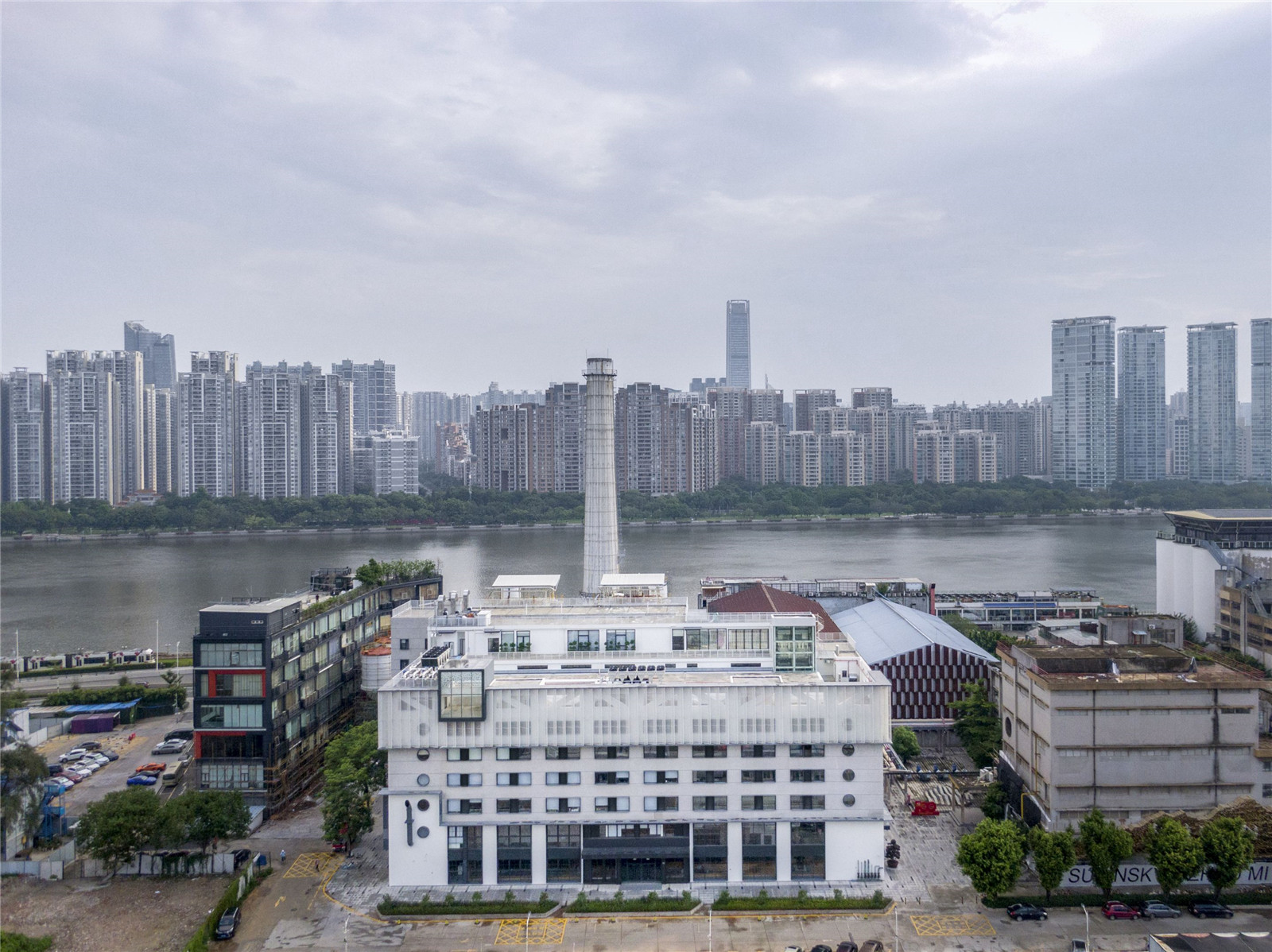

▼廠區鳥瞰

Aerial view   ?吳嗣銘Siming Wu

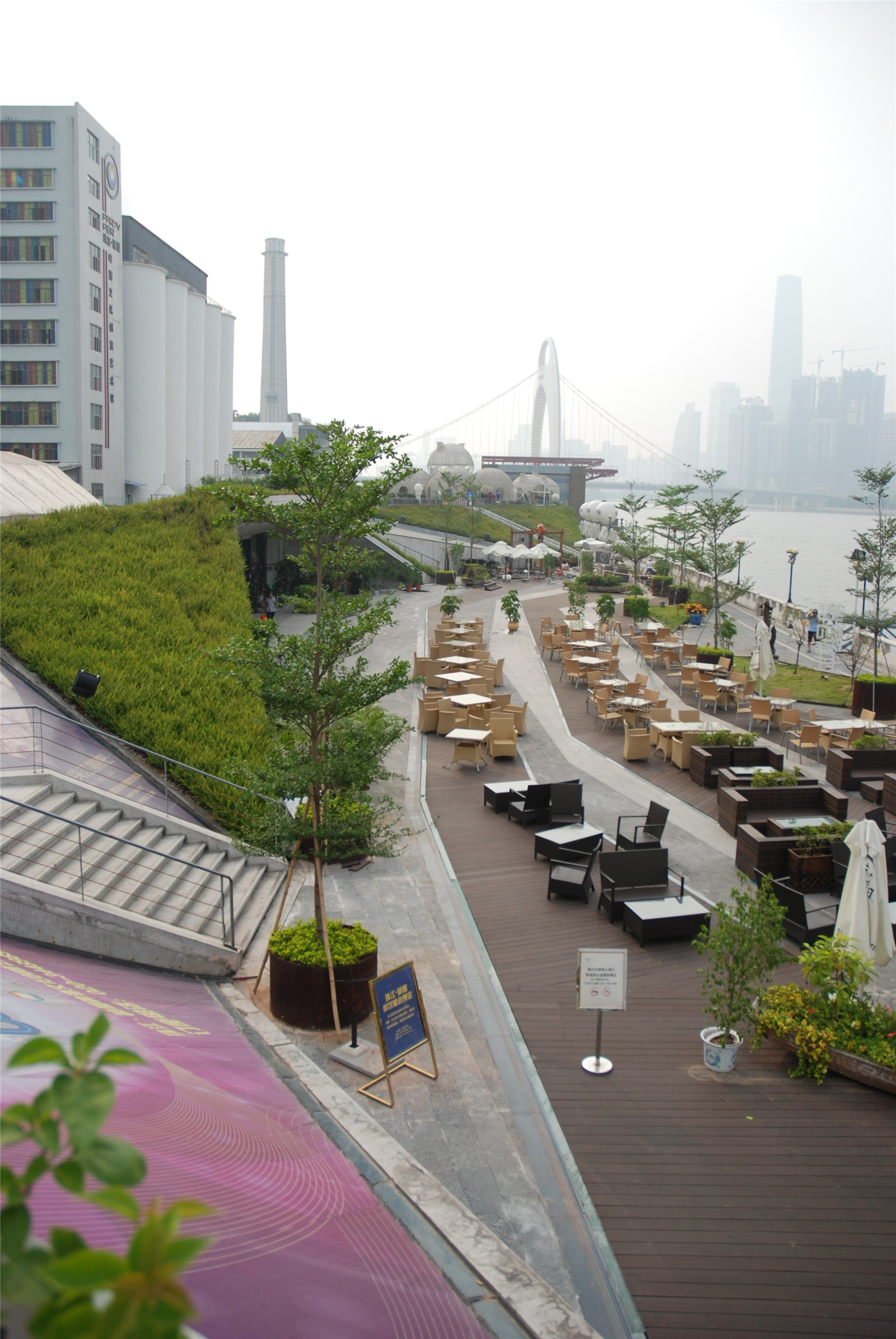

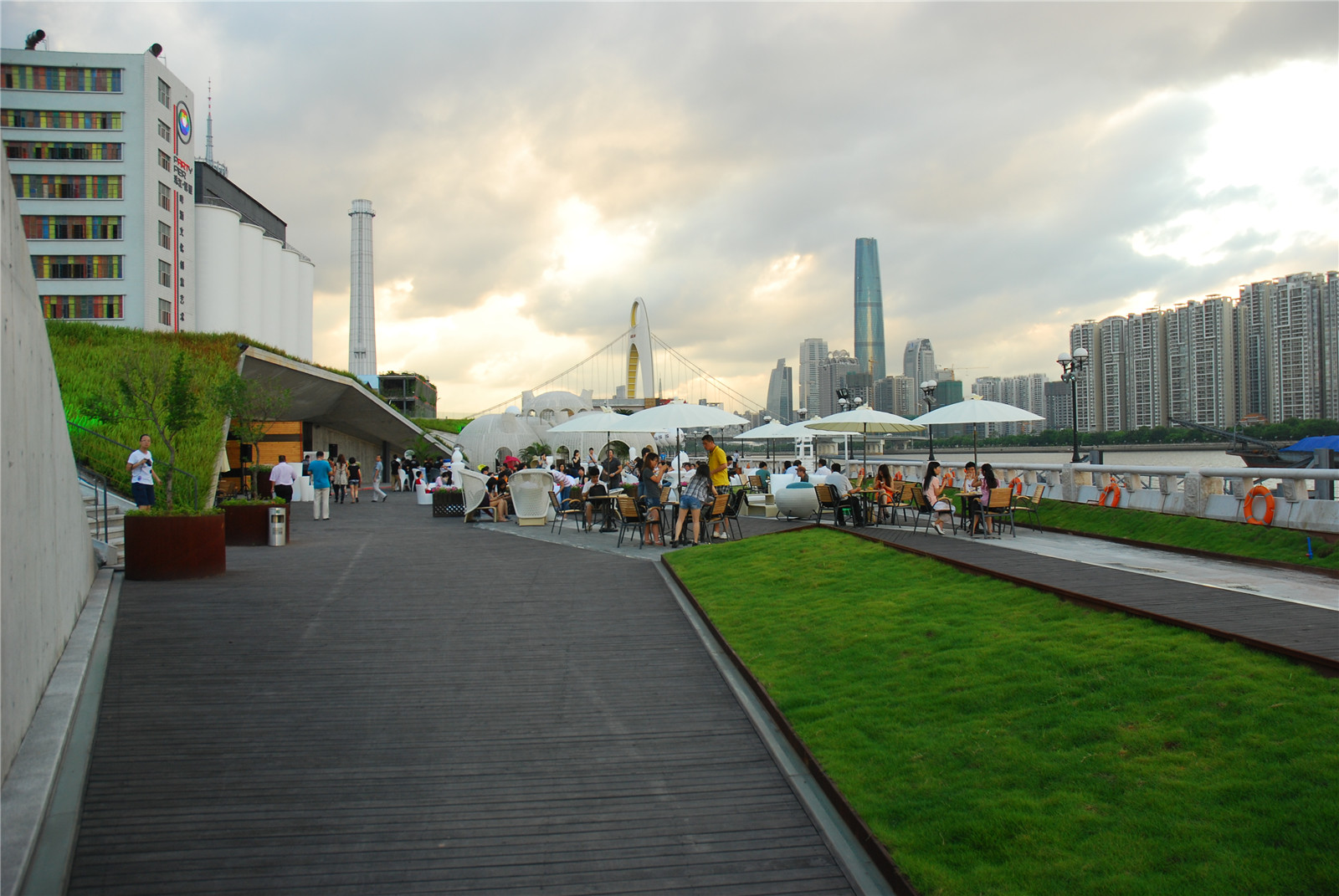

▼新型濱水空間“琶醍”

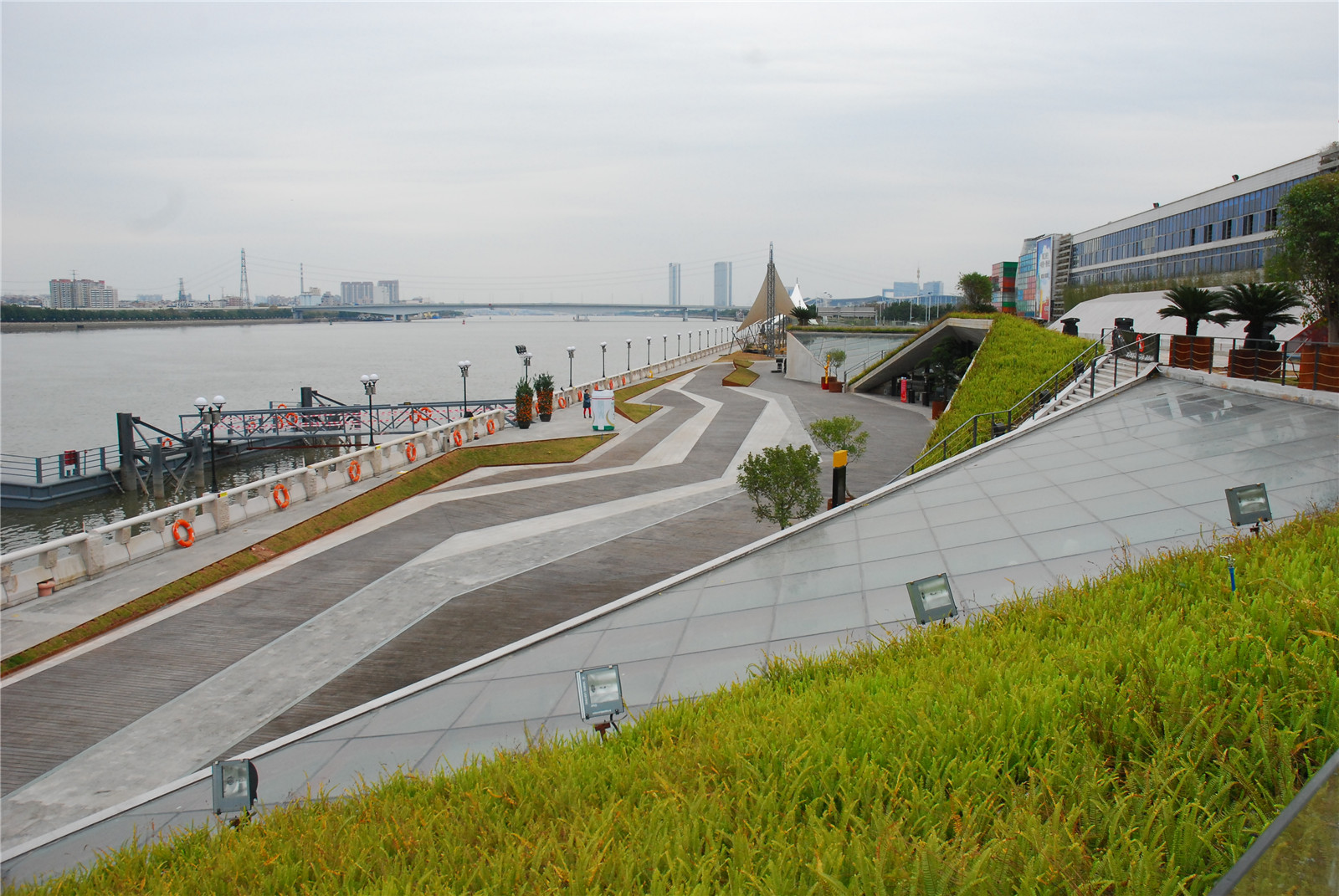

Waterfront bar street—Party Pier  ?豎梁社cnS

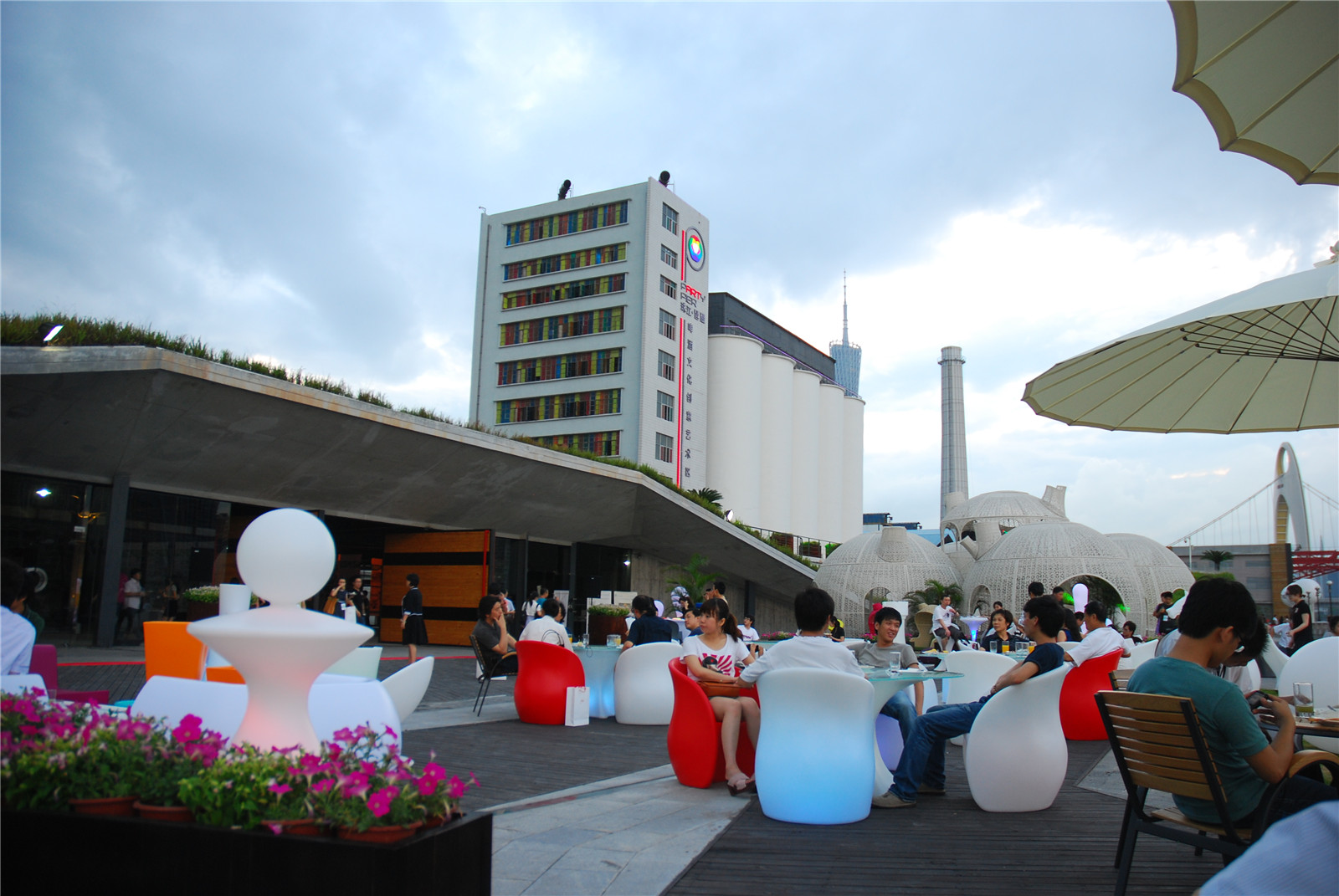

▼時尚琶醍

Party Pier  ?豎梁社cnS

珠江琶醍的設計過程中，遇到幾個棘手的問題：沿珠江有嚴格的城市風貌控制，對建筑體量比較敏感；珠江啤酒廠仍有大量生產活動需要借助水岸運輸原料、貨物，切斷了酒吧街的流線；同時基地下方即是磨碟沙快速路隧道，對建筑基礎結構也帶來挑戰。我們通過“景觀建筑一體化”的連續折疊結構同時解決了這些問題。建筑體量被呈現為寬闊的草坡，保持對江景最大程度開放的同時，對珠江沿岸景色的影響降到最低。生產運輸流線被覆蓋在景觀下面，避免了流線交叉。連續的平面不僅符合商業布局規律，也使得建筑可以最大的利用淺基礎。

During the design of "Party Pier", there were strict urban control specifications which restrict the buildings volume, and the Beer Brewery Factory still use the waterfront to transport raw materials and goods at that time, conflicting with the circulation of the bar street; and a tunneled city road passed below the site, making it difficult in foundation structure design. We solved these problems in a single way of "landscape integrated architecture ", a consistent folding structure which made the building volume into natural grass slope, leaving maximum opening to the river view meanwhile minimizing the impact on the scenery along the Pearl River. The factory production and transport circulation were covered under the landscape. The landscape-architecture made the bar street unique in space and experience, but also allows the use of the shallow foundation.

▼琶醍地景改造2009年

Landscape Revitalization of Party Pier in 2009  ?豎梁社cnS

二、珠啤汽機間改造

Revitalization of The Steam Turbine Factory

在生產功能全部搬遷完畢后，珠江啤酒集團希望將整個原廠址打包轉型為“啤酒厰”文創商業項目，成為廣州的文創新地標。對于區域內留存的紛繁復雜的老工業廠房而言，則意味著大量細致的基礎工作。2018年，豎梁社著手對園區內最復雜，也是最有代表性的鍋爐汽機間及相連機械設備（以下簡稱汽機間）進行更新改造，以滿足珠江啤酒集團自用辦公的需求。汽機間曾經是為整個珠江啤酒廠提供動力源的功能模塊，我們希望它也能成為未來園區的“動力核心”。

After totally relocating the production plants, ZHUJIANG BEER GROUP hopes to turn the old factory site into a commercial-cultural project called "BREWERY", a culture and fashion landmark in Guangzhou. It starts with some detailed basic work on remaining buildings and facilities near the waterfront. In 2018, CNS began to work on the most complex building, the former steam turbine room and its adjacent equipments (later referred to as " turbine factory "), to make into the office building for ZHUJIANG BEER GROUP. Once the turbine factory was a power core that enable the entire factory, Now we hope it become a new "power core" and enable the entire park.

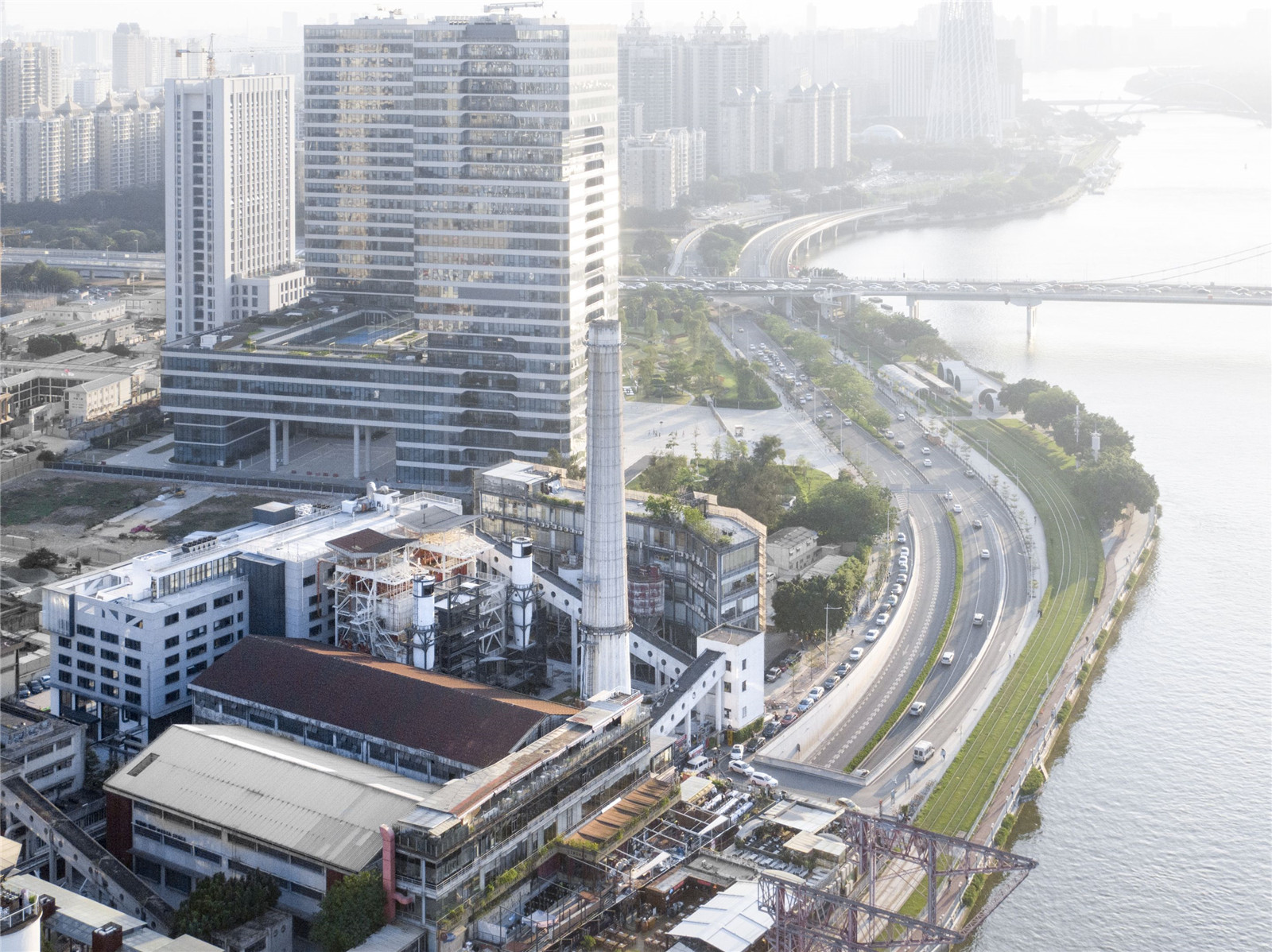

▼新生的珠啤創意園

Pearl River Brewery Phase Ⅱ?吳嗣銘 Siming Wu

▼煤棚原貌

The original appearance of the site ?豎梁社cnS

▼煤棚改造2009-2018年間

Coal store room Revitalization during 2009-2018 ?吳嗣銘Siming Wu

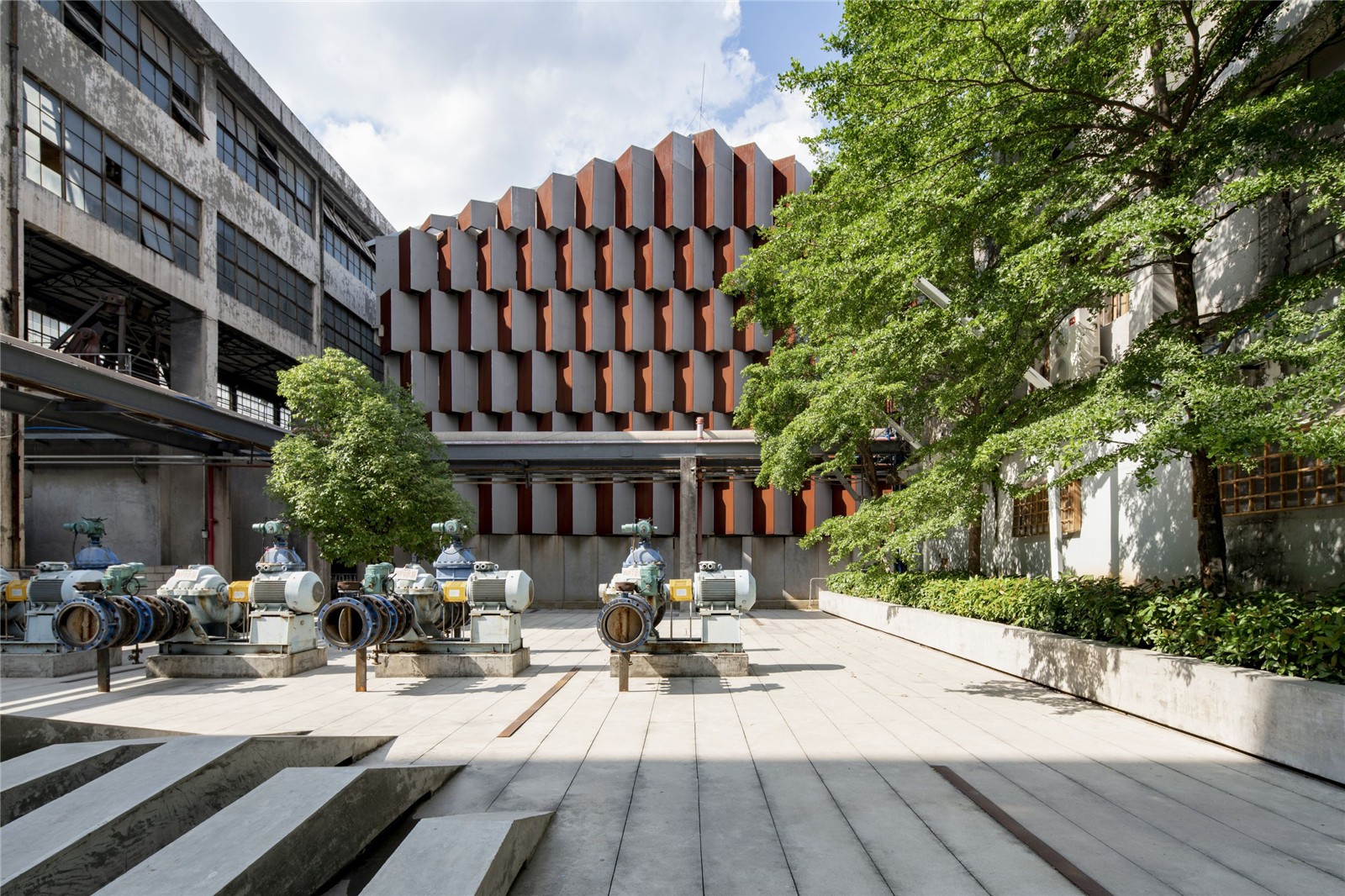

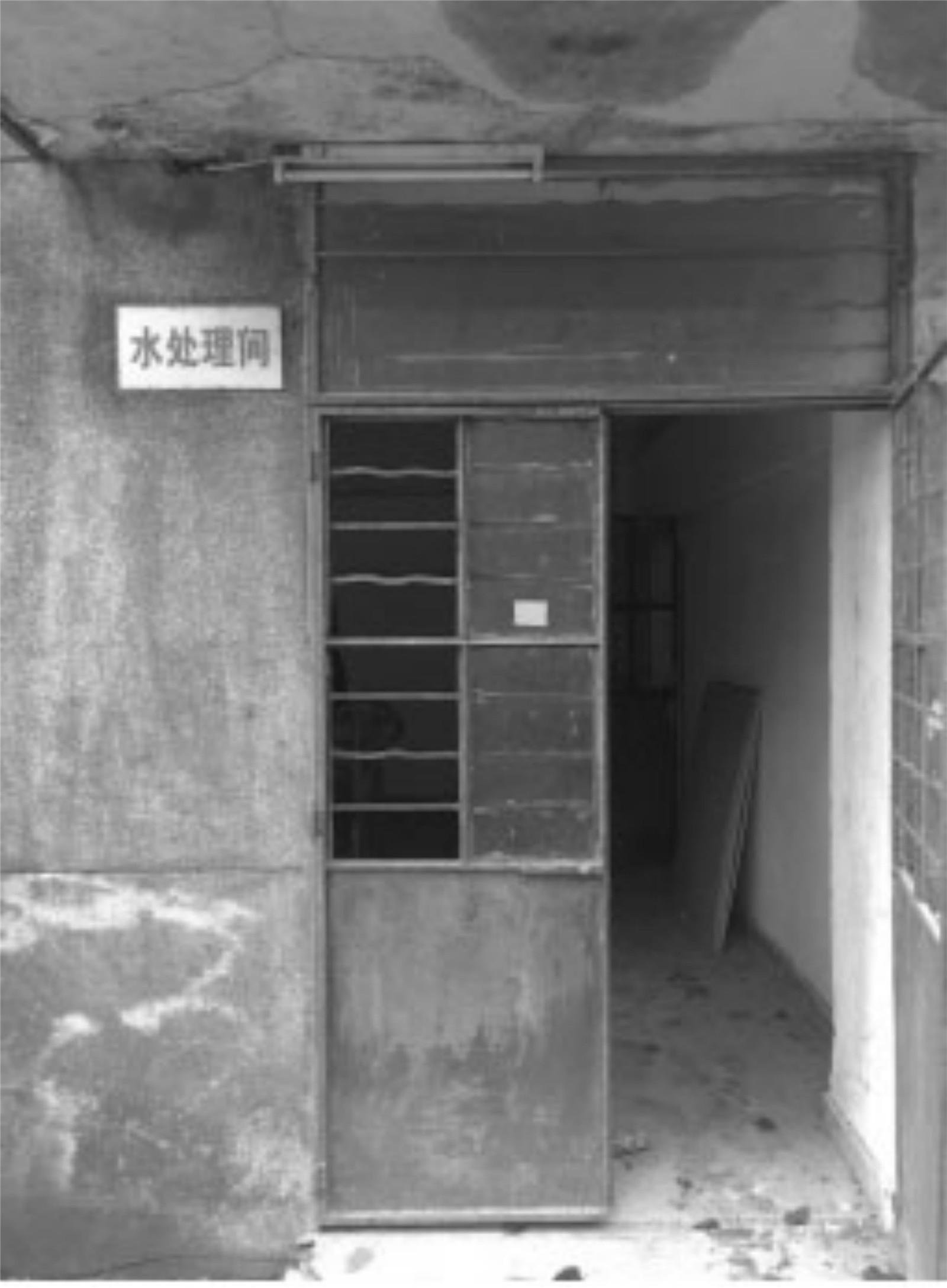

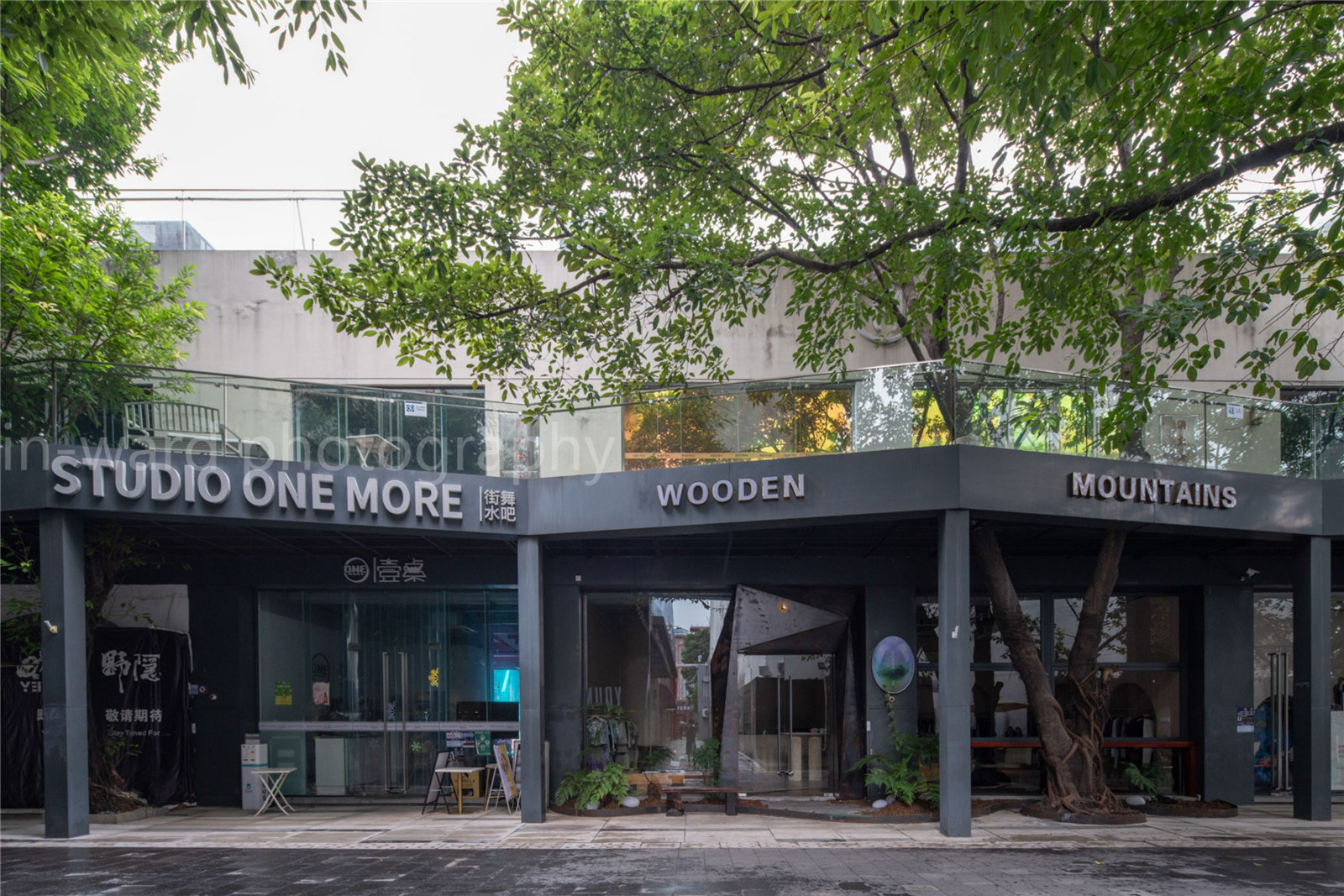

▼水處理間改造2009-2018年間

Water treatment room Revitalization during 2009-2018 ?吳嗣銘Siming Wu

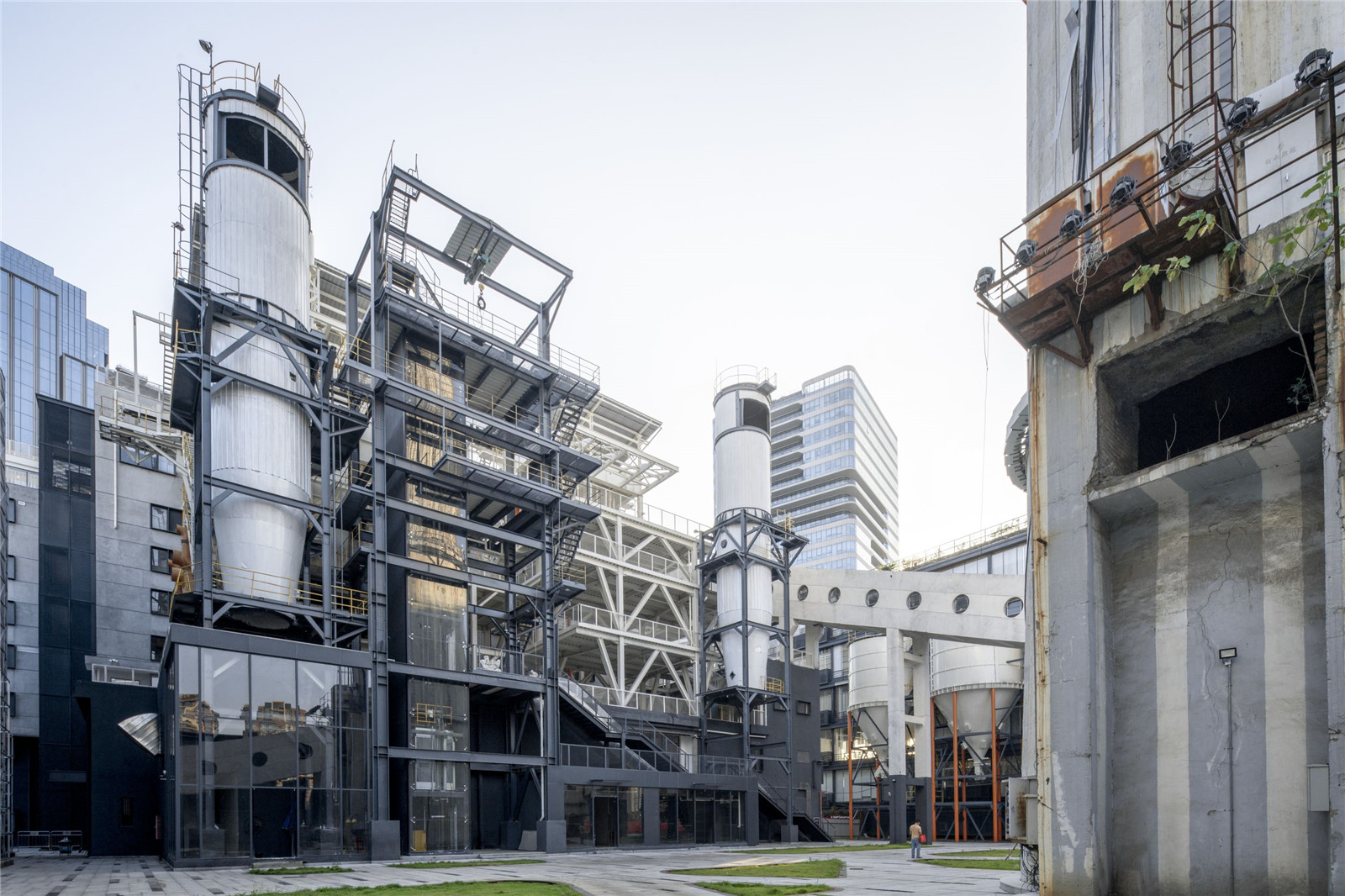

▼動力核心

Power core  ?吳嗣銘 Siming Wu

對城市公共空間精神的貫徹和深化

Implement and deepen the spirit of public space

作為一個辦公綜合項目，面江部分首先被定義為一個開放空間，設計梳理場地，將臨江步行綠道、酒吧街室外平臺、改造機械檢修平臺等巧妙連通，以此為引，延伸到城市，創造多層面的多元體驗，形成濱江公共空間在縱深方向和垂直方向的放大，與面向珠江的層層跌落的觀景平臺連接，大大拓展了公共步行體系的多樣性和趣味性。辦公區的用戶則可以通過專門的流線與外界相連，保證方便的同時不受干擾。

As an office building project, the river side part was defined as an open public space. The waterfront greenway, the outdoor platform, and the mechanical maintenance walkway are combined into a multi-level consistent pedestrian system, introducing different viewpoints and walking experiences in both horizontal and vertical dimension, the riverside public space is greatly enlarged, with diversity in program and outstanding feature in public image.

Other elements in the site are also taken care in a way to preserve the original spirit as much as possible, so the new and the old can have a conversation that tells the change of the city.

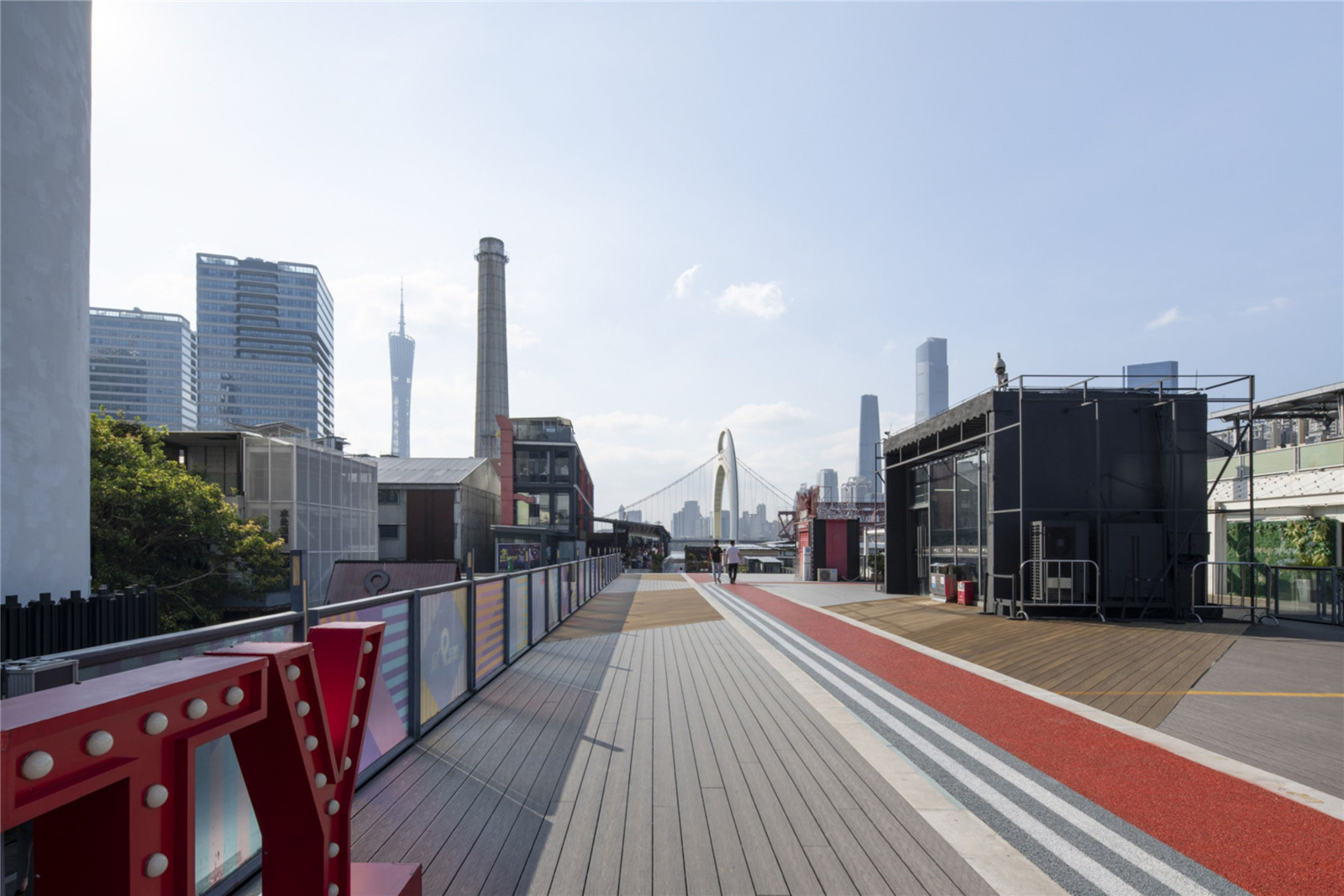

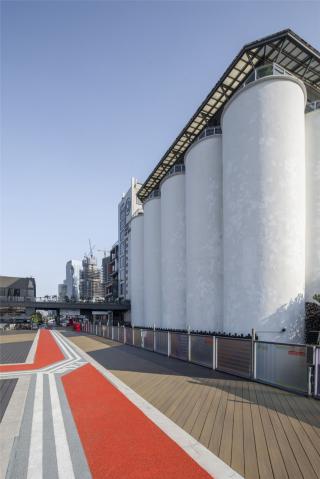

▼臨江景觀步道

The waterfront greenway ?吳嗣銘 Siming Wu

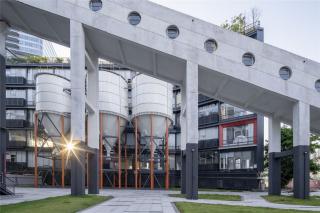

▼煤棚與水處理間形成的休閑廣場

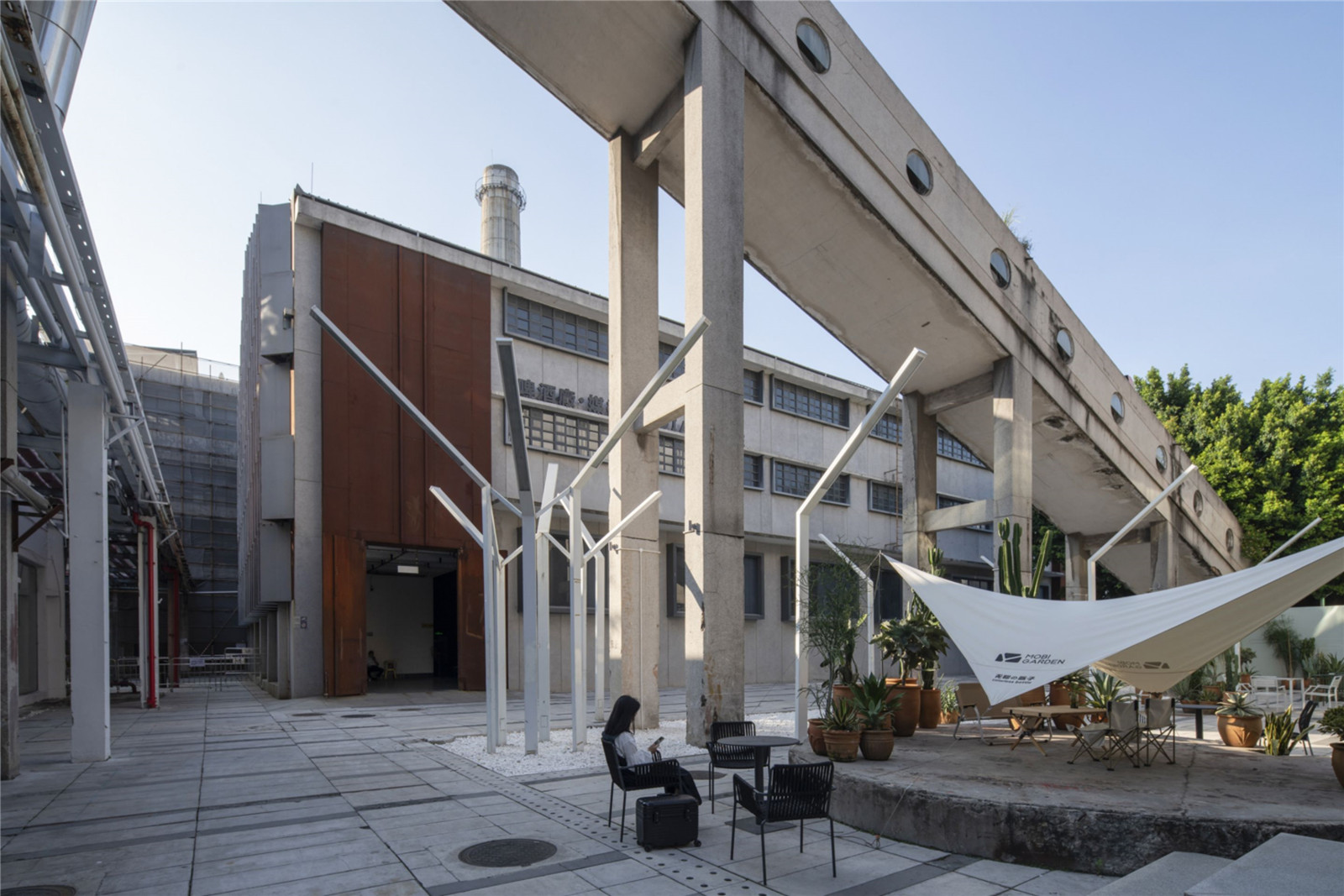

Square between the coal store room and Water treatment room  ?吳嗣銘 Siming Wu

“啤酒 + ”城市發展動態預測

"Beer +" City Development Trend Forecast

因?yàn)榈囟蔚奶厥庑?，汽機間在短期內將作為總部辦公使用，但遠期來看，又存在向租賃辦公、共享辦公、乃至文化、商業綜合體轉型的可能，或者，是多種業態的復合。因此設計中并沒有以“類型建筑”來做導向，沒有把問題的范圍局限在一個建筑設計上，而更多的從場地流線、空間體驗、視覺界面的連貫性入手，最終形成“雜糅”的多義性的結果。

Due to the particularity of the site, the turbine factory will be made into the headquarters office in the short term, but in the long term, there is the possibility of transforming it into leased office, shared office, cultural-commercial complexes, or a mixture of multiple programs. Therefore, the design doesn't aim to be a  "genre building", like they do in most situation. Instead, it starts with the consistency of the public circulation, pedestrian experience, landscape interface, etc, and finally leaded to a result of ambiguity.

▼前廣場設計

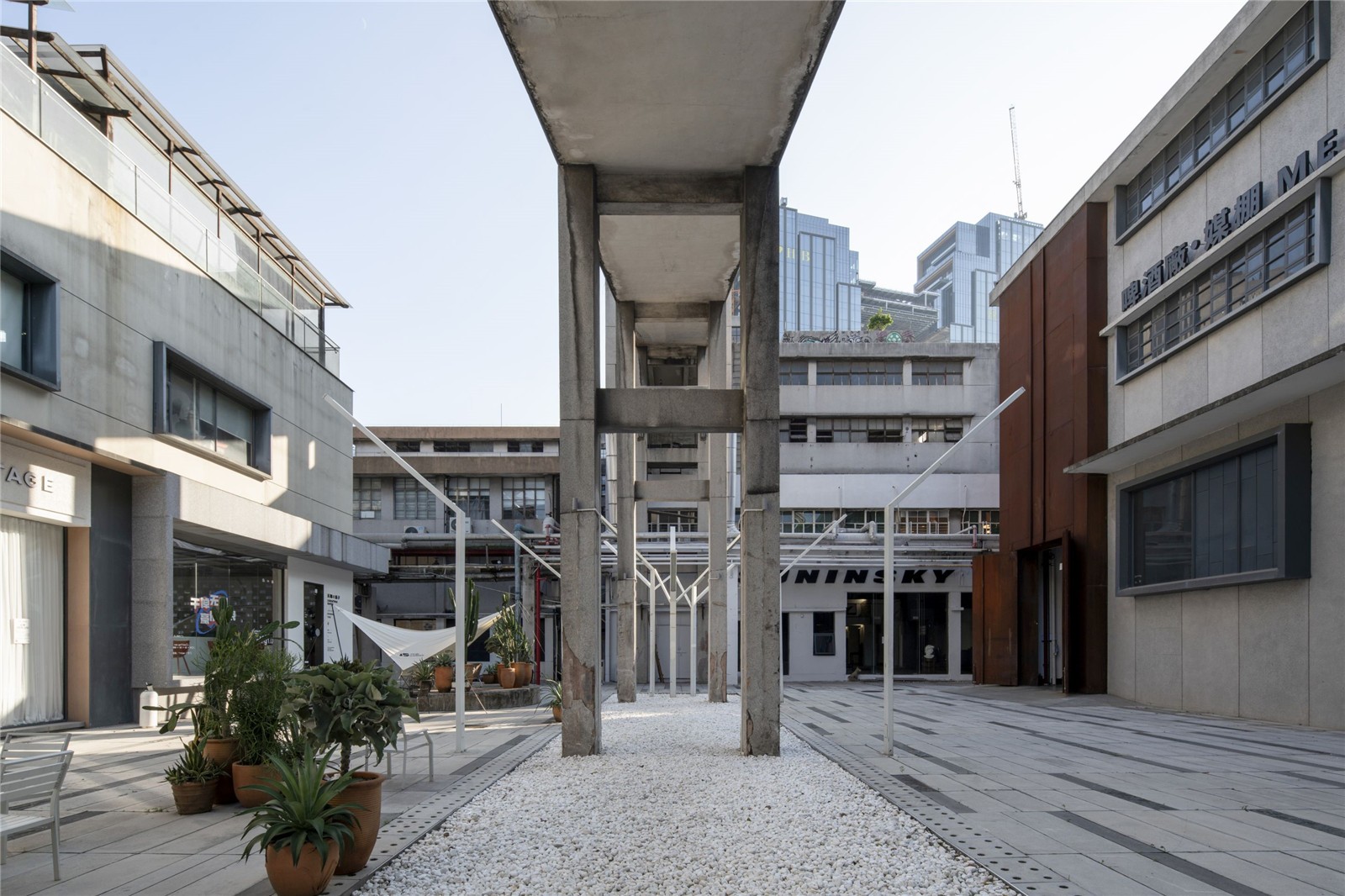

Front square ?吳嗣銘 Siming Wu

▼前廣場輸煤管道

Coal conveying pipeline ?吳嗣銘 Siming Wu

工業遺存的保護和活用

Preservation and Revitalization of Industrial Heritage

珠啤廠址留存的工業遺產有明顯的獨特的風貌價值，但工業遺產保護的法規在我國仍在起步、探索中，需要采取慎之又慎的態度。汽機間原本是一個跟煤炭、蒸汽、電力打交道的建筑，尺度恢弘但黑暗壓抑，如何在保留工業空間特質的同時又能轉化為令人舒適愉悅的現代辦公空間？設計師在進行了大量的現場篩查評估后，為每個機器部件制定了利用計劃，通過原地維護、異地保護、拆除重構等方式，創造出一個個工業遺產與現代辦公相互依存的場景。

The industrial heritage preserved at the ZHUJIANG BEER GROUP site has unique style and value, but the protection codes and regulations of industrial heritage are still in the drafting phase so that the practical way of doing it is still an exploration. The turbine factory was originally a building dealing with coal, steam, and electricity, The scale is magnificent but dark and suppressed in a very unfriendly way. How can the industrial characteristics be kept while a comfortable and pleasant environment can be achieved？ After lots of work on site investigating and evaluation, we are able to formulated a utilization plan for each building element, including machine component. Through in-situ maintenance, relocation, demolition and reconstruction, etc., they can blend into the scene of modern office and lifestyle.

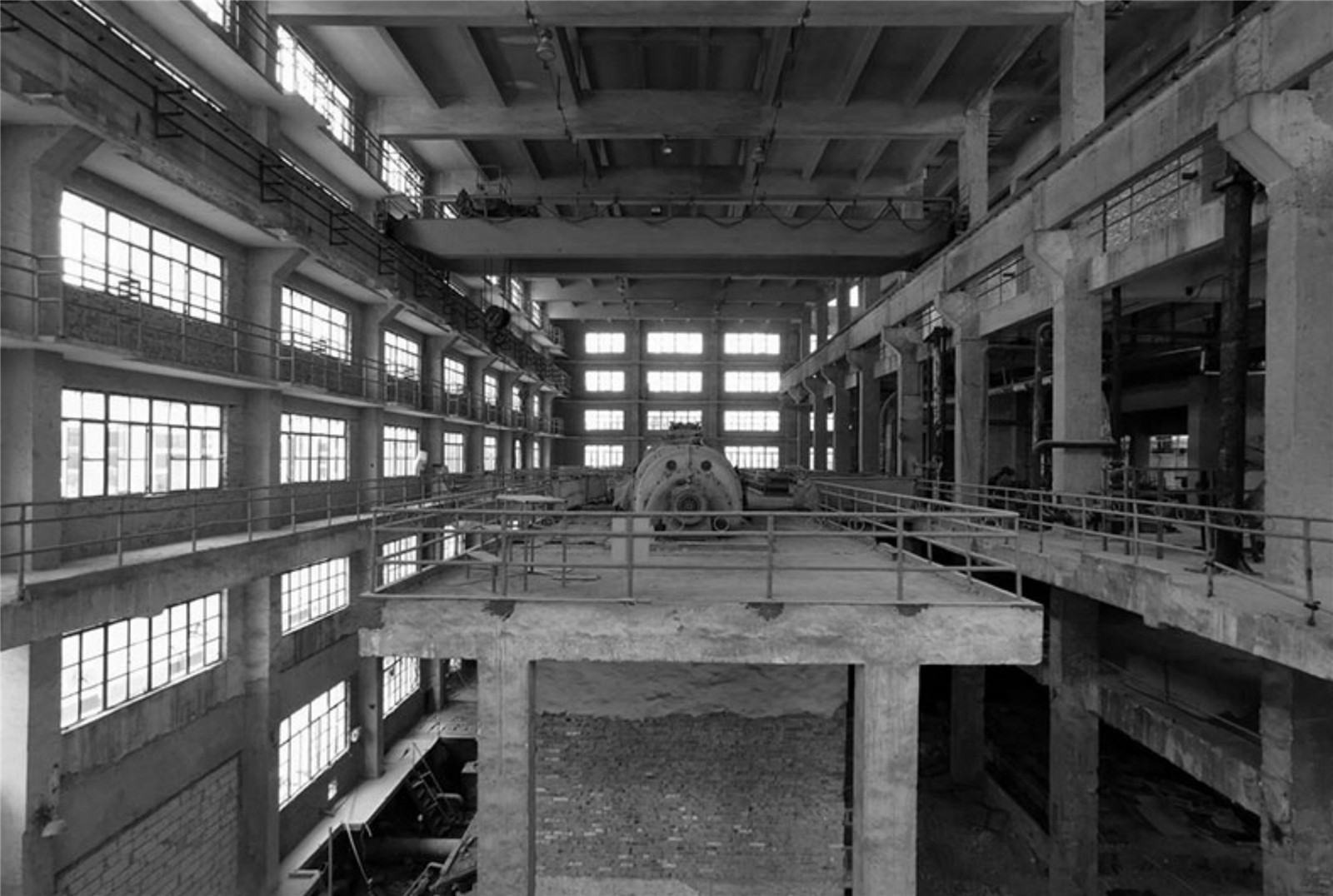

▼汽機間內部原貌

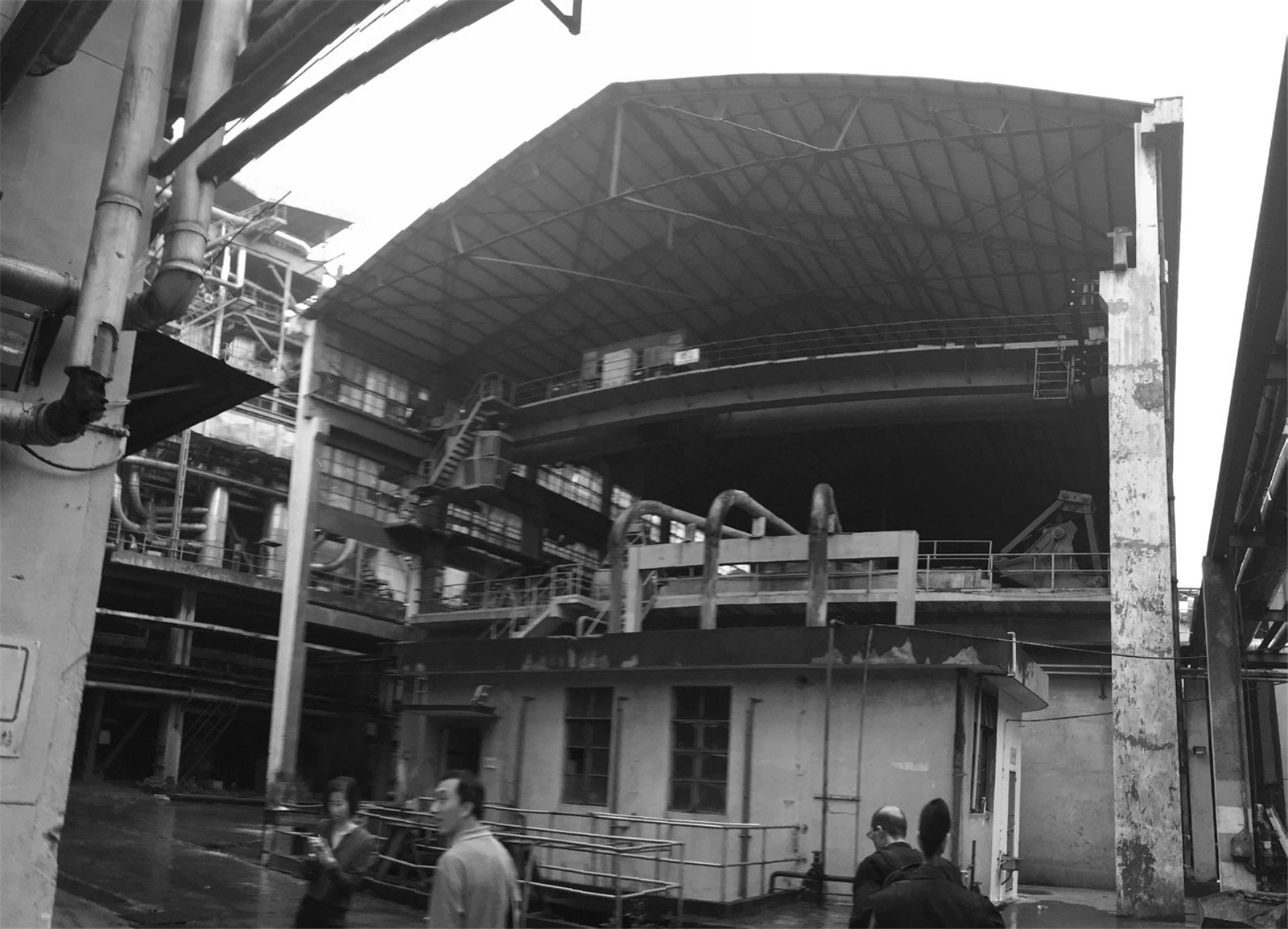

The original appearance of the site?豎梁社cnS

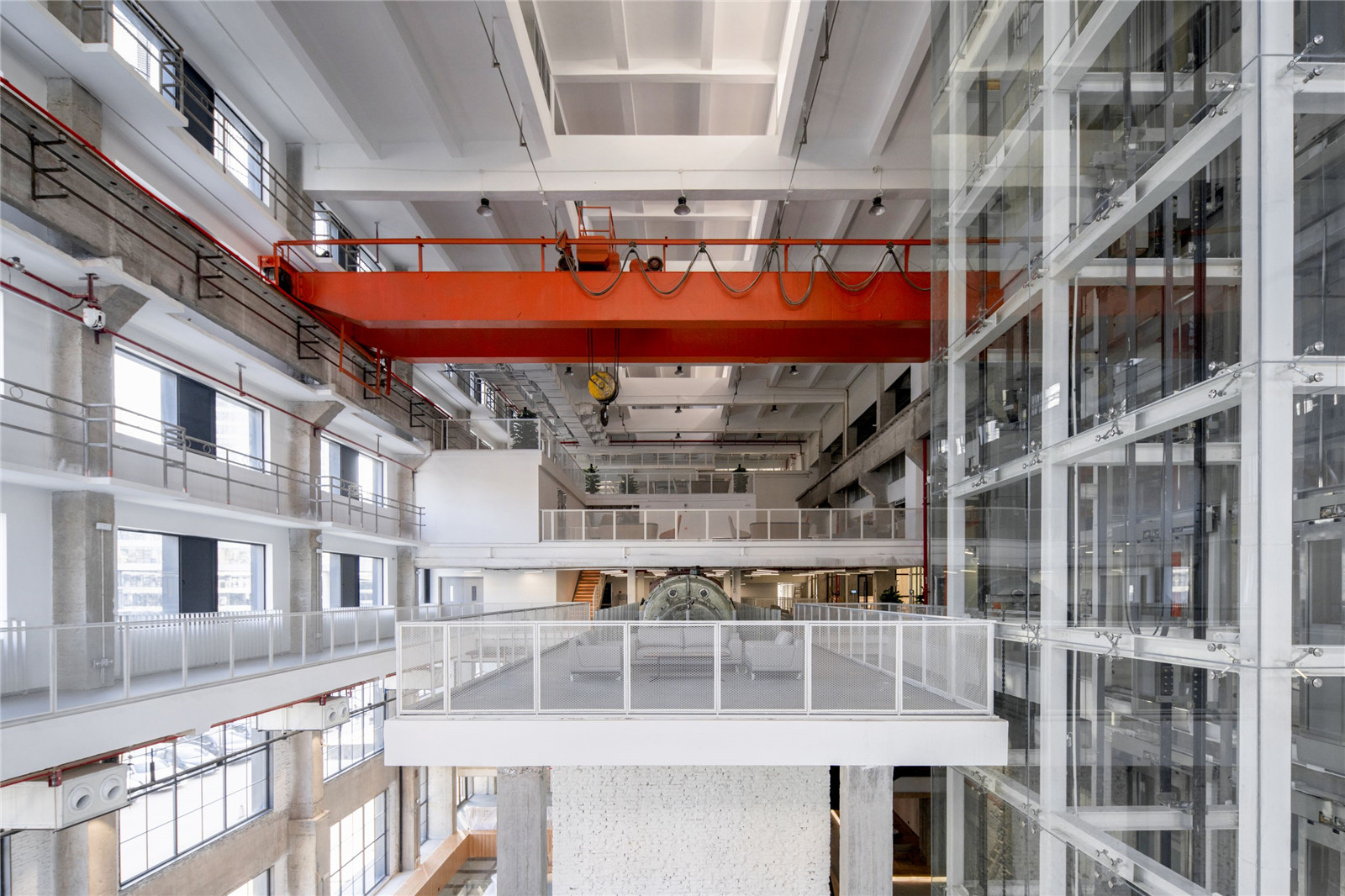

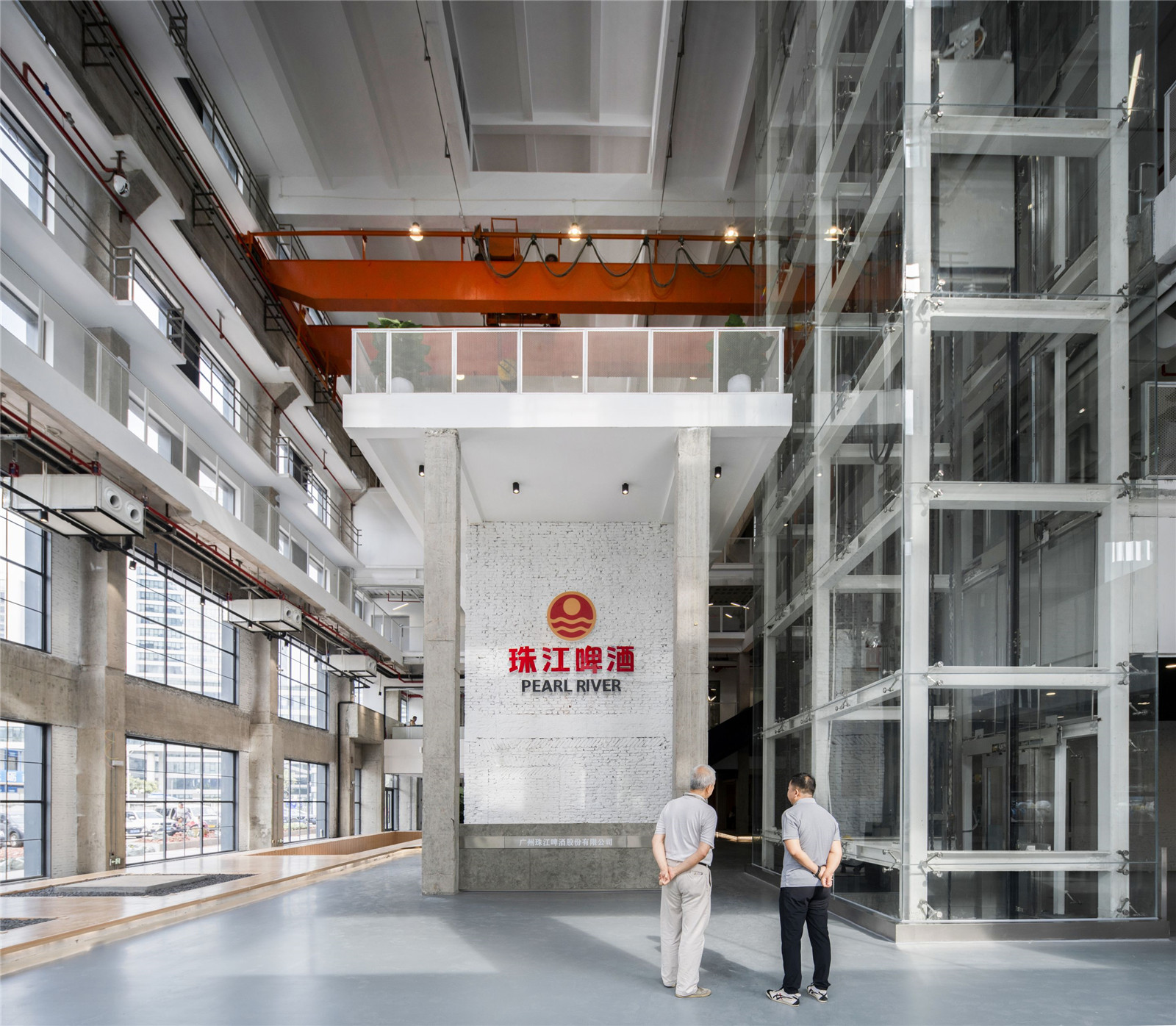

▼尺度恢弘的內部空間

A magnificent interior space ?吳嗣銘 Siming Wu

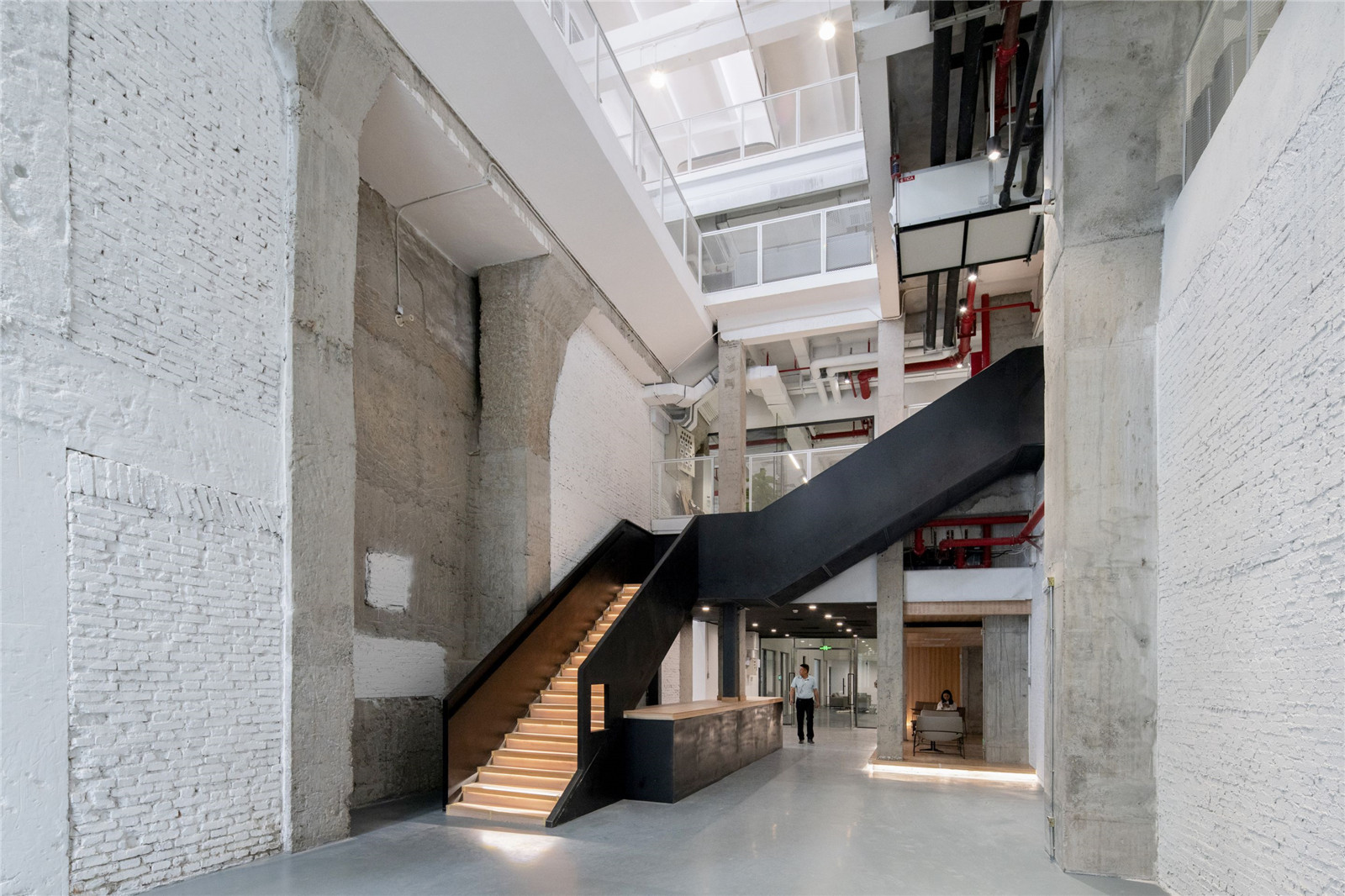

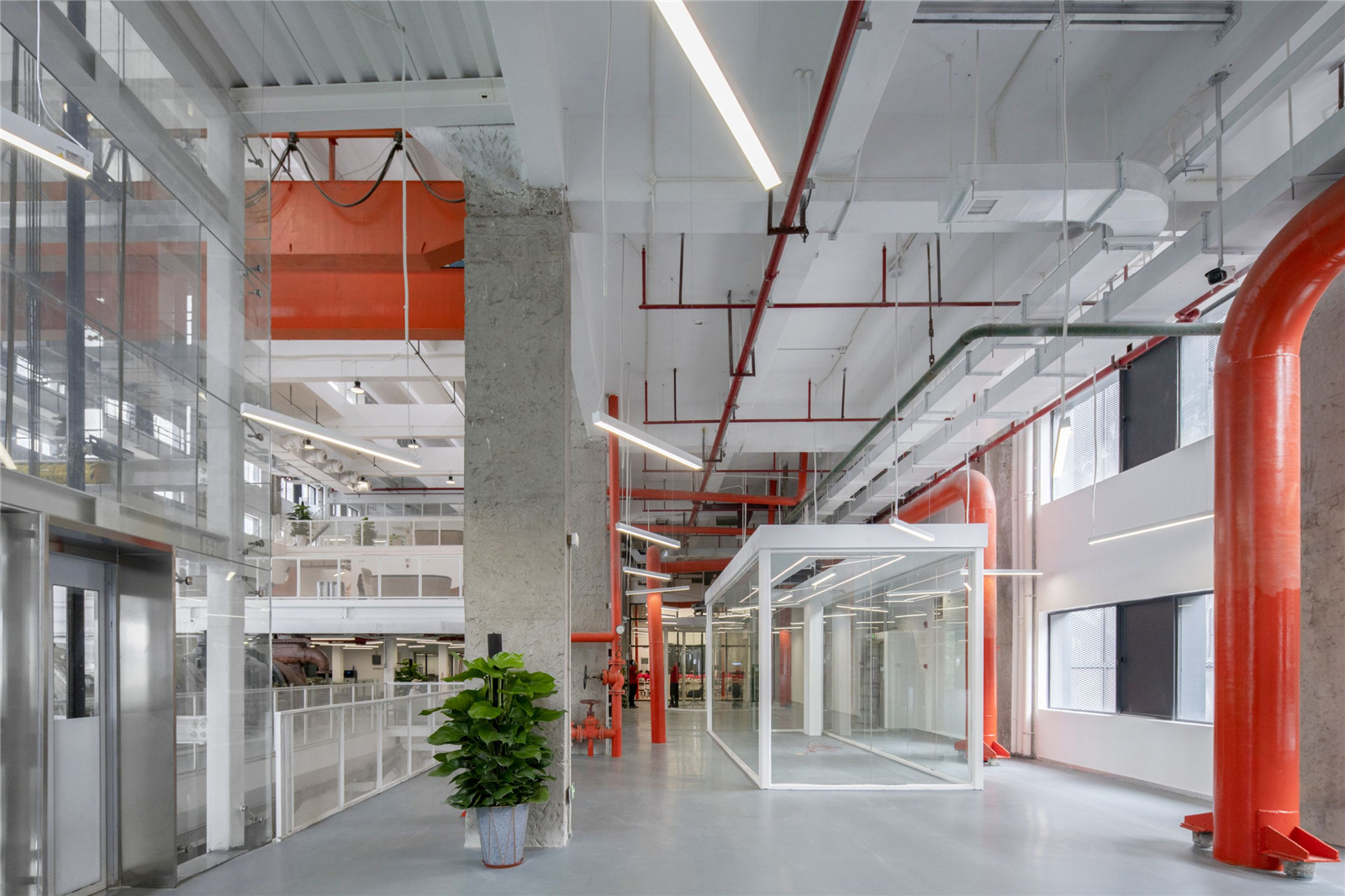

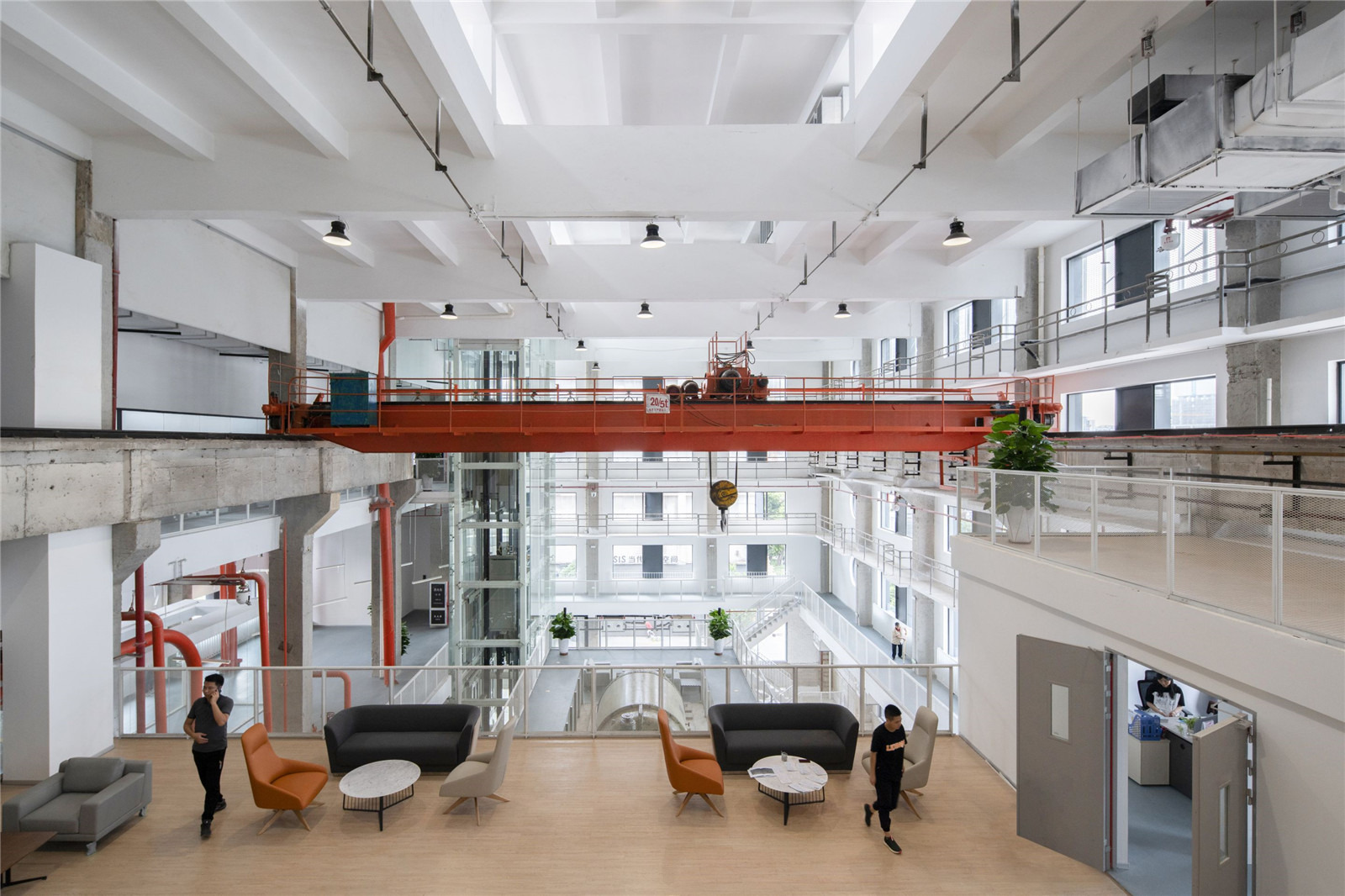

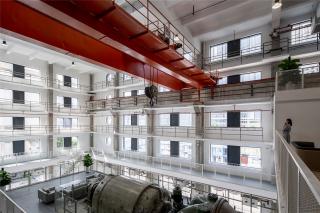

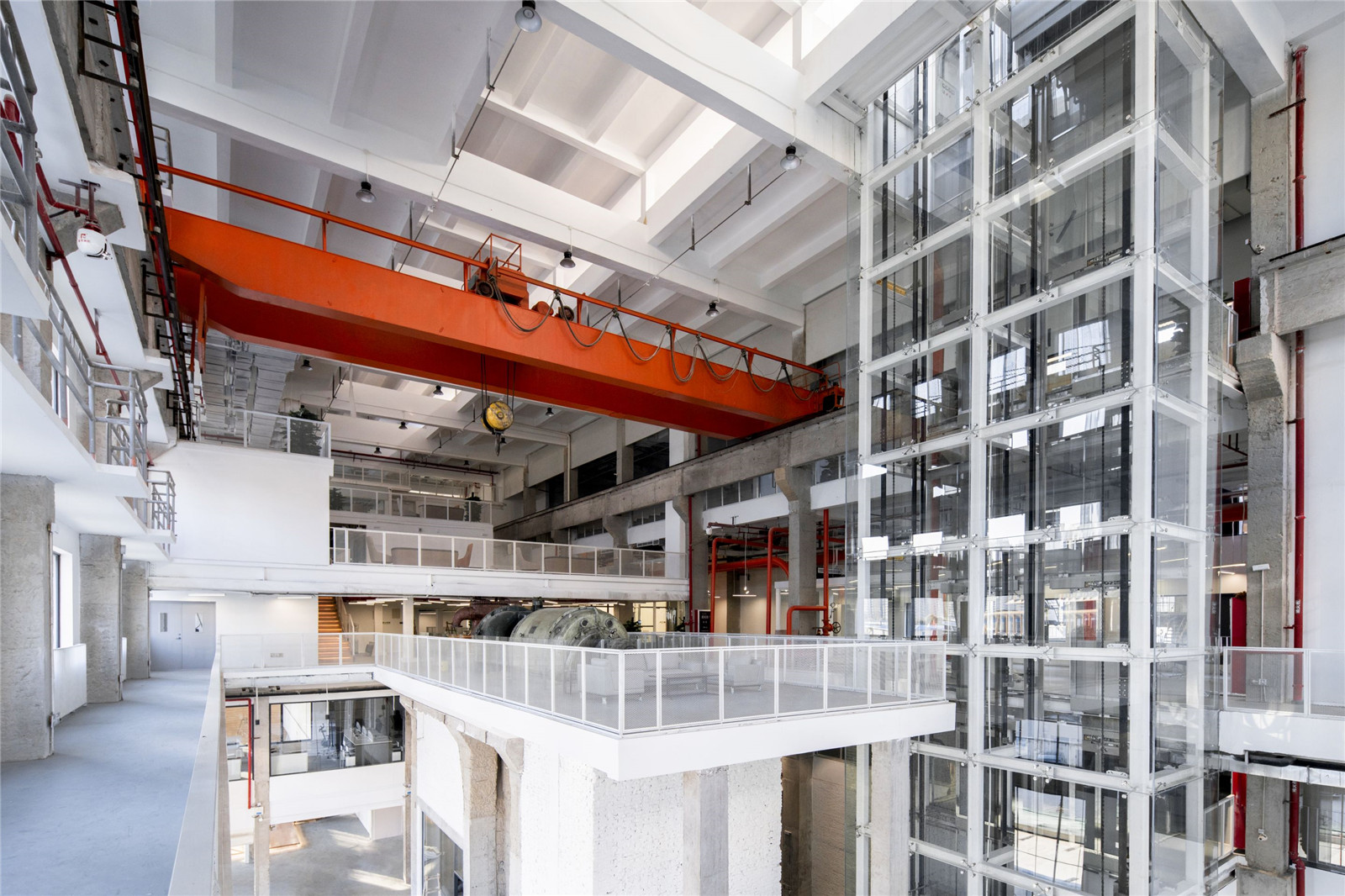

▼汽機間內部空間

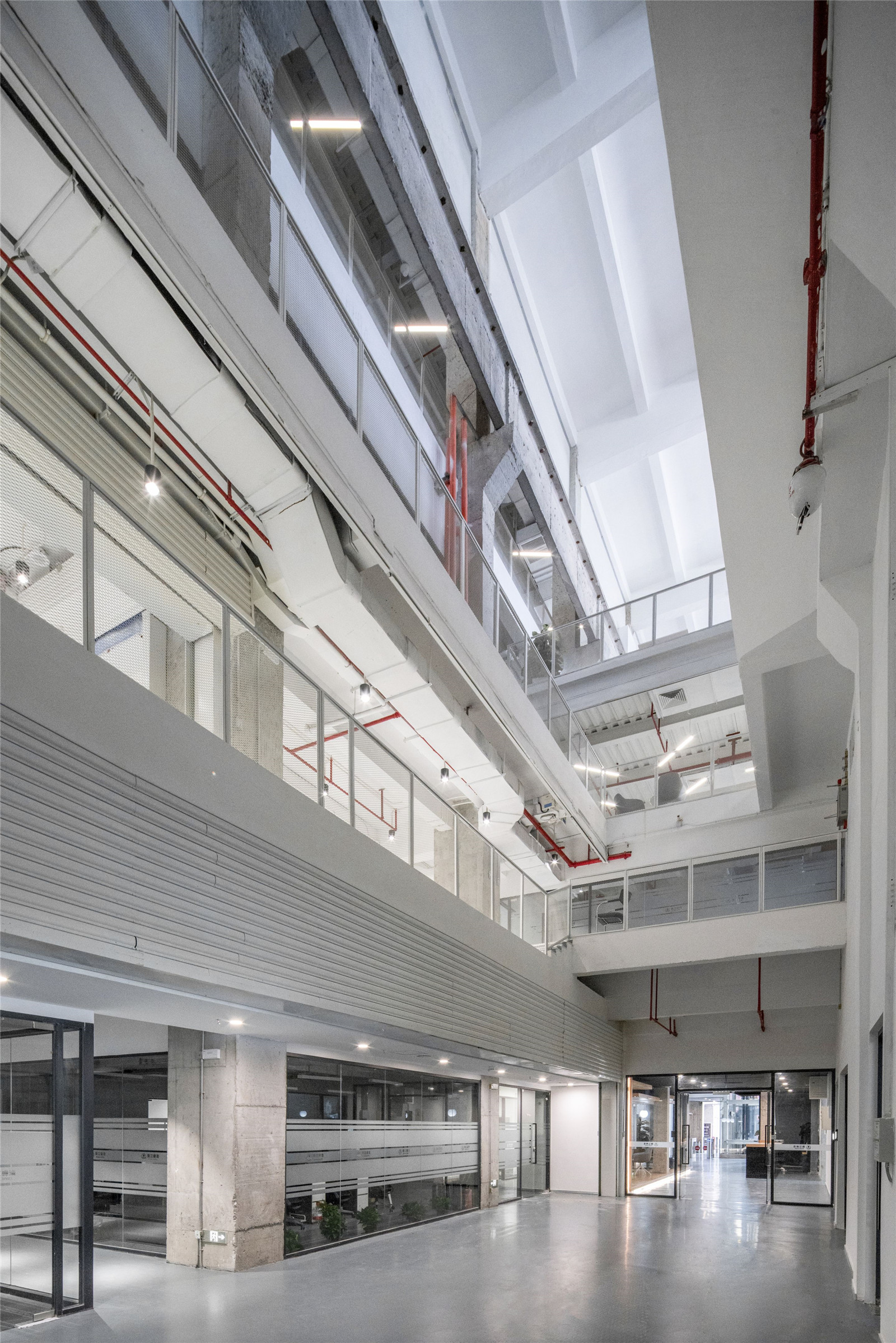

Interior space ?吳嗣銘 Siming Wu

▼新與舊的時空對話

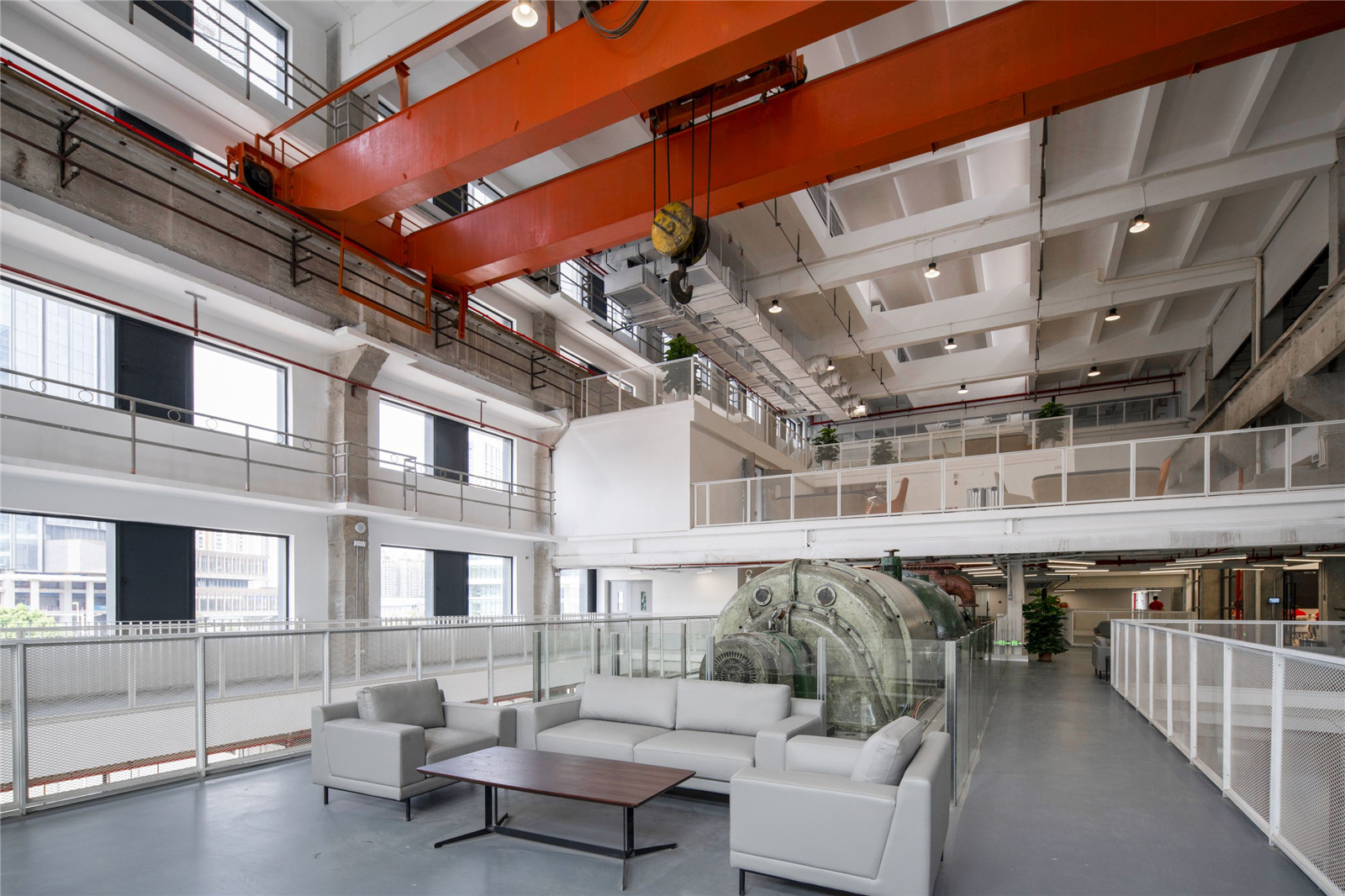

The scene of new and old ?吳嗣銘 Siming Wu

▼新與舊相互依存

The scene of new and old ?吳嗣銘 Siming Wu

工業記憶的表達

The expression of industrial memory

我們?cè)噲D尋找最有價值的工業記憶，刻錄進珠啤的再生基因里，在改造過程中，不露聲色的進行表達，從而讓人不被打擾地步入這座新舊交織的工業空間中。

We are trying to find the most particular industrial memory, and write it into the regenerative genes of“Pearl River Brewery”, so that it can be expressed quietly in the revitalization, people can step into this space Intertwined the new and old with a story to be heard.

▼工業建筑構件的立地保護

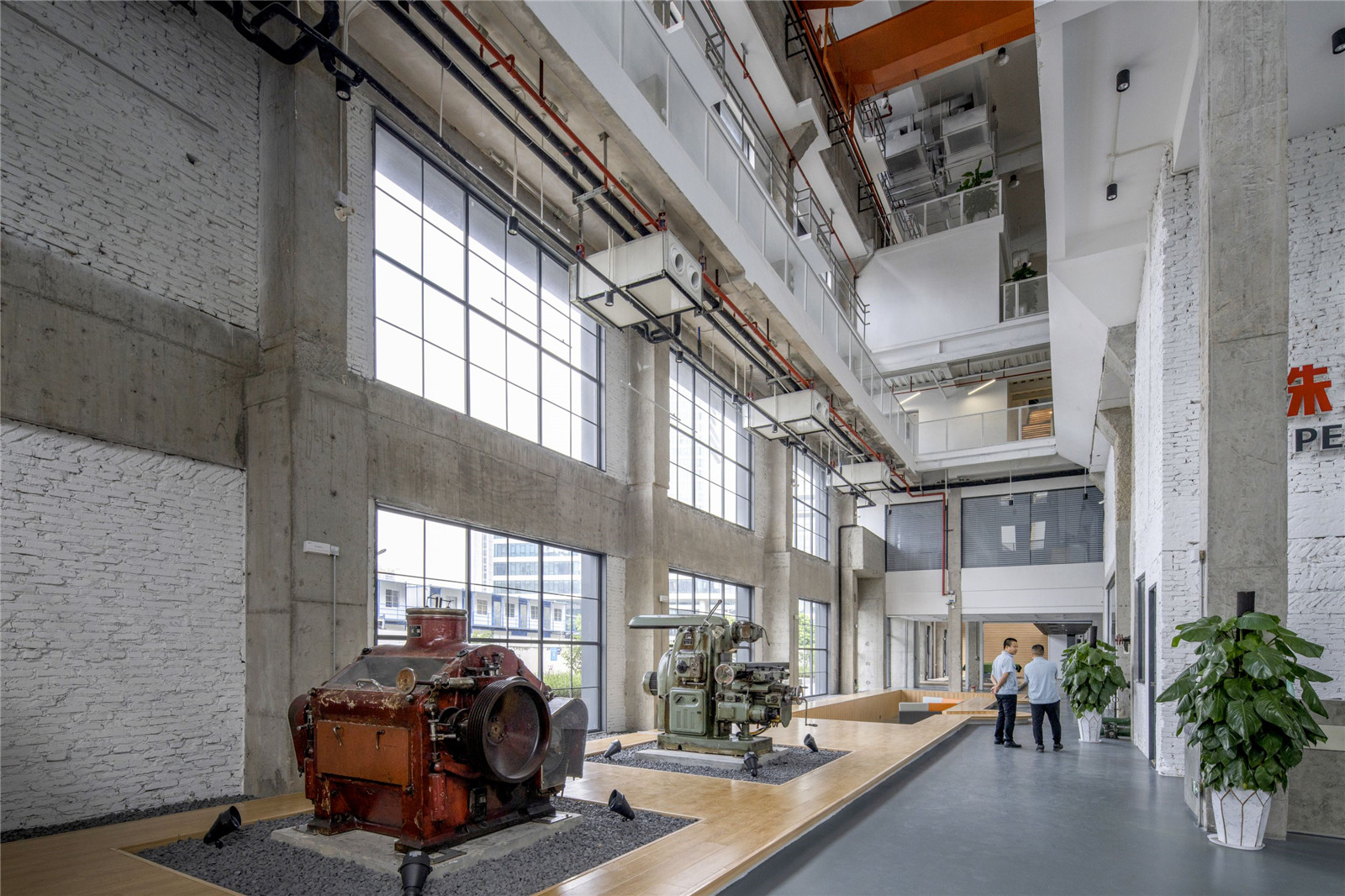

We formulated a utilization plan for each building element ?吳嗣銘 Siming Wu

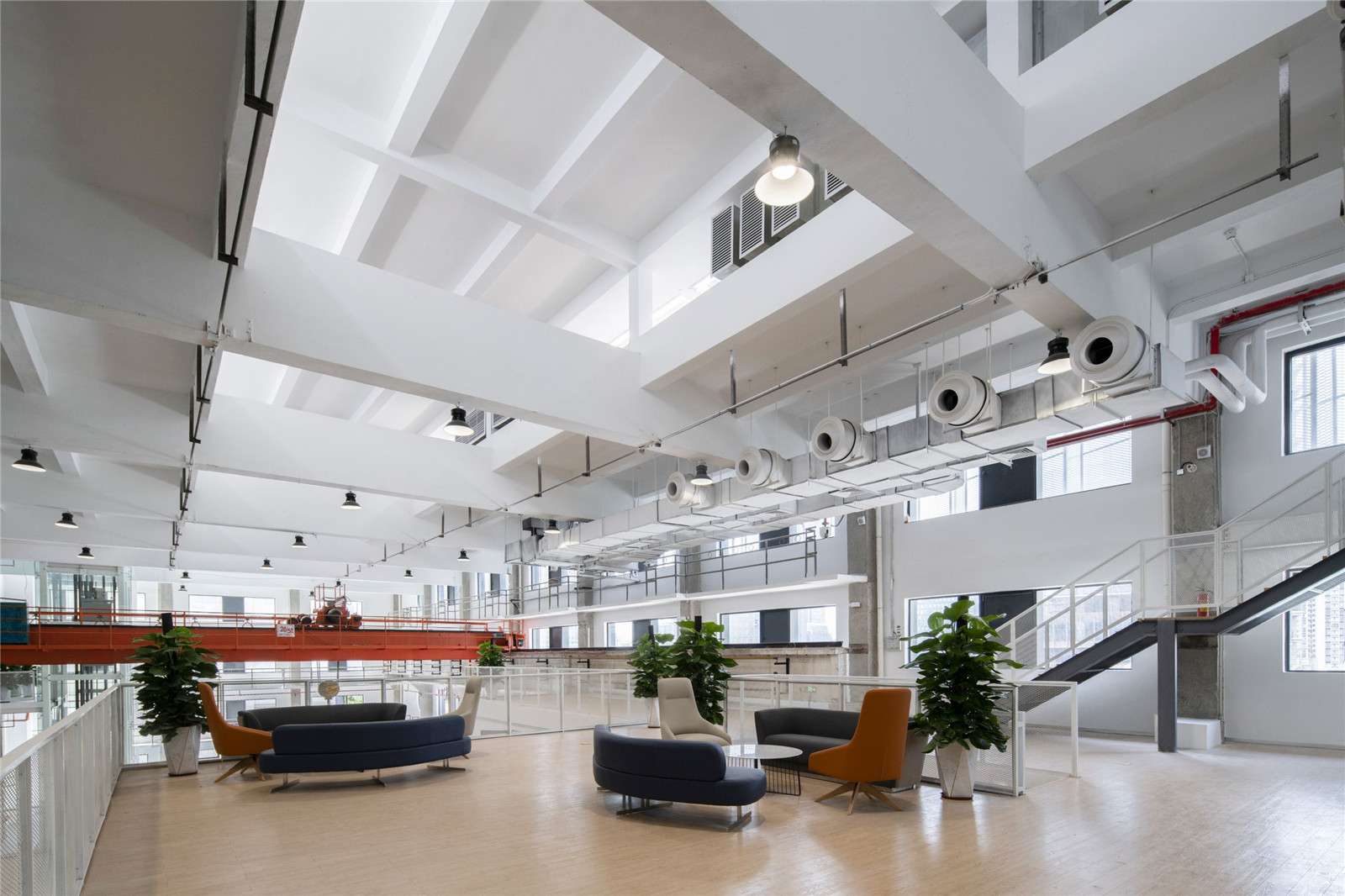

▼工業遺產與現代化辦公體系交相輝映

The scene of modern office and lifestyle ?吳嗣銘 Siming Wu

▼汽機間內部建立的“新連接”

New connections of interior space ?吳嗣銘 Siming Wu

原有廠房帶有鮮明的工業建筑的理性，類似古典的美學特征。我們從原有的工業遺產—“麥芽筒倉”、“煤棚”、“包裝車間”等提取立面靈感，復原原有水刷石材料，使它們成為整個園區的統一特點。保留原有混凝土桁架以及汽機間建筑原有窗洞的秩序排布，“修舊如舊”，最大限度保留工業痕跡與記憶。同時，大面積現代化玻璃窗戶的使用，帶給立面強烈的新舊對比，體現簡潔現代風格同時不失工業文化氣息。

The former building has a distinct industrial style featuring rationality and classical.  Our facade inspirations come from the malt silo， coal store room，warehouses  in the site, the material response the original granitic plaster, they become a feature of the entire project. The original concrete trusses and the orderly arrangement of the windows are maintained, "repair as how it was", to preserve the history traces and memories as much as we can. Meanwhile, modern large-scale glass emphasizes the visual impact between the old and new elements, making a drama on the main building facade facing the city.

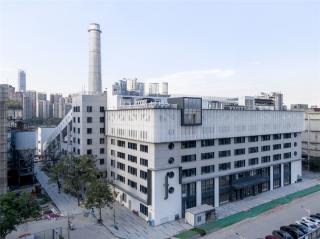

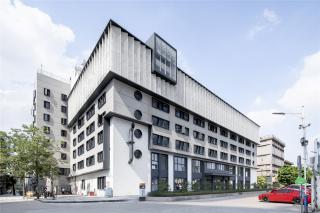

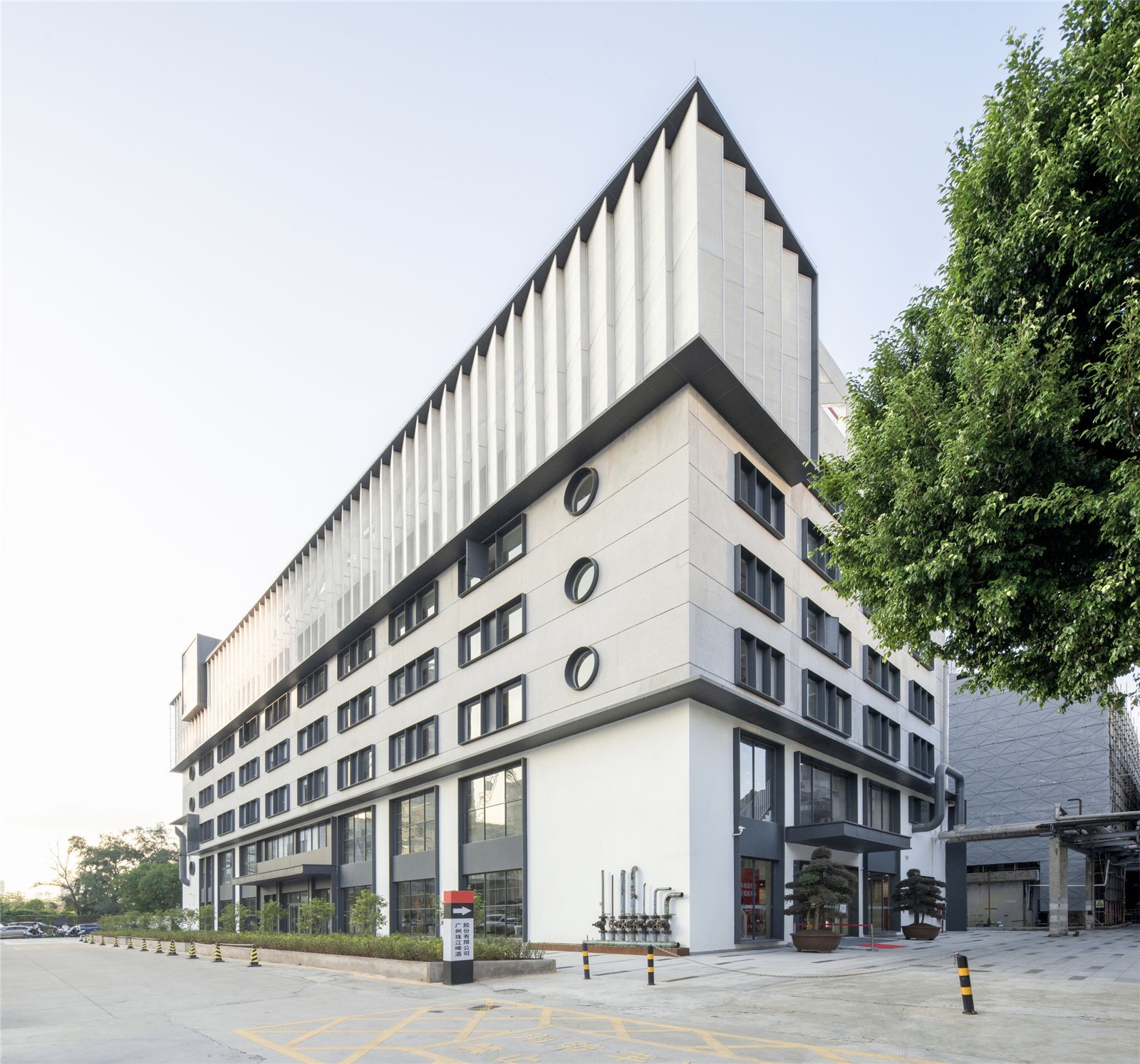

▼汽機間立面

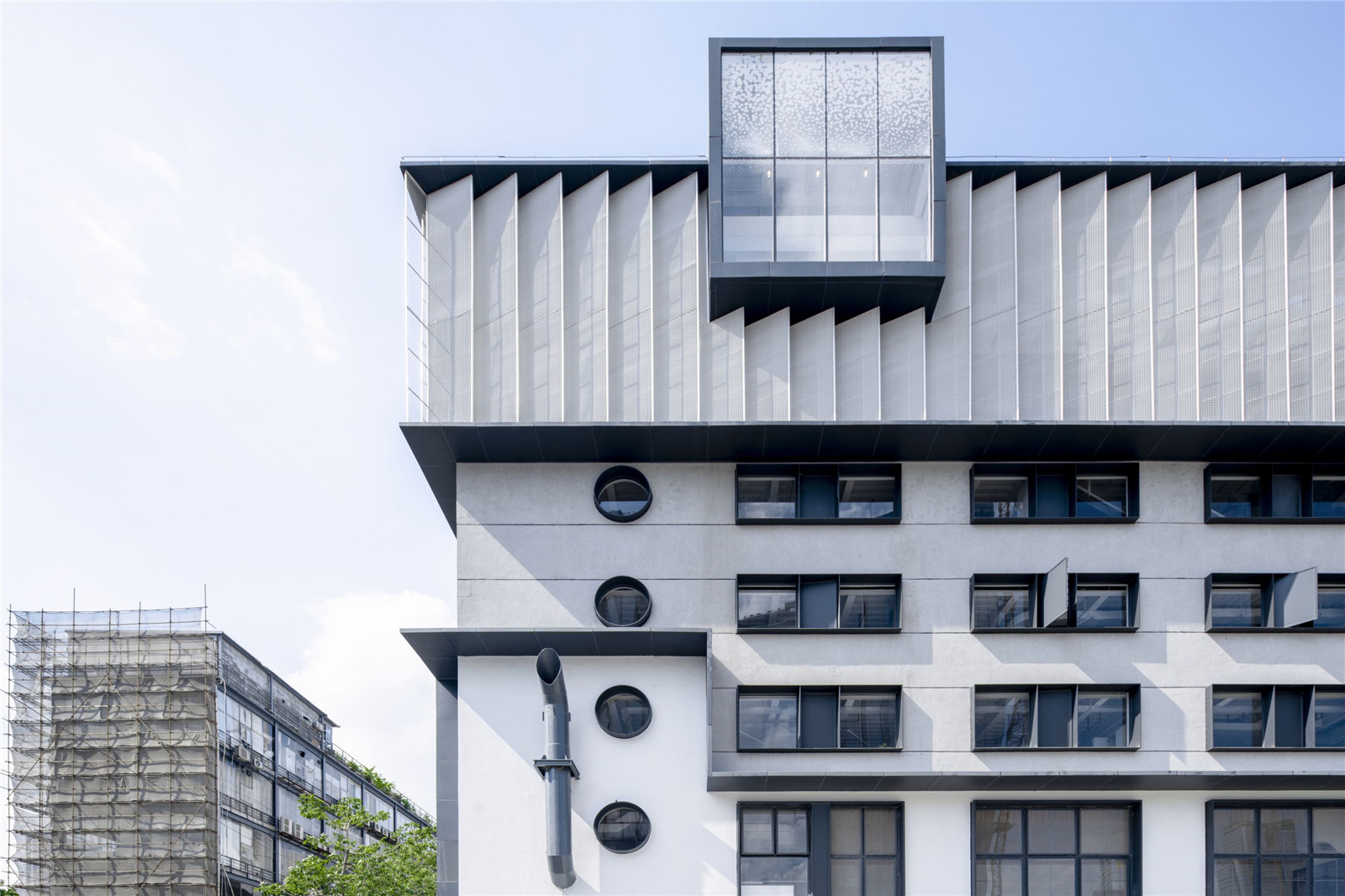

The facade of turbine room ?吳嗣銘 Siming Wu

設計師饒有趣味地將“啤酒泡泡”元素悄悄置入幕墻展示界面，似乎述說著，晚風依依，不妨來和珠啤一起“小酌一杯”。 陽光下，光影交錯，汽機鍋爐平臺中保留著交織錯落的管道機械，采用“珠江啤酒”主色調進行“調和”再生，時光在這里似乎走得慢一些。

The "beer bubble" element was put into the curtain wall . It seems to invite you to have a cup of beer and live a little. The sun beats down, light and shadow are interlaced, intertwined pipe machinery in the platform crawls in and out, painted in the theme color of the beer history, as if time walks slower here.

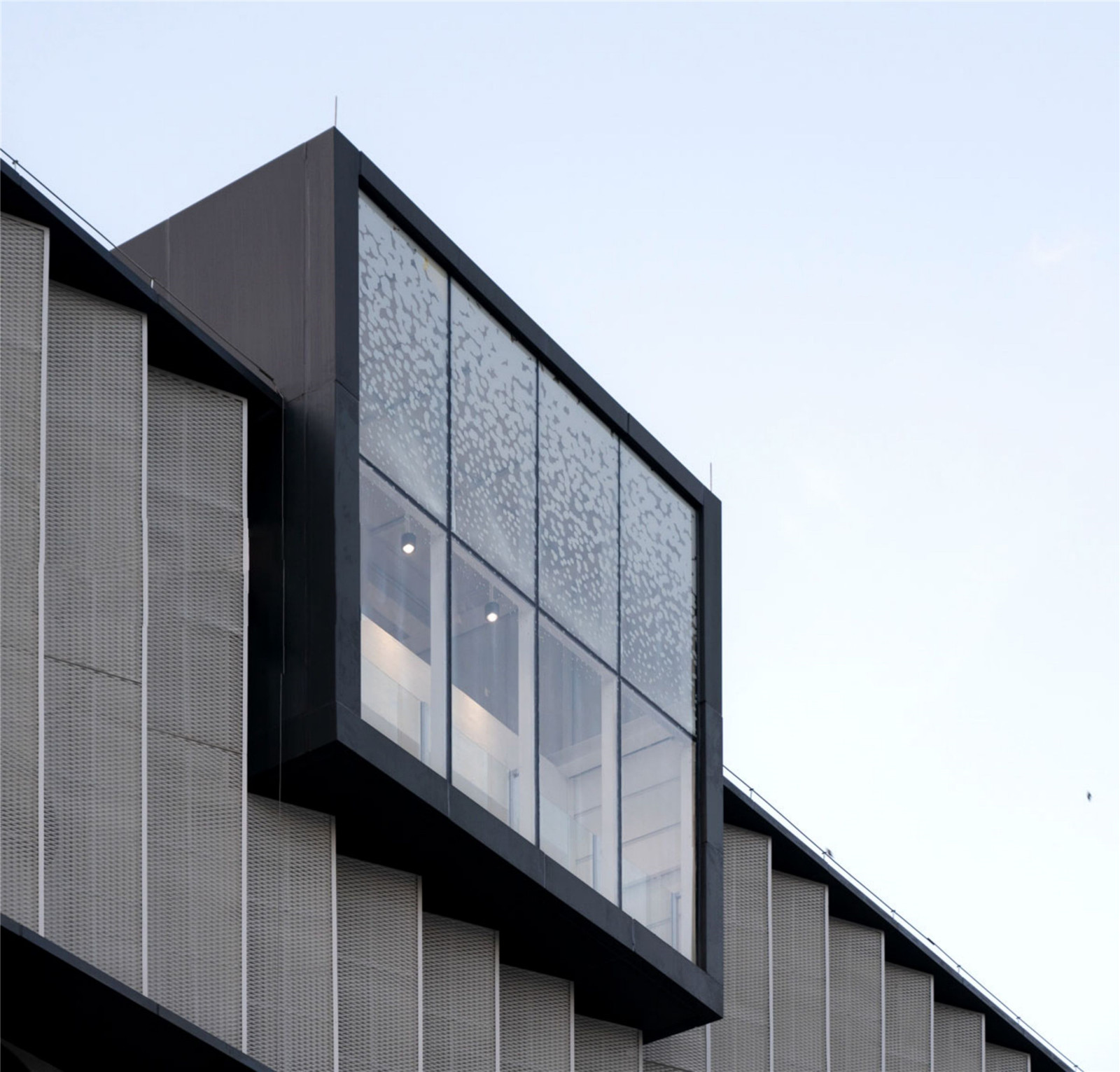

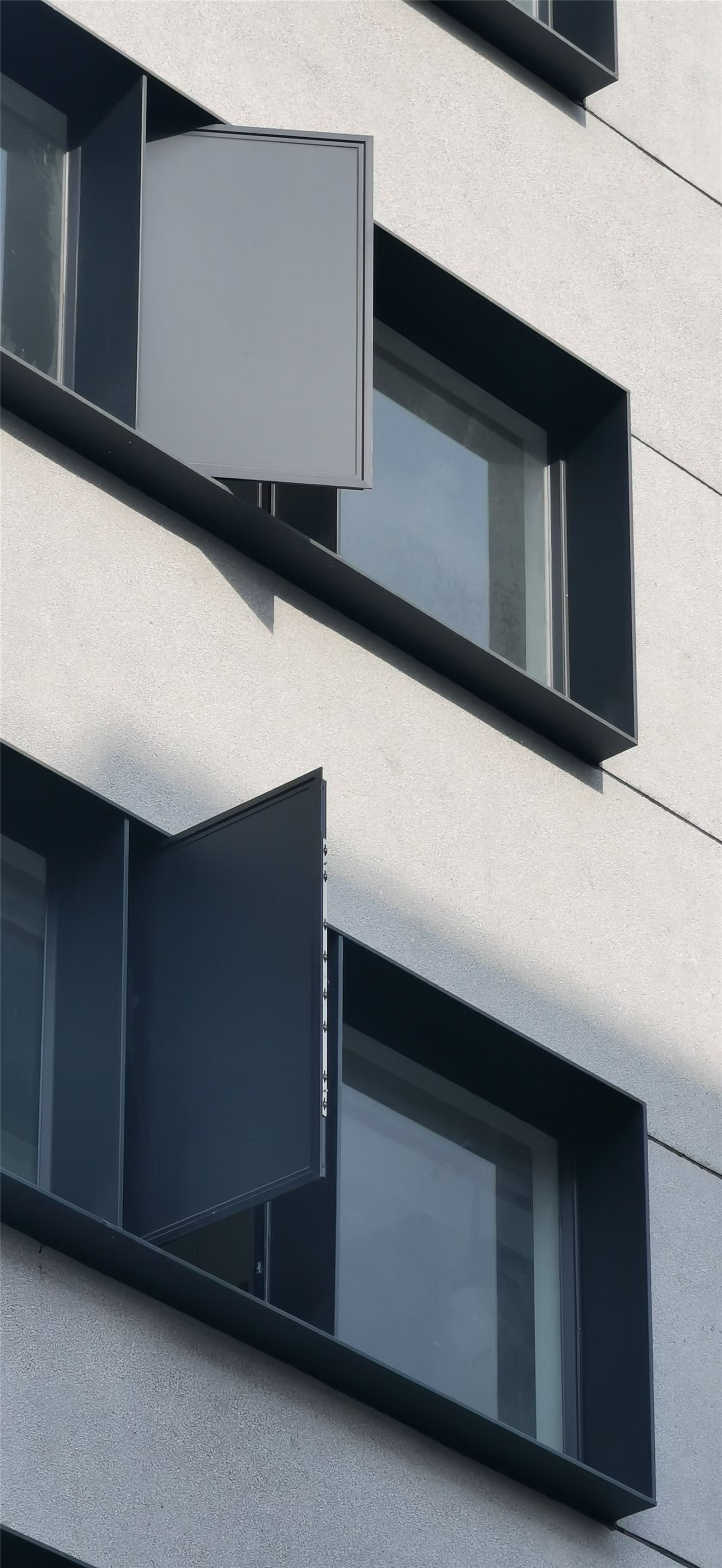

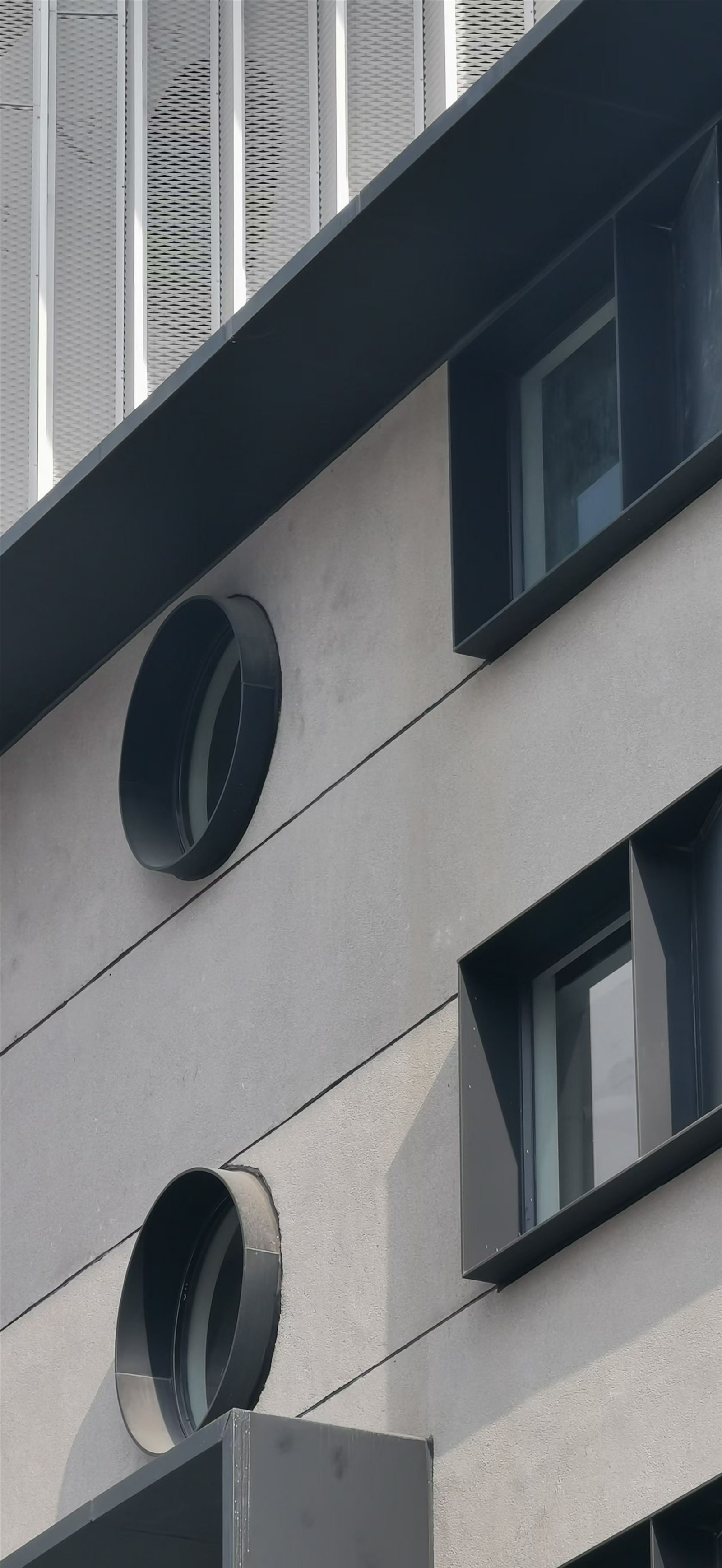

▼建筑細部

Construction Details ?吳嗣銘 Siming Wu

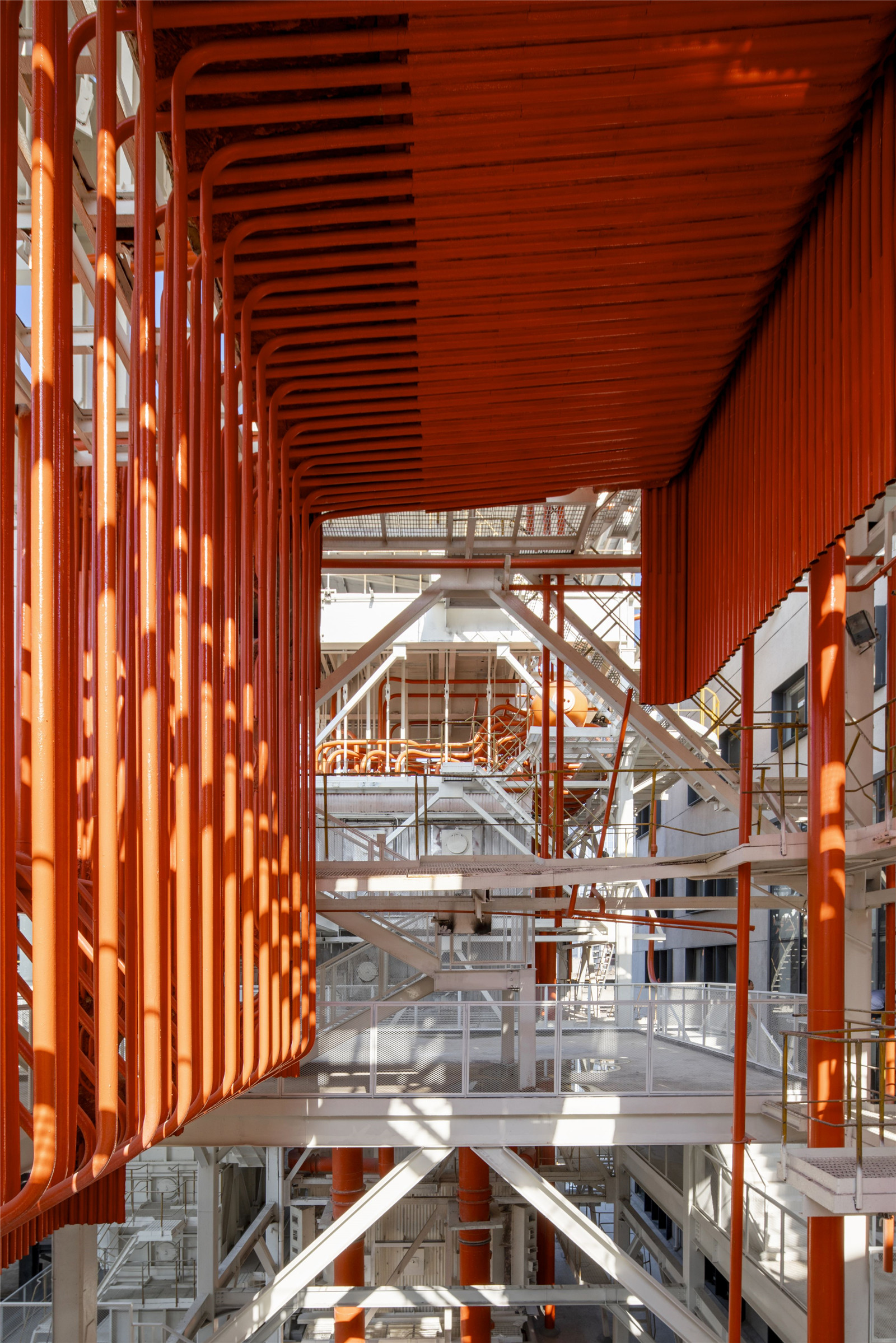

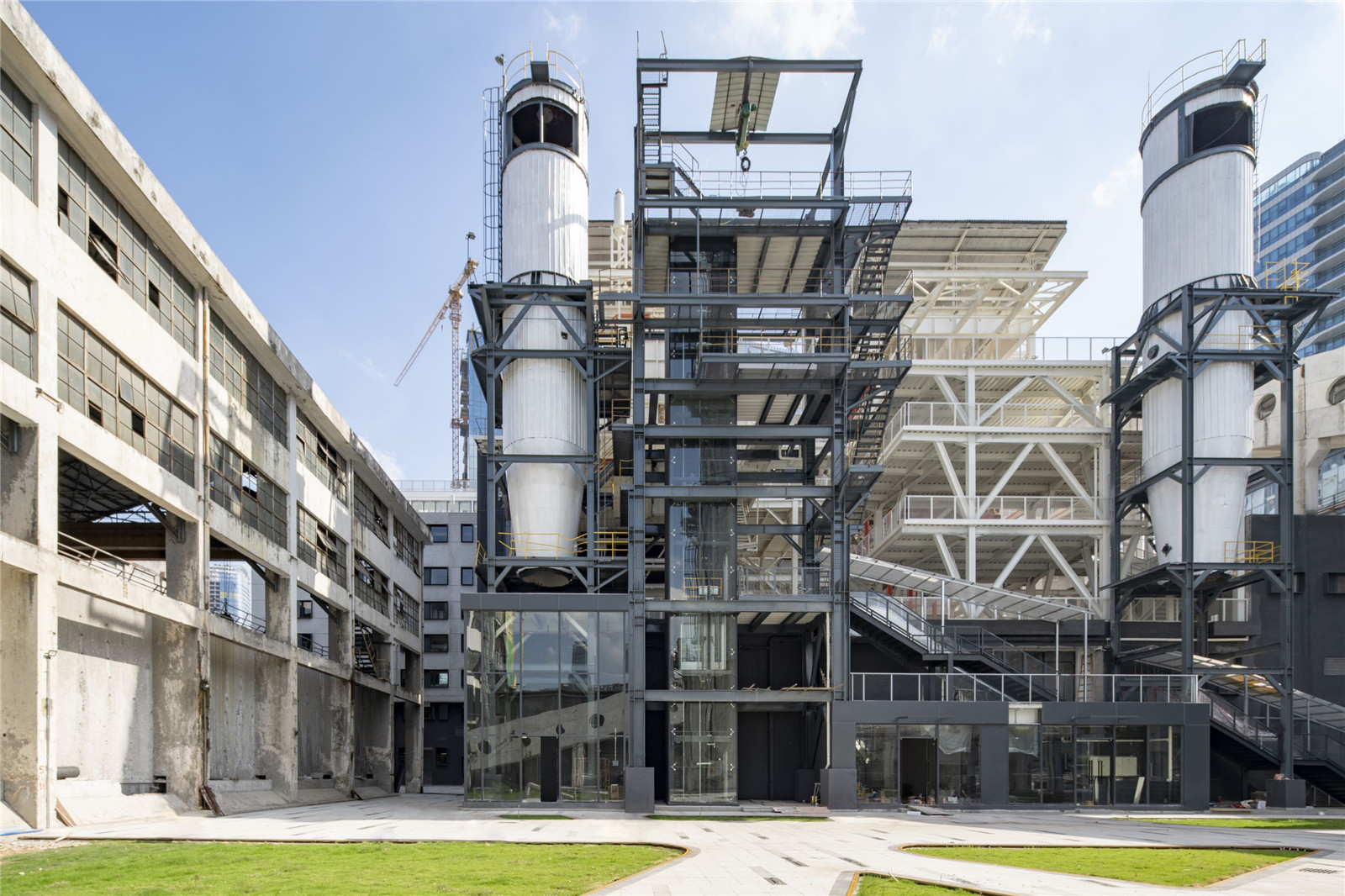

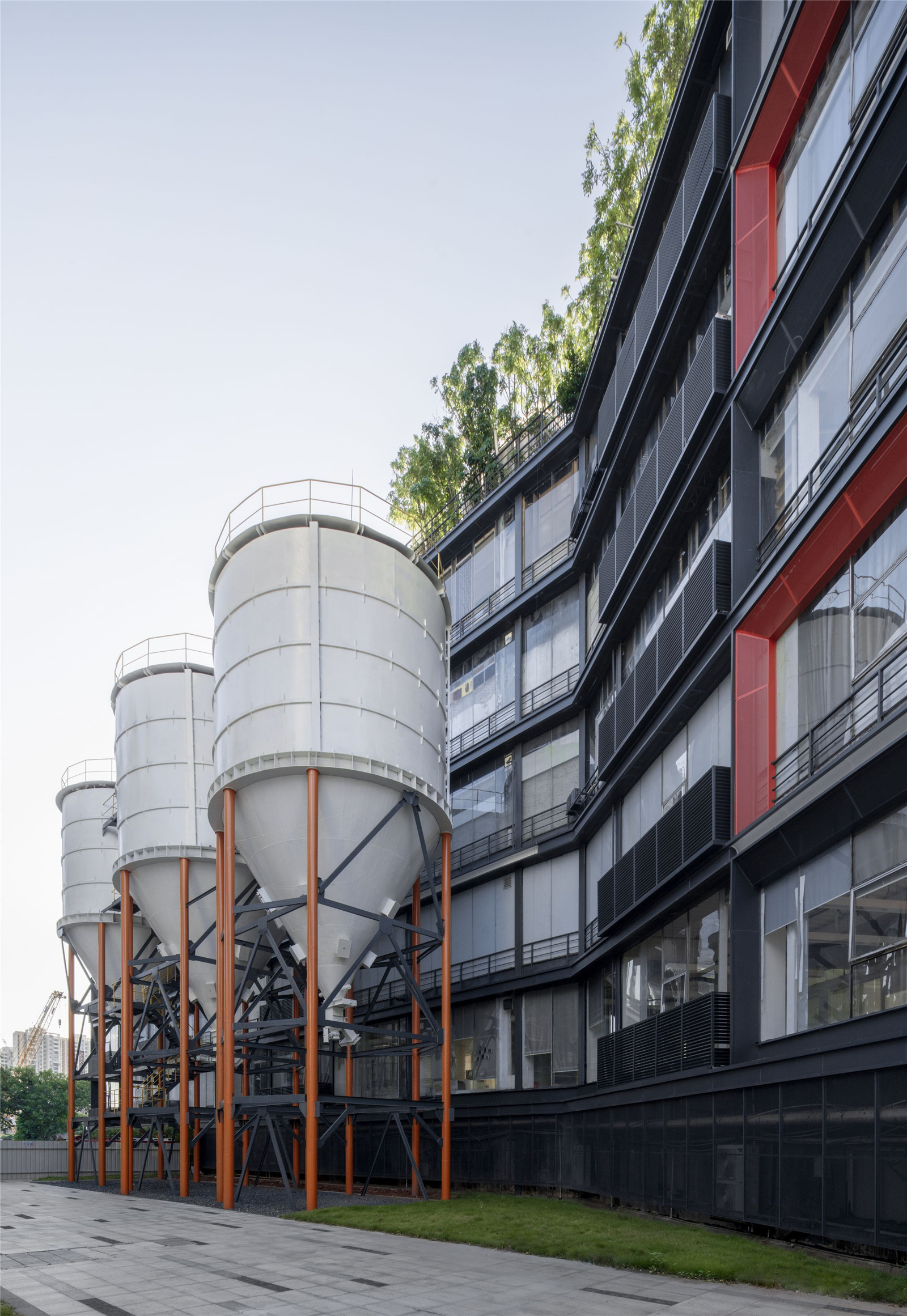

▼鍋爐平臺管道交織

Intertwined pipe machinery in the platform ?吳嗣銘 Siming Wu

未來，珠啤構造的新型城市空間，是以工業遺存喚醒的城市沃土，承載更多藝術、文化、生活潮流的生長，珠江啤酒廠會持續的參與城市文化的發酵和釀造。

In the future, the new urban space will be a fertile soil awakened by industrial heritages and relics, growing more and more art, culture, and life styles. The“Pearl River Brewery” will take part in a cultural fermenting and brewing in the city as it has always do.

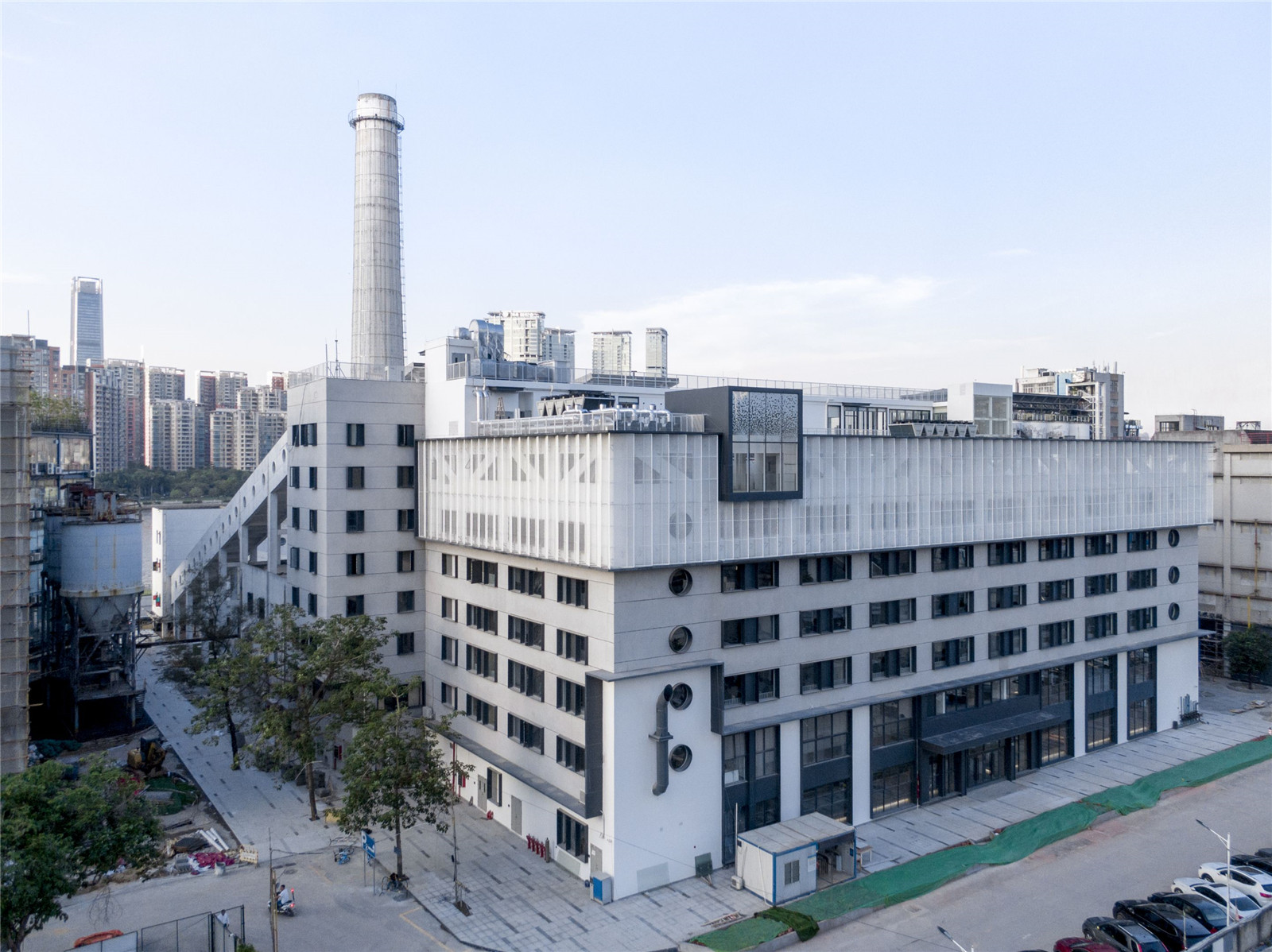

▼新型城市空間

The new urban space ?吳嗣銘 Siming Wu

項目圖紙

▼彩色總平

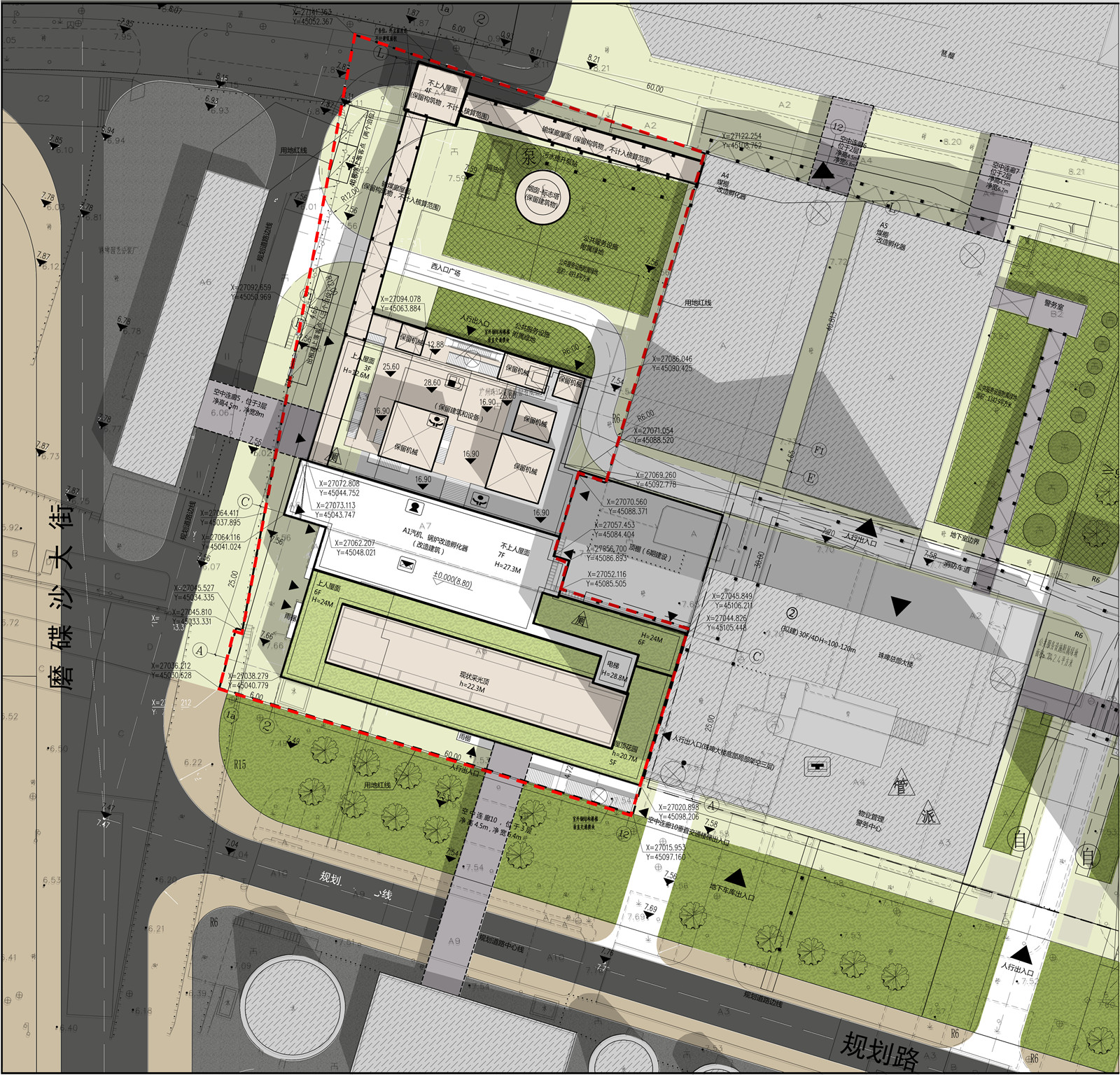

Master plan ?豎梁社cnS

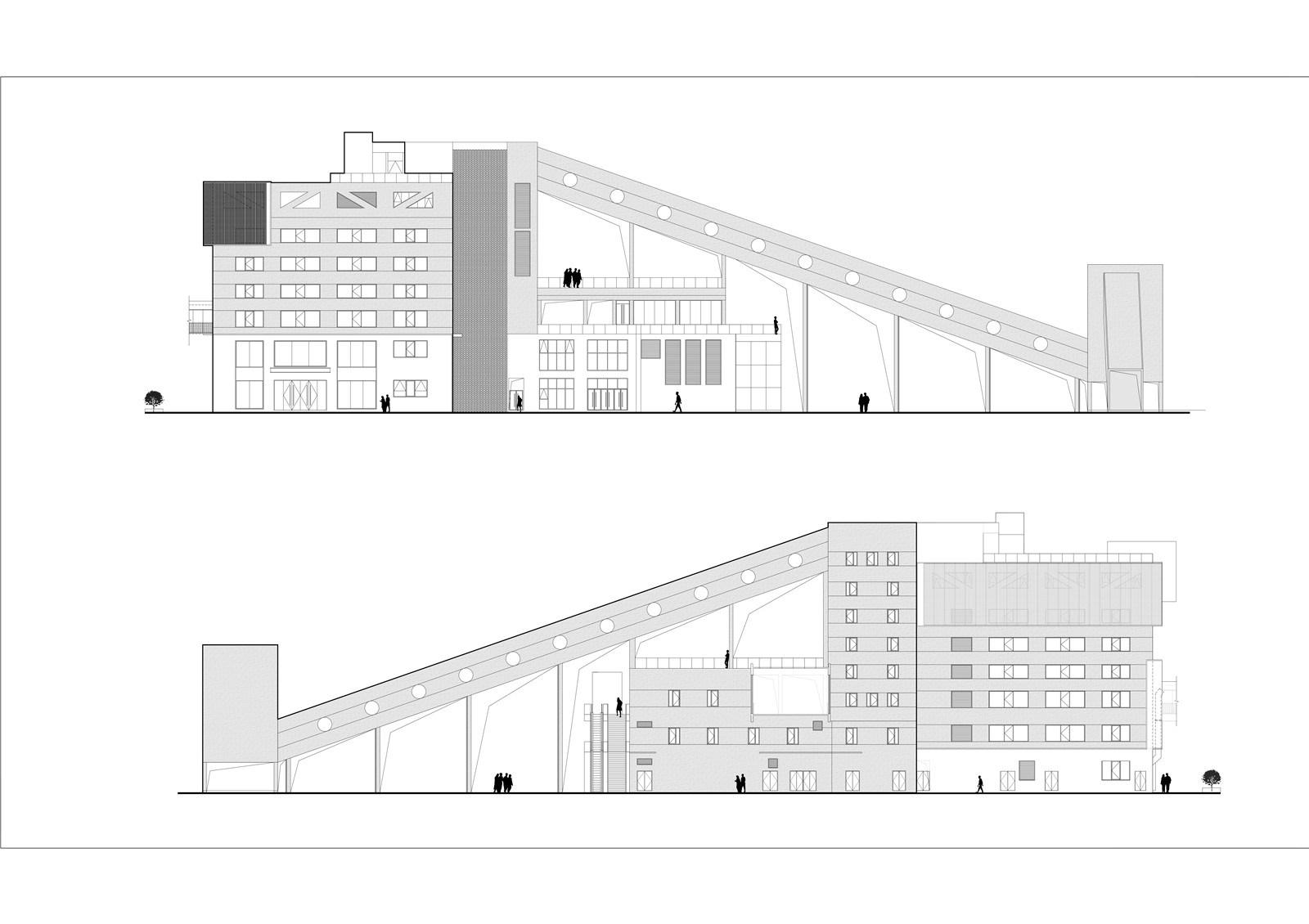

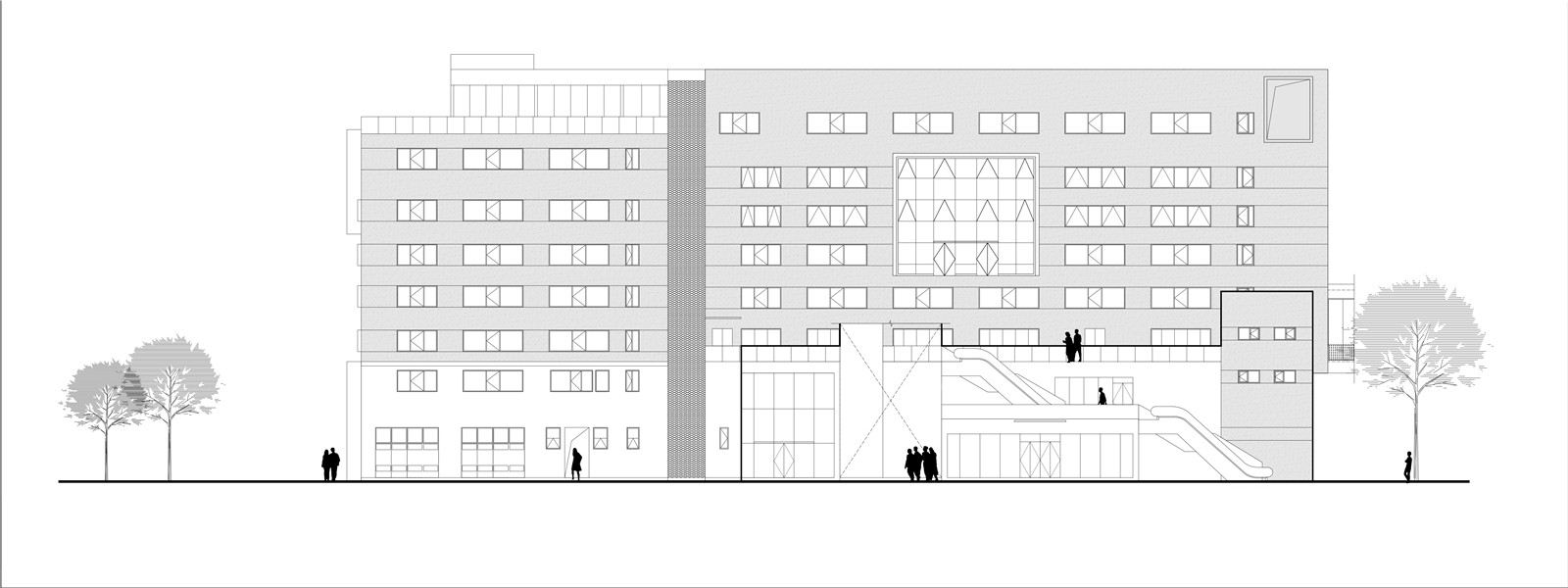

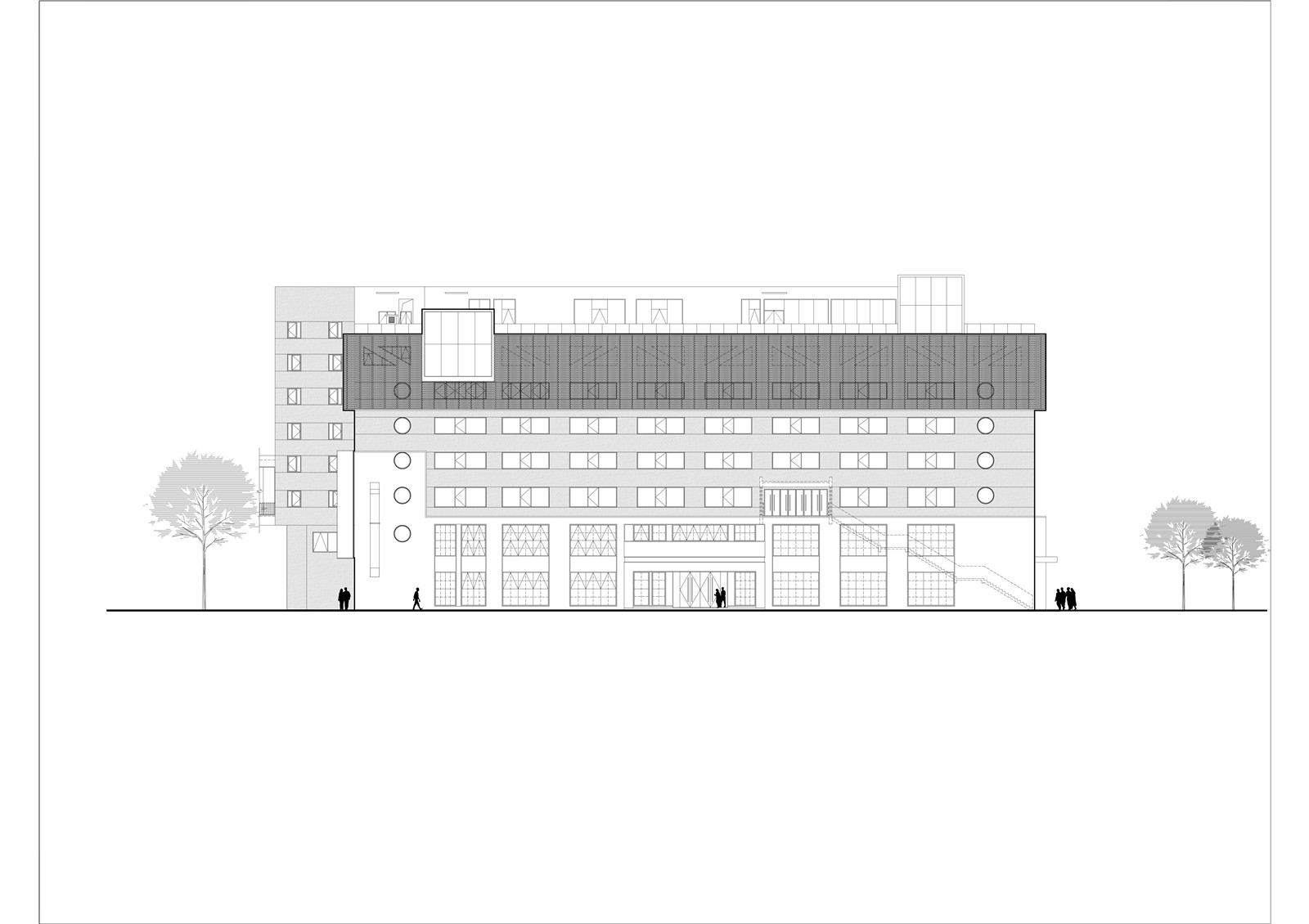

▼立面圖

Vertical section ?豎梁社cnS

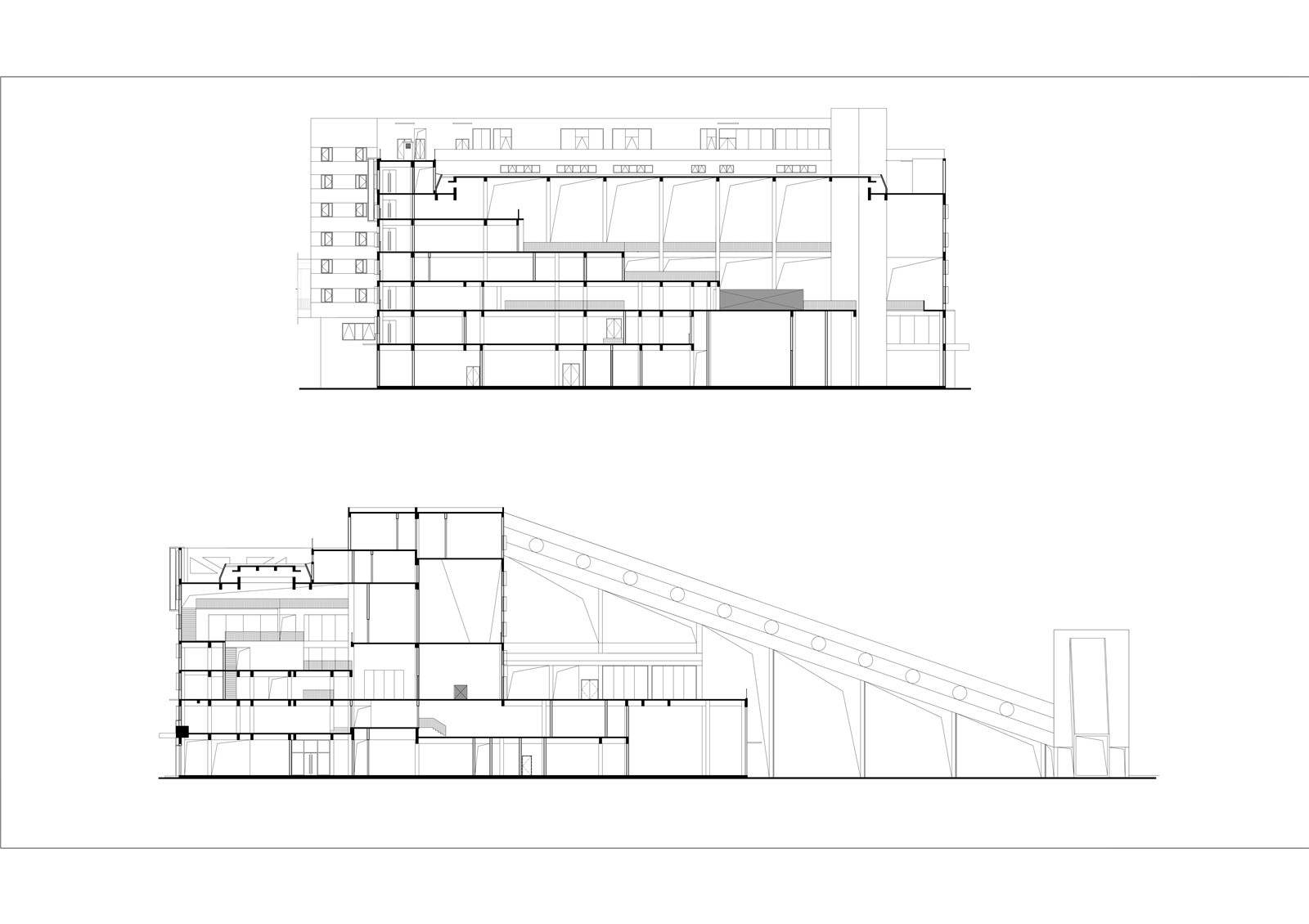

▼剖面圖

Section ?豎梁社cnS
