生長中的海淀光合公園景觀設計 | 本色營造

?周星

?魯冰

?周星

?魯冰

北京在過去20年里發展迅速，而公共公園的發展相對緩慢，現有大部分的公園缺乏高質量的空間和持續吸引人們離開家里享受自然的功能。海淀光合公園突破傳統旨在激勵人們享受戶外活動，將先進科學技術整合到一個常規的休閑公園框架中。公園于2018年11月建成其第一期，2021年隨著第二期的建成，有序地向公眾開放和展示一個干預和生長同步，隨著時間變化的公共空間。

該項目位于北京的西北角海淀北部新區，這里有華為、聯想、百度等一批世界知名的高科技企業。公園的實施不僅為這個快速發展的地區增加了優質的公共空間，還引入了超越公園一般特征的創新和互動體驗。

Beijing has grown rapidly in the past 20 years and as open space diminished, parks often were not planned for.  Existing parks lack quality space and modern programs that attract people from their homes to enjoy nature. Beijing Longfor G-Park is a landscape intervention designed to motivate people to enjoy the outdoors, integrating advanced technologies in a recreational park framework.  The site is located at the northwest corner of Beijing, where a number of Hi-tech, world-renowned enterprises have located including HUAWEI, LENOVO, BAIDU, and others. The implementation of the park not only added a quality public space for this rapidly growing region, it also introduced an innovative and interactive experience beyond the general characteristics of a park.

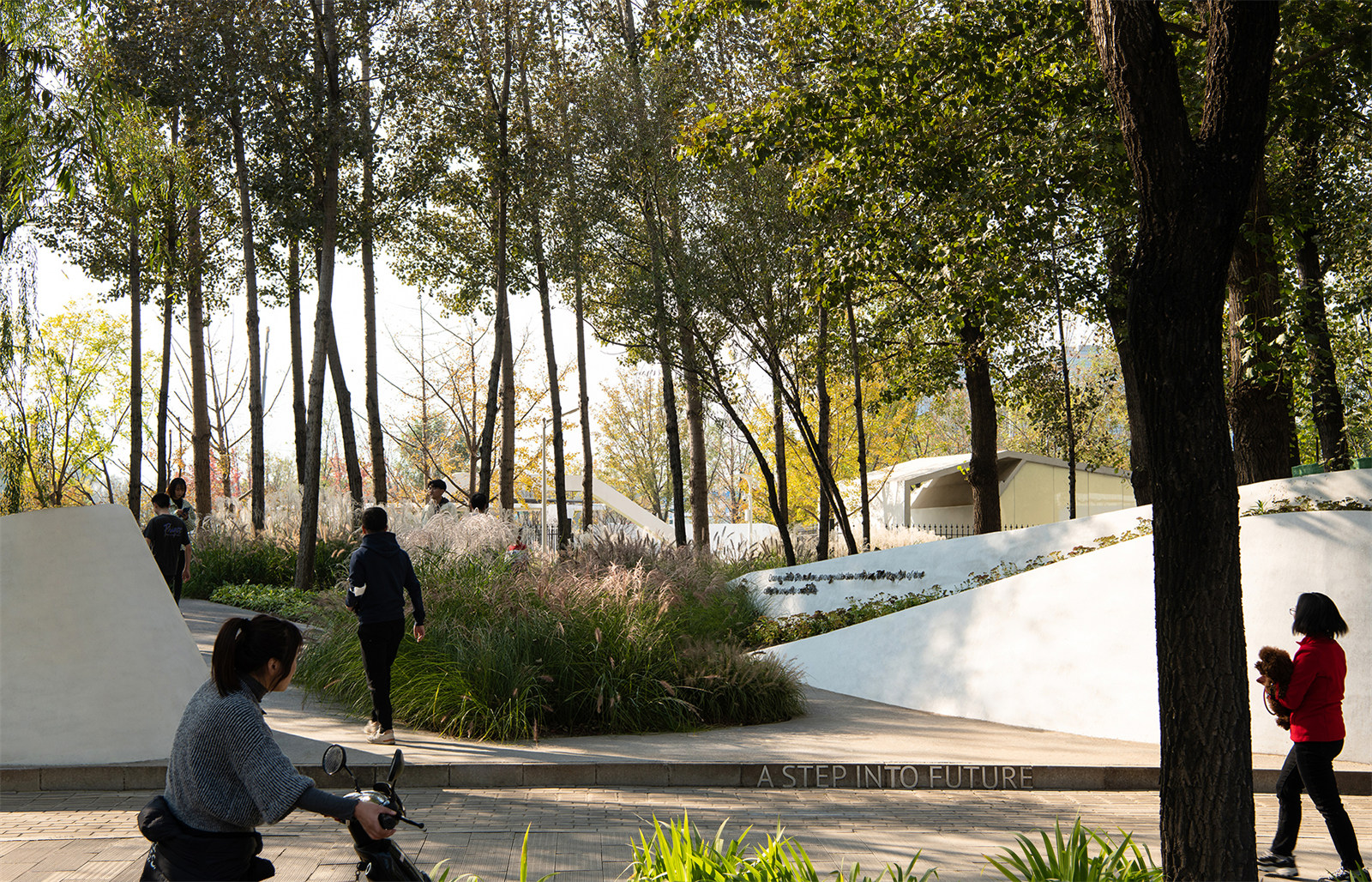

▼公園入口 ?魯冰

?樓穎

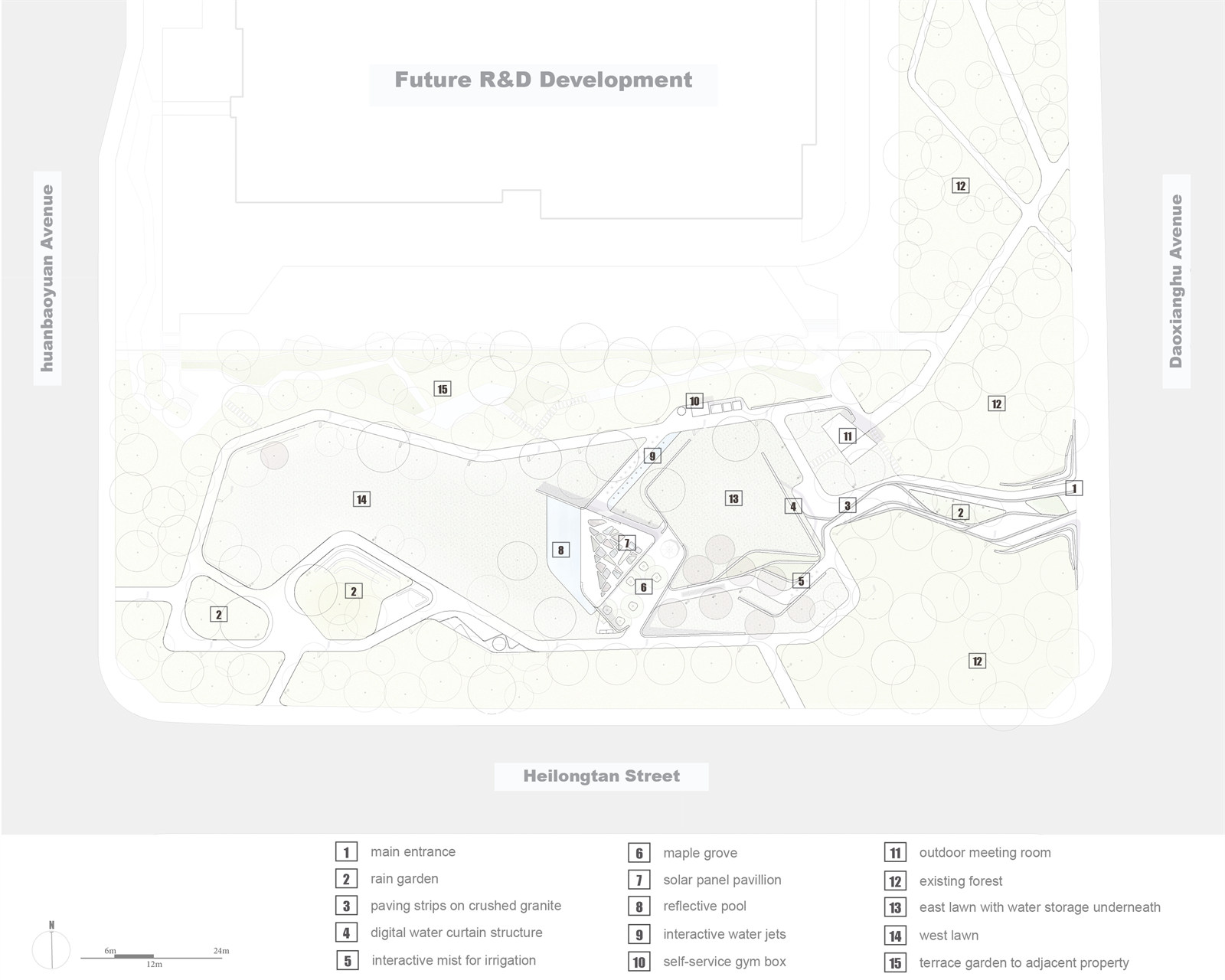

▼設計總平面圖 ?Instinct Fabrication

?魯冰

滲透自然的公園

A NATURAL PARK

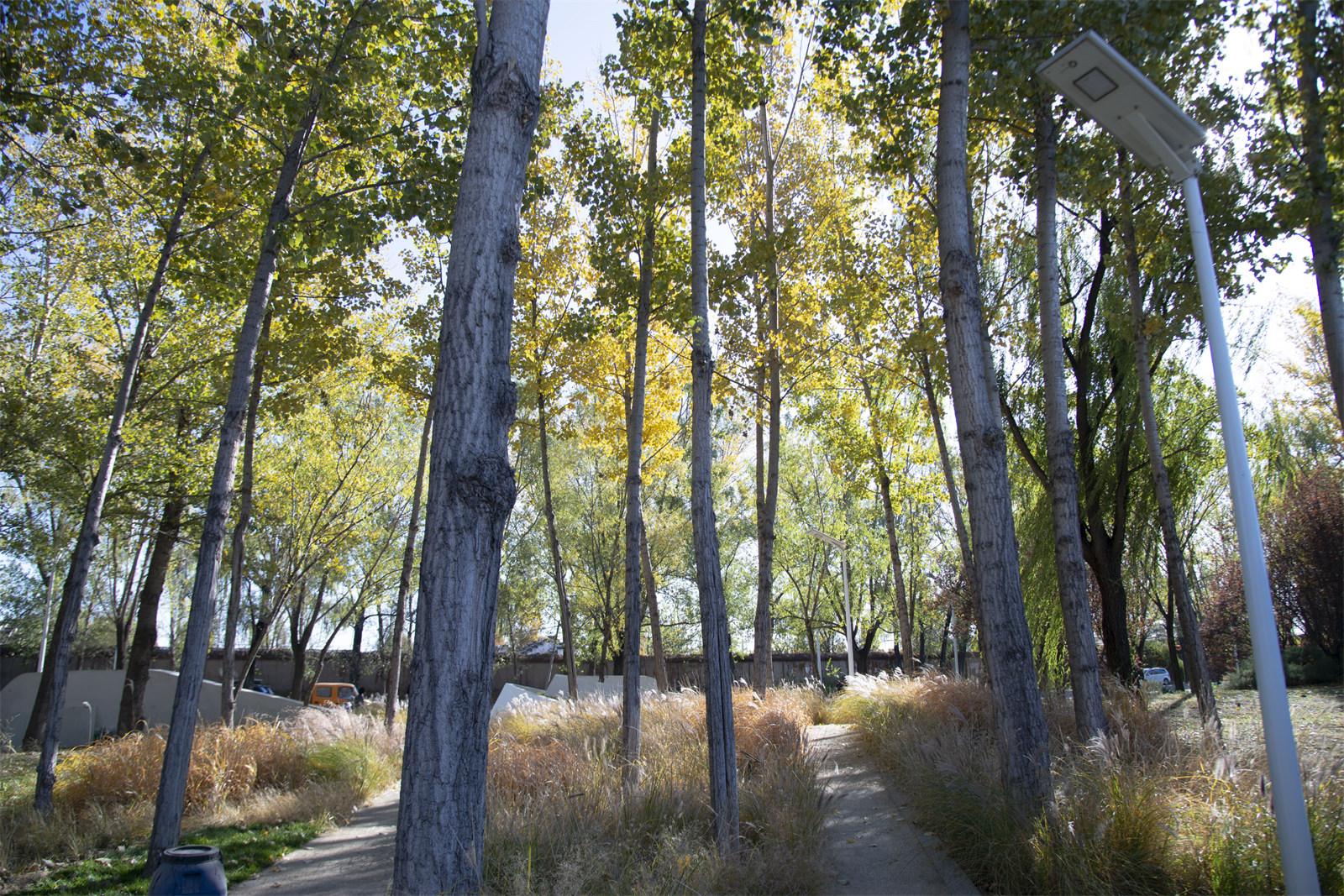

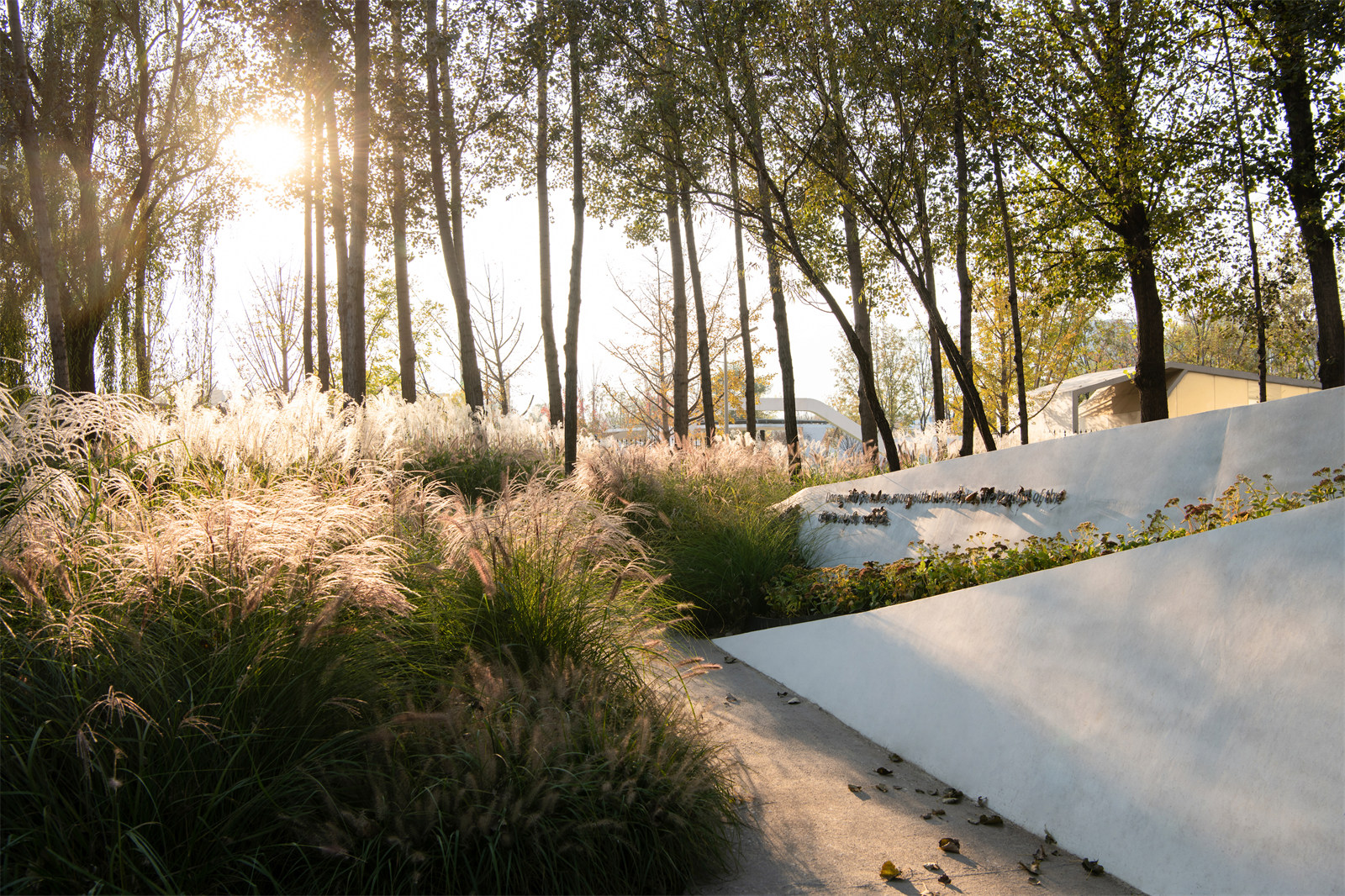

▼被保留的原生楊樹林 ?樓穎

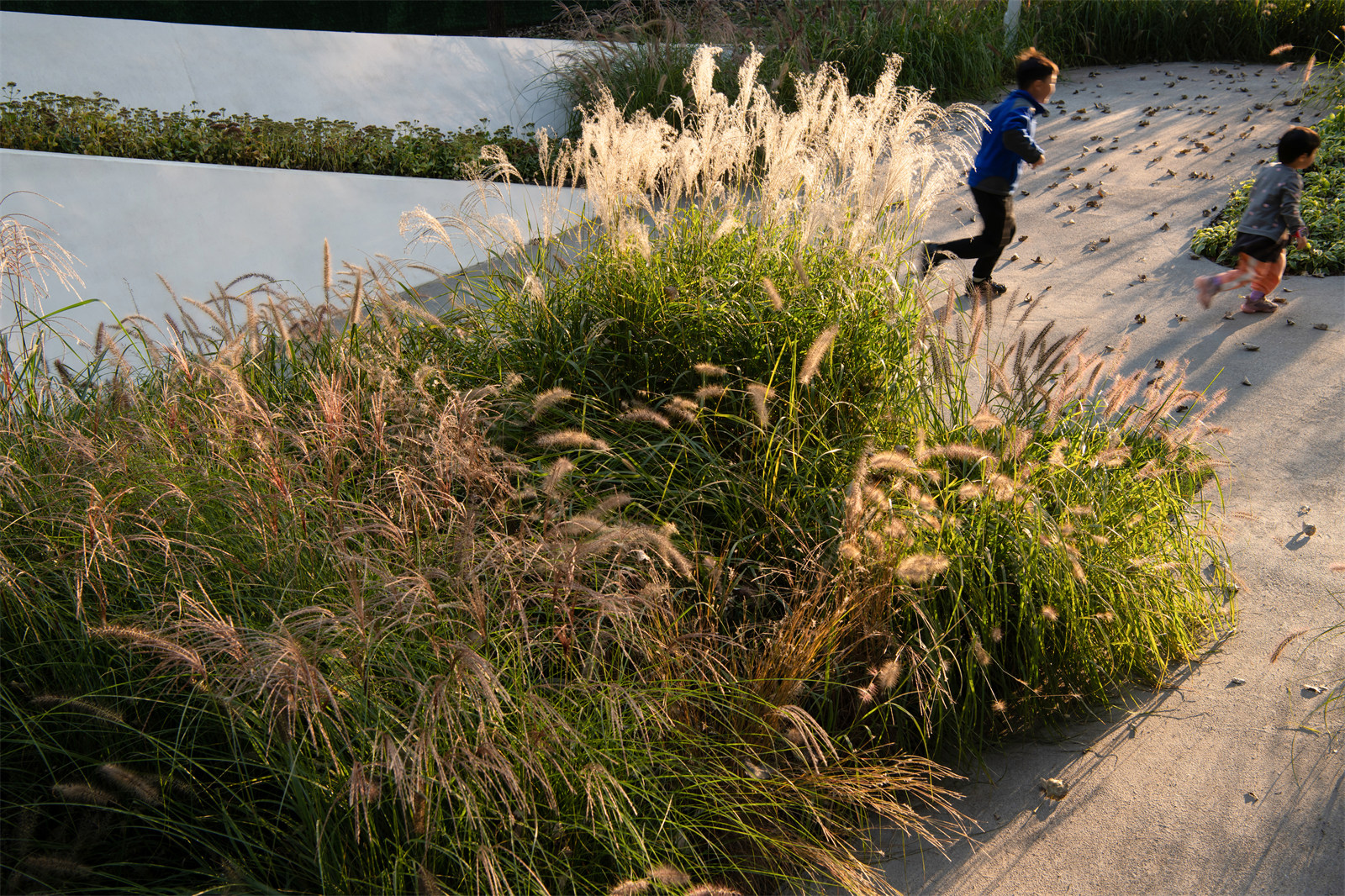

▼雨水花園 ?魯冰

?魯冰

公園靠近北京的西山，這是一個人口密度相對較低的區域，充滿了自然屬性，包括豐富的樹木森林，蜿蜒的小溪和廣闊的農田。同時，北京海淀北部新區的科創特點啟發了我們對關于非傳統公園定義的研究，并融合了園區周圍高科技公司的先進技術。設計和材料調色板保持簡單，具有現代鋪裝、反光水景和先進的灌溉系統，這些材料除了與技術互補外，還與這種自然環境融為一體。公園的硬質景觀和植被設計成相互對比，分別用白色和綠色體現。統一一致的外觀將座椅、活動草坪、數字水幕、楓樹矩陣、互動水景、戶外會議室和移動運動盒子組成的多樣化功能體驗統一在一起。

The characteristics of the Beijing Haidian Hi-Tech district inspired us to research beyond non-traditional park components and blend the advanced technologies of the high-tech companies surrounding the site.   The design and material palette were kept simple in order to replicate the sleekness of today’s technology, featuring modern paving, reflective water features, and an advanced irrigation system.  The park is surrounded by a mountainous background in northwest zone of Beijing, an area less developed and full of natural attributes including established tree forests, a meandering creek, and expansive agrarian fields.  The materials, in addition to complementing technology, also blends with this natural environment.  The park’s landscape and vegetation were design to contrast with each other, represented in white and green respectively. The continuous and consistent appearance unites the diverse program experience consisting of seating, event lawn, digital water curtain, maple tree matrix, interactive water feature, outdoor meeting room, and mobile recreation box.

?樓穎

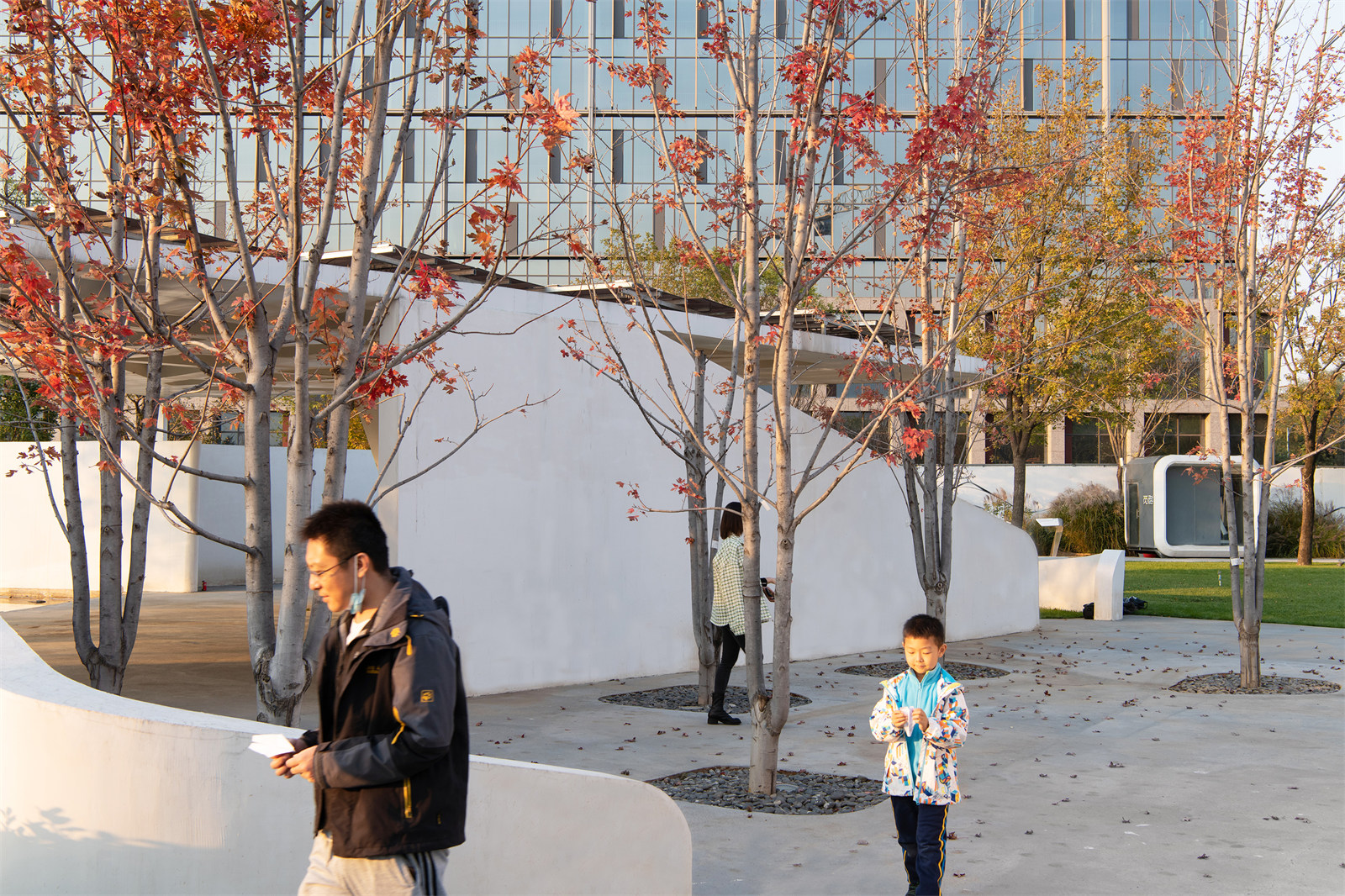

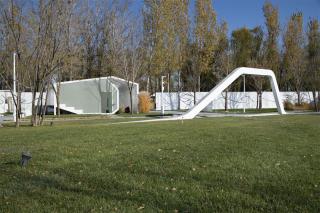

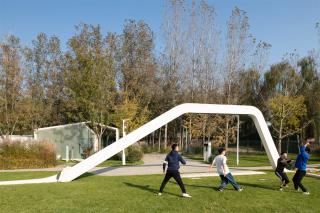

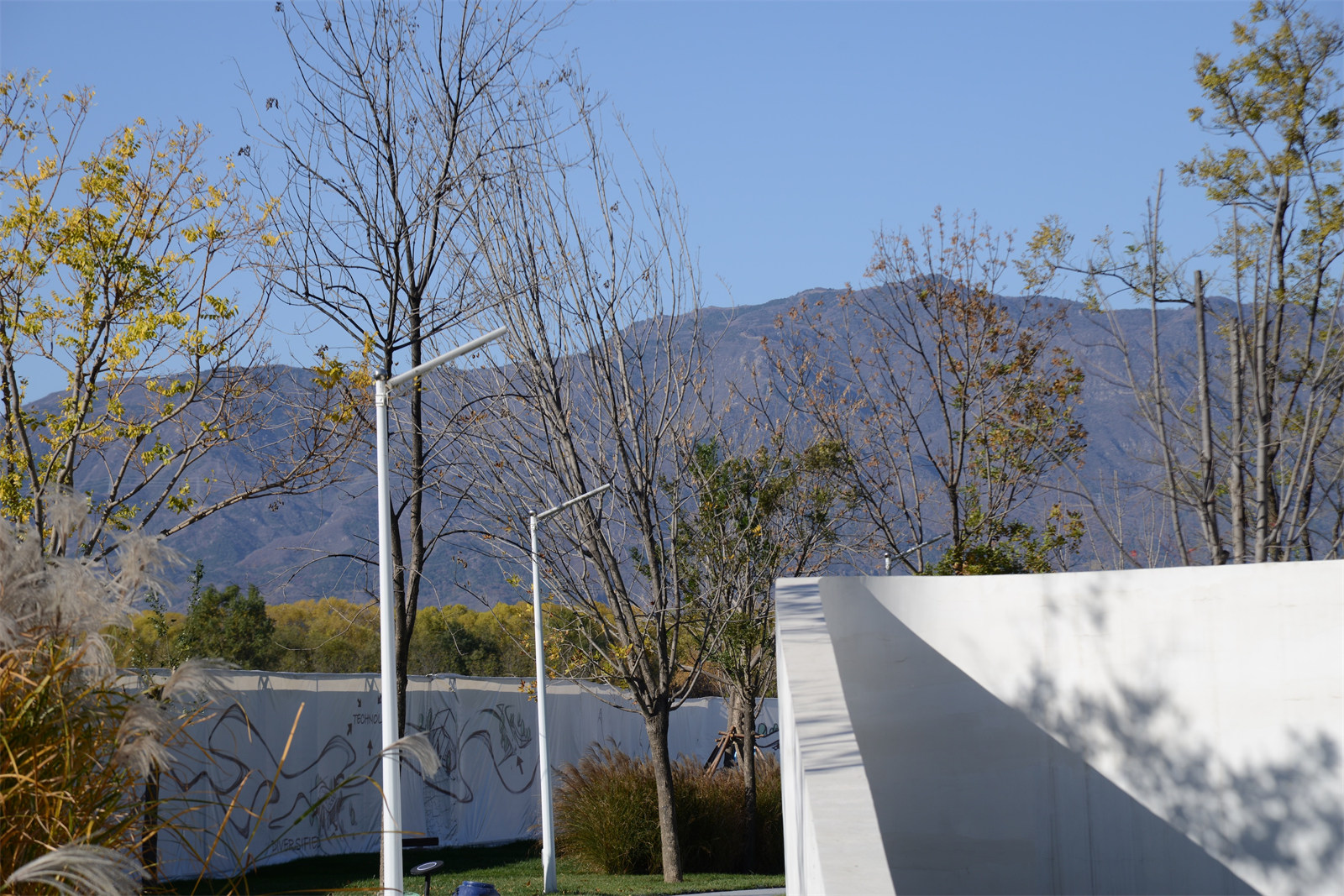

蜿蜒的白墻創造了一系列的空間，提供了全景視角來觀察公園的周圍環境，特別是背景中的山脈 - 西山，北京的標志性自然資源。

The meandering white walls create a series of spaces and offer 360 view angles to the park’s surroundings, particularly of the mountains in the background, West Mountain, a signature nature resource in Beijing.

?周星

?魯冰

可自我持續的公園

A SELF-SUSTAINED PARK

?魯冰

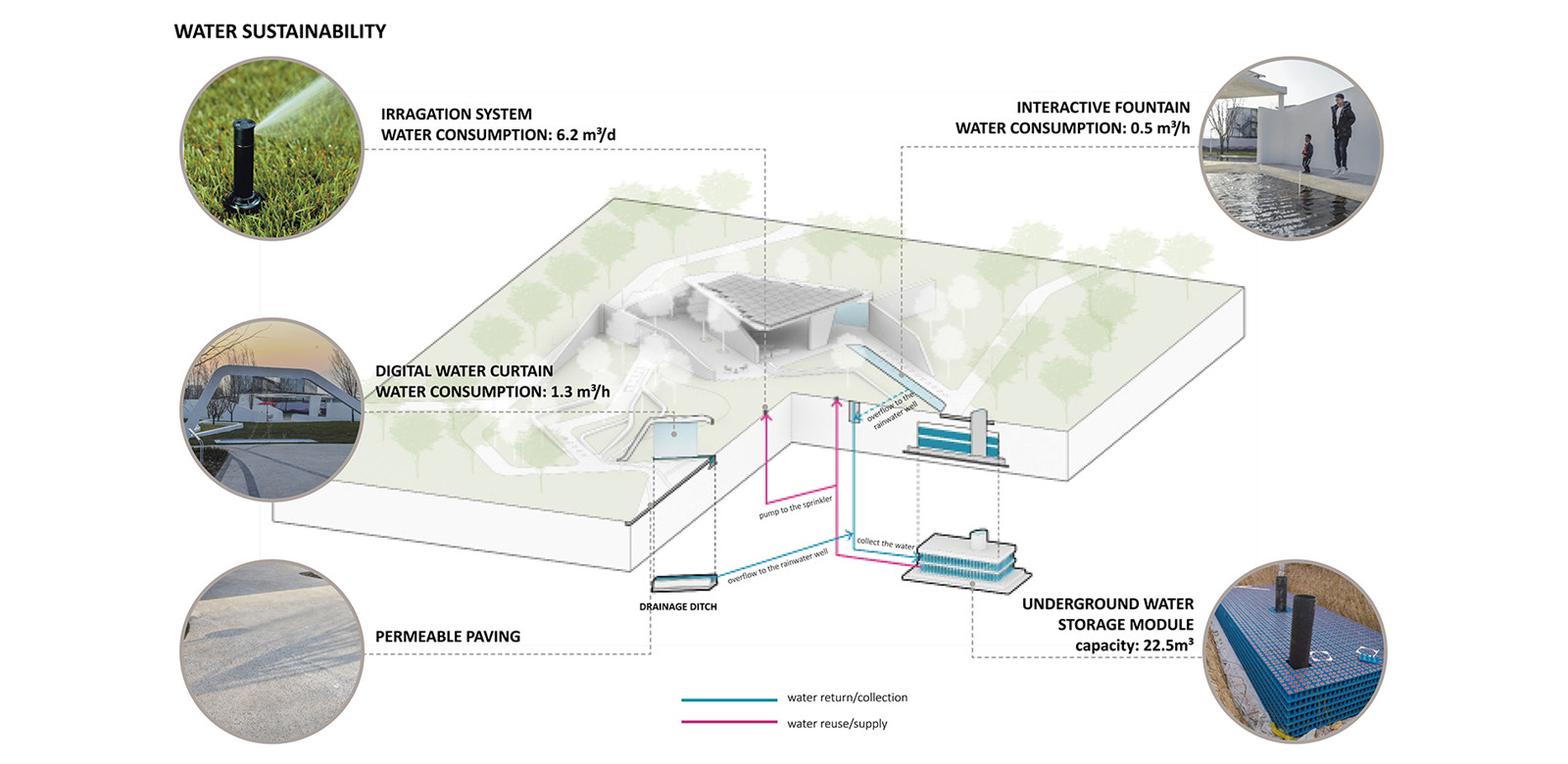

▼水資源再利用系統 ?Instinct Fabrication

自給自足的系統是這個公園的核心，在這個系統中，景觀可以為其運營和維護提供充足的電力和水。這一概念是通過太陽能薄膜技術實現的，該技術收集能量和水存儲模塊設備，重復利用雨水，創造一個自我可持續的低碳生態循環。蓄水模塊將公園表面的雨水收集到地下蓄水裝置，容量大到足以再用于灌溉和其他用水。水模塊與太陽能薄膜產生的能量集成在一起，由中央控制臺激活，并自動打開灌溉系統。

A self-sustaining system is the central program of the park, in which the landscape can self-supply power and water for its operation and maintenance. The concept is realized through solar thin-film technology that harvests energy and water storage module devices that reuse stormwater, creating a self-sustainable low-carbon ecological cycle.The water storage module collects the rainwater from the surface of the park to the underground water storage device, with a capacity large enough to be reused for irrigation and other water use. The water module, integrated with the solar film energy produced, is activated by the central console and turns on the irrigation system automatically.

?樓穎

?周星

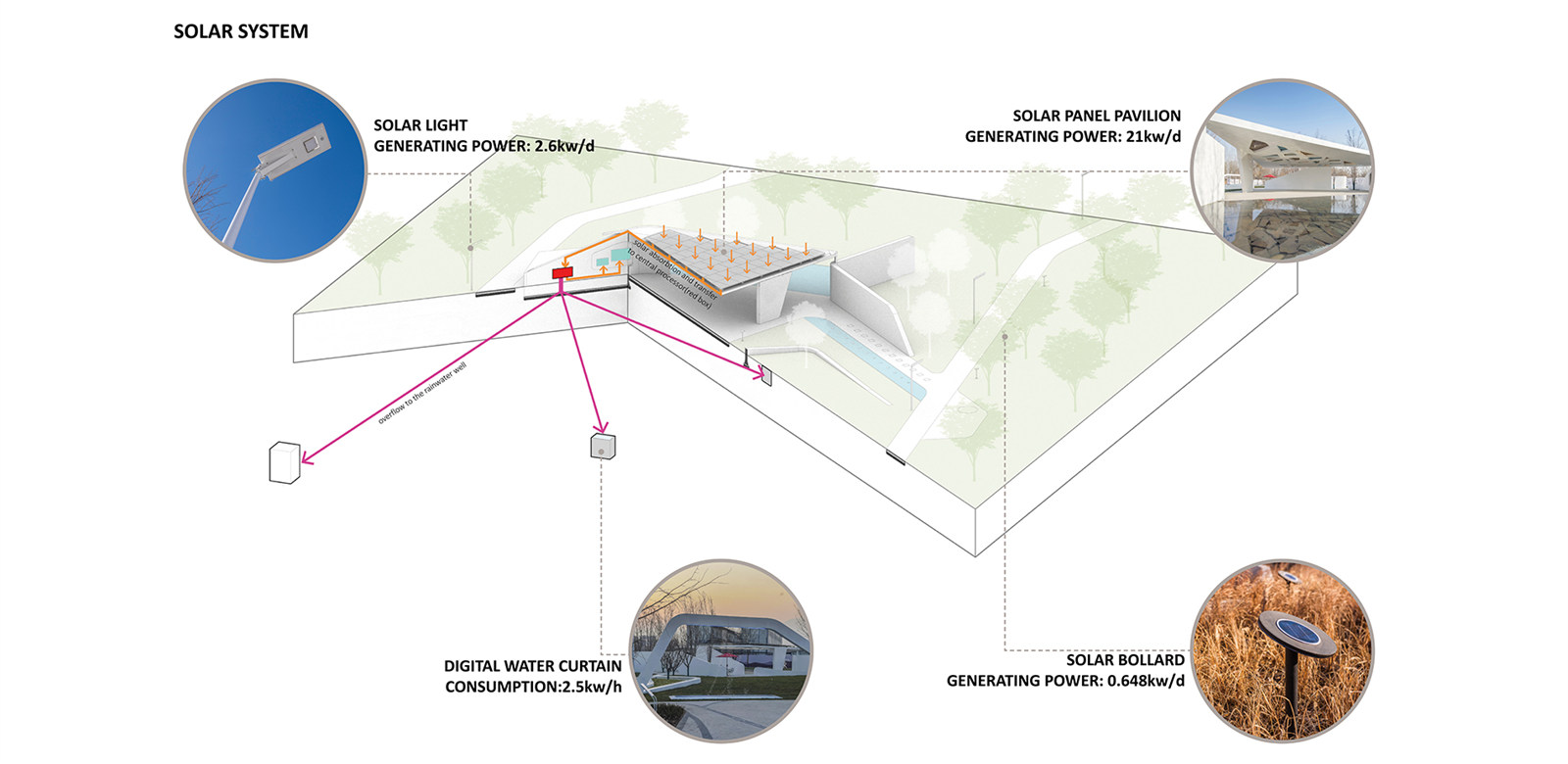

▼太陽能發電利用系統 ?Instinct Fabrication

由于太陽能薄膜的特殊紋理，放置和整合到一個合適的景觀界面是一個挑戰。為了獲得足夠的陽光，避免人們直接接觸以正常運作，它被整合到公園的系統中，并放置在展館、燈具、人行道和垃圾桶的頂部。太陽能薄膜是一種無污染、低能耗、柔性的清潔能源技術，重量輕，適用于多種產品。隨著全球?qū)Νh(huán)保、低碳排放、健康安全和實用性的日益重視，將這一技術應用到景觀環境中對人們的生活環境和生活體驗具有積極的作用。

Due to the special texture of the solar film, it is a challenge to place and integrate into a suitable landscape interface.  In order to receive enough sunlight and avoid direct human contact to properly function, it was integrated in the park’s system and placed on top of the pavilion, lamps, pavements, and trash cans. Solar thin film is a clean energy technology that is non-polluting, lowers energy consumption, flexible, and its lightweight makes it applicable to a variety of products. With increasing global emphasis on environmental protection, low carbon emissions, health and safety, and practicality, applying this technology to the landscape environment plays a positive role in people's living environment and life experience.

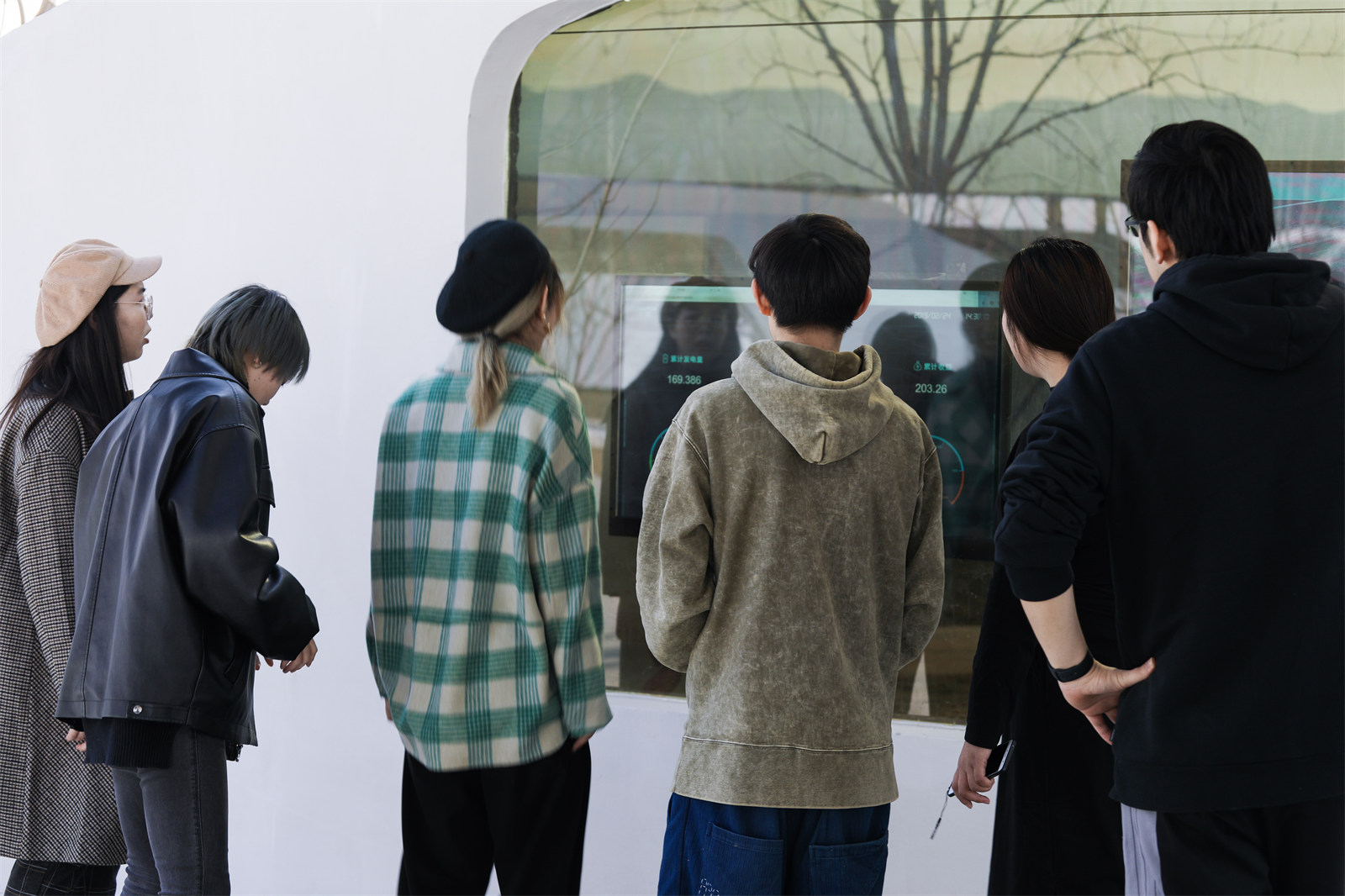

▼中央控制臺顯示屏 ?周星

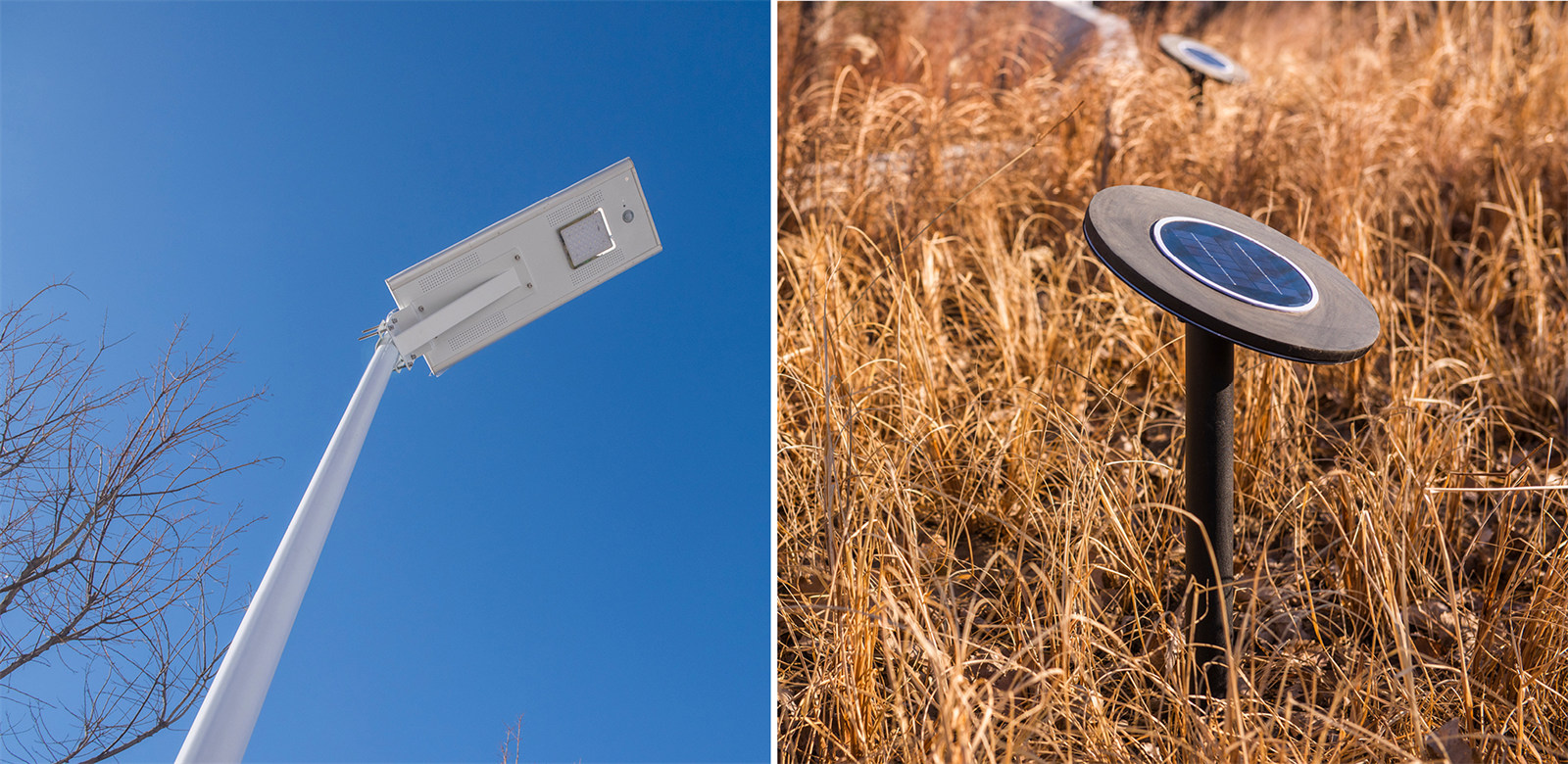

▼太陽能設備 ?高爾夫印記

?魯冰

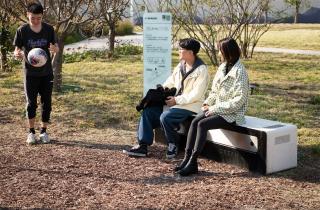

▼可調溫座椅 ?魯冰

充滿活力體驗的公園

A FUN PARK

?周星

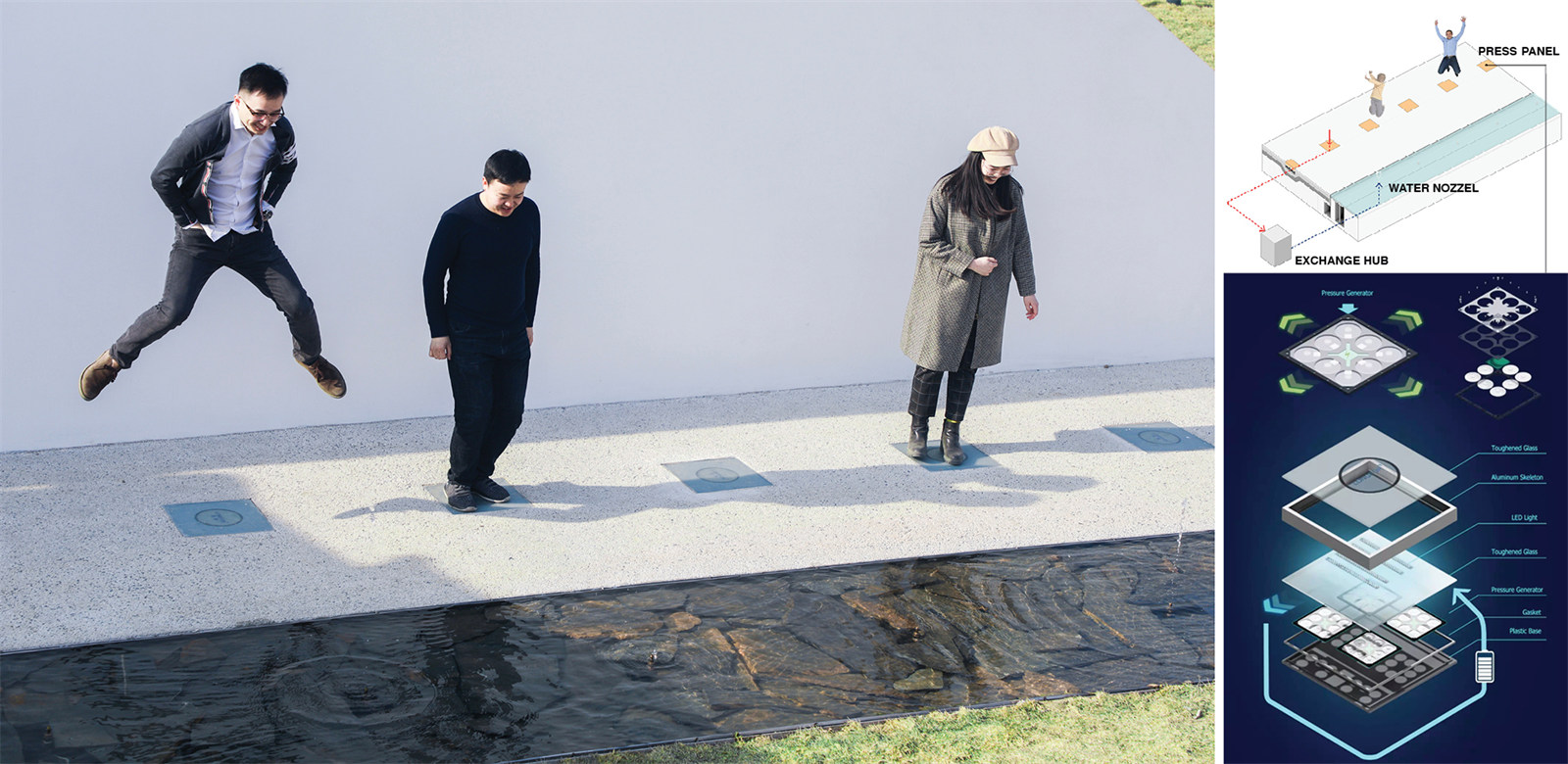

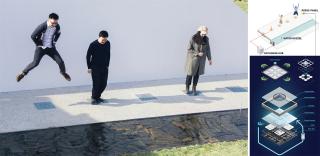

水景將人們與景觀聯系起來，激發人們與水的互動。多層次的面板模塊捕獲動力并將其轉換為電力，存儲在中央集線器中，按下后轉移到噴水口，從而引發水流的噴射。

The water feature connects people to the landscape and inspires people to activate water motion.  The staggered panel module captures and converts power to electricity, stored in the central hub and transferred to water jets when pressed.

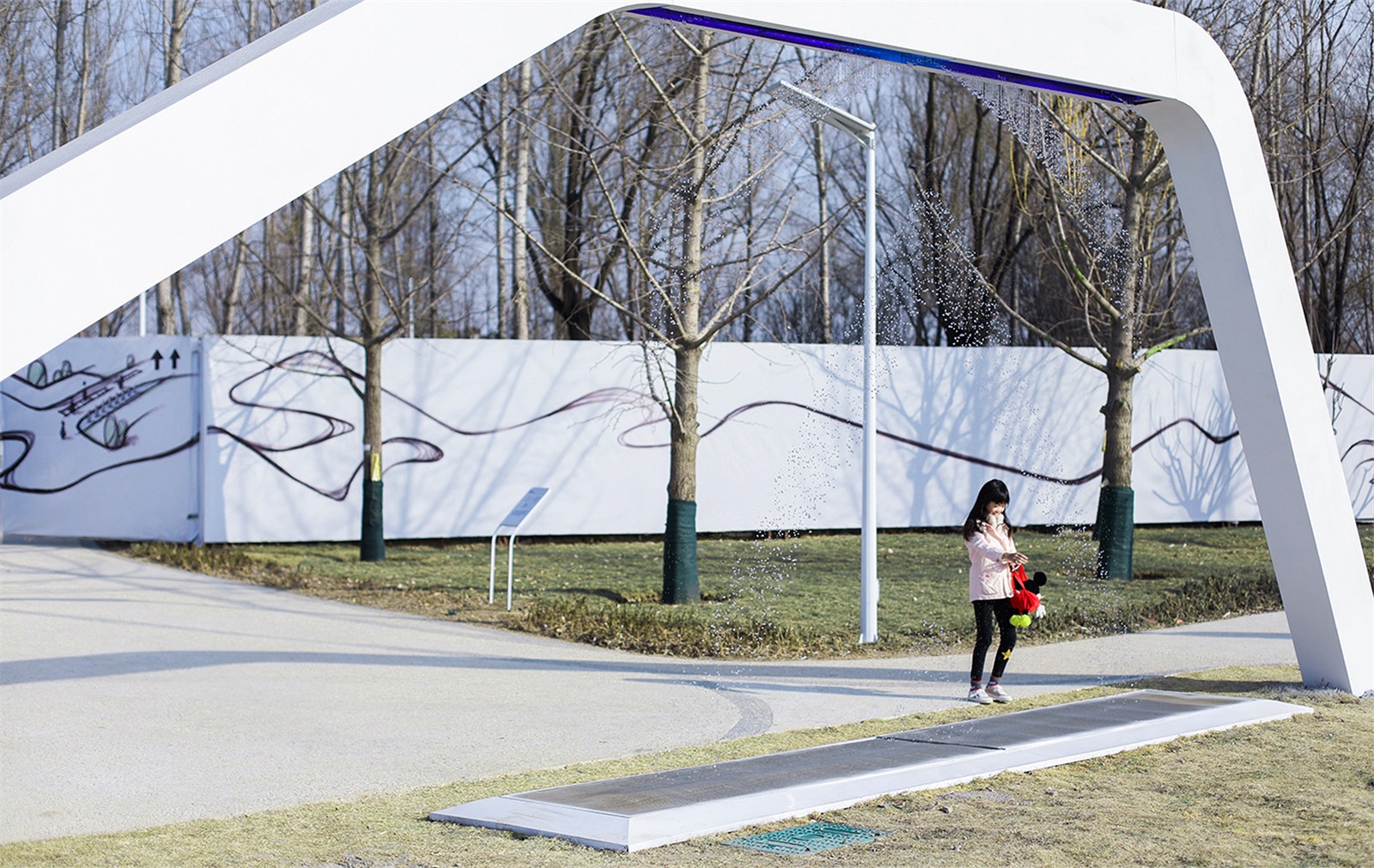

▼數控水簾 ?周星

?魯冰

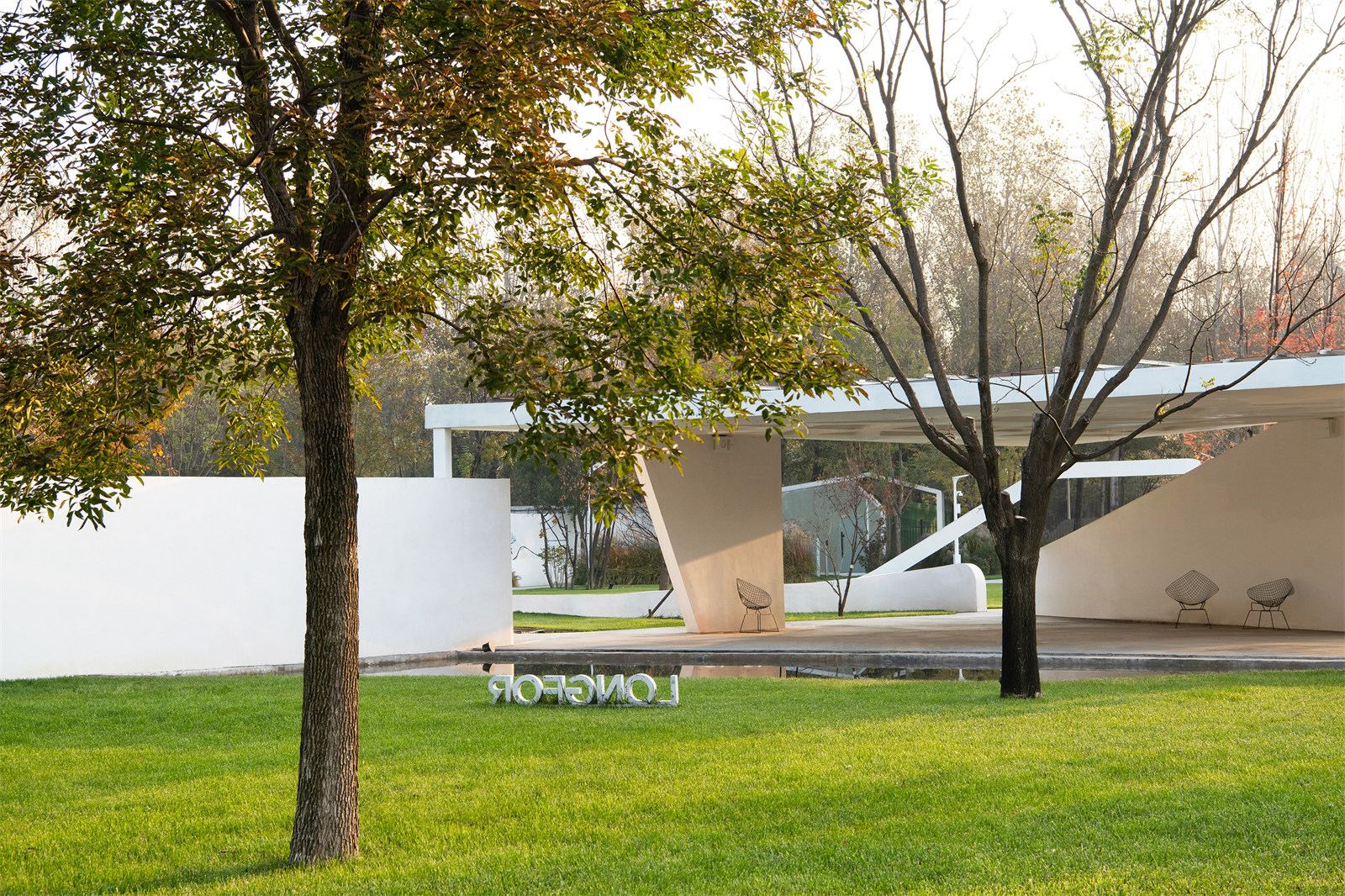

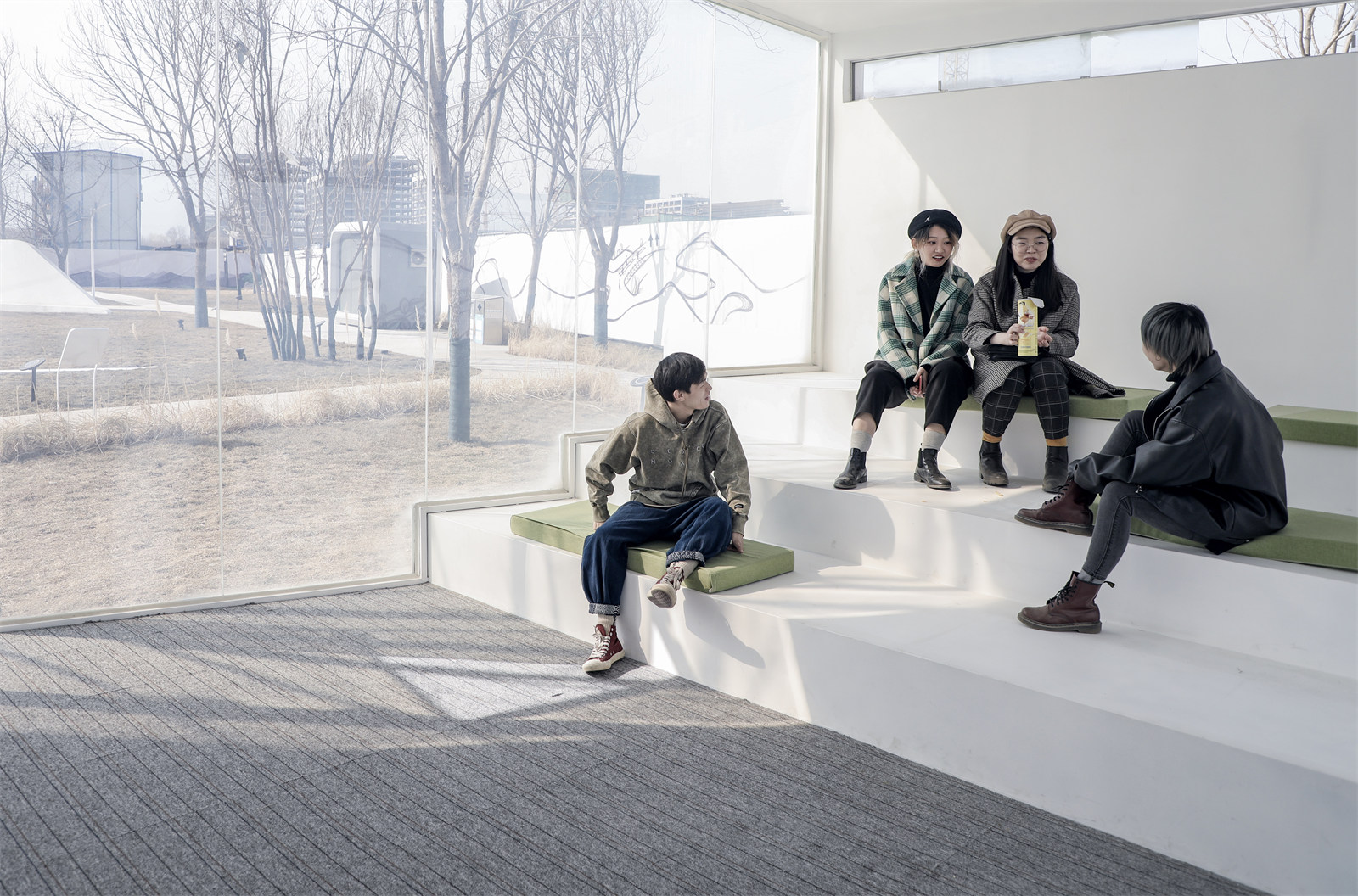

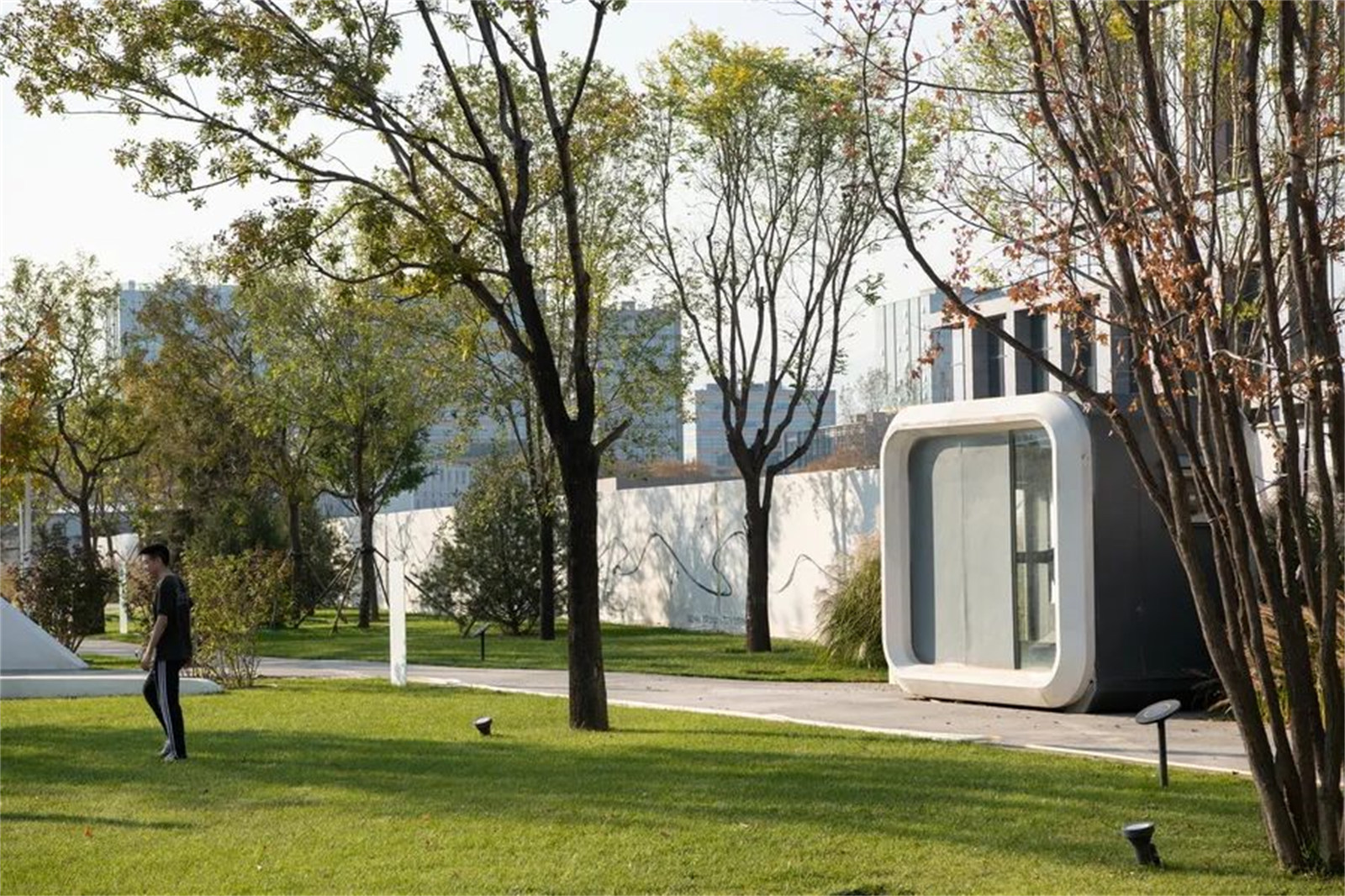

▼室外會議盒子 ?周星

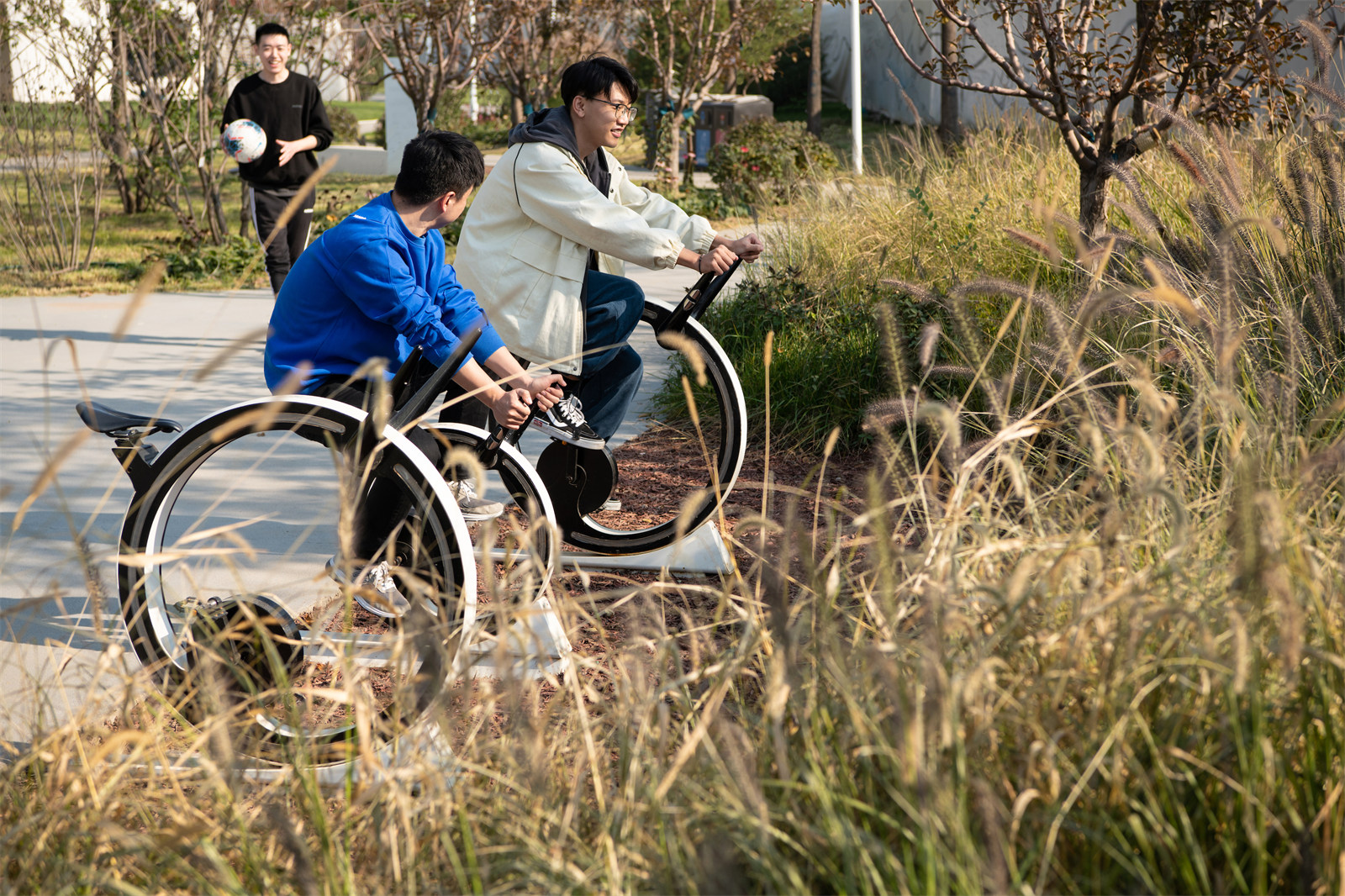

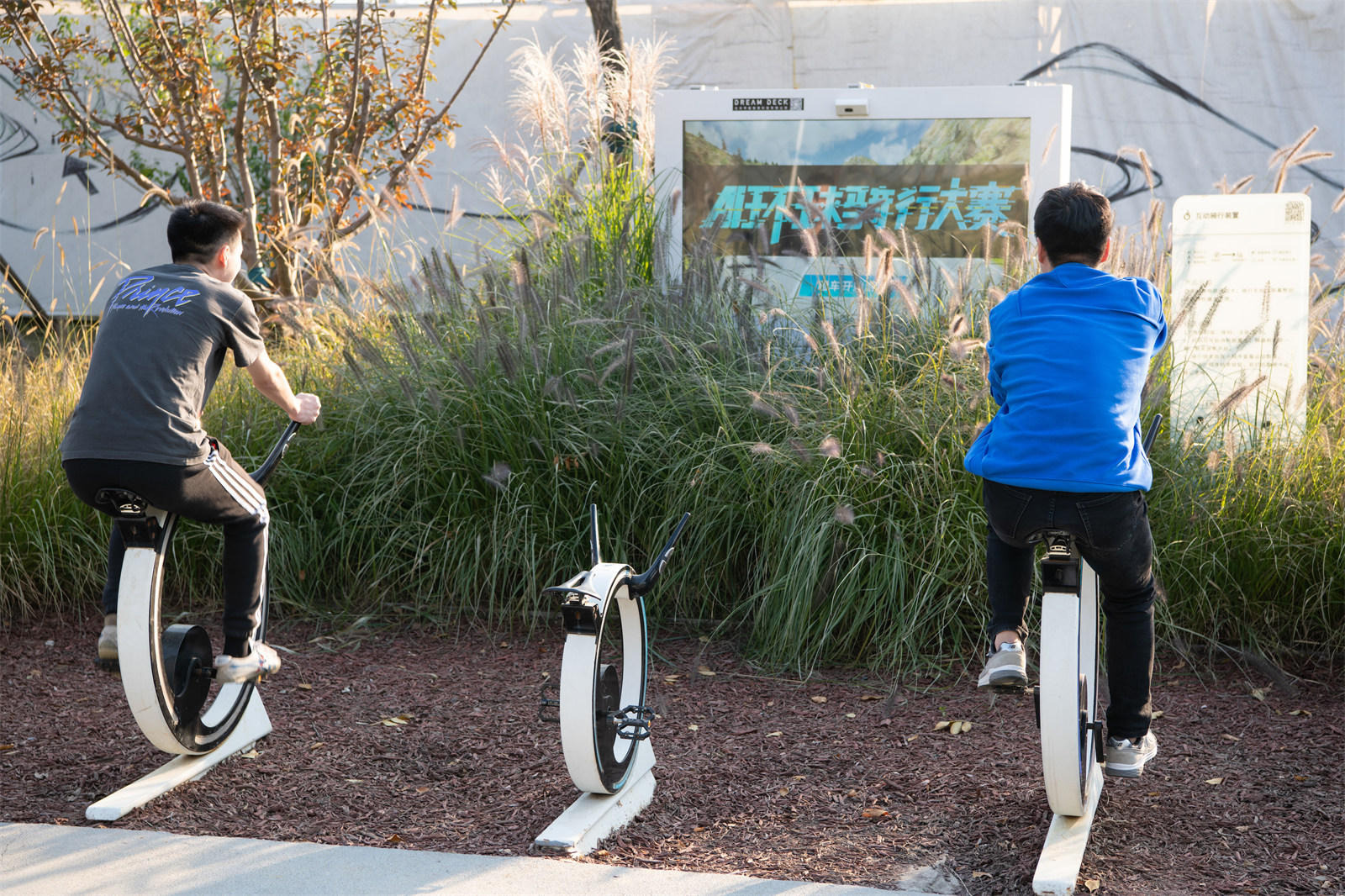

▼互動騎行裝置 ?魯冰

▼互動騎行裝置 ?魯冰

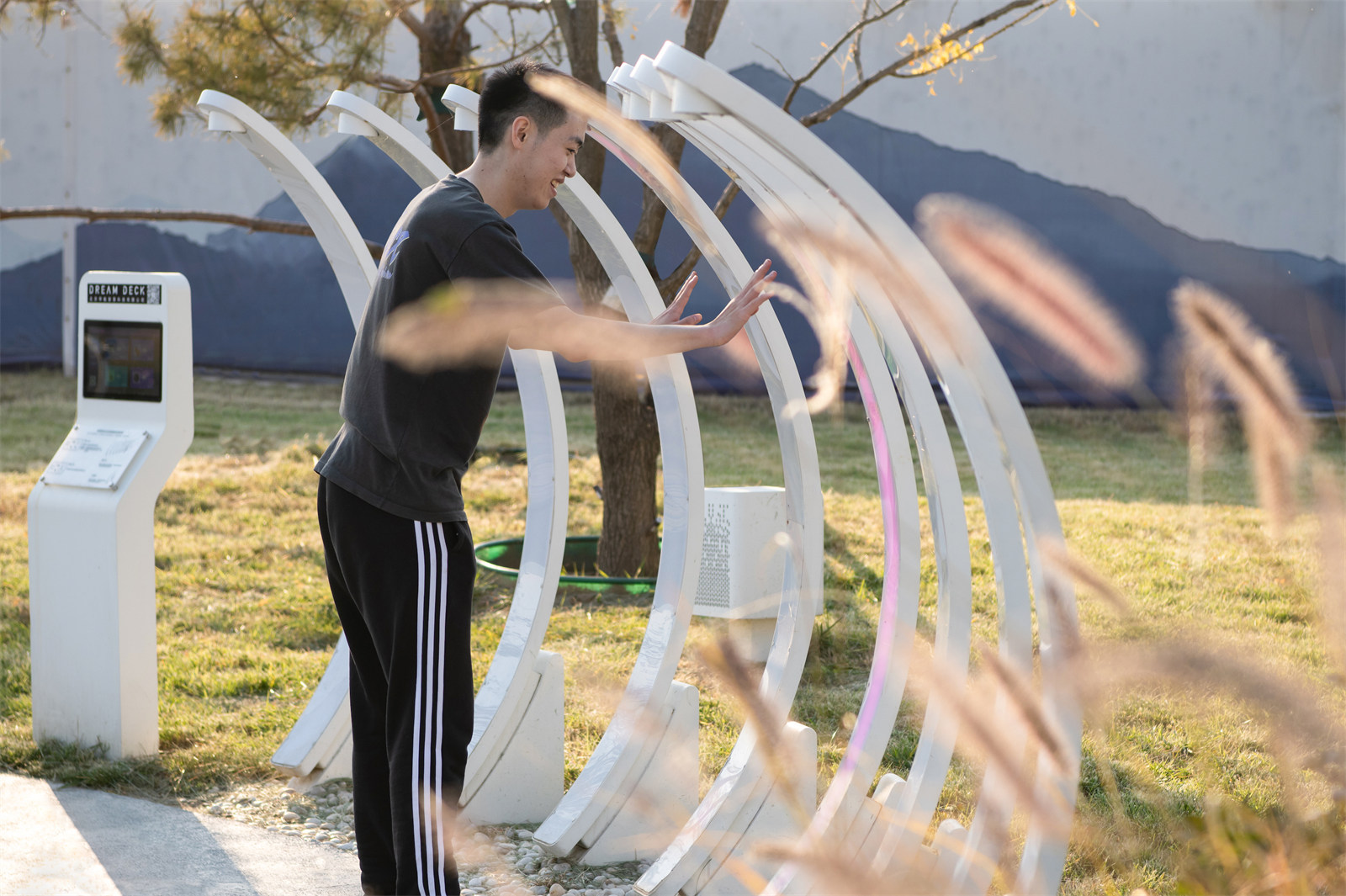

▼互動音樂裝置 ?魯冰

公園還可容納各種用途，從運動、慢跑、活動、會議到教育和互動項目，豐富了該地區居民和鄰近高科技公司工作者的休閑生活體驗。

The park also accommodates diverse uses from sports, jogging, events, meetings to educational and interactive programs. It becomes the new destination in the region for residents and the workers from adjacent High-Tech companies.

?魯冰

后記

AFTERWORDS

從2018年底項目落成，這個公園不但經歷了季節更替，同時也見證了疫情時代。在過程中，設計單位和業主多次回訪，幾經修正和提升完善，不斷更新著我們對可持續理念與前沿技術應用的理解。我們也多次以使用者的身份重新參與這個空間的使用，既欣喜于公園對周邊人群的貢獻，也體會到了疫情共存的時代下，人們對健康和智慧的公共空間的向往。

The Haidian G-Park is one of prototypes for future park development, integrating technology with nature. Since its opening in 2018 , thousands of people and several IT companies visiting the park have marveled over the park’s unique features. It has become the district’s premier destination This park challenges traditional notions of how landscapes engage people, inspiring society and promoting the economic development of the district. The design of this park is an innovative model influencing future designs that incorporate interactive experiences in an outdoor environment.

?魯冰

^{項目信息}

^{項目名稱：海淀光合公園}

^{項目地點：北京市海淀北部新區}

^{景觀面積：11,500㎡}

^{業 主 方：北京市海淀區園林局 北京龍湖}

^{景觀設計：Instinct Fabrication 本色營造}

^{智能化設計及設備：甲板科技}

^{太陽能設備：漢能}

^{景觀施工單位：重慶森城（一期）北京世紀立成（二期）}

^{景觀攝影： 魯冰 周星 樓穎 高爾夫印記}
