深圳IF工廠景觀建筑改造設計 | MVRDV

MVRDV 2021-12-31

原創

項目名稱：

深圳IF工廠
項目地點：

中國深圳
項目規模：

11,000 m2
委托方：

深圳南山區公共事業局，深圳萬科有限公司
建成時間：

2021年
圖片來源：

夏至

MVRDV將深圳一座工業廢棄建筑改造成擁有綠色公共屋頂?shù)摹皠?chuàng)意工廠”

MVRDV transforms disused industrial building into a “creative factory” with a green public roof in Shenzhen

▼工業廢棄建筑改造而成的“創意工廠”

A disused industrial building into a “creative factory” ? Xia Zhi 夏至

MVRDV已完成對深圳南頭城中村原有的一處工廠建筑Idea Factory（IF）的改造，采用了可持續性的再利用和改善的方式來再設計，而非拆除和重建。盡管該項目包括了萬科城市研究院的工作區和出租區，IF工廠仍凸顯出其公共性質：樓梯貫穿六層，直達屋頂。屋頂上栽種了一排排竹子，圍合成不同的“房間”，配置了各種休閑設施和供活動使用。

MVRDV has completed construction of the Idea Factory, a transformation of a former factory building in the Shenzhen urban village of Nantou that sustainably reusing and improving the building instead of demolishing and rebuilding it. The project contains a mixture of offices for the Urban Research Institute of China Vanke and offices for rent – yet despite this programme, its distinguishing features are public in nature: a stairway cuts its way through the six-storey building, leading to a rooftop with a series of “rooms” enclosed by living bamboo “walls”, offering a variety of amenities and activities.

▼工業廢棄建筑改造而成的“創意工廠”

A disused industrial building into a “creative factory” ? Xia Zhi 夏至

南頭原是一座擁有厚重歷史的古鎮，如今已變成深圳的一座城中村，較四周的摩天高樓則相形見絀。IF工廠作為萬科眾多改造項目中最大的一個，由國內外著名設計師操刀設計，旨在將南頭盡快轉型為深圳的文化和創意中心。

Nantou has roots as an ancient historic town but is now an urban village of Shenzhen, dwarfed by the skyscrapers that surround it. The Idea Factory is the largest project in a number of renovations proposed by Vanke, all with designs by nationally and internationally renowned architects, which aims to accelerate Nantou’s transformation into a cultural and creative hub.

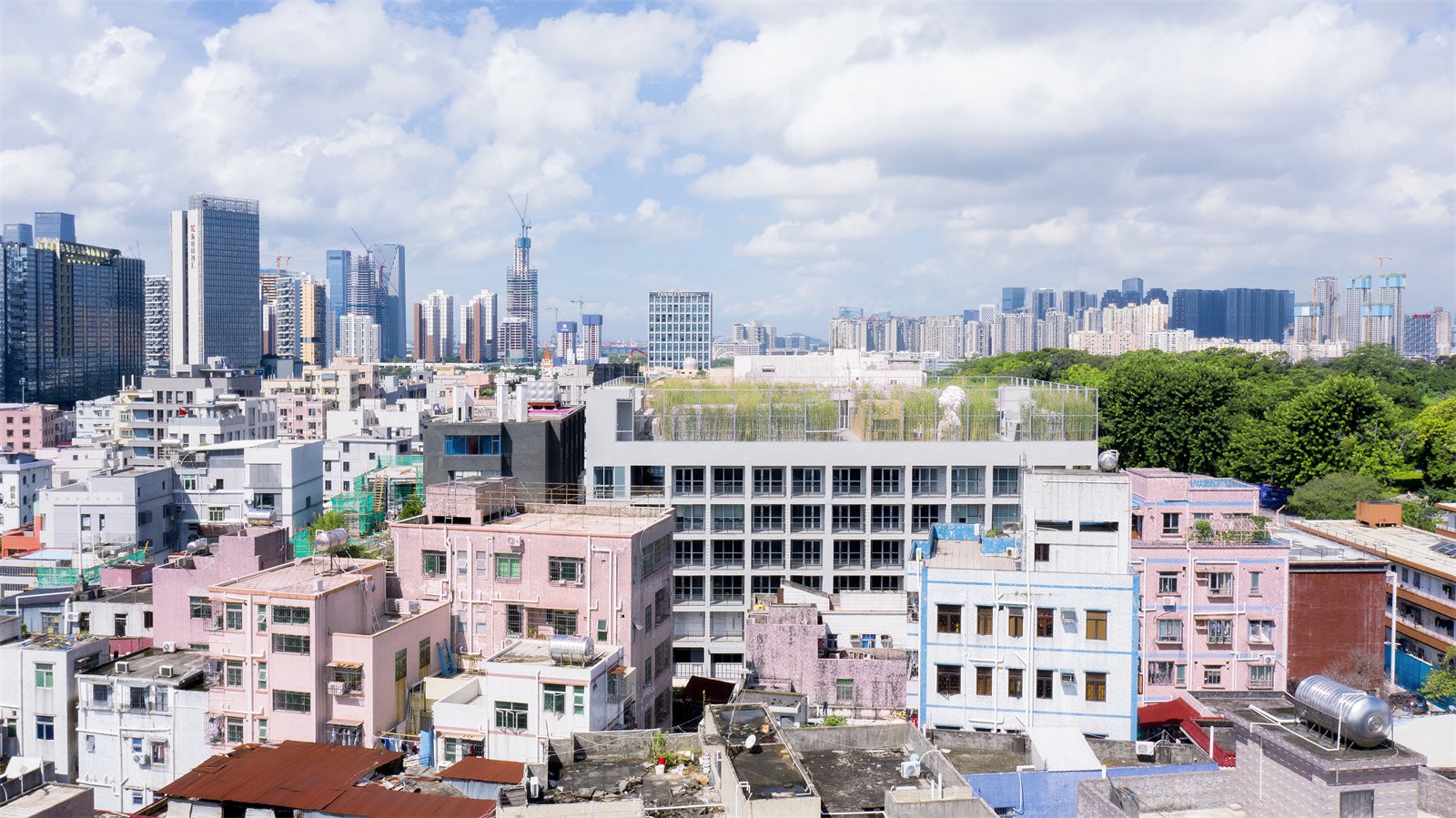

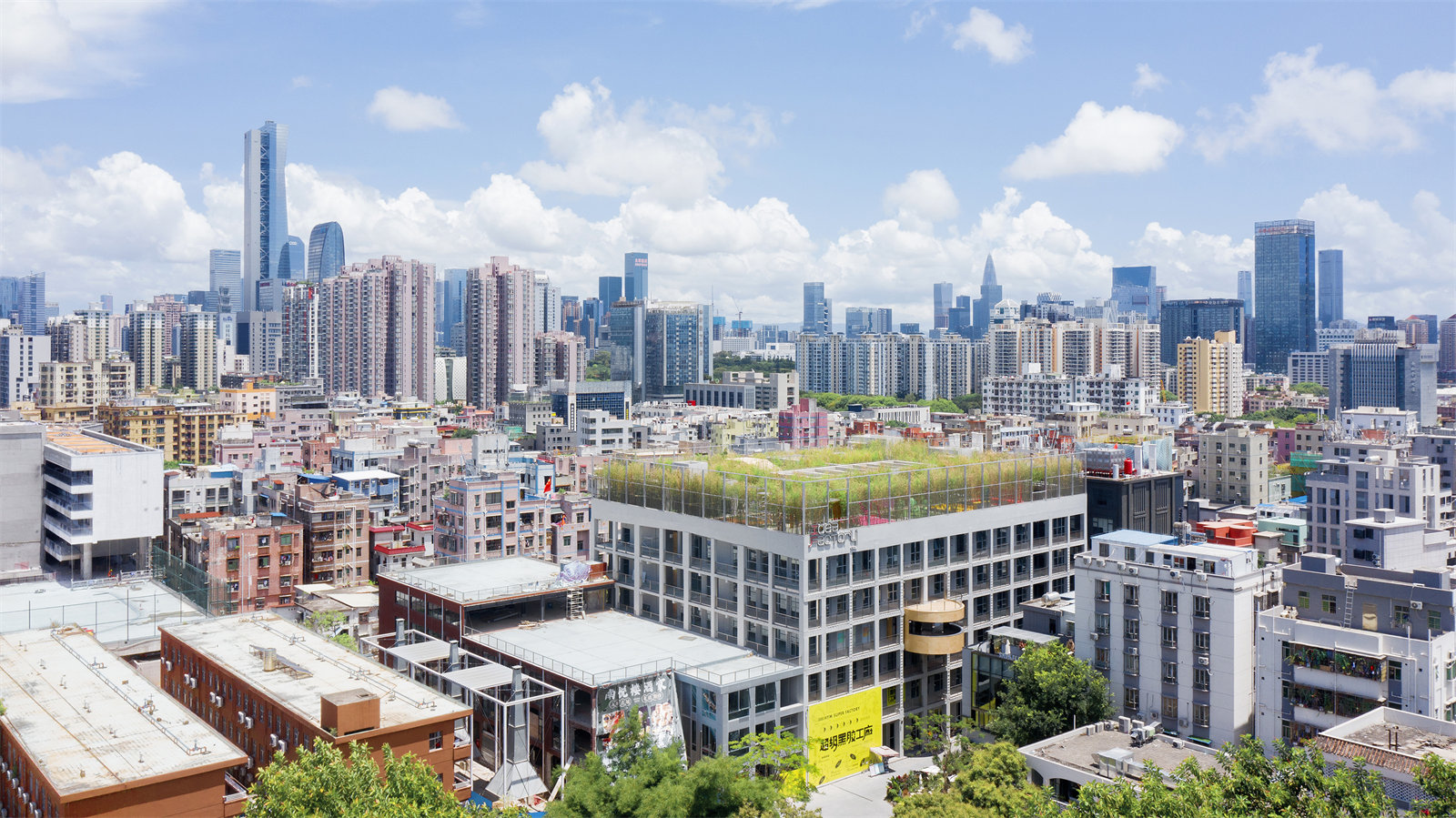

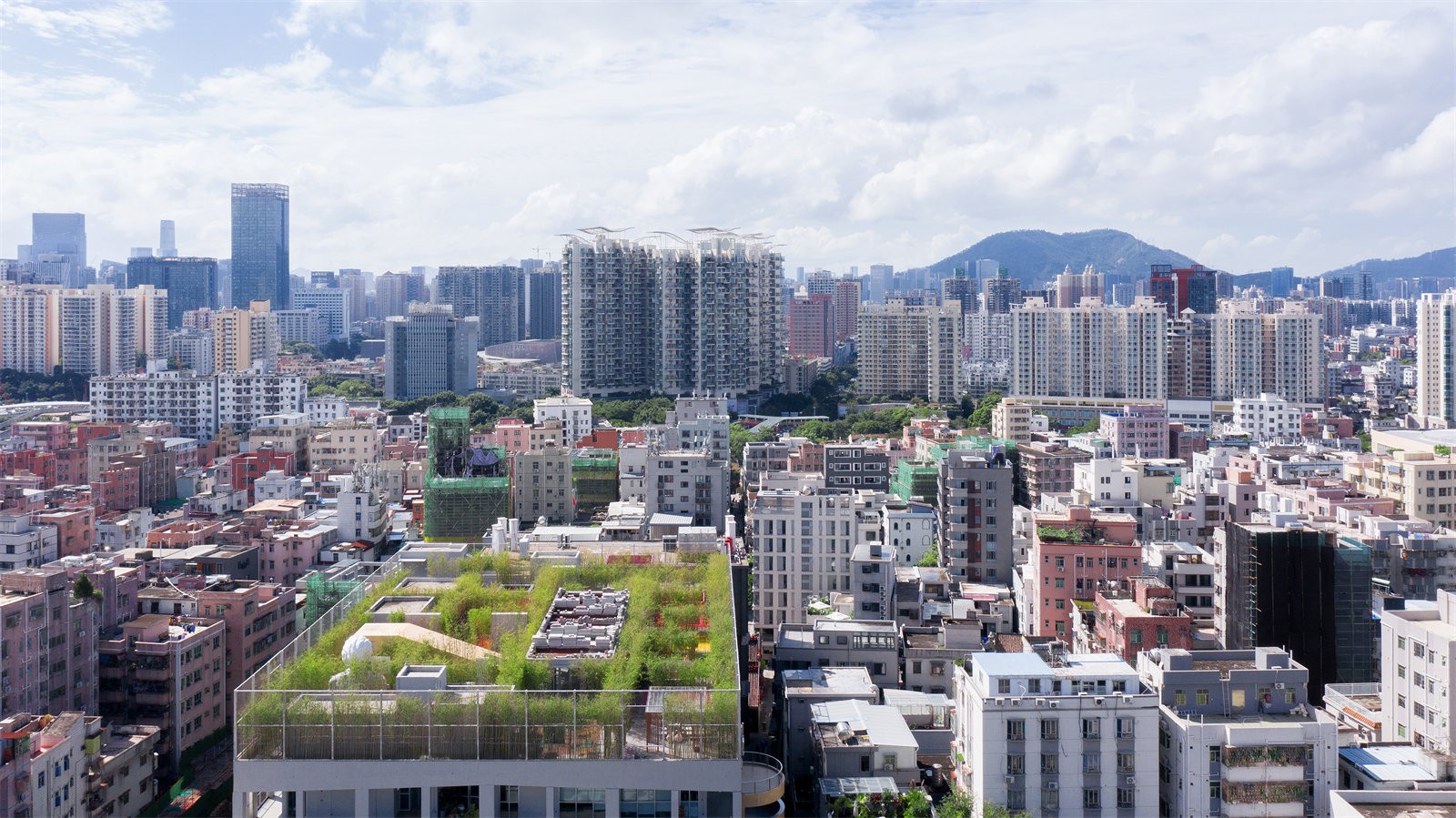

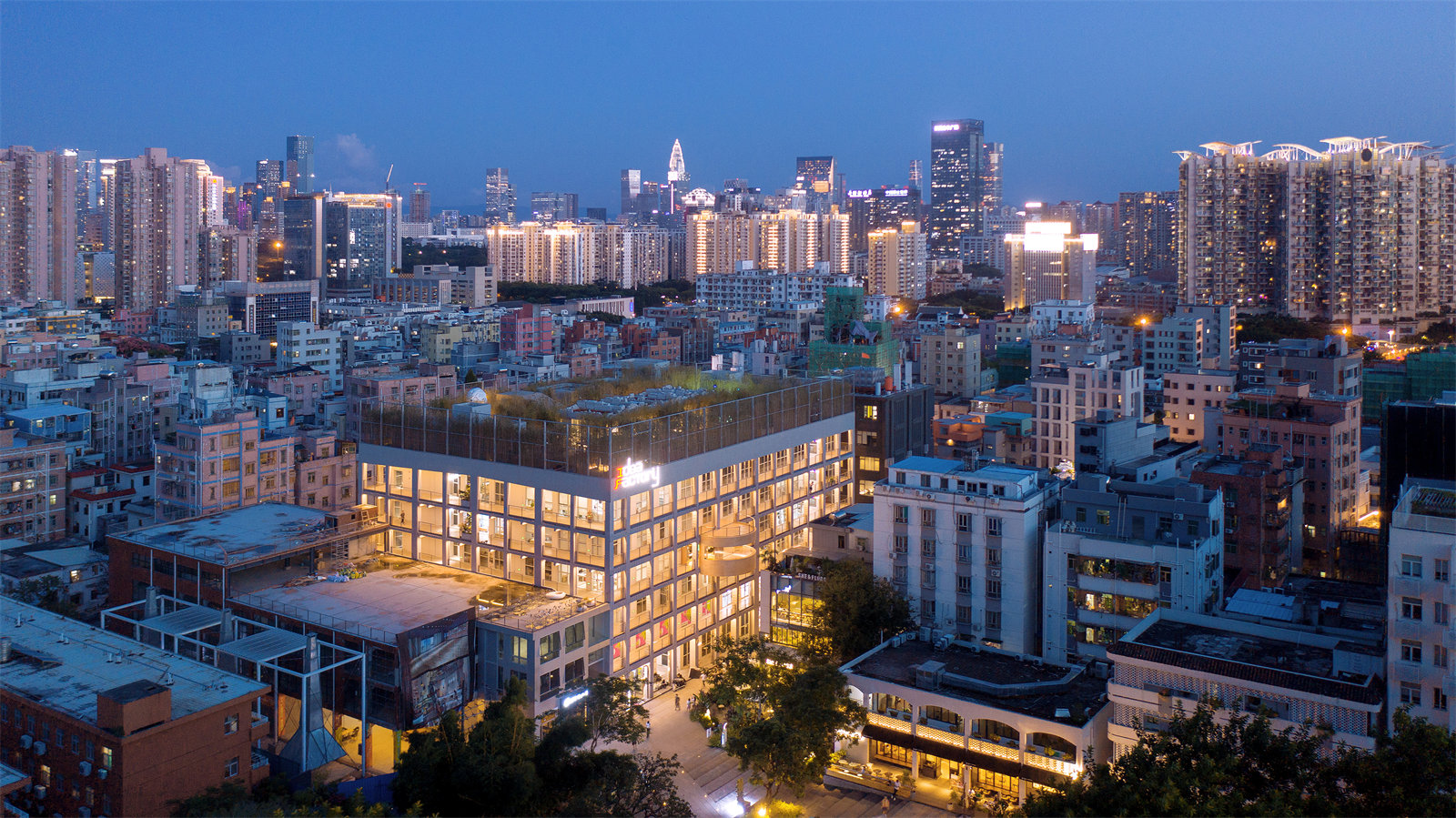

▼摩天高樓中的IF工廠

Idea Factory in skyscrapers ? Xia Zhi 夏至

不同于以往的拆除和重建，該項目設計采用了可持續的方式來更新廢棄廠房，在保留部分南頭歷史的同時，與新建項目相比也降低了碳排放。為了最大限度地?cái)U(kuò)大屋頂面積，MVRDV加固了廠房建筑的原有結構，從而增加了一個新樓層。此外，原有外墻被拆除，建筑的混凝土框架被暴露出來，向人們展示出這座建筑的歷史痕跡。新的外墻將邊緣空間退讓出來，形成了環繞整座建筑的開放型走廊。這樣的設計為人流動線提供了空間，也為同事間的偶遇創造了機會，打造出一個充滿活力的創意空間。

Rather than demolish and rebuild, the design sustainably renovates a disused factory building, maintaining a piece of Nantou’s history while also having lower embodied carbon emissions than a new building. The building’s original structure has been strengthened so that an extra floor could be added on top to maximise floor area. Meanwhile, the original fa?ades have been removed, with the building’s concrete frame exposed and preserved to show traces of the building’s history. The new fa?ade is set back from the edge of the structure, creating open loggias that wrap around the whole building. These allow for circulation and enable the chance encounters with colleagues that make for a dynamic creative environment.

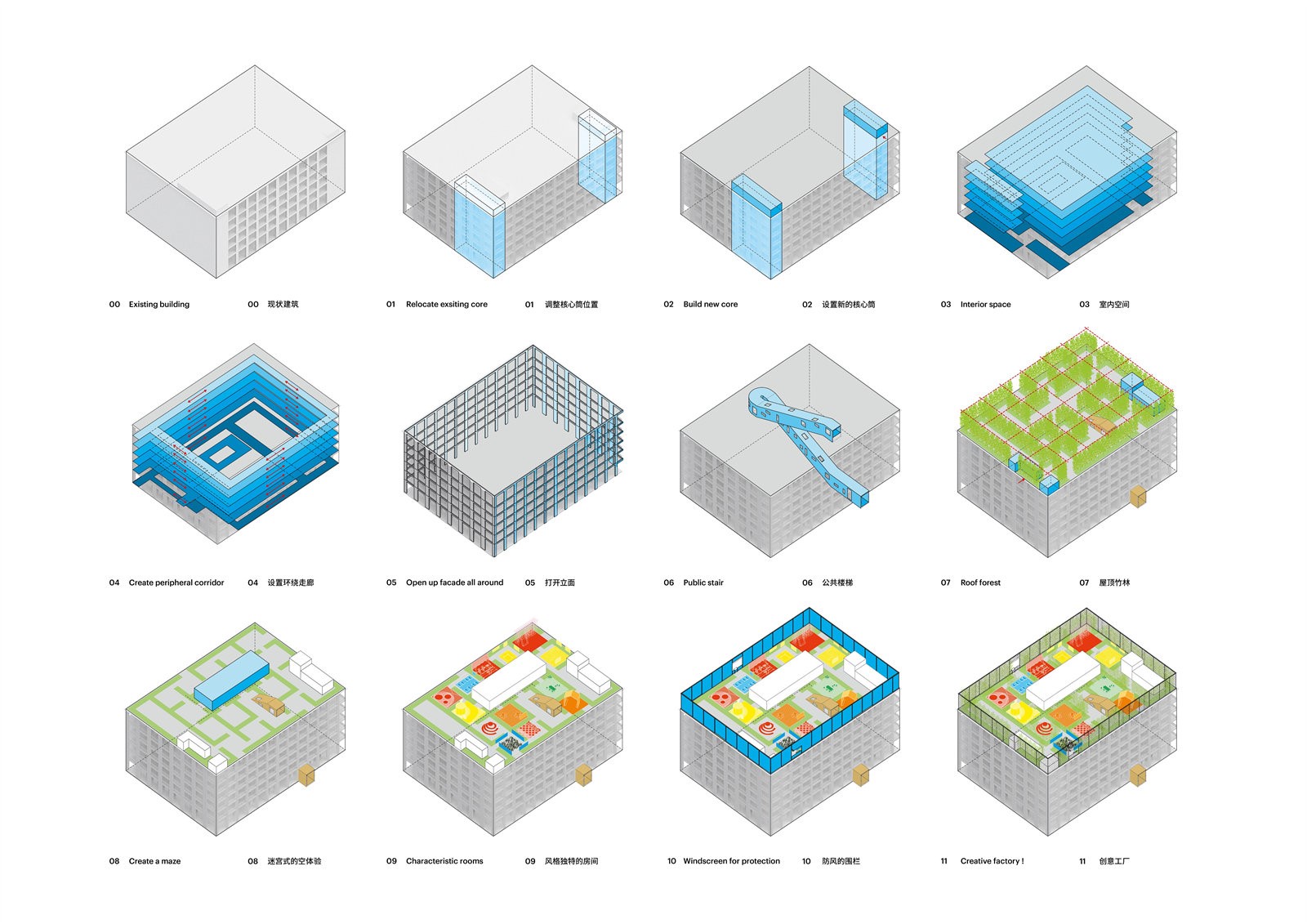

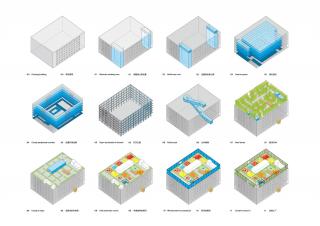

▼樓梯結構分析圖

Step diagram ? SLA

▼原有外墻被拆除

The original fa?ades have been removed ? Xia Zhi 夏至

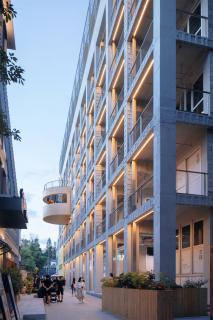

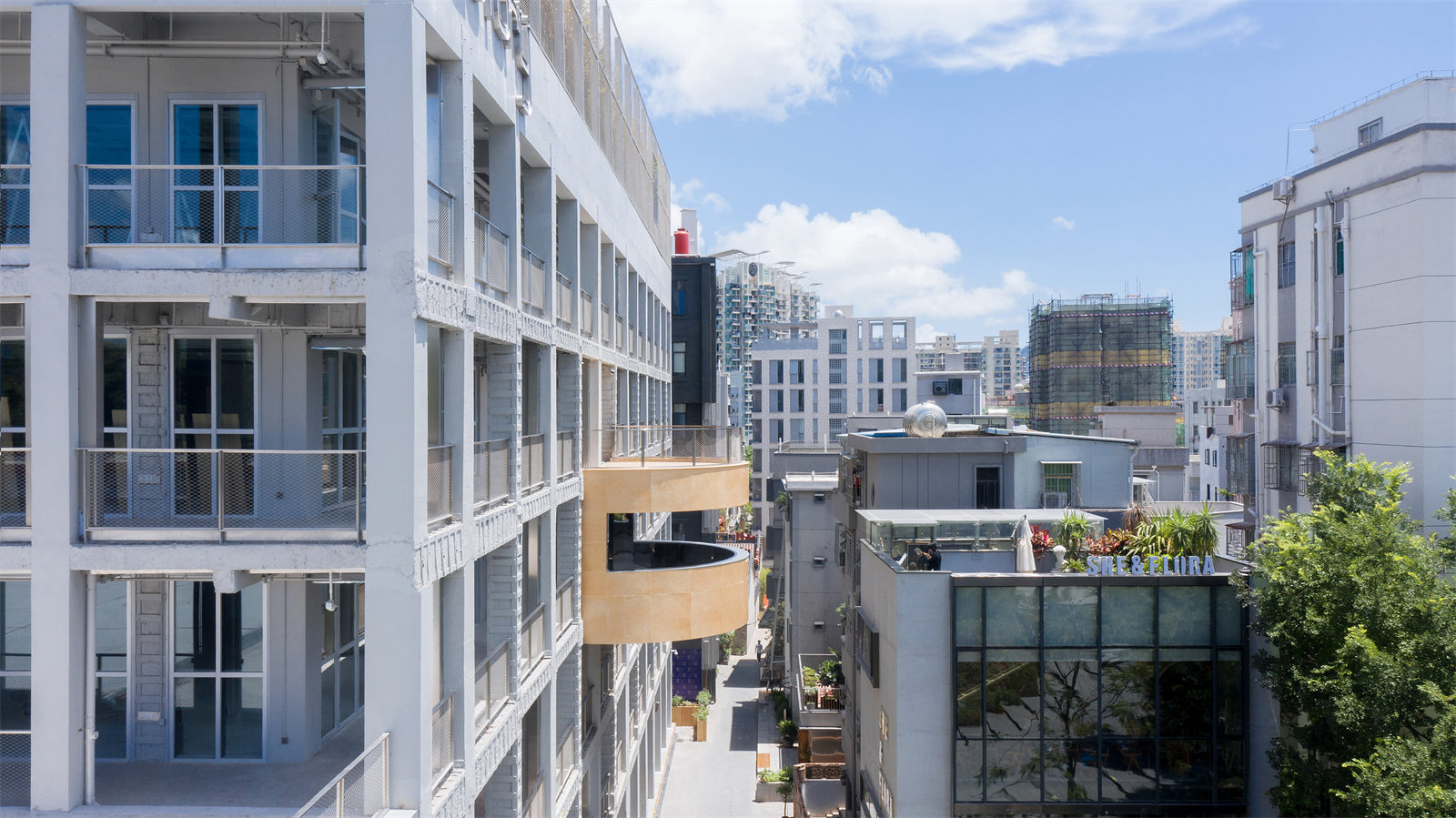

▼環繞整個建筑的開放型走廊

Idea Factory in skyscrapers ? Xia Zhi 夏至

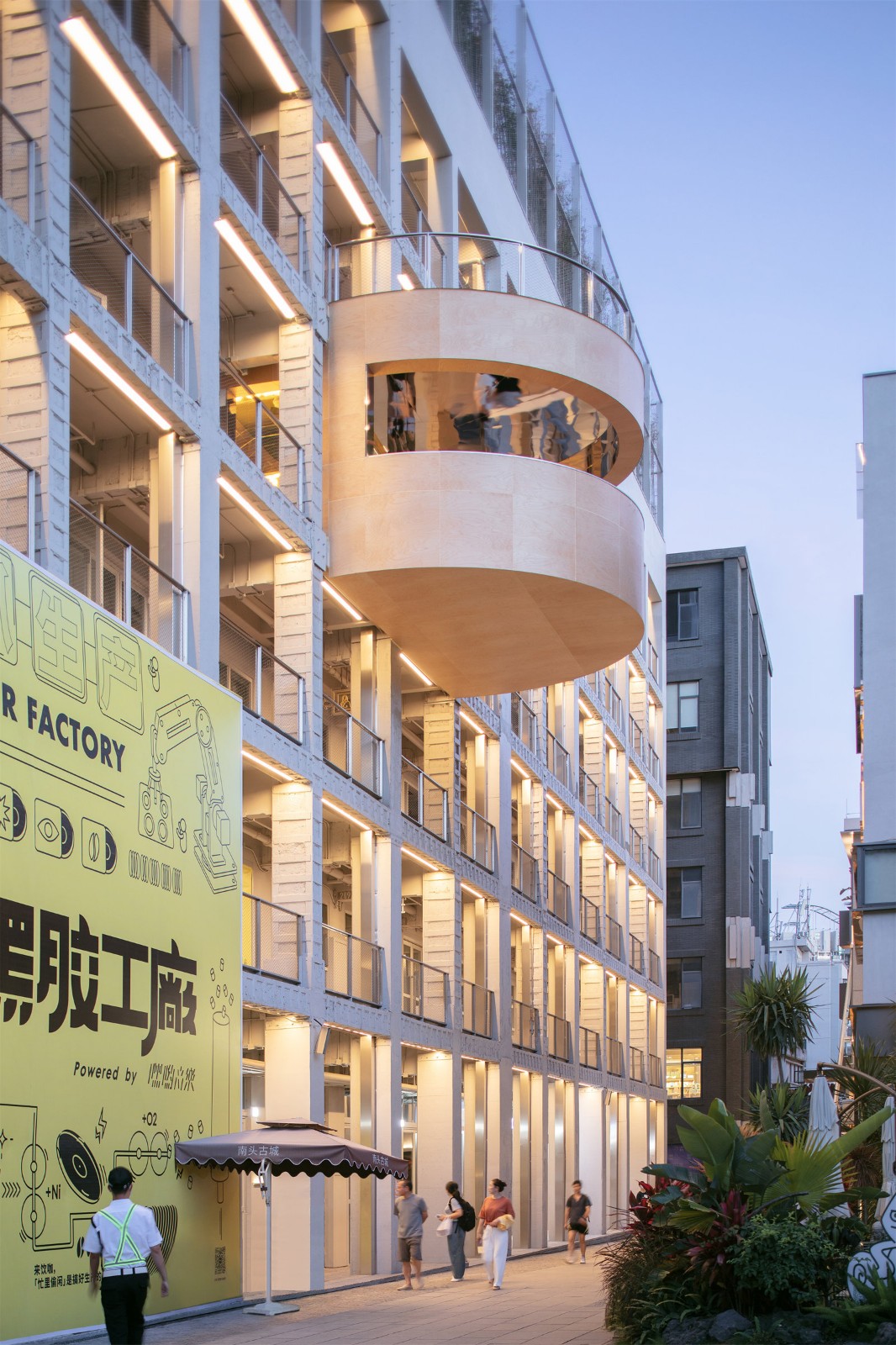

IF工廠的一層正對著一小型公共廣場，凸出的木飾管狀結構標志著公共樓梯的入口，并如隧道一樣穿過建筑物。進入建筑內部，鏡子覆蓋了樓梯表面，與明亮的霓虹燈一起營造出深圳早期城市化的氣氛。在第四層，樓梯從建筑另一側延伸出來，到達屋頂之前，人們可以在此駐足欣賞周圍建筑的屋頂。

Facing a small public square on the ground floor, a protruding tube-like structure clad in wood marks the entrance to the public staircase that carves its way through the building. Inside, the staircase is clad in mirrors and festooned with bright neon signs, creating an aesthetic reminder of the early days of Shenzhen’s urbanisation. On the fourth floor, this staircase protrudes out the other side of the building – a chance to take in a view of the surrounding rooftops – before turning and continuing up to the roof.

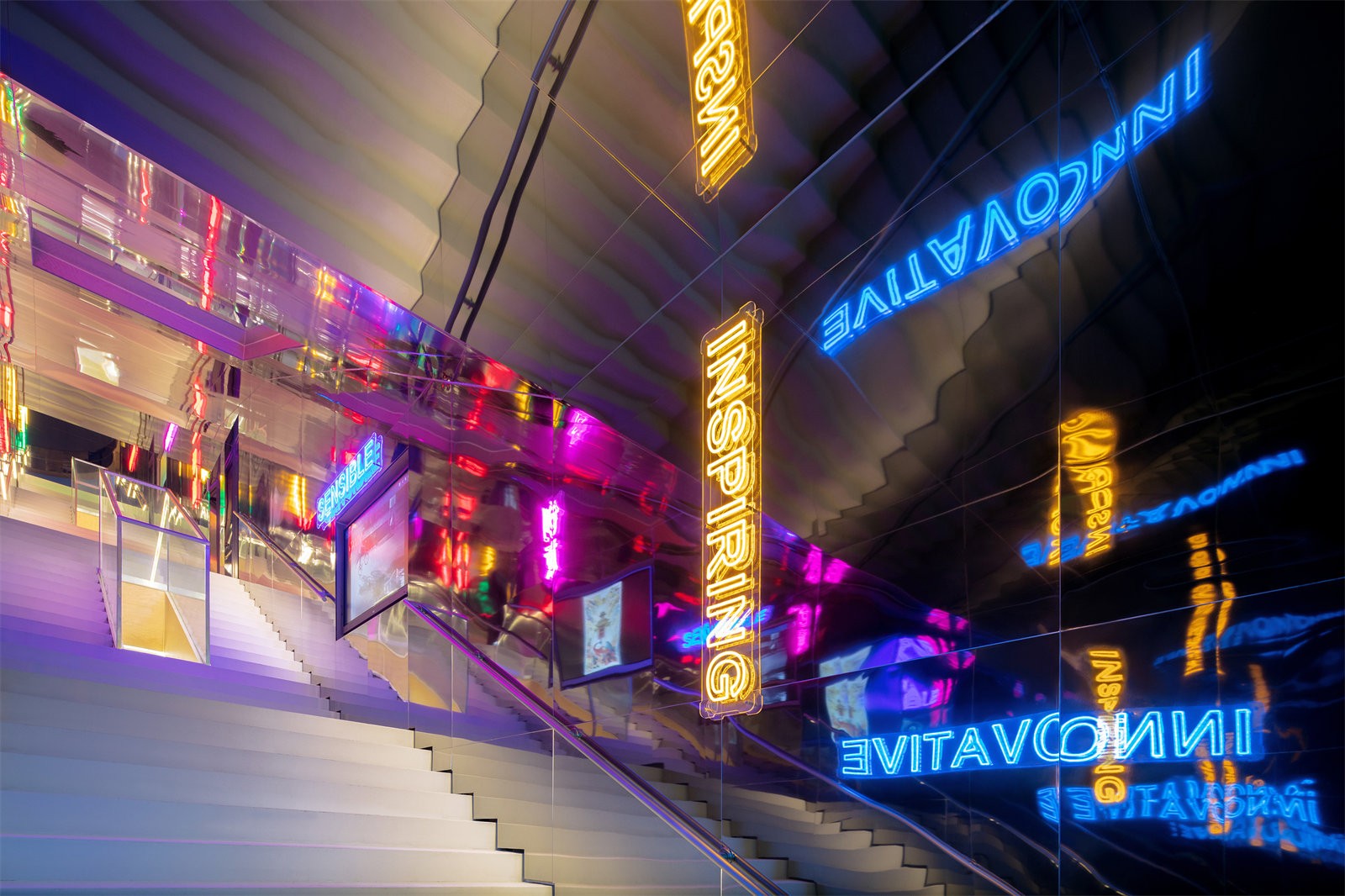

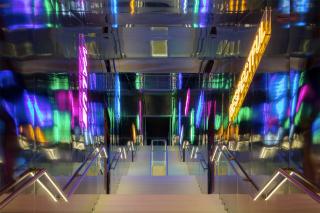

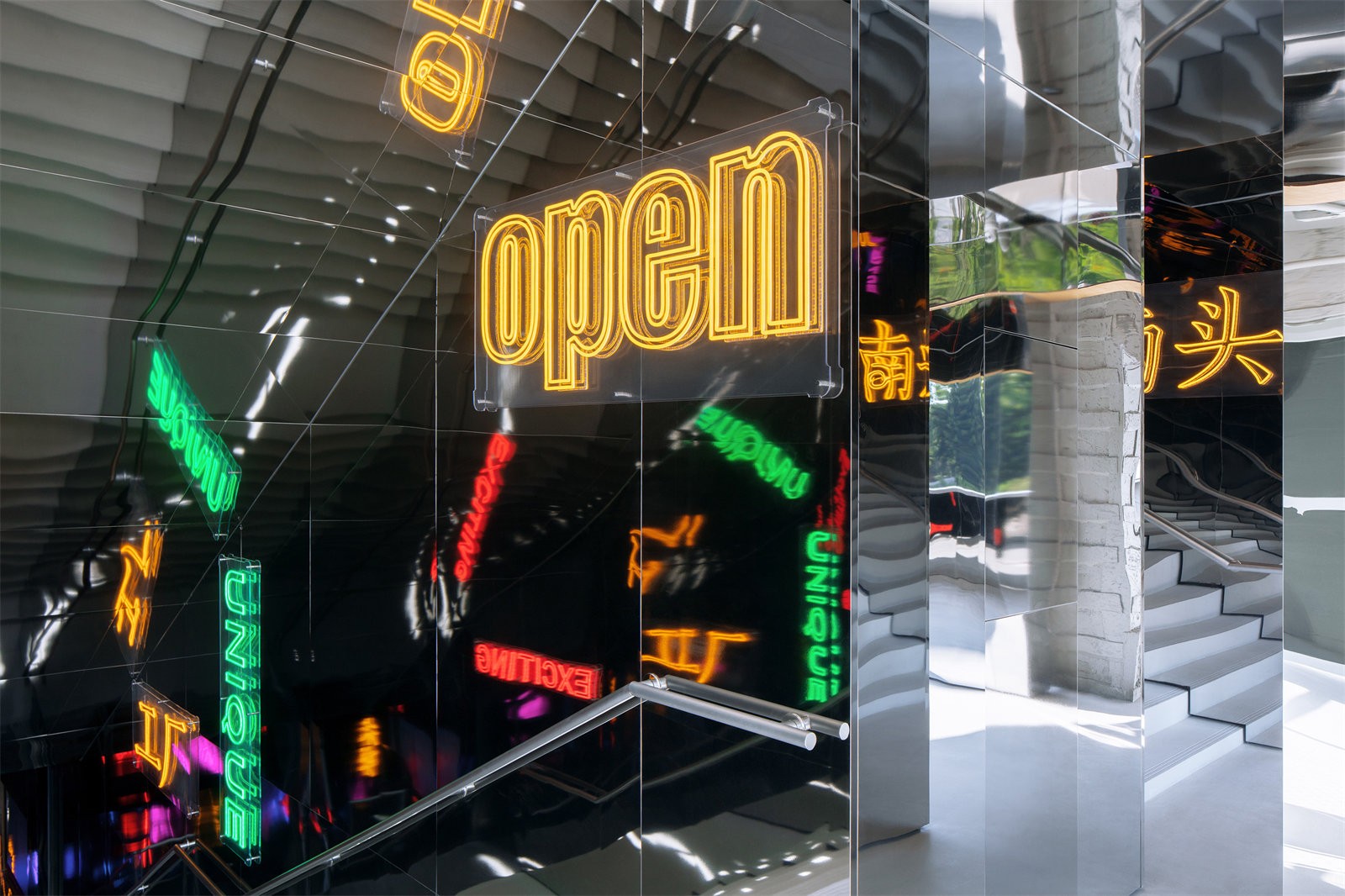

▼鏡子覆蓋了樓梯表面

Staircase is clad in mirrors ? Xia Zhi 夏至

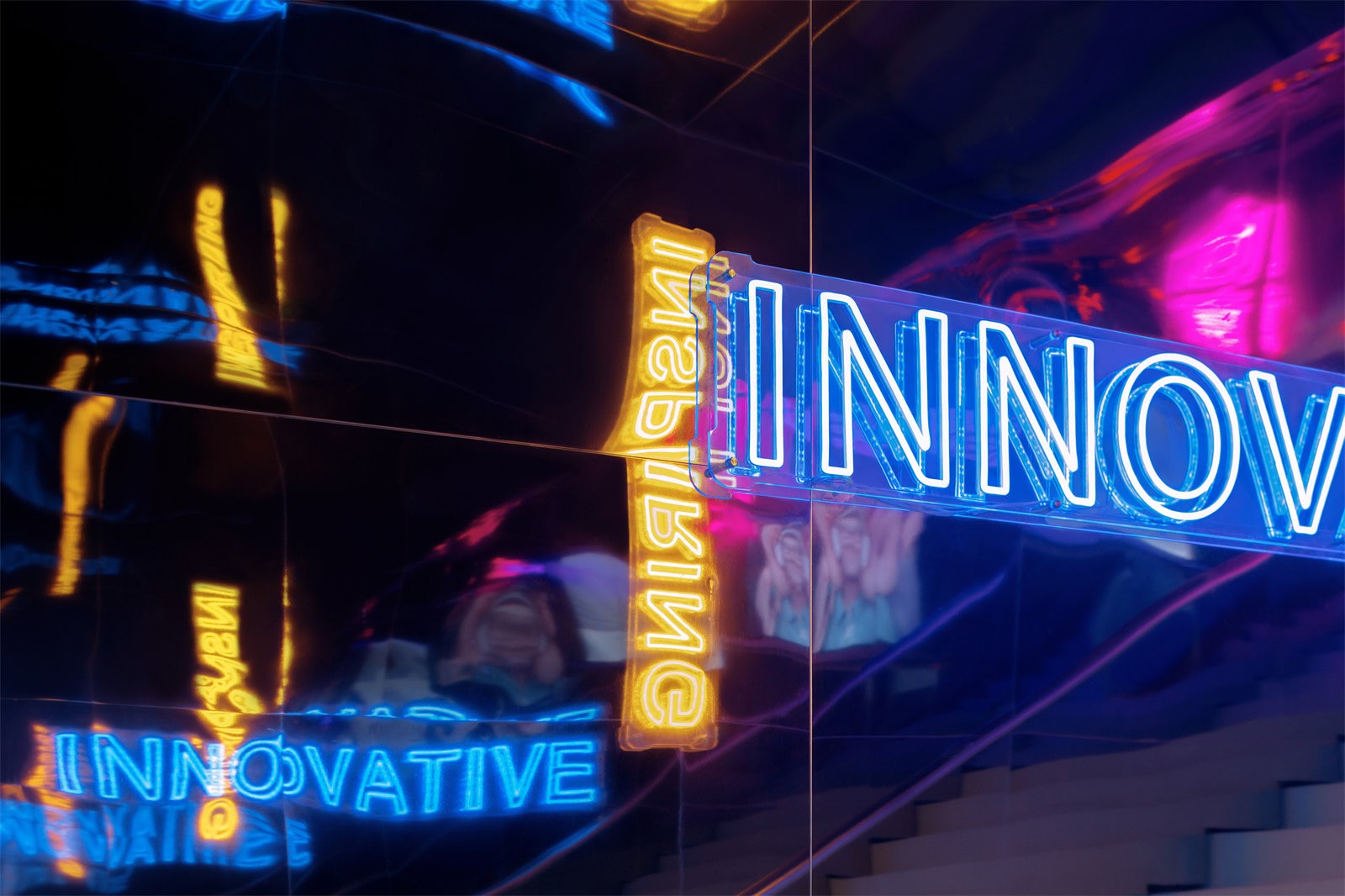

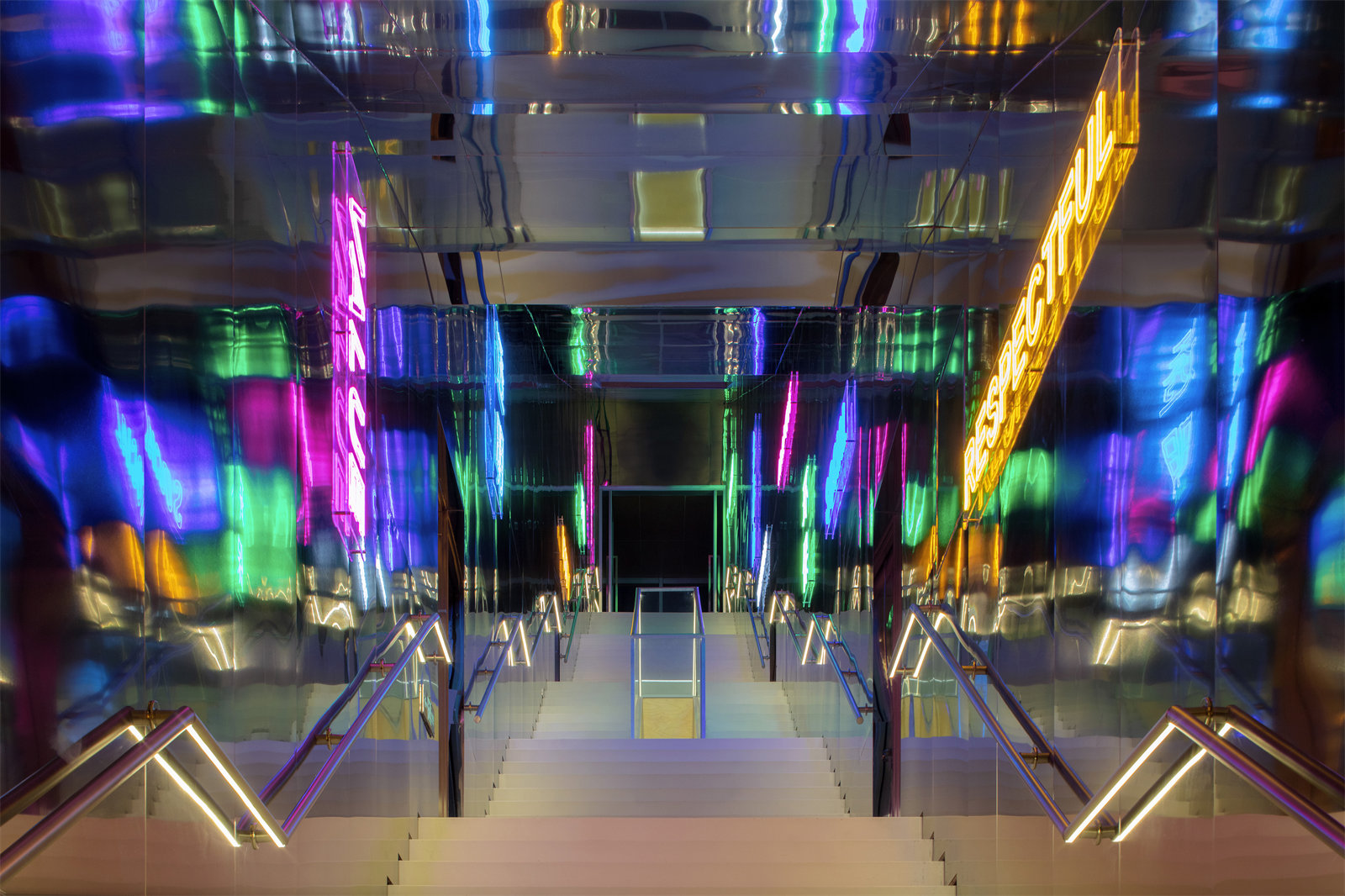

▼霓虹燈營造出深圳早期城市化的氣氛

Neon signs creating an aesthetic reminder of the early days of Shenzhen’s urbanisation ? Xia Zhi 夏至

走出樓梯之后，迎面而來的是郁郁蔥蔥的竹林，各種活動設施散落在竹林中。屋頂空間以一種竹林迷宮的形式被分割成不同區域，每個區域有著各自的活動內容：一個用于表演和活動的玻璃空間、各類座椅休憩區、健身房、蹦床、秋千、茶室、餐廳、舞池和國際象棋的棋盤。屋頂空間讓整個項目在生態和社會層面上更加可持續：在高密度的城市中，竹林在此創造出一片涼爽林蔭區，同時支持了生物多樣性，也彌補了社區向來缺乏社交和休閑空間。

Upon exiting the staircase, visitors are greeted with a green bamboo landscape packed with amenities and activities. This is arranged to form a bamboo “maze” that divides the rooftop into different rooms, each containing a different activity: a glass box for performances and events, a variety of seating areas, a gym, a trampoline, swings, a tea house, a dining room, a dance floor, and a chess set. This roof makes the project more sustainable both ecologically and socially: the bamboo creates a cool, shaded space and supports biodiversity within a dense urban environment, while the activity rooms provide social and leisure spaces in a neighbourhood that has historically been disadvantaged.

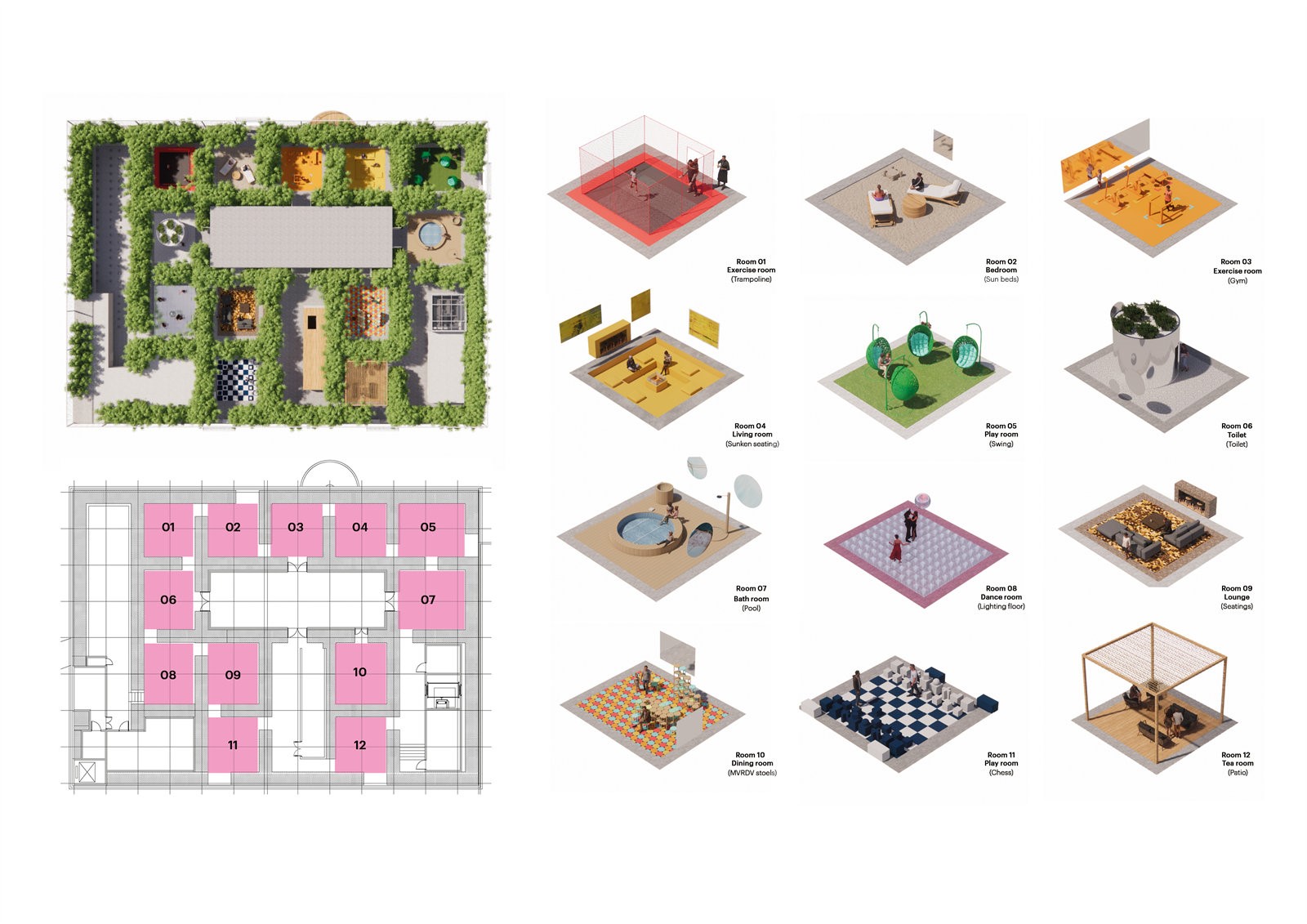

▼屋頂功能分析圖

Roof diagram ? SLA

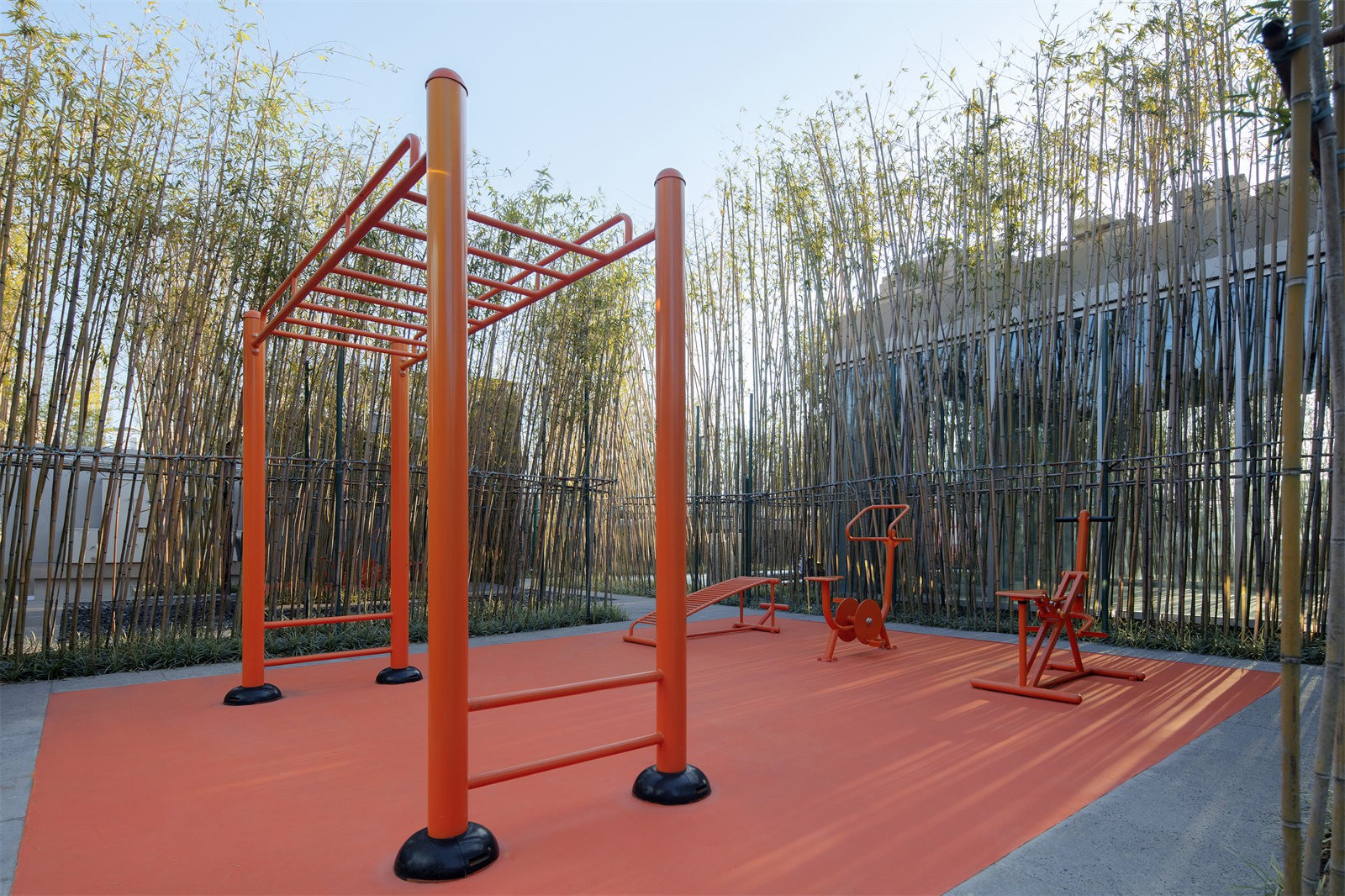

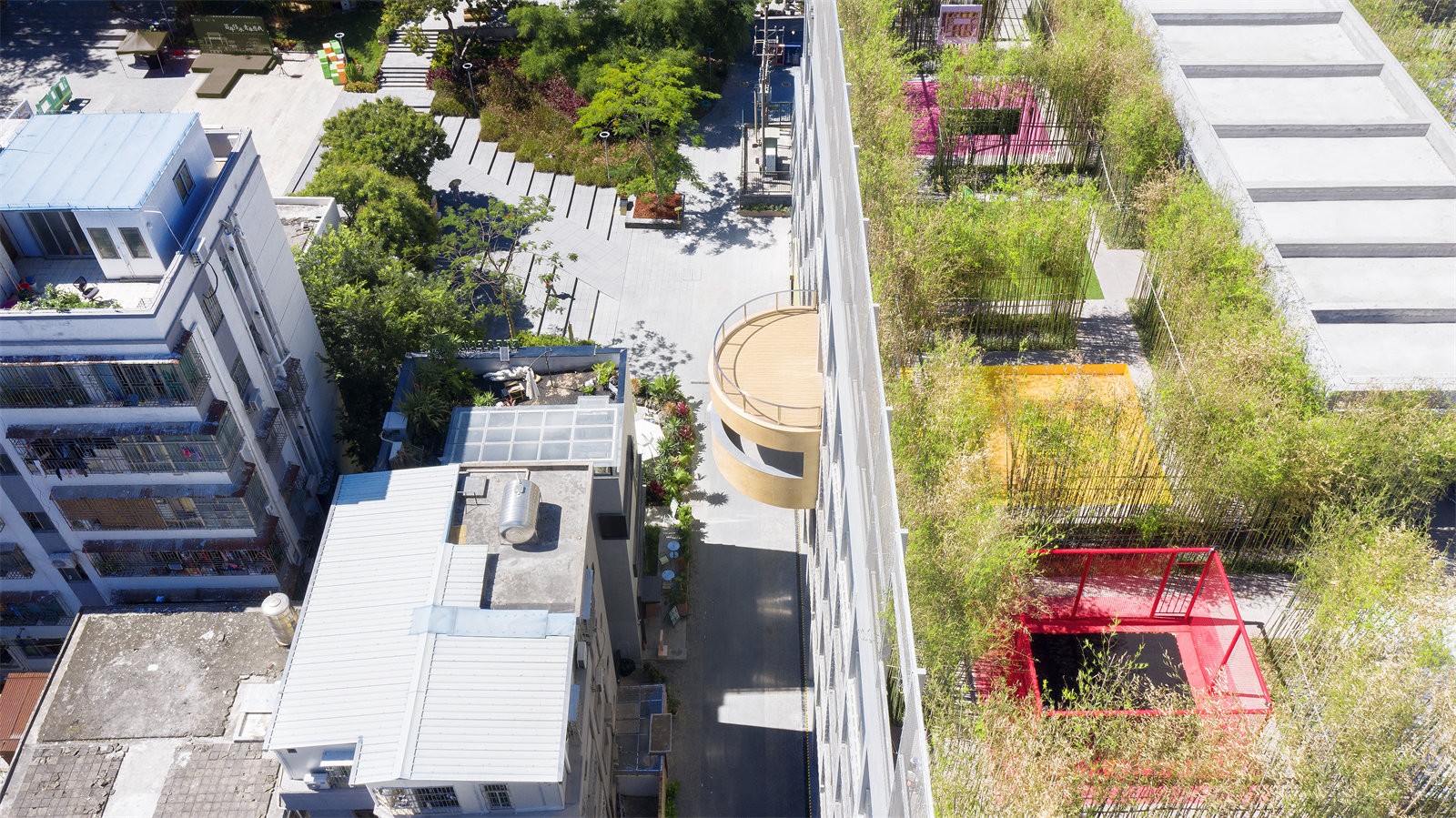

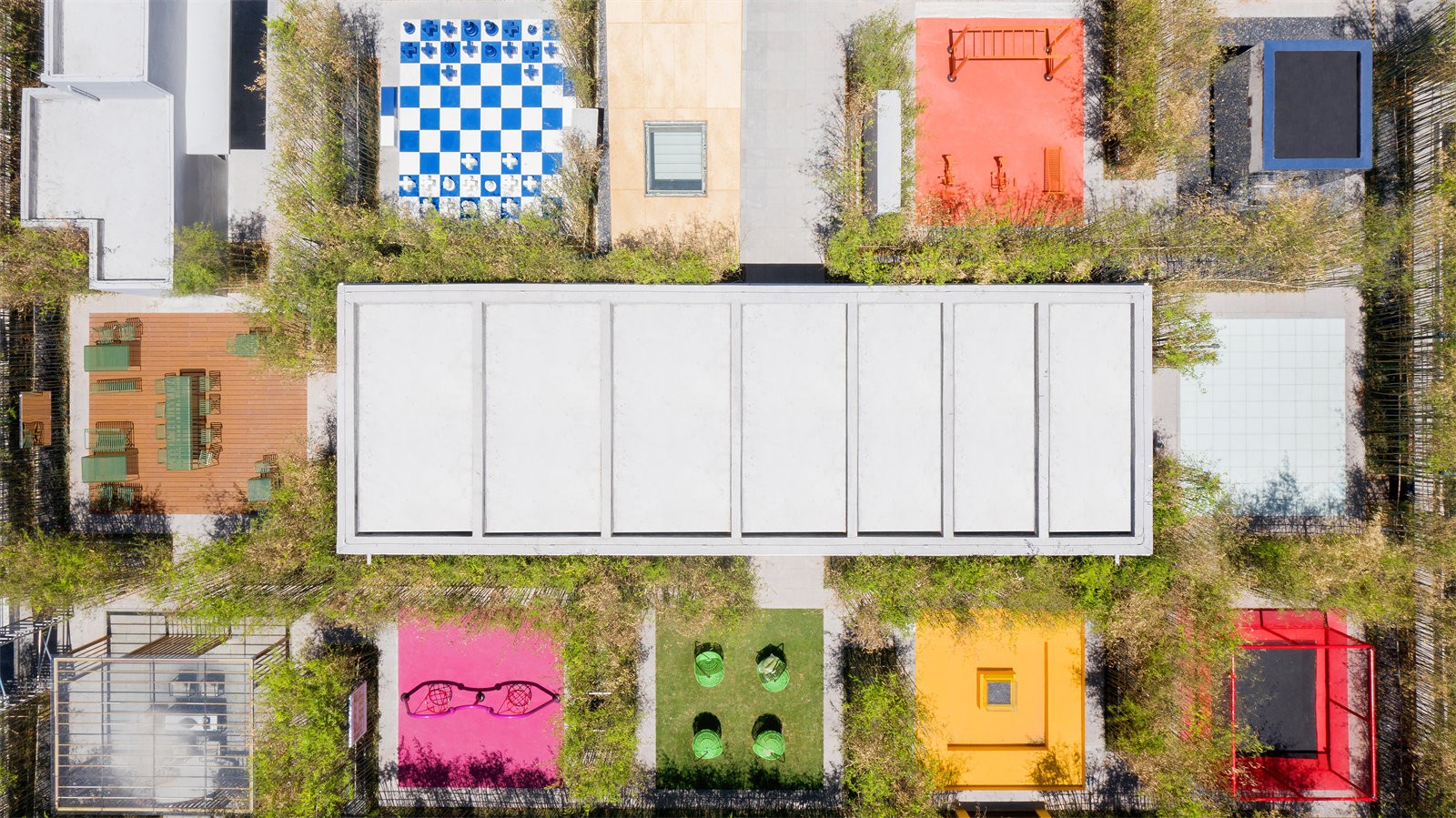

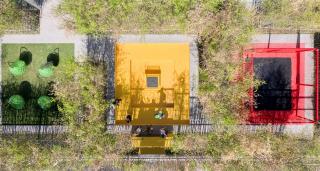

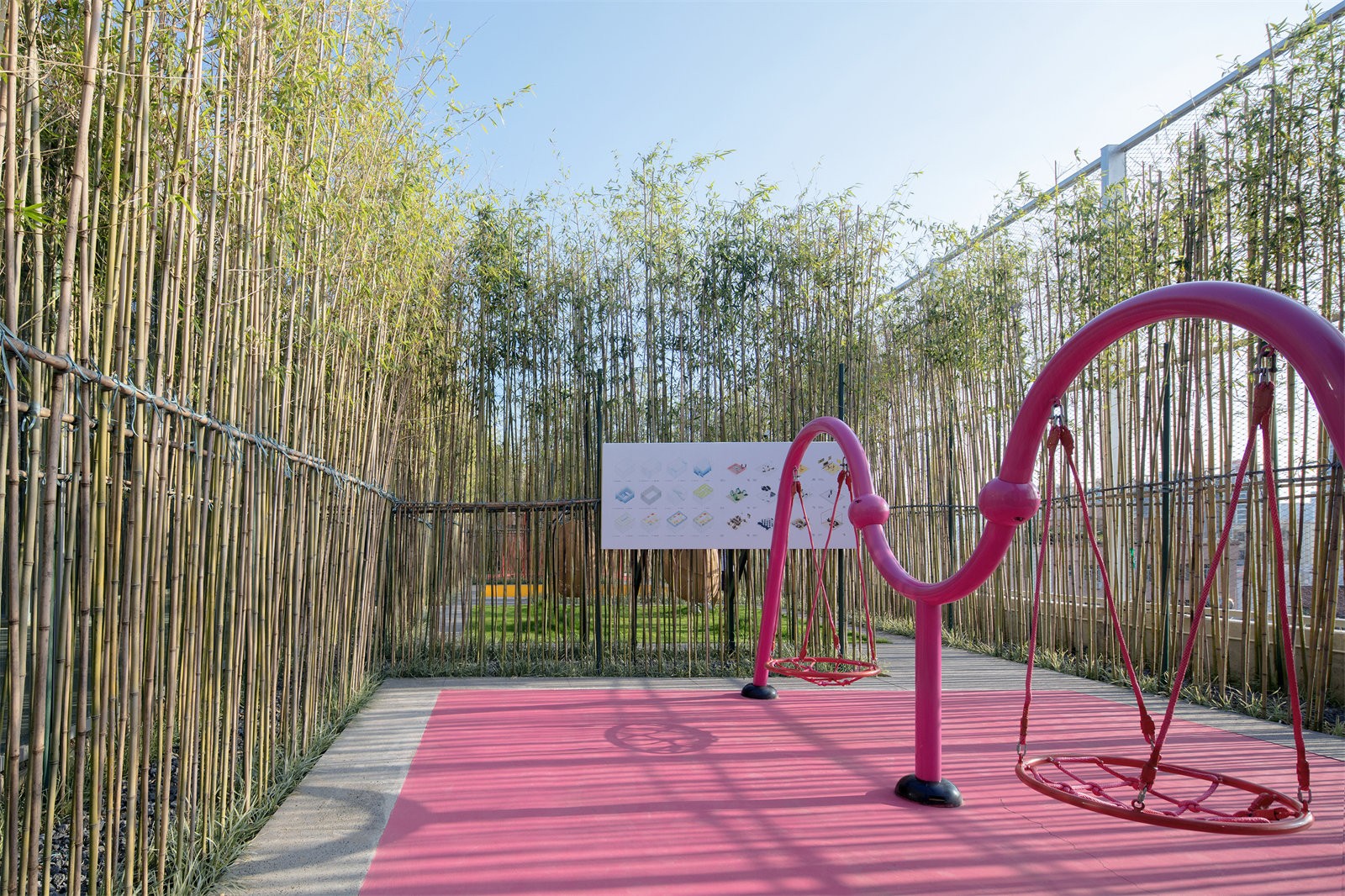

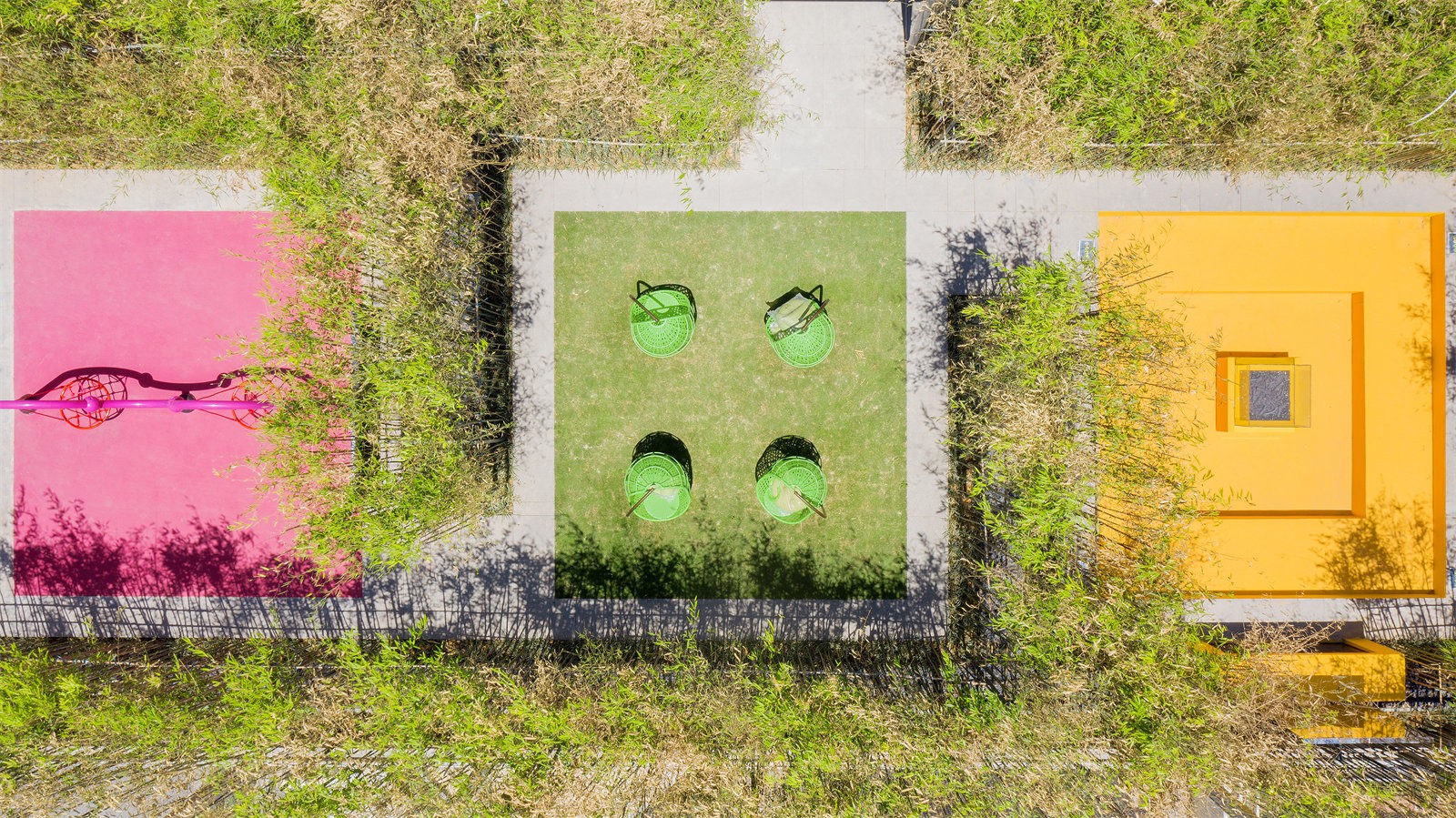

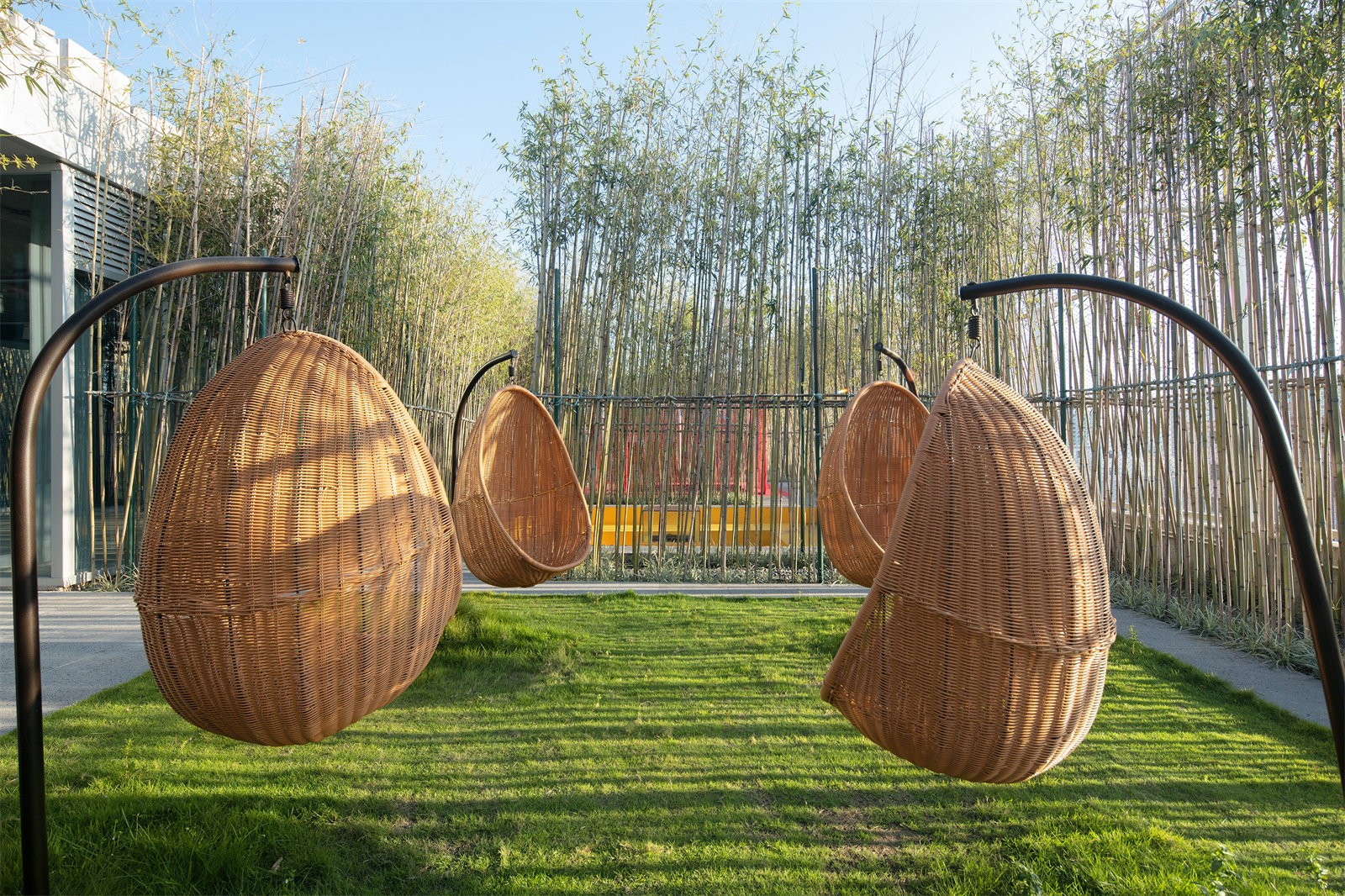

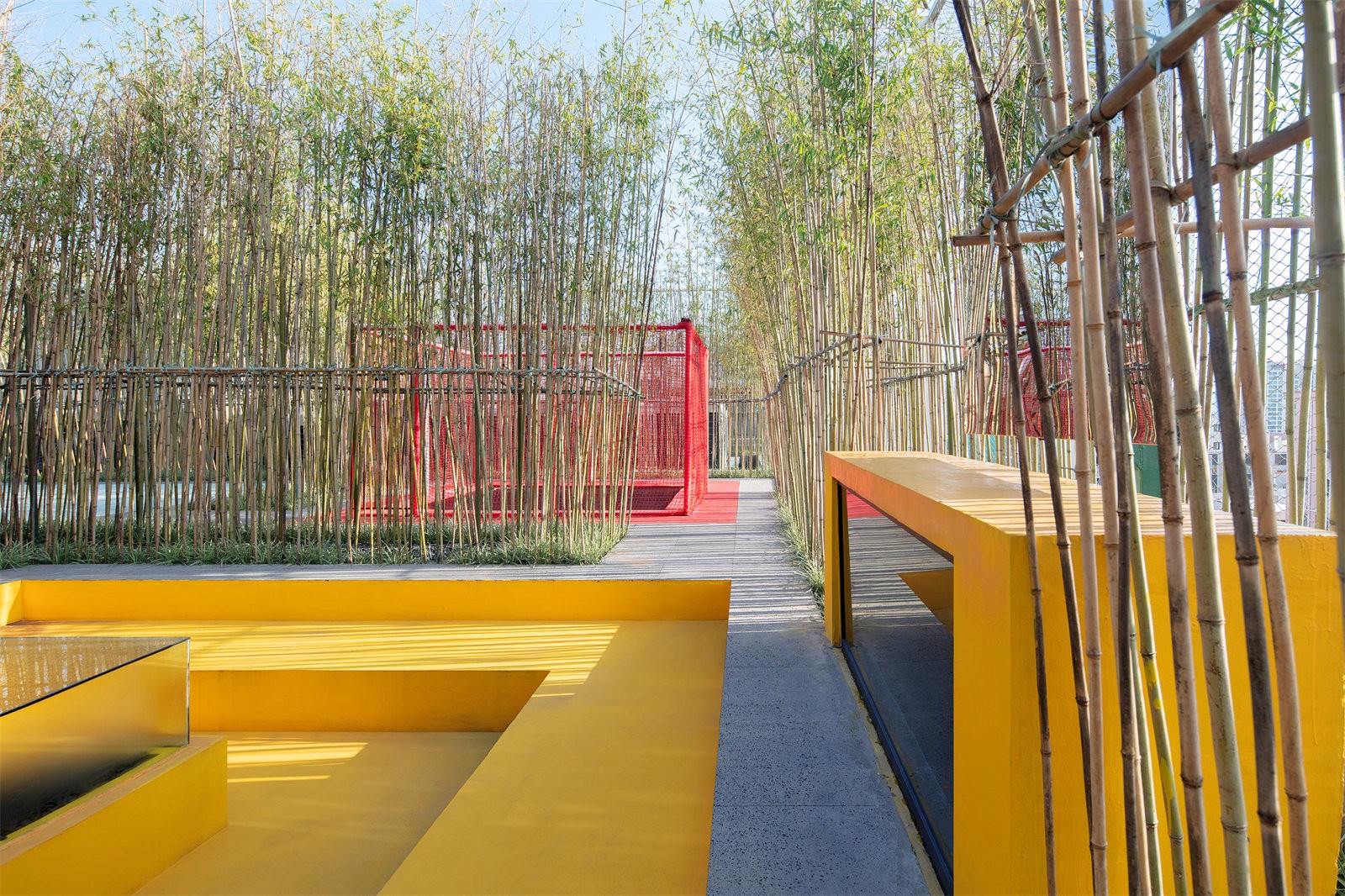

▼樓頂?shù)牟煌顒?dòng)空間

Green bamboo landscape packed with amenities and activities ? Xia Zhi 夏至

MVRDV 創始合伙人 Winy Maas 表示，IF工廠為我們展示了一些人們認為“破舊”或超出使用期限的建筑存在的多種可能性。我們不僅可以利用現存的結構，還提升了建筑的使用價值——一方面增加了額外的樓層，另一方面將這個項目的綠色和公共屋頂并入南頭的公共領域里。這顯示出深圳這座新型超級城市正逐步進入建筑的更新和再利用階段，并將這些老建筑轉變?yōu)椤靶率焦沤ā薄?nbsp;

“The Idea Factory shows us the wealth of possibilities offered by buildings that some may think are ‘dilapidated’ or beyond their useful lifespan”, says MVRDV founding partner Winy Maas. “Not only were we able to make use of this existing structure, we intensified its use – adding an extra floor – and wove it into the public realm of Nantou with its green and public rooftop. It shows that the ‘hyper-new’ city of Shenzhen is entering its phase of reusing and renewing old buildings and turning them into the ‘new-old’.”

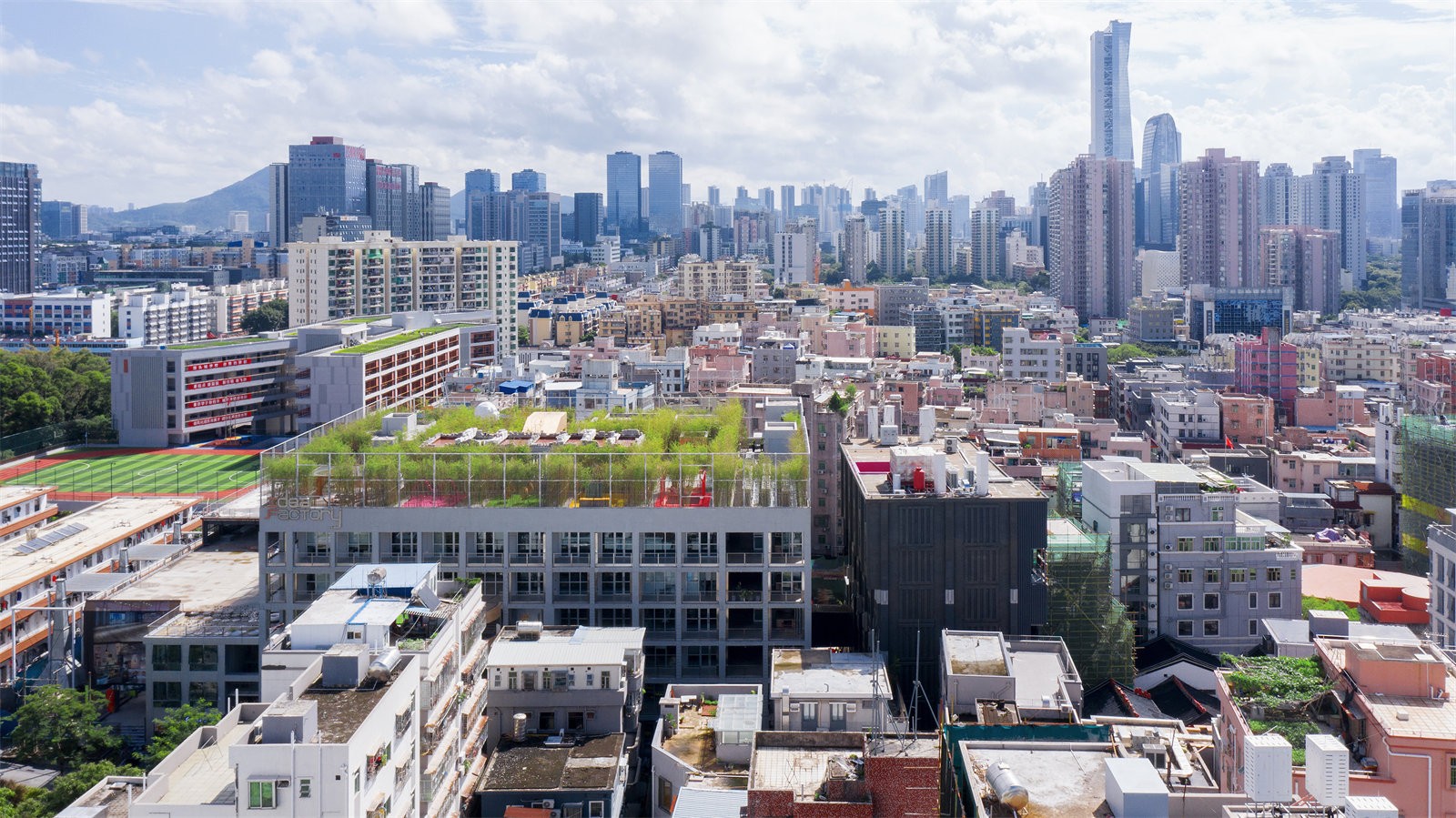

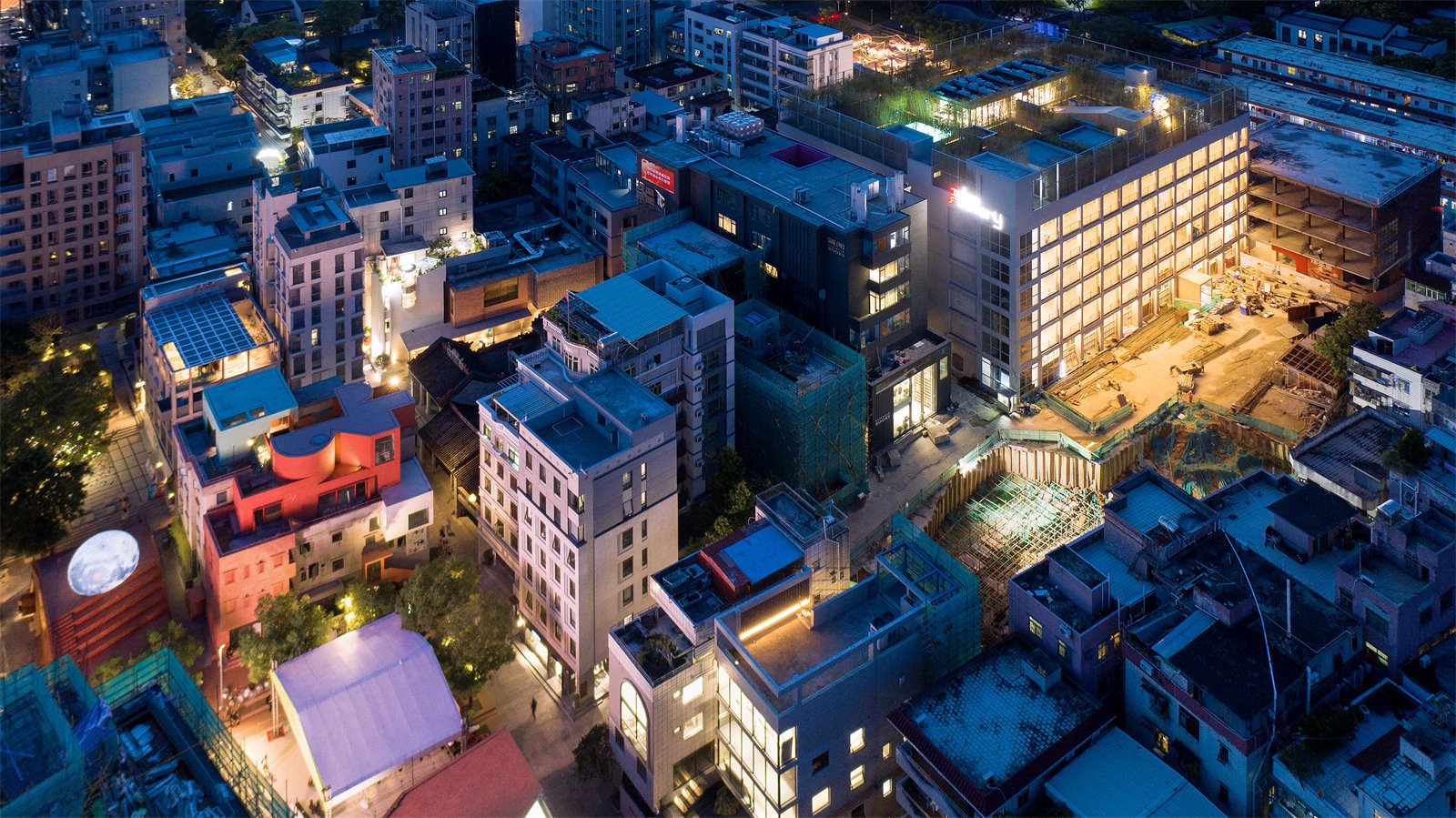

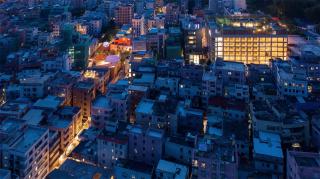

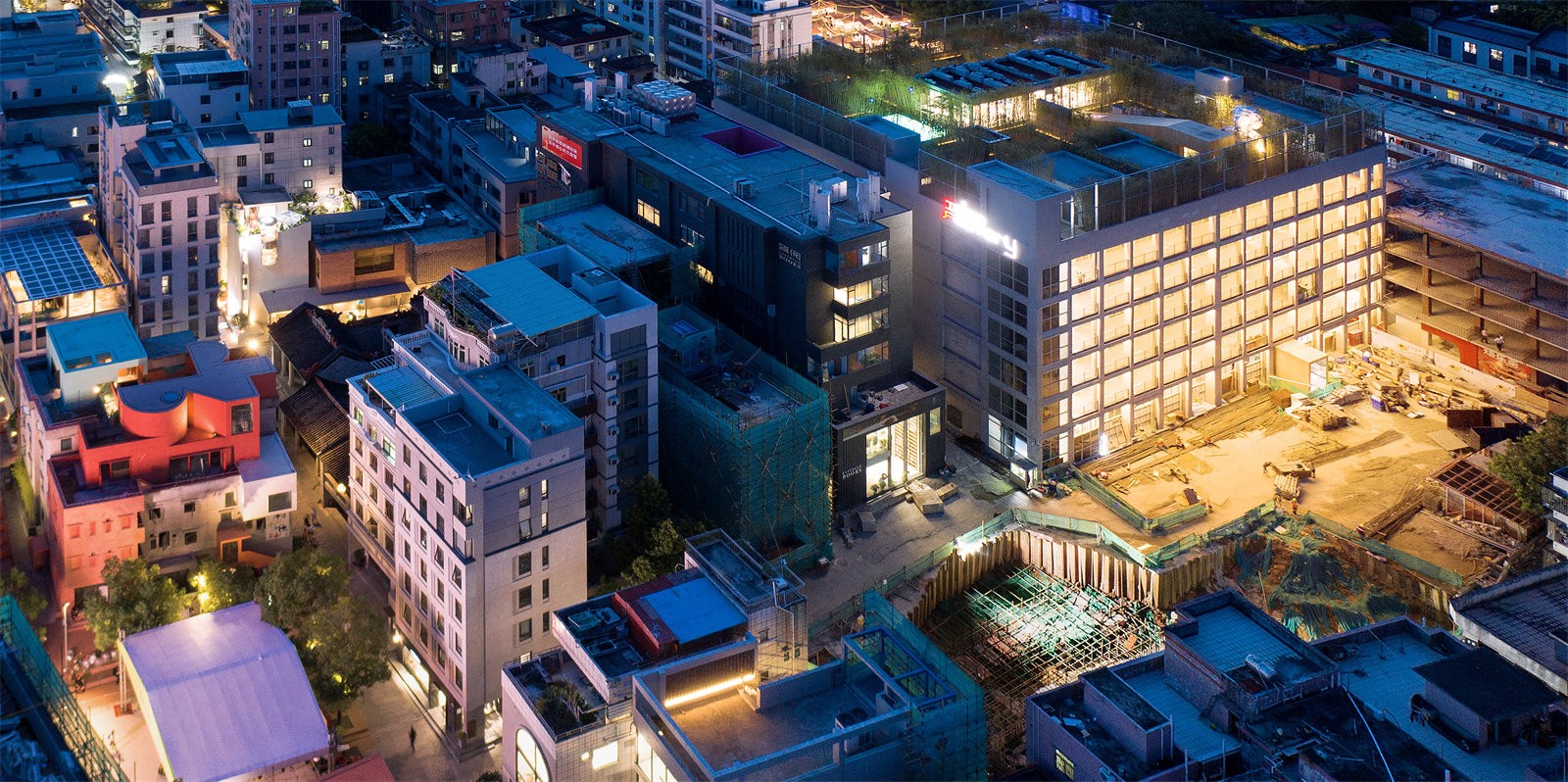

▼深圳城市更新中的IF工廠

The Idea Factory in reusing and renewing of Shenzhen ? Xia Zhi 夏至

MVRDV受深圳市南山區建筑工務署和深圳萬科委托改造設計「IF工廠」，與萬科城市研究院、萬路設計咨詢和深圳博萬建筑設計公司合作完成。

MVRDV designed the Idea Factory for the Shenzhen Nanshan District Bureau of Public Works and Shenzhen Vanke Development. The design was completed in collaboration with the Urban Research Institute of Vanke, vaLue Design, and the Shenzhen Bowan Architecture Design Institute.

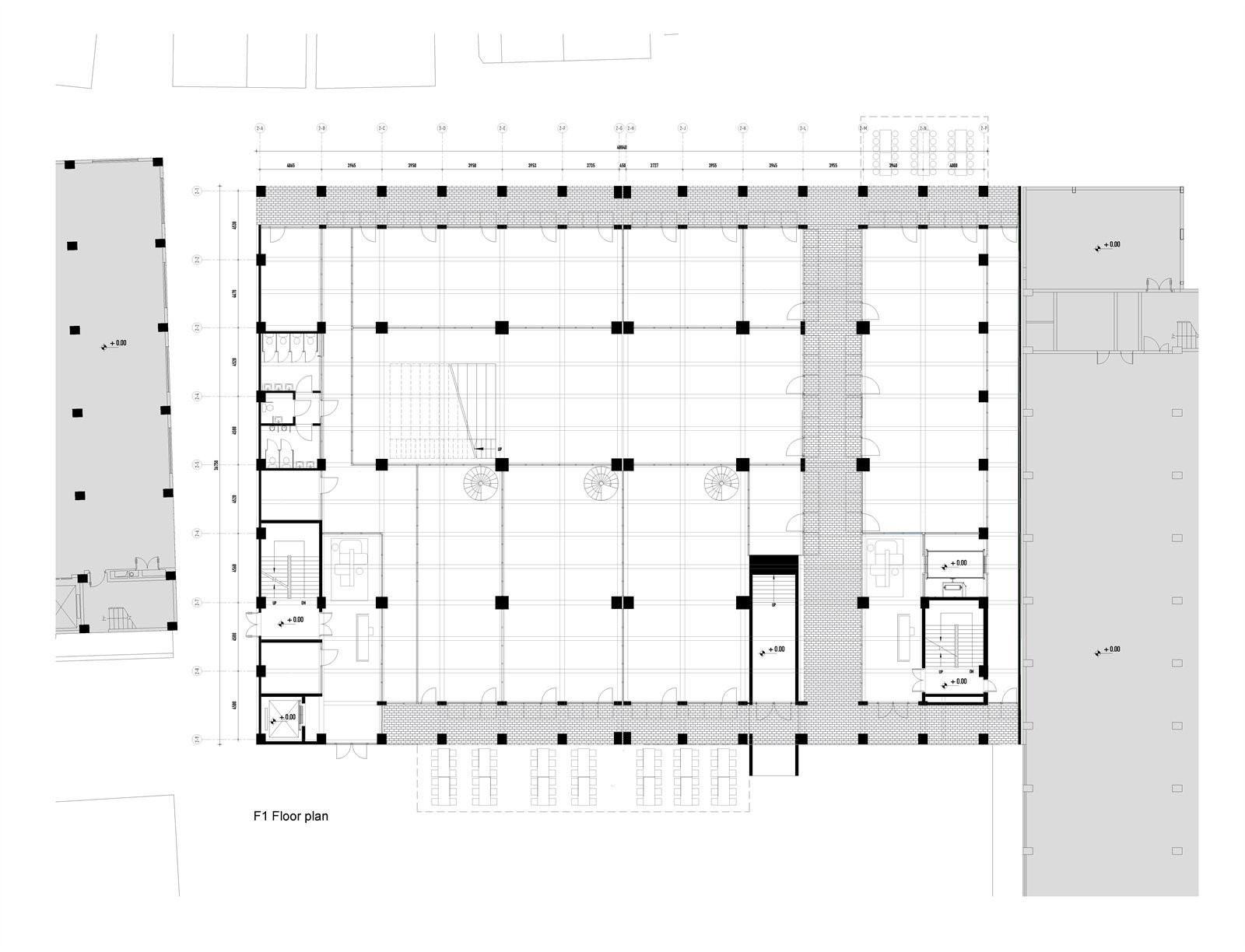

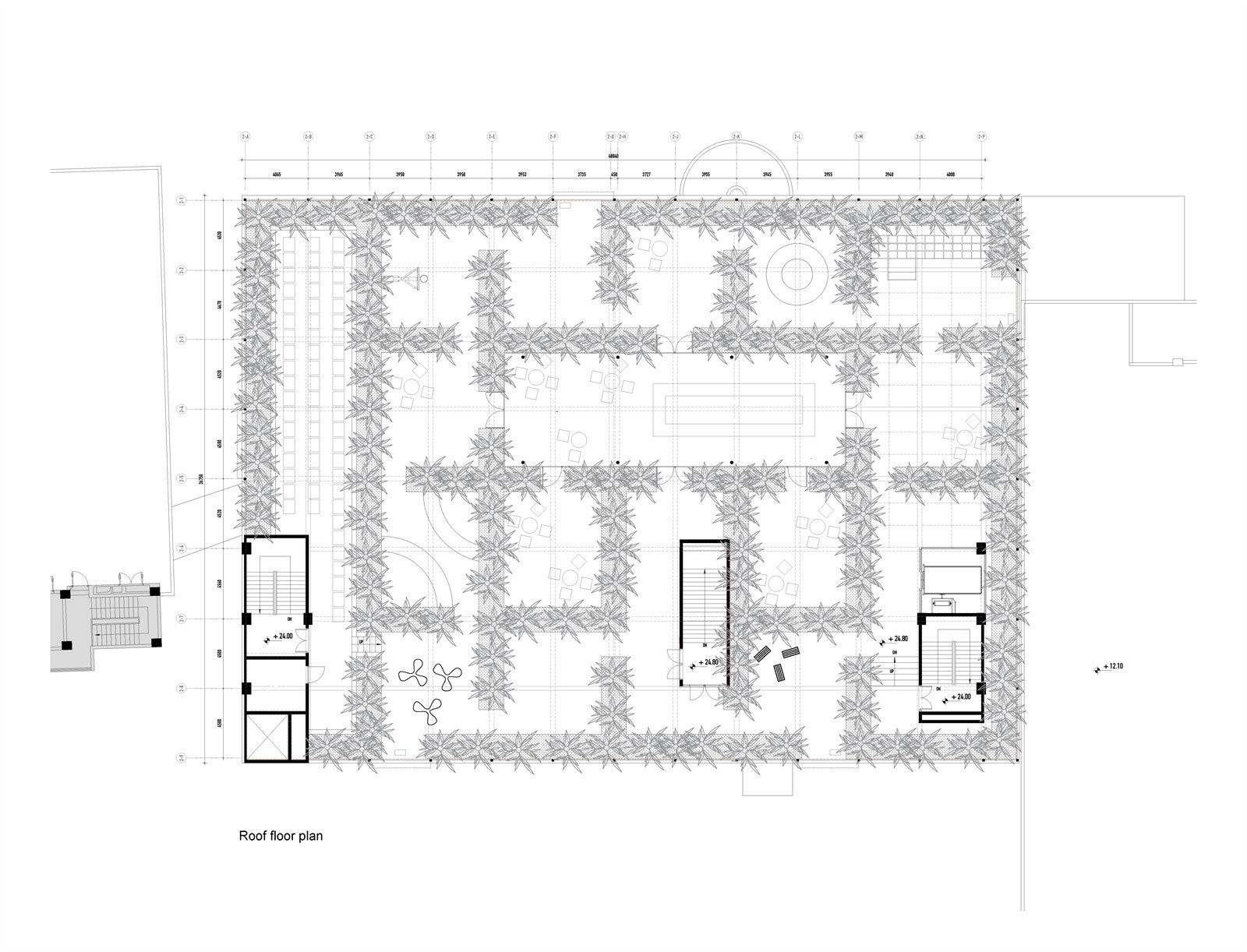

▼平面圖

Plan ? SLA

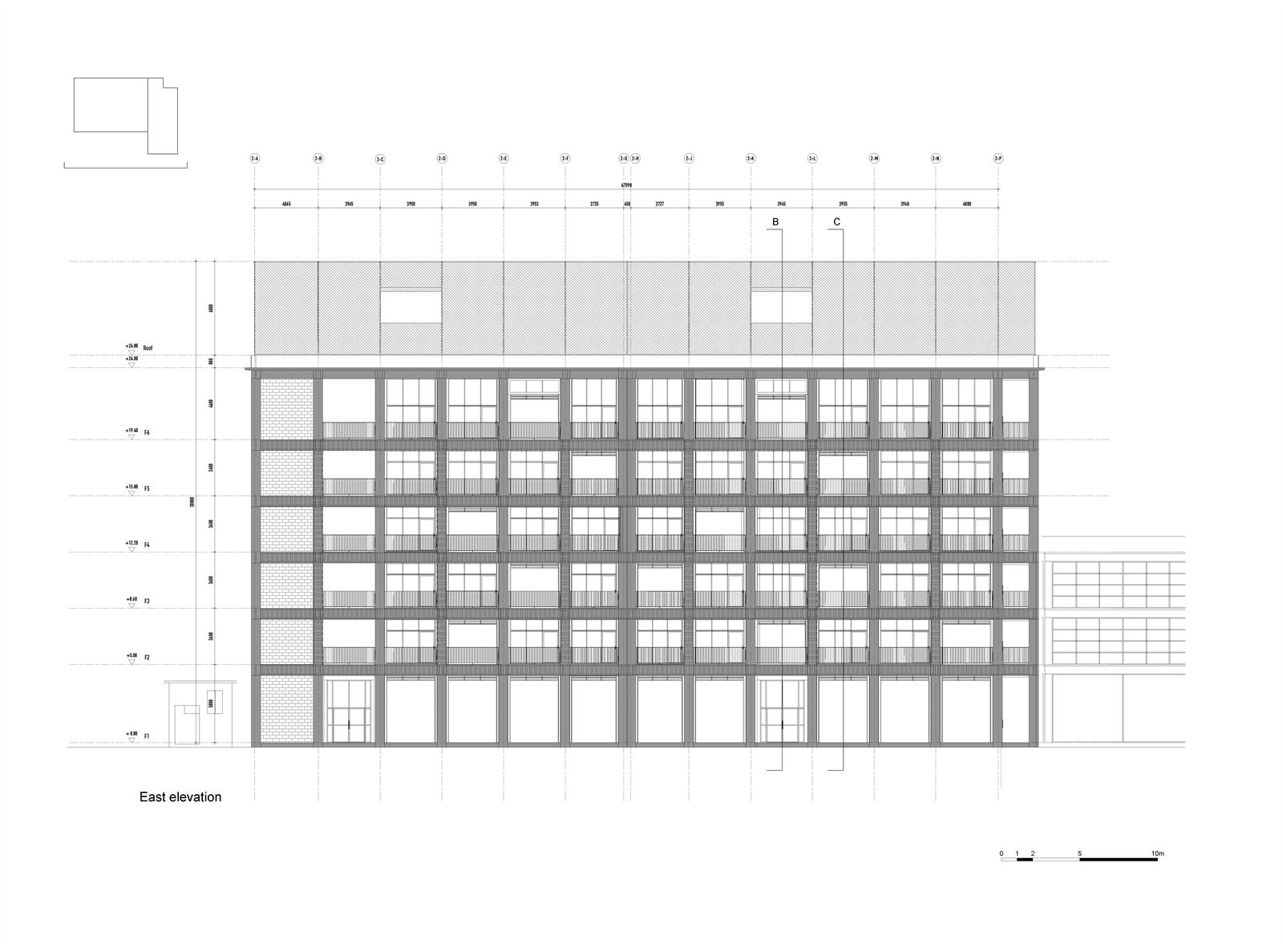

▼立面圖

Elevation ? SLA

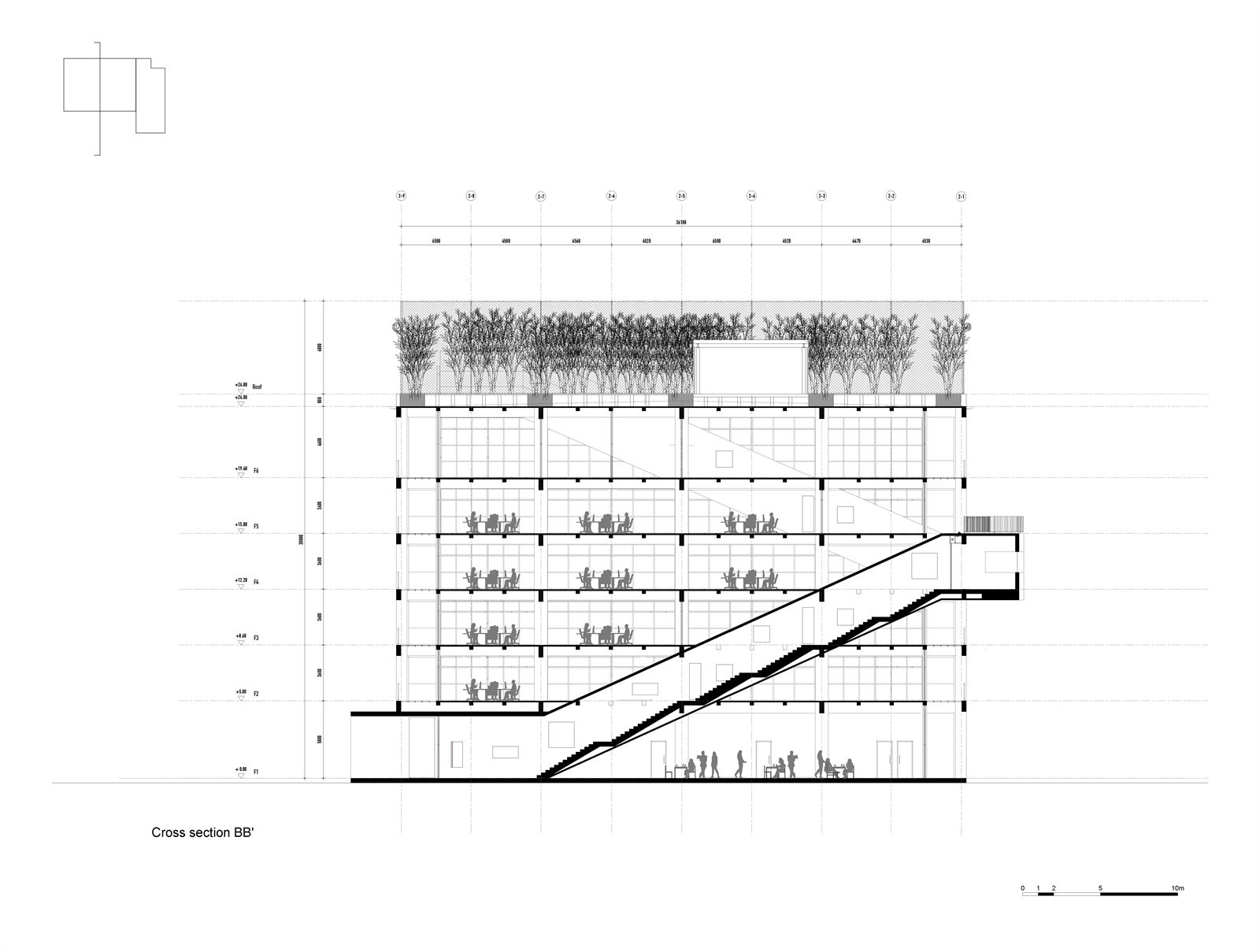

▼剖面圖

Cross section ? SLA

^{項目信息}

^{項目名稱：深圳IF工廠}

^{項目地址：中國深圳}

^{建成時間：2021}

^{項目規模：11,000 m2}

^{委托方：深圳南山區公共事業局，深圳萬科有限公司}

^{建筑設計：MVRDV}

^{景觀設計：SLA}

^{創始合伙負責人：Winy Maas}

^{設計團隊： Lorenzo Mattozzi, Guang Ruey Tan, Peter Chang, Cai Zheli, Echo Zhai, Pim Bangert, Elien Deceuninck, Daehee Suk, Monika Wiecha, Alberto Menozzi, Alexis Lode, Anamarija Vrzina, Enrica Perrot, Luca Beltrame, Michele Tavola, Hengwei Ji}

^{視覺效果：Antonio Coco, Pavlos Ventouris, Luc Piattelli, Magda Bykowska, Jaroslaw Jeda}

^{Director MVRDV Asia: Steven Smit}

^{MVRDV亞洲區負責人：Steven Smit}

^{策略與發展：Jammy Zhu}

^{版權：MVRDV Winy Maas, Jacob van Rijs, Nathalie de Vries}

^{合作設計：}

^{項目規劃和設計管理：萬科城市研究院，vaLue Design}

^{合作建筑設計：深圳Bowan建筑設計院}

^{景觀設計：Yuanye景觀設計}

^{燈光設計：GD-Lighting設計}

^{幕墻咨詢：PAG}

^{本地建筑設計：Biaogao設計}

^{攝影/視頻：? Xia Zhi 夏至}

^{Project Name: Idea Factory}

^{Location: Shenzhen, China}

^{Year: 2021}

^{Client: Bureau of Public Works of Shenzhen Municipality Nanshan District; Shenzhen Vanke}

^{Development Ltd.}

^{Size and Programme: 11,000m2 Office}

^{Architect: MVRDV}

^{Founding Partner in charge: Winy Maas}

^{Partner: Wenchian Shi}

^{Design Team: Lorenzo Mattozzi, Guang Ruey Tan, Peter Chang, Cai Zheli, Echo Zhai, Pim Bangert, Elien Deceuninck, Daehee Suk, Monika Wiecha, Alberto Menozzi, Alexis Lode, Anamarija Vrzina, Enrica Perrot, Luca Beltrame, Michele Tavola, Hengwei Ji}

^{Visualizations: Antonio Coco, Pavlos Ventouris, Luc Piattelli, Magda Bykowska, Jaroslaw Jeda}

^{Director MVRDV Asia: Steven Smit}

^{Strategy and Development: Jammy Zhu}

^{Copyright: MVRDV Winy Maas, Jacob van Rijs, Nathalie de Vries}

^Partners:

^{Project planning and design management: Urban Research Institute of China Vanke; vaLue}

^{Co-architect: Shenzhen Bowan Architecture Design Institute}

^{Landscape architect: Yuanye Landscape Design}

^{Lighting designer: GD-Lighting Design}

^{Fa?ade Consultant: PAG}

^{Local Interior architect: Biaogao Design}

^{Photographs/Video: ? Xia Zhi 夏至}
