楊浦濱江公共空間二期景觀設計 | 大觀景觀+同濟原作設計

大觀景觀 2021-04-15

原創

項目名稱：

楊浦濱江公共空間二期設計景觀設計
項目地點：

上海
項目規模：

67000平方米
設計公司：

大觀景觀同濟原作設計
委托方：

楊浦區浦江辦/楊浦濱江投資發展有限公司
圖片來源：

金笑輝

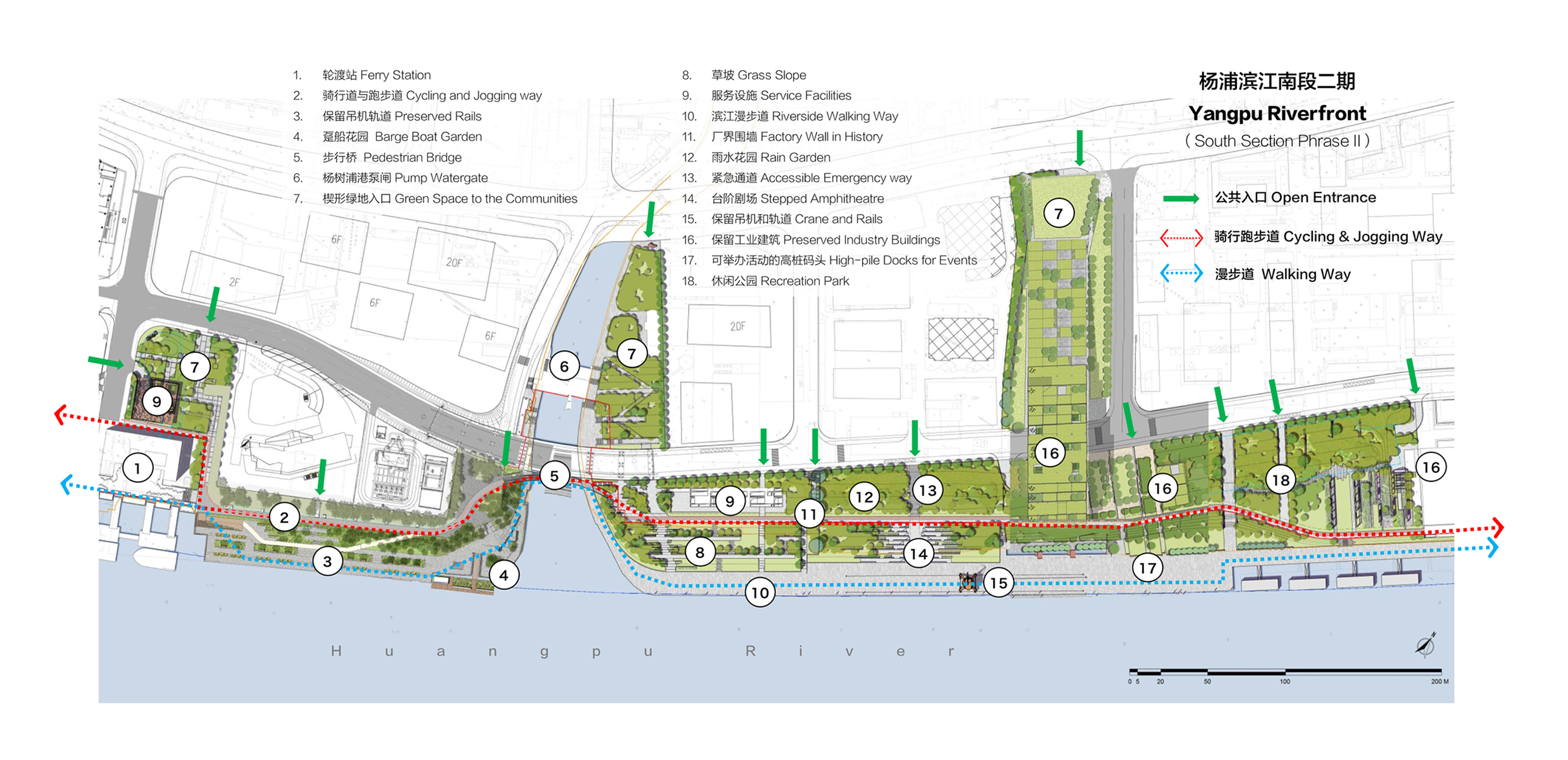

基地位于楊浦濱江南段的丹東路、寧國路兩個輪渡站之間，擁有近1.2公里的水岸線和30~100米不等的腹地空間，總用地6.7公頃。歷史上曾集聚了祥泰木行（1912年）、怡和冷庫（1920年）、明華糖廠（1924年）以及舊上海魚市場（1946年），在后工業時代遺留下的大量空置廠房與碼頭，阻擋了周邊社區人們走入江邊，也切斷了沿江而行的步行動線?；厮媾R的另一個挑戰是防汛體系。作為一個人口超過2400萬人的高密度城市，上海在黃浦江兩岸執行了嚴苛的千年一遇的防汛標準，這使得大部分的防汛墻頂部要比周邊地坪高出2-3米，導致人們無法看到江面。

^{The site (Yangpu Riverfront South Section Phase II) is located between two ferry stations with a 1.2-km shoreline of Huangpu River. The 6.7-hectare site has 30-100 meters of hinterland space along the river. Historically, there were Xiangtai Wood (1912), Jardine Cold Storage (1920), Minghua Sugar Factory (1924) and the Old Shanghai Fish Market (1946) in the site. Post-industrial vacant buildings and abandoned docks blocked people from entering the riverfront and also cut off the walking flow along the river. Another challenge of the base is the flood control system. As a high-density city with a population of more than 24 million, Shanghai has implemented stringent flood control standards on the Huangpu River. Most of the flood control walls are 2M above the surrounding ground, blocking people's view of the river.}

Docks and grounds before renovation.jpg

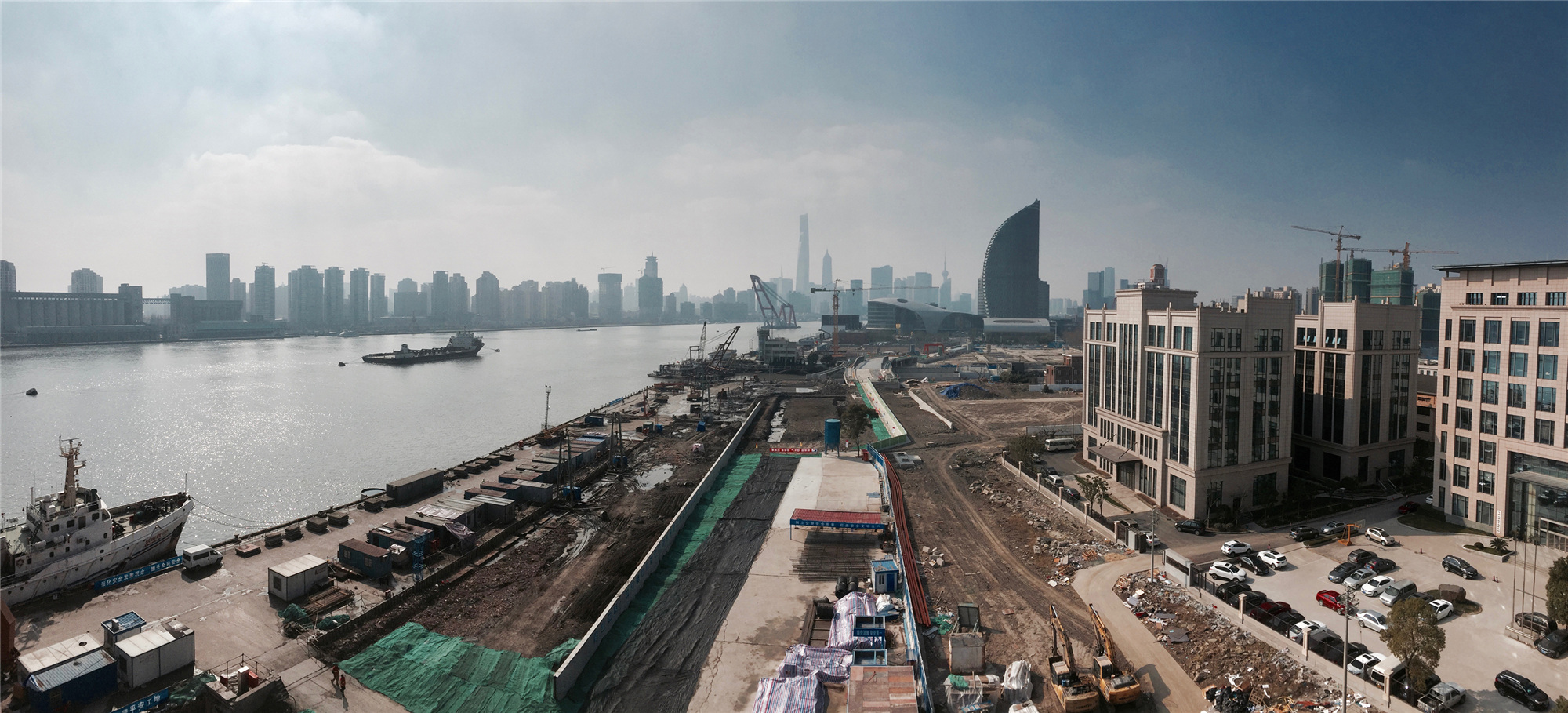

^{▲場地原有的碼頭和空地 Docks and grounds before renovation}

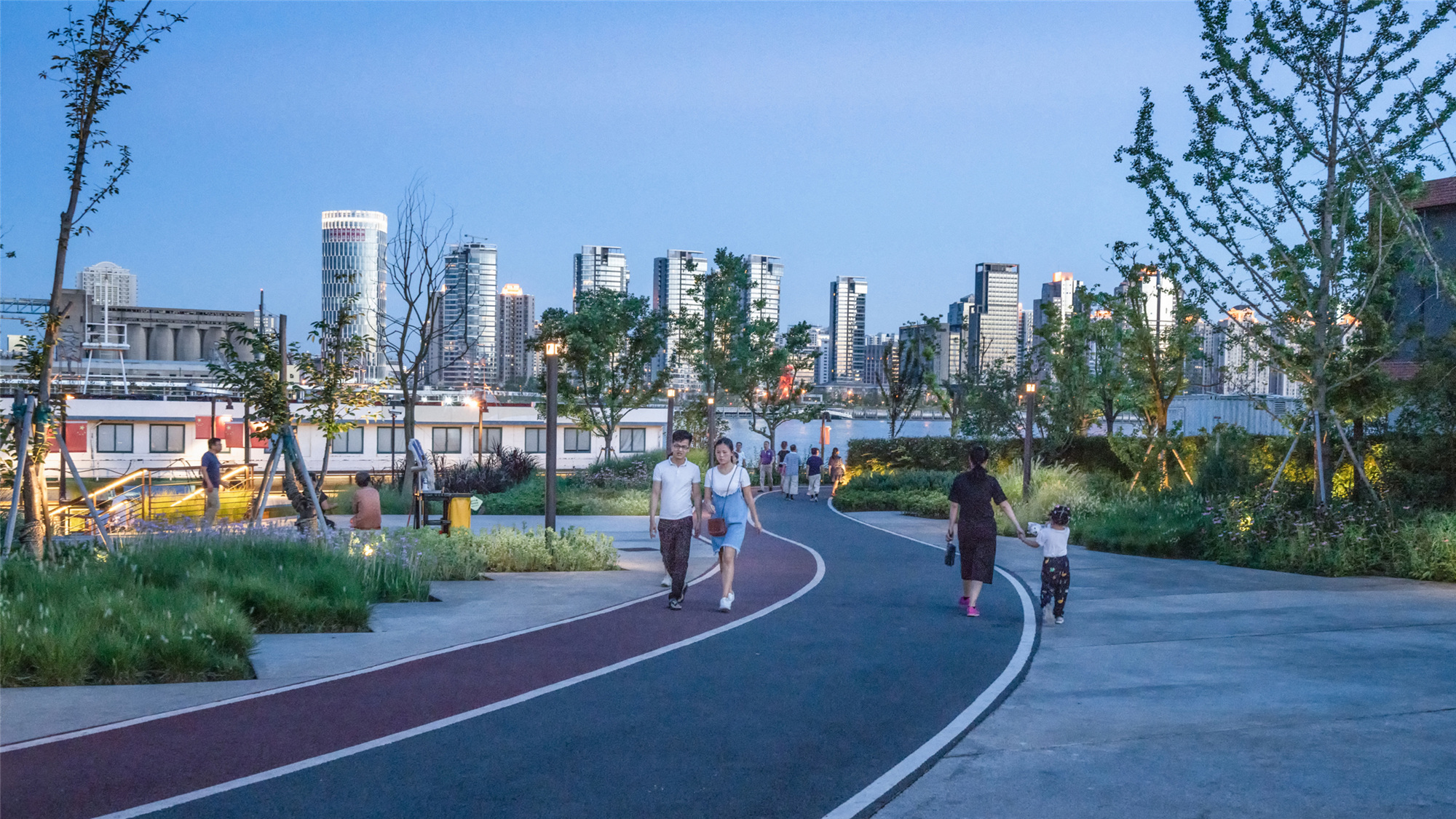

Riverfront Park with more open green space.jpg

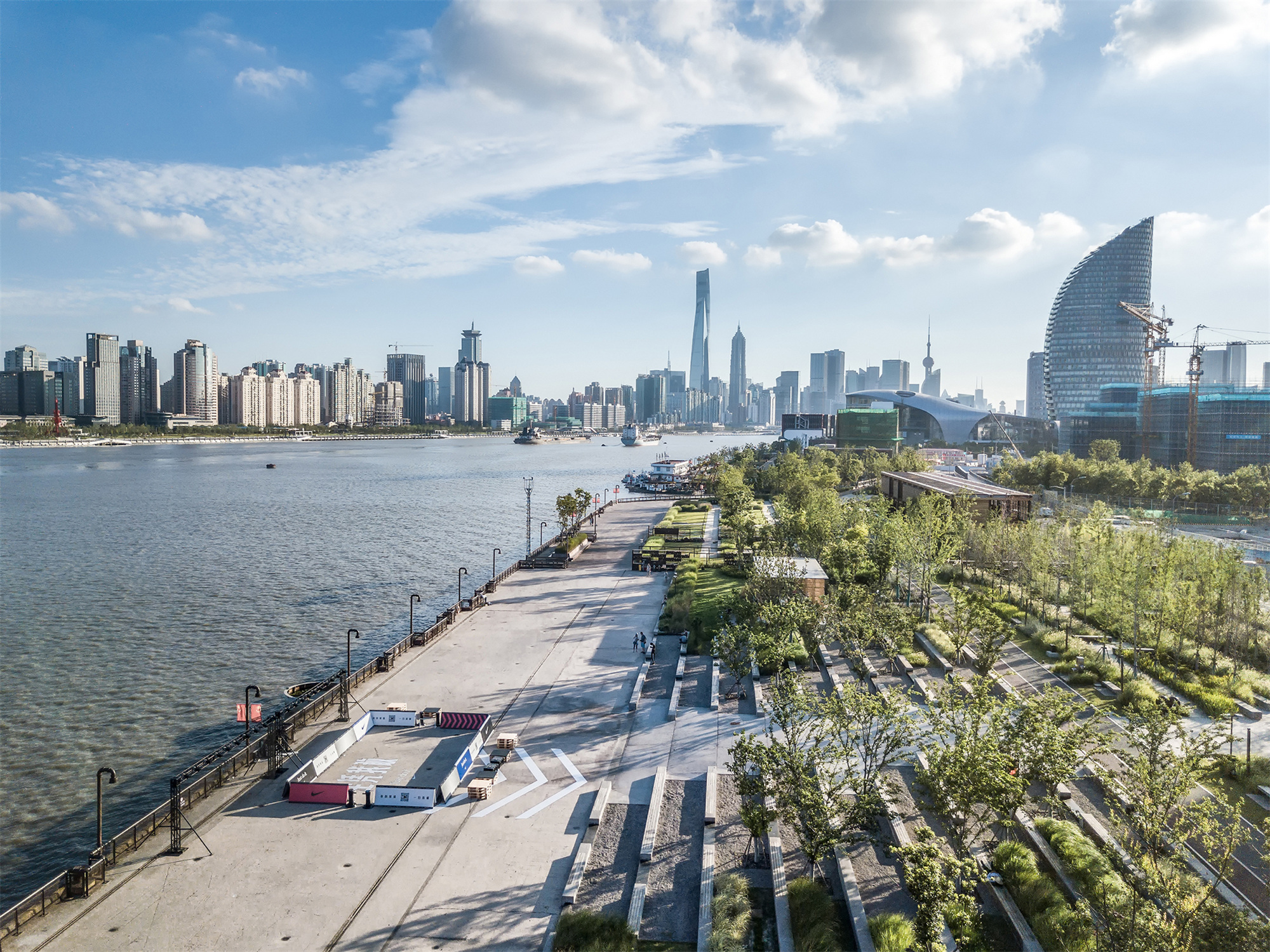

^{▲改造后的濱水公園擁有更多的綠地 Riverfront park with more open green space}

基于現狀，設計提出“看臺與舞臺”的構想，將原來單一的防洪墻改造成兩級系統。第一級墻頂部降低到與現狀高樁碼頭地面高度相同，形成連續的場地空間，成為融合于舊有遺存中承載城市生活的舞臺，以留白的方式鼓勵多元化的使用，同時亦滿足百年一遇的防汛要求；第二級墻采用千年一遇的標準，位置后退20~30米，形成6％坡度的面江休憩空間，轉化為融入景觀地形和種植的看臺，服務游客和市民。

^{Based on the exist situation, the design plan uses the concept of "Stand and Stage" to transform the original single flood wall system into a two-level system.}

^{The top of the first-level wall is lowered to the same height as the ground of the existing high-piled wharf, forming a continuous site space, which becomes a STAGE that integrates with the old remains to carry urban life, encourages diversified use by leaving white space, and also reaches a 100-years Level of flood control standards; The second-level wall with a position of 20-30 meters set back is a-1000-years standard, forming a 6% slope river-facing recreational space, creating a STAND integrated with landscape topography and green plants, serving visitors and local people.}

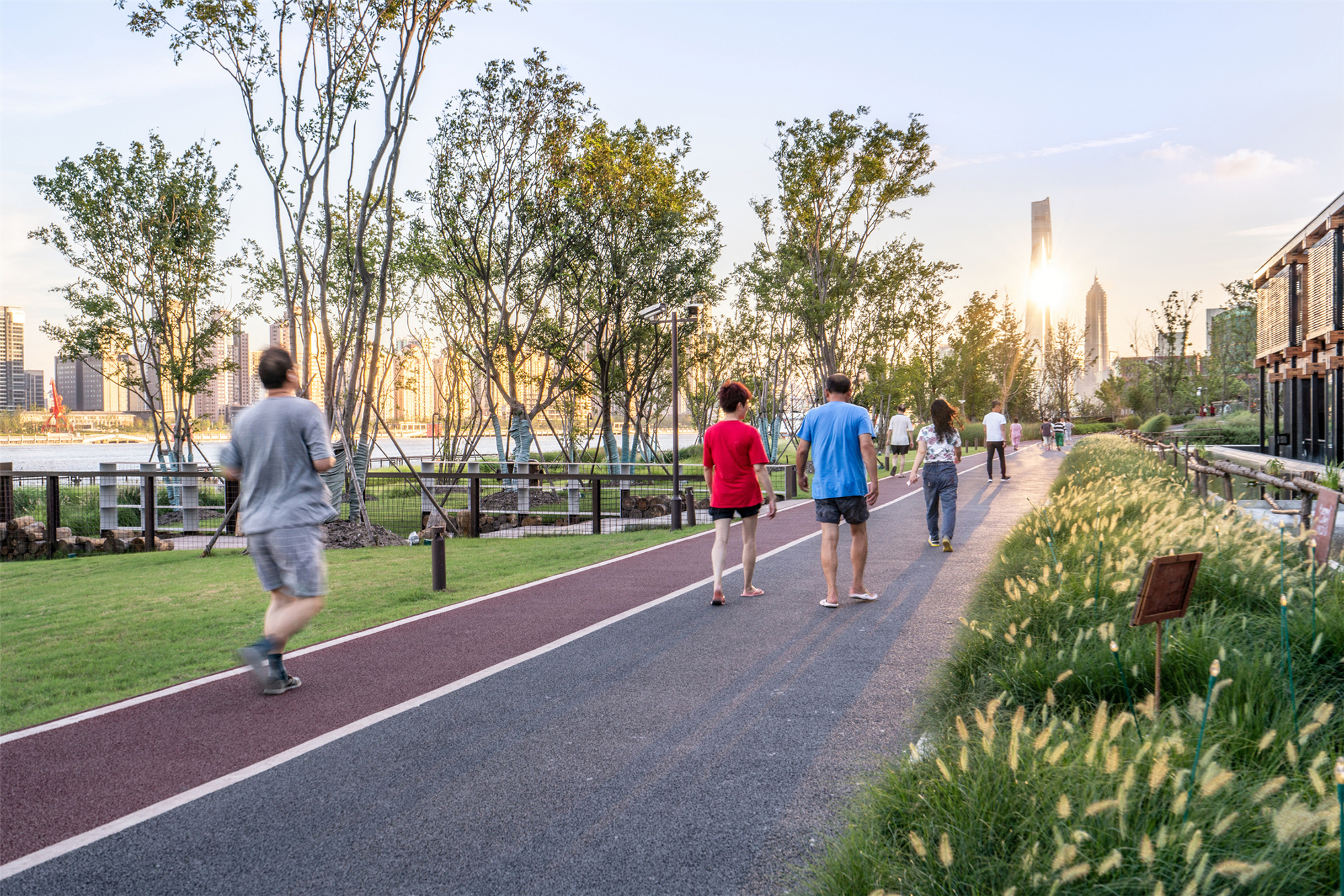

Greenway based on new flood prevention system.jpg

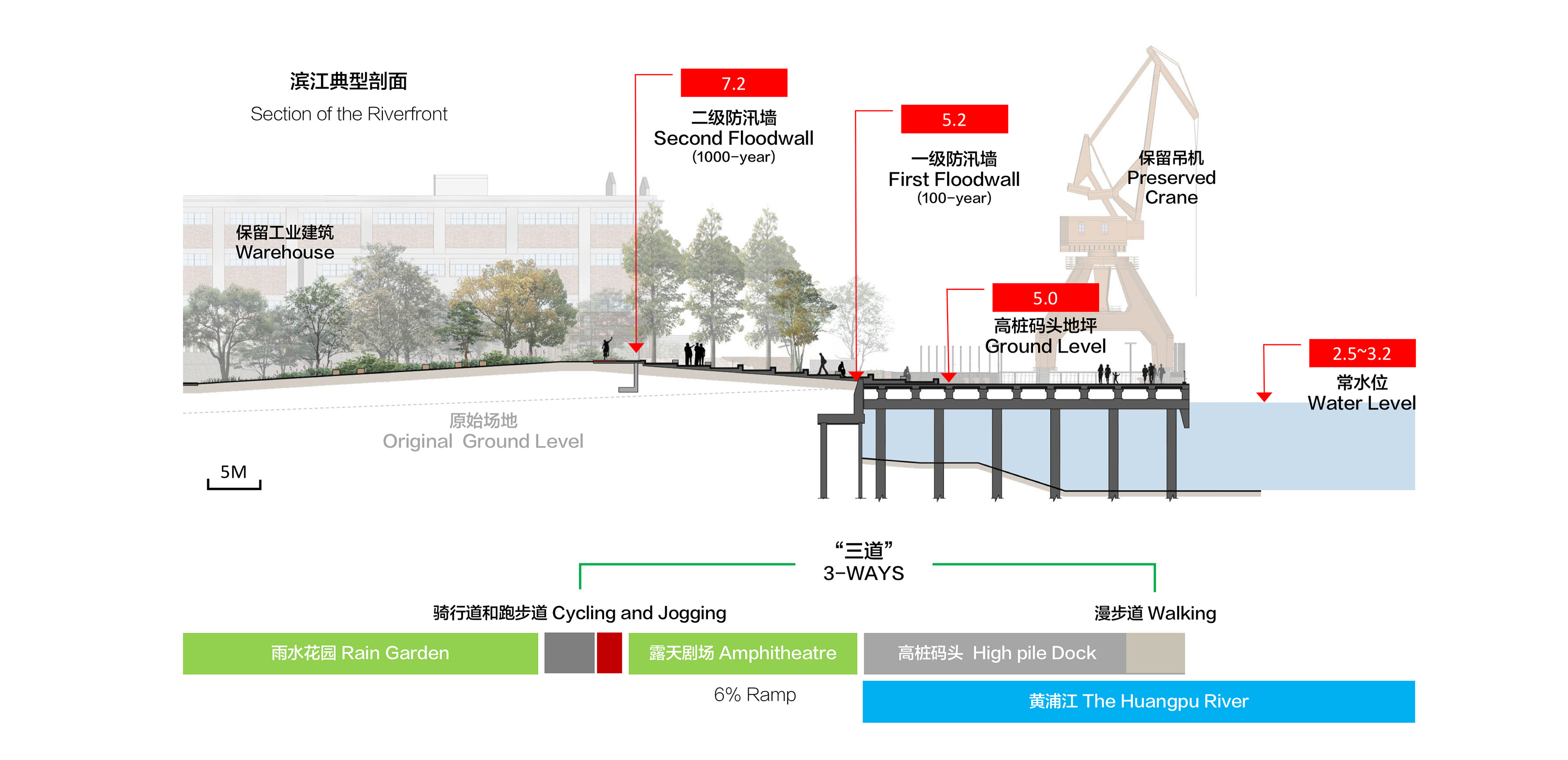

^{▲濱江剖面圖 Section of the riverfront}

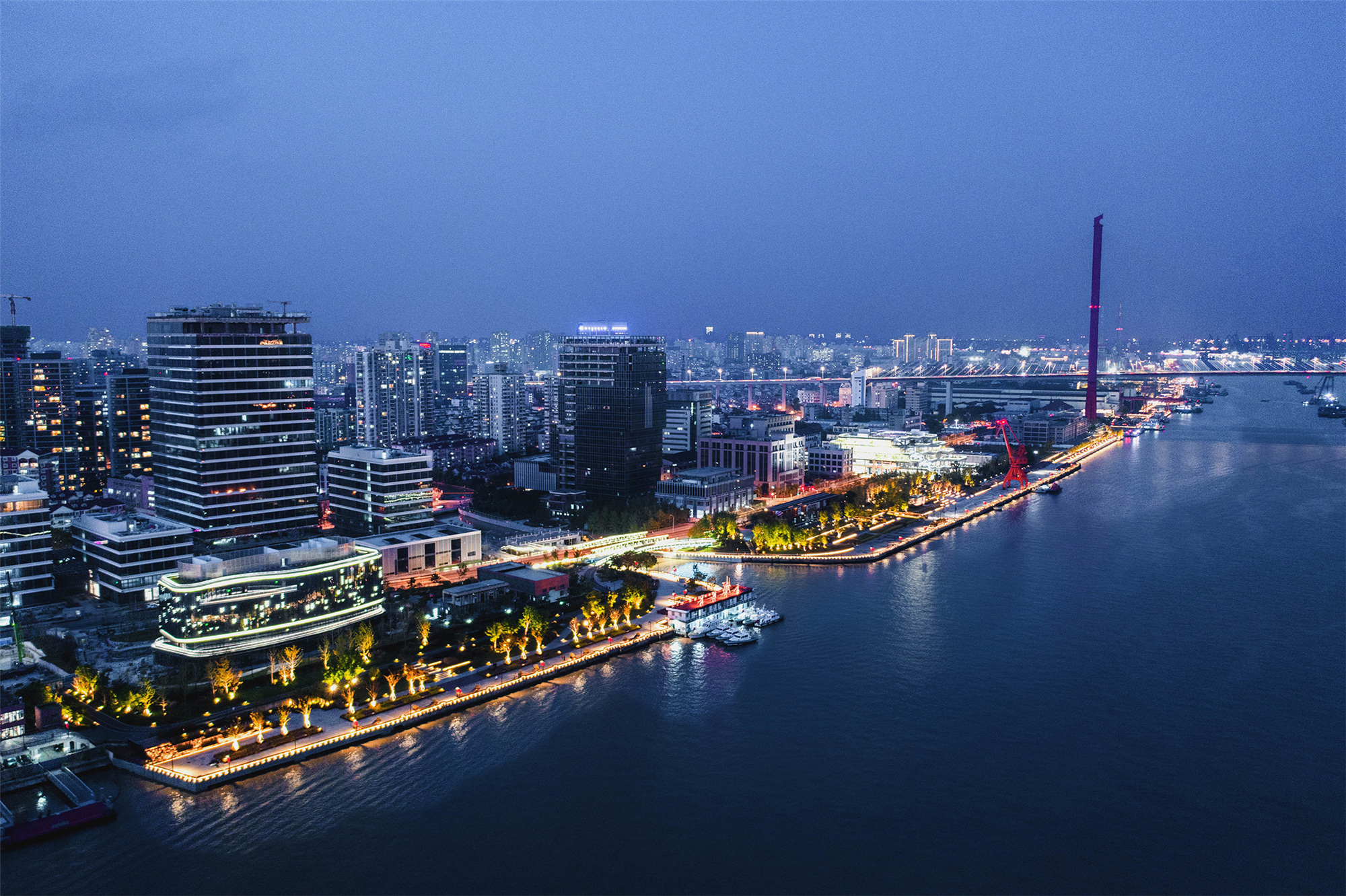

^{▲夜景鳥瞰 Night view}

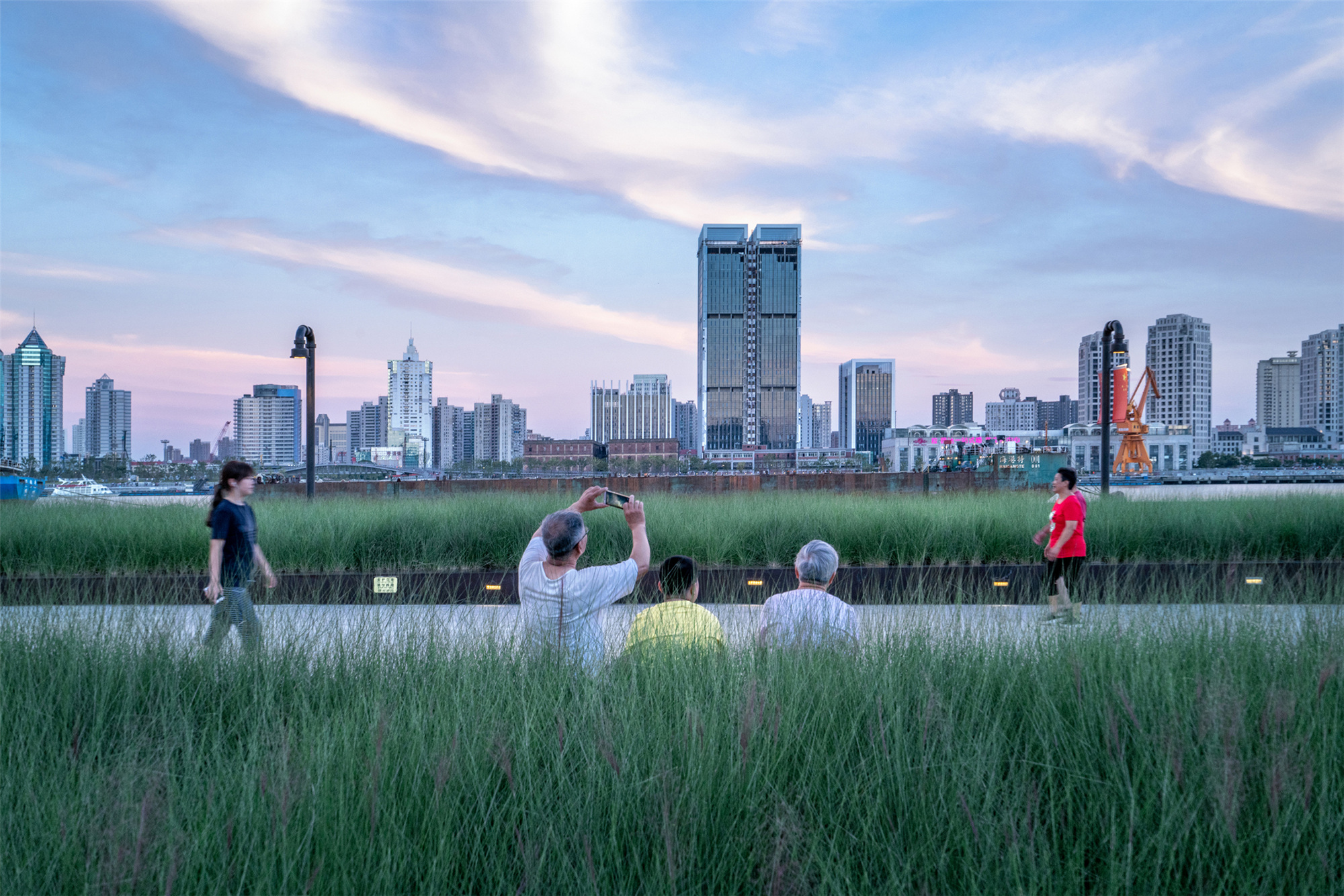

^{▲受到老年人喜愛的面江休憩空間 Open space popular with old people}

Dock with more green.jpg

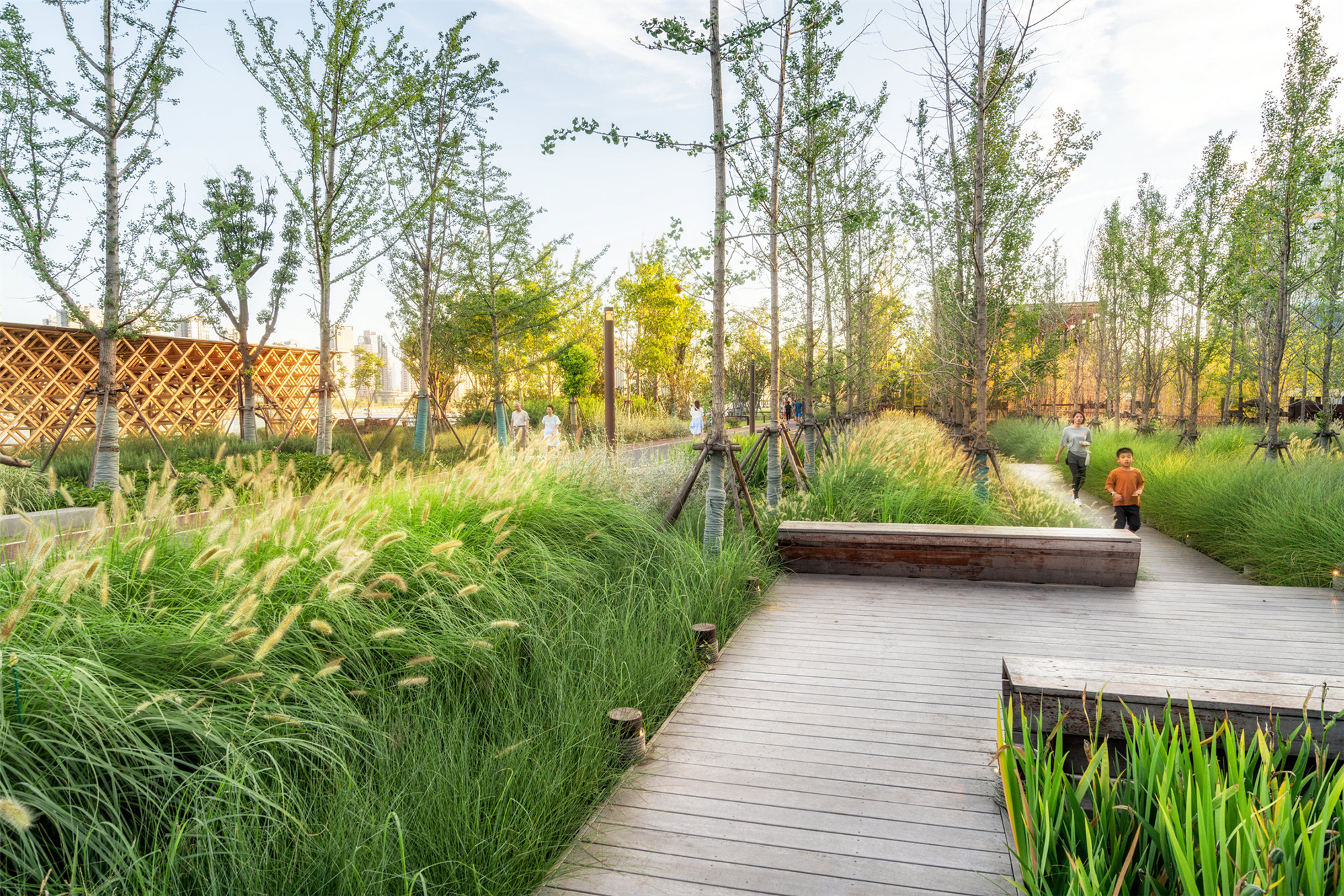

^{▲綠意盎然的碼頭 Dock with more green}

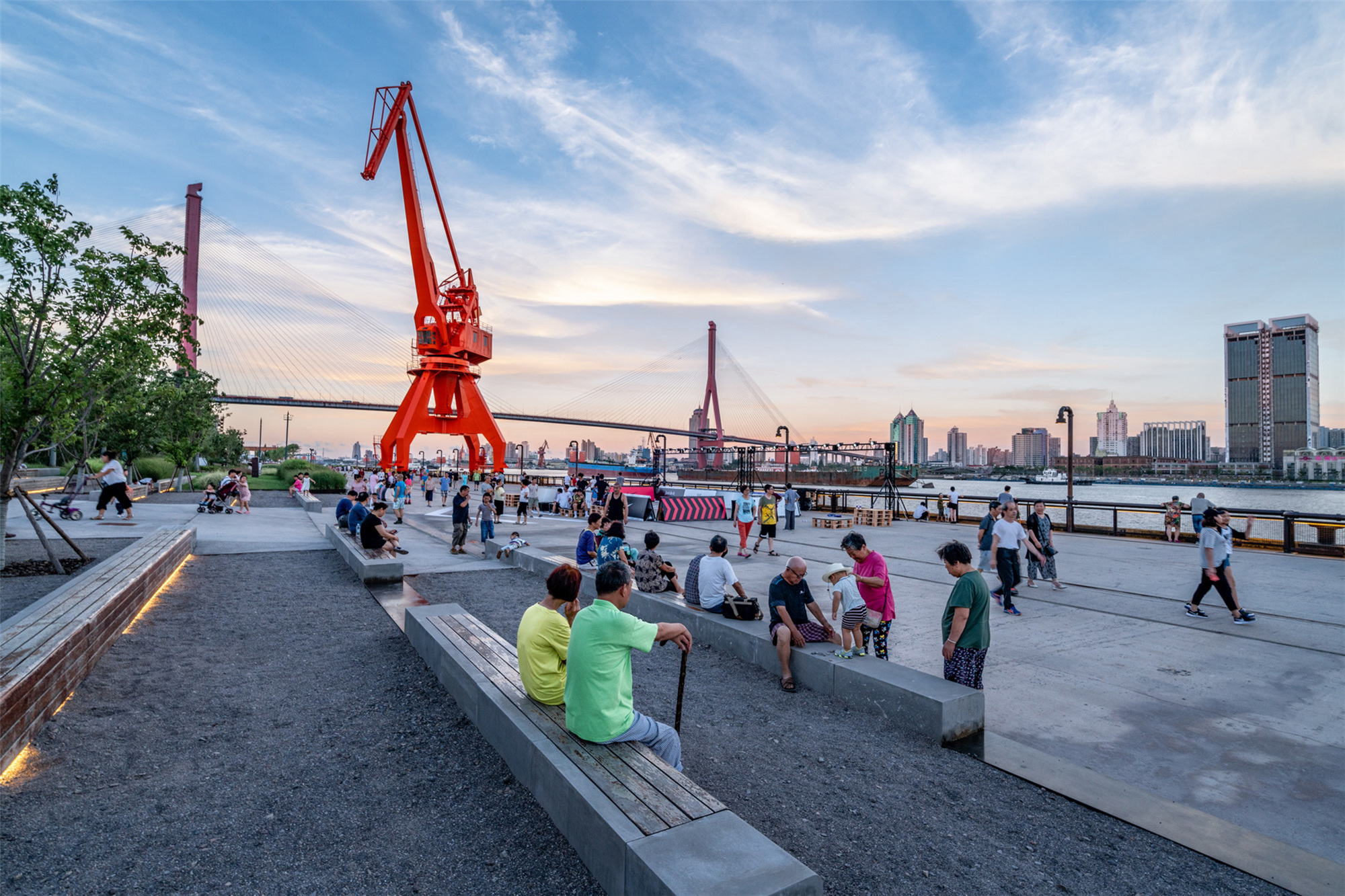

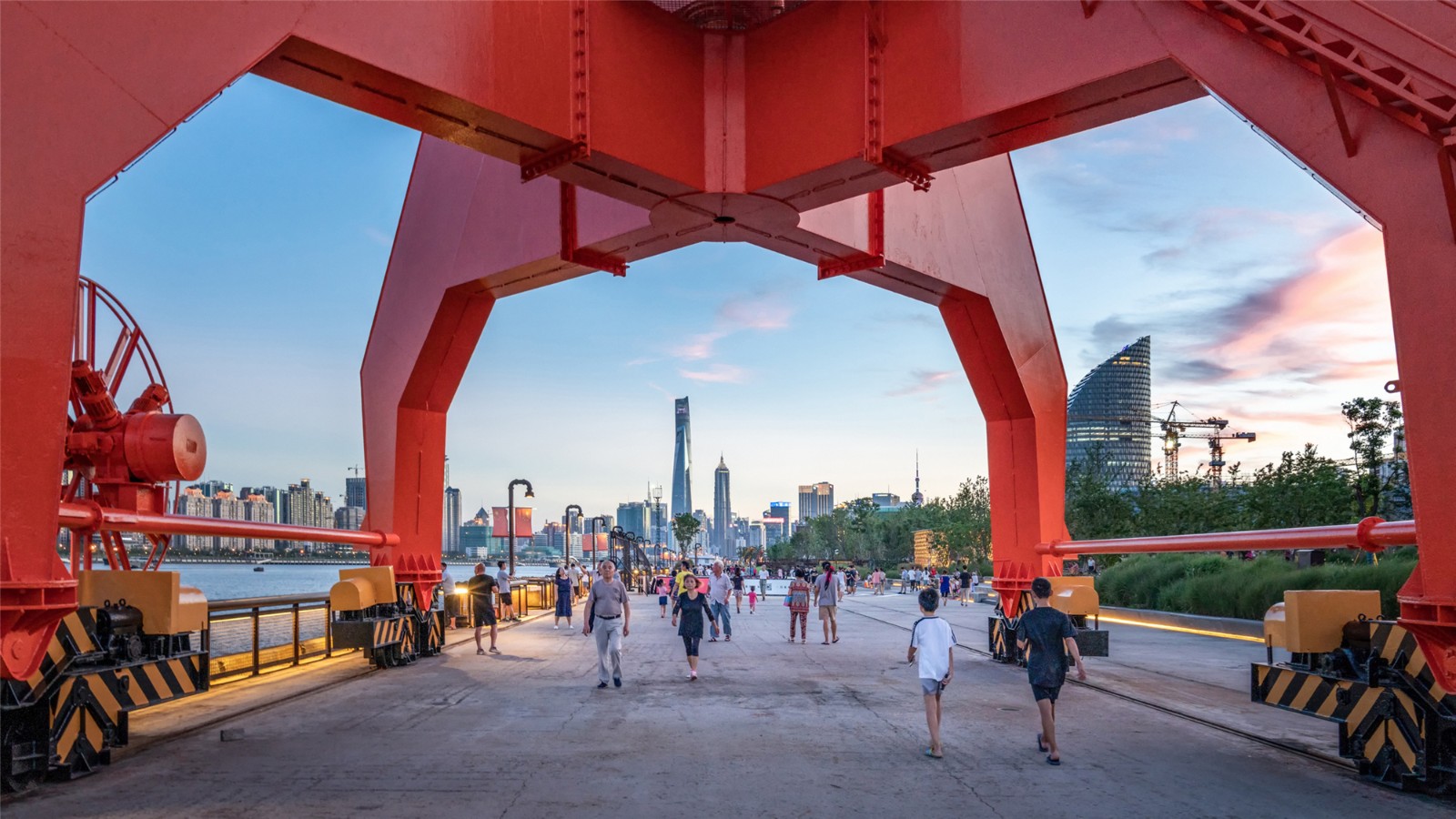

^{▲重達10噸的碼頭起重機成為新的視覺焦點 Old 10-ton dock crane as new attraction point}

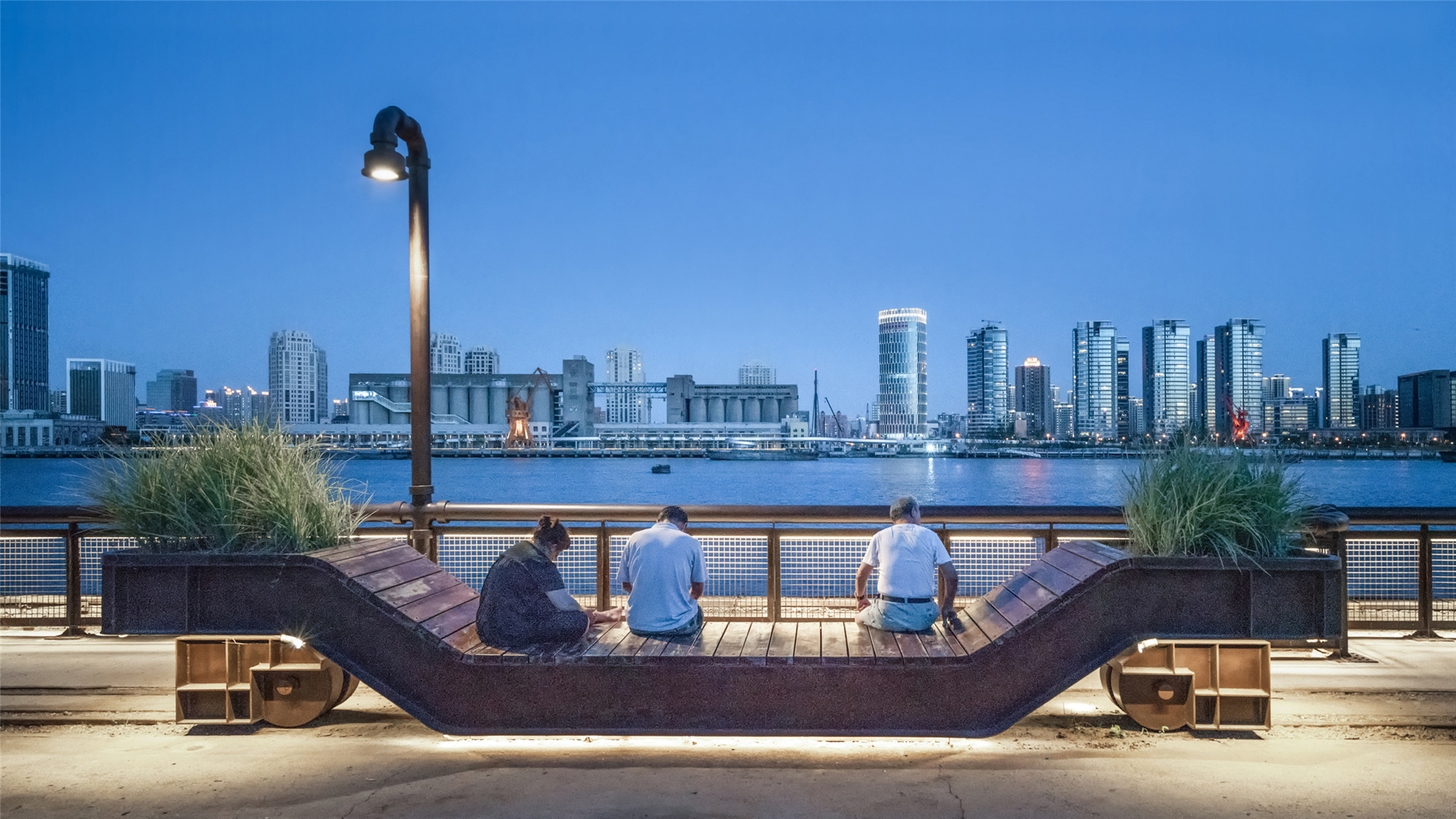

^{▲座椅的設計靈感來源于碼頭起重機的支腿 Bench derived from crane feet}

Ground art on the pier attracts attention.jpg

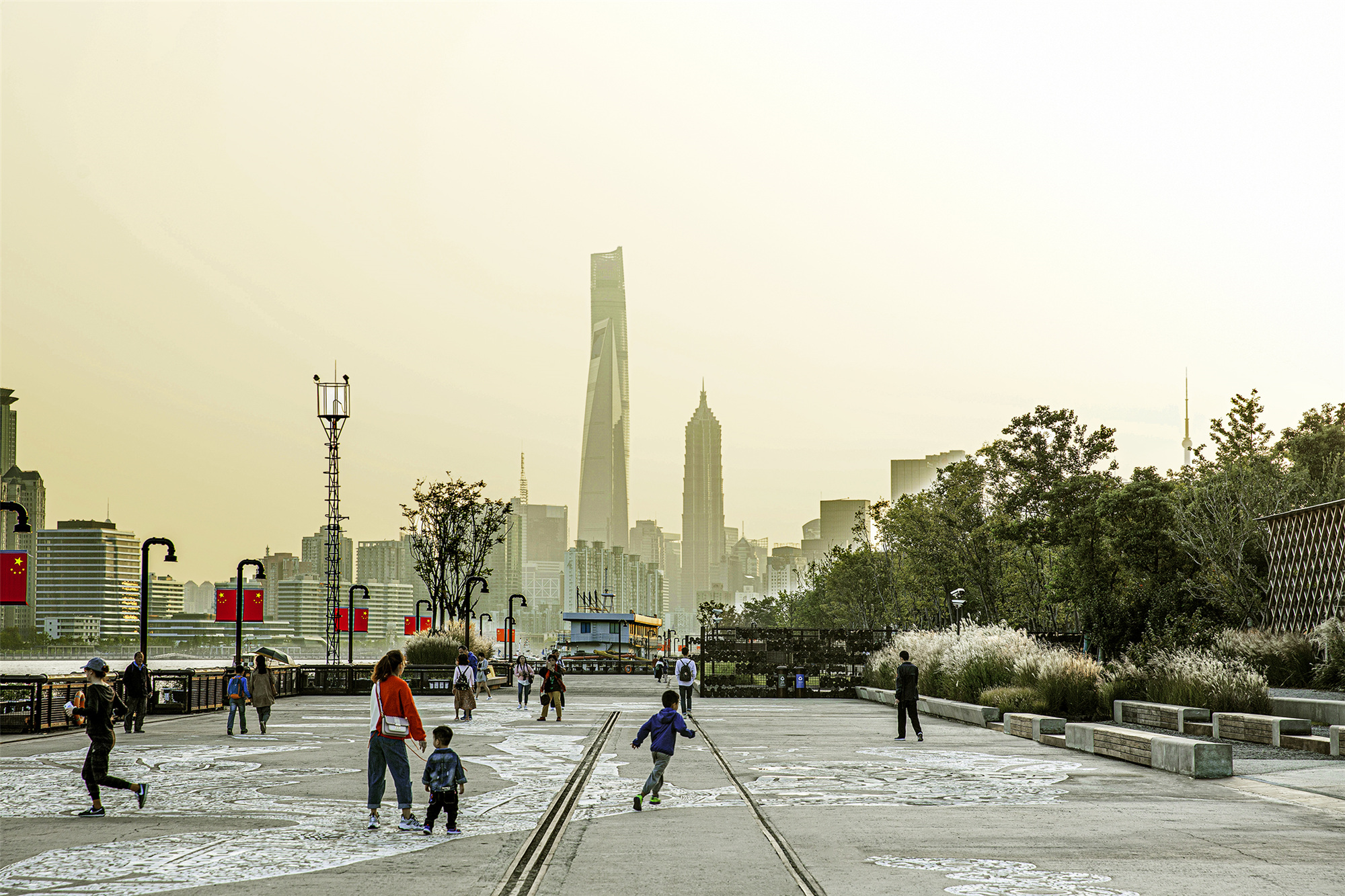

^{▲廣受歡迎的藝術地坪 Ground art on the pier attracts attention}

以黃浦江美麗的城市天際線為背景，楊浦濱江南段二期公共空間從人的視角出發，最終落實到人的活動，過去以生產功能為主的工業岸線在更新后實現了日常休憩與城市活動的彈性使用，重振活力的水岸真正回歸于公眾，也給未來留下了更多可能性。

^{With the beautiful city skyline of Shanghai as the background, the public space of the second phase of the Yangpu Riverfront South Section starts from the human view sights, and returns to the human activities. The industrial shoreline, which used to focus on production functions, is renewed to the flexibility of daily use and city events. The rejuvenating waterfront truly returns to the public, leaving more possibilities for the future.}
